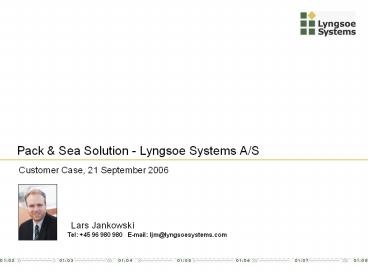

Pack Sea Solution - Lyngsoe Systems A/S
Customer Case, 21 September 2006 Lars
Jankowski Tel [phone] E-mail
ljm_at_lyngsoesystems.com
2
Contents of this presentation

• Lyngsoe Systems, company information
• Pack Sea Solution
• Lyngsoe CatellaeTM architecture

3

• Lyngsoe Systems, company information

4
Lyngsoe Systems Key Figures

• Privately owned IT company
• Business lines Postal, Airports, Food,
  Healthcare, RFID
• Headquarter in Denmark, offices in US, Canada,
  Romania
• 180 employees, 70 software engineers
• 30 years experience in managing, implementing
  and supporting large software projects worldwide
• RFID systems integrator since 1994
• Annual turn-over approx. 30 M,with 10 yearly
  growth
• ISO 90012000 certified in software

slide 4
5
Lyngsoe Systems Customer References
More than 1100 solutions worldwide...
slide 5
6

• Pack Sea solution

7
Pack Sea A/S

• Pack Sea A/S is a cooperation of Danish
  Fishermen Associations
• The objective is to increase the volume of
  seapacked fish, which have higher quality and
  value
• The business challenge is to eliminate an
  5-7 annual loss rate on returnable fish
  crates and improve availability of crates

8
Objective for Pack Sea Solution

• - Tracking of Fish Crates
• Streamline invoicing of leased crates
• Track crates and ensure return to stock or
  billing if lost
• - Food Traceability
• Tracking of the fish from vessel to consumer
• Full documentation of the flow
• EU compliancy and support forISO 22000

9
Pack Sea Solution

• Why use RFID tags
• Barcodes do not survive
• RFID tags and readers are now available at
  reasonable prices
• A standard for RFID (EPC Gen2) is now available
• Experienced turnkey solution providers are
  present

10
Pack Sea Solution
Basis for traceability is the GS1 standard. (EAN
128)

• GTIN for each product of finished goods.
• SSCC for each logistic unit.
• GLN for each site in the supply chain.
• GRAI for each returnable asset.
• XML interface for data exchange between actors.

slide 10
11
Pack Sea Solution

• Fish crate basics
• Each fish crate is equipped with EPC Gen2 RFID
  tags holding a GRAI identification code
• RFID tags are moulded into each handle for
  protection from harsh environment
• Pack Sea is tagging 200.000 fish crates

The tag will be moulded into the plastic for
complete protection
12
Pack Sea Solution

• System infrastructure
• Stationary RFID Readers and RFID enabled
  handheld terminals are used at key points in
  the supply chain
• Crate wash line (offset point)
• Crate dispatch area
• Vessels
• Collector terminal
• Aucition
• Customer / Exporter
• Lyngsoe CatellaeTM Asset Management and
  CatellaeTM Food Traceability systems are
  managing all information
• Hosted by Lyngsoe Systems all users have
  secure access through web

13
Pack Sea Solution
PackSea ERP system
Equipment on vessels
Weight scalesRFID
PackSea, Collectors, Auctions,
Exporters, Customers, Regulators
Equipment on harbours
Handheldterminals RFID
Catellae 2.14 Asset Management
RFID portals
Catellae 2.14 Food Traceability
Hosted system at Lyngsoe Systems
14
Pack Sea Solution

• Asset Management Information
• Actual location of each fish crate (last place
  of registration)
• Real-time overview over stock of crates
• Exact data for calculation of crate leasing
• Documentation for the transactions basis for
  invoicing lease of crates
• basis for invoicing of lost crates

15
Pack Sea Solution

• How tracking of fish crates supports food
  traceability in the supply chain
• Informations connected to the fish crate
  according to GS1TRACEFISH standard
• Vessel
• Species
• Size
• Weight
• Time of capture
• Place of capture
• Current owner
• Parties and timestamp for each handover
• Traces the fish back in the supply chain to
  the vessel with full documentation for each step

16
Benefits with the Lyngsoe Systems Solution

• Crate Management
• Reduction of annual loss rates on returnable fish
  crates
• Reduce stock of crates to actual need no
  overstocking
• Monitoring of the quality and state of crates
• Significant reduction of lost crates due to
  misplacement
• Significant reduction of reallocation costs
• Easy location of crates
• Clear change of responsibility for crates
  (documentation for invoicing)
• Food Traceability
• Tracking of the fish from vessel to consumer
• Full visibility and documentation of the flow
• Supports ISO 22000 in the seafood sector

17

• Lyngsoe CatellaeTM architecture

18
Lyngsoe Systems Product Range

• Catellae Product Suite

Catellae Portal
WMS
Food Trace Safety
Asset Management
Business Intelligence
Brands Protection
Catellae Base system
ERP interfaces
Selected screendumps from our Catellae Asset
Management system.
slide 18
19
Real-time stock of crates graphical overview
20
Real-time stock of crates - stakeholders
21
Transaction Report
22
Half-year report
23
Total no. of crates in circulation
24
- Thank you !
