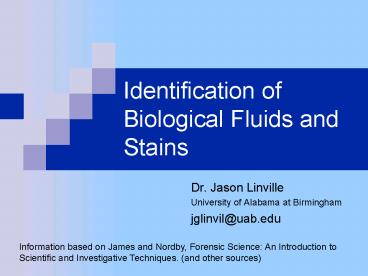

Identification of Biological Fluids and Stains

1
Identification of Biological Fluids and Stains

• Dr. Jason Linville
• University of Alabama at Birmingham
• jglinvil_at_uab.edu

Information based on James and Nordby, Forensic
Science An Introduction to Scientific and
Investigative Techniques. (and other sources)
2
Summary

• Semen
• Saliva
• Urine

• Feces
• Vomit

3
Summary

• Semen
• Saliva
• Urine

• Feces
• Vomit

4
Identification of Semen

• Why is semen important in an investigation?

• Evidence in sexual assault cases
• Can help prove a crime was committed
• Can identify the perpetrator

5
Identification of Semen

• What is semen?

• Semifluid mixture of
• Cells
• Enzymes
• Other organic and inorganic materials

Sperm cells are most important component as they
are specific to semen.
6
Identification of Semen

• Searching for Semen Stains

• May be on clothing, skin, bedding, etc.

• Visual inspection yellowish-white

• Alternative light source look for fluorescence

7
Semen Identification

• UV Light (Woods Lamp Technique)

• Due to non-protein substances in semen.

• Due to growth of bacterium Pseudomonas
  fluorescens (produces fluorescent substances

• Appearance can differ depending on background
  material. (bluish white vs. dark area)

8
Semen Identification
UV light (350 nm) causes blue emission (460 nm).
9
Semen Identification

• Presumptive Tests

• Seminal acid phosphatase (SAP)

10
Semen Identification

• Seminal Acid Phosphatase

• Acid phosphatases are a class of enzymes found in
  various living tissues
• Mammalian liver to cauliflower stem juice

• Semen contains very high levels of seminal acid
  phosphatase
• Levels high until 40 gradual decrease
• Levels not relation to sperm count

11
Semen Identification
SAP is an enzyme secreted by the epithelial cells
of the prostate gland.
12
Semen Identification
High levels of SAP in blood may indicate prostate
cancer.
13
Semen Identification

• Seminal Acid Phosphatase

• Brentamine Fast Blue Test (the test for SAP)
• Will react with semen diluted 500x

14
Semen Identification
Brentamine Fast Blue Test

• Breakdown of sodium-a-naphthyl phosphate by acid
  phosphatase
• Conversion of o-dianisidine (Fast Blue B) to a
  colored compound

15
Semen Identification

• Seminal Acid Phosphatase

• Method (Brentamine Fast Blue Test)
• Substrate (sodium-a-naphthyl phosphate)
• Chromogen (o-dianisidine)
• Seminal acid phosphatase (in semen)

• SAP reacts with substrate.
• Product of this reaction reacts with the
  chromogen (causes color change)

16
Semen Identification

• Seminal Acid Phosphatase

• Method for Stain (Brentamine Fast Blue Test)
• Moist swab or filter paper is rubbed over stain
• Reagent containing substrate and chromogen is
  dropped on swab/paper

17
Semen Identification

• Seminal Acid Phosphatase

• Method for Stain (Brentamine Fast Blue Test)
• Moist swab or filter paper is rubbed over stain
• Reagent containing substrate and chromogen is
  dropped on swab/paper
• Positive reaction is a purple color

Swabs of orifices and skin are often collected in
sexual assault cases.
18
Semen Identification

• Seminal Acid Phosphatase

• Method for Swab (Brentamine Fast Blue Test)
• Moist filter paper is rubbed over swab
• Reagent containing substrate and chromogen is
  dropped on paper
• Positive reaction is a purple color

19
Semen Identification

• Seminal Acid Phosphatase

• Method for Large Areas (Brentamine Fast Blue)
• Lay large strips of filter paper over area
• Mark paper and item so paper can be replaced
  after test
• Spray with water and firmly press
• Remove and spray paper with reagent
• Positive reaction is a purple color

20
Presumptive Test
Negative result means the questioned stain is not
likely semen.

• Positive result means the questioned stain is
  likely semen.

21
Semen Identification

• SAP False Positives

• Fresh stains will produce a strong color change
  reaction.
• Old stains may produce a weak reaction.
• Other materials (urine, vaginal secretions,
  perspiration) may produce weak reactions

Experience of analyst will determine how to
proceed.
22
Semen Identification

• Confirmatory Tests

• Christmas Tree Stain (of sperm cells)

• Prostate-Specific Antigen (PSA)

23
Semen Identification

• Christmas Tree Stain

• Microscopic examination for sperm cells

• Staining helps distinguish sperm cells from
  epithelial cells

• Two Dyes used
• Green Stains tails
• Red Stains heads

24
Semen Identification

• Prostate-Specific Antigen (PSA or p30)

• PSA is a protein produced by the prostrate gland.

• Can confirm semen in SAP samples that do not
  contain sperm.

• Test relies on antigen (PSA) and antibody
  interaction

25
Semen Identification

• Prostate-Specific Antigen (PSA or p30)

• Swab or cutting agitated in water

• Drop of this solution added to test well

• Liquid moves through result well

26
Semen Identification

• Prostate-Specific Antigen (PSA or p30)

• Antibody is already bound to membrane

• Visible test line (T) means PSA is present

• Other lines are controls (show test was done
  properly)

Positive
Negative
Inconclusive
27
Identification of Saliva

• What is saliva?

28
Saliva Identification

• What is saliva?

• Water, mucus, enzymes, other stuff

• Humans produce 1 1.5 L of saliva a day

• Aids in digestion by lubricating food and begins
  breakdown of starches

29
Saliva Identification

• How is saliva detected?

• Look for the presence of Amylase
• Enzyme that breaks down starch
• Found in many body fluids very high in saliva

• Two tests
• Starch-iodine test
• Phadebas Reagent

30
Saliva Identification

• Starch-Iodine Test

• Iodine and starch turn blue
• As amylase breaks down starch, color subsides

• Procedure
• Gel containing starch is stained blue with iodine
• Sample is added to well in gel. If amylase
  (saliva) is present, the blue color begins to
  vanish

or
Before
Negative
Positive (saliva)
31
Saliva Identification

• Phadebas Reagent

• Starch linked to a colored dye
• Presence of Amylase releases the dye

• Two methods for using Phadebas Reagent
• Press Test
• Tube Test

32
Saliva Identification

• Phadebas Reagent (Press Test)

• Phadebas reagent (tablets dissolved in water)
  sprayed on filter paper, then allowed to dry

• Phadebas paper placed on area to be tested

• Paper is sprayed with water and pressed against
  area

33
Saliva Identification

• Phadebas Reagent (Press Test)

• Paper is left on area and watched for blue color
  change

• Can be watched for up to 40 minutes for color
  change

34
Saliva Identification

• Phadebas Reagent (Tube Test)

• Small piece containing stain is placed in tube

• Water and Phadebas tablet added. Heated.

• Centrifuged to pellet tablet remnants and piece
  of cloth.

• Amount of color in top liquid can be measured by
  a spectrophotometer.

35
Saliva Identification

• Saliva Tests (summary)

• Since amylase is present in other body fluids,
  these tests do not confirm saliva.

• The tests are not very sensitive. (low
  levels of saliva may not be detected)

36
Saliva Identification

• DNA in Saliva

• With some biological stains, DNA testing is more
  important than identifying the stain.

• If a test destroys cells, it may not be done
  before DNA testing

• Example stamps, envelope, bite marks saliva is
  inferred
