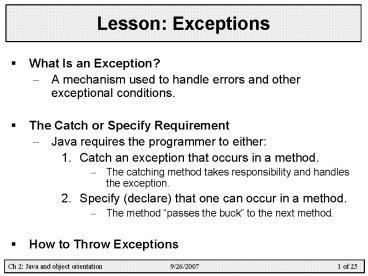

Lesson: Exceptions

1
Lesson Exceptions

• What Is an Exception?
• A mechanism used to handle errors and other
  exceptional conditions.
• The Catch or Specify Requirement
• Java requires the programmer to either
• Catch an exception that occurs in a method.
• The catching method takes responsibility and
  handles the exception.
• Specify (declare) that one can occur in a method.
• The method passes the buck to the next method.
• How to Throw Exceptions

2
What is an Exception (Exceptional Event)?

• An exception is an event, which occurs during the
  execution of a program, that disrupts the normal
  flow of the programs instructions.
• When an error occurs within a method, the method
  creates an object and hands it off to the runtime
  system. The object, called an exception object,
  contains information about the error, including
  its type and the state of the program when the
  error occurred.
• Creating an exception object and handing it to
  the runtime system is called throwing an
  exception.
• After a method throws an exception, the runtime
  system attempts to find something to handle it.
  The set of possible somethings to handle the
  exception is the ordered list of methods that had
  been called to get to the method where the error
  occurred. The list of methods is known as the
  call stack (see the next slide).

3
The Call Stack (or Stack Trace)
The sequence of method calls that leads to an
exception is called the call stackor the stack
trace.
main
4
What Happens When an Exception Occurrs?

• The runtime system searches the call stack for a
  method that contains a block of code that can
  handle the exception. This block of code is
  called an exception handler.
• The search begins with the method in which the
  error occurred and proceeds through the call
  stack in the reverse order in which the methods
  were called.
• When an appropriate handler is found, the runtime
  system passes the exception to the handler. An
  exception handler is considered appropriate if
  the type of the exception object thrown legally
  matches the type that can be handled by the
  handler.
• The exception handler chosen is said to catch the
  exception.
• If the runtime system exhaustively searches all
  the methods on the call stack without finding an
  appropriate exception handler, as shown in the
  next figure, the runtime system (and,
  consequently, the program) terminates.

5
What Happens When an Exception Occurrs?
Throws an exception
main
6
Scenario 1 exception is caught
Throws an exception. Does not handle the
exception. Forwards the exception.
Method where an exception was detected
Method without an exception handler
The Exception is not caught here. Forwards the
exception
Method with an exception handler
Catches exception. The exceptionis handled here.
main
7
Scenario 2 exception is not caught
Throws an exception.
Method where an exception was detected
The Exception is not caught here.
Method without an exception handler
Handles some other type of exception.
Method with an exception handler
The Exception is not caught here.
main
8
The Catch or Specify Requirement

• Valid Java code must honor the Catch or Specify
  Requirement.
• This means that code that might throw certain
  exceptions must contain either
• A try statement that catches and handles the
  exception.
• A method that specifies that it can throw the
  exception.
• Code that fails to honor the Catch or Specify
  Requirement will not compile.
• Not all exceptions are subject to the Catch or
  Specify Requirement.

9
The Three Kinds of Exceptions1. Checked Exception

• These are exceptional conditions that a
  well-written application should anticipate and
  recover from.
• Example suppose a user enters a name for a
  nonexistent file
• A method that detects the invalid filename will
  throw a
• java.io.FileNotFoundException
• A well-written program must catch this exception
  and take corrective action.
• Methods in the call stack Must honor the Catch or
  Specify Requirement for the Checked Exception.

10
The Three Kinds of Exceptions2. Error

• These are exceptional conditions that are
  external to the application, and that the
  application usually cannot anticipate or recover
  from.
• Example a hardware error occurs in the process
  of reading a file.
• A method that detects the hardware failure will
  throw a
• java.io.IOError
• A method could catch this type of error and
  handle it by notifying the user or printing a
  stack trace and exiting.
• However, in general, for the Error type of
  exception, the program cannot do anything
  reasonable to recover from the exception.
• Methods in the call stack are not requried to
  honor the Catch or Specify Requirement for the
  Error type of Exception.

11
The Three Kinds of Exceptions3. Runtime Exception

• These are exceptional conditions that are
  internal to the application, and that the
  application usually cannot anticipate or recover
  from.
• These usually indicate programming bugs.
• Examplea logic error causes a null to be passed
  as a filename.
• A method that detects the null will throw a
  NullPointerException.
• A method could catch this type of error do
  something. But, it is best to stop the program
  and eliminate the bug that caused the exception
  to occur.
• However, in general, for the Runtime Exception,
  the program cannot do anything reasonable to
  recover from the exception.
• Methods in the call stack are not requried to
  honor the Catch or Specify Requirement for the
  Runtime Exception.

12
How do I know if it is a checked exception or an
unchecked exception?

• Experienced programmers seem to know which
  exceptions are checked
• The application can reasonably recover from
  checked exceptions.
• The application cannot reasonably recover from
  unchecked exceptions.
• However, there are two ways programmers can
  verify their intuition
• The compiler tells us which exceptions are
  checked
• The compiler will report an error if we call a
  method that may throw checked exceptions, and we
  dont implement the Catch or Specify
  Requierement.
• In Javas exception inheritance hierarchy,
  checked exceptions are not a subclass of the
  RuntimeException or Error classes.

13
Throwable Class and Its Subclasses

• Throwable objects must be instances of any
  subclass of the Throwable class.

14
How To Setup the Catch Mechanism Constructing an
Exception Handler

• try
• /Identify the code that that might cause an
  exception to be thrown, and enclose that code in
  a try block. /
• catch (ExceptionType1 name1)
• //code that handles exceptions of type
  ExceptionType1.
• catch (ExceptionType2 name2)
• //code that handles exceptions of type
  ExceptionType2.
• finally
• //cleanup code, e.g., close file handles.

15
How To Setup the Catch Mechanism Constructing an
Exception Handler Example

• How to determine which exception(s) can be
  thrown, for example
• try
• out new PrintWriter(new FileWriter(OutFile.txt
  ))
• catch . . .
• FileWriter(String fileName) throws IOException -
  if the named file exists but is a directory
  rather than a regular file, does not exist but
  cannot be created, or cannot be opened for any
  other reason.
• It is also possible that a FileNotFoundException,
  a subclass of IOException, could be thrown,
  particularly since the argument of FileWriter is
  intended to be the file name of the file to be
  opened for writing.

16
How To Setup the Catch Mechanism Constructing an
Exception Handler Example

• Consider the following code within a writeList()
  method.

17
How To Setup the Catch Mechanism Constructing an
Exception Handler Example (Cont)

• try
• out new PrintWriter( new FileWriter(OutFile.t
  xt))
• catch (FileNotFoundException e)
• System.err.println(Caught FileNotFoundExcept
  ion
• e.getMessage())
• //Notify the user and prompt to correct the
  filename.
• catch (IOException e)
• System.err.println("Caught IOException "
• e.getMessage())
• //Analyze the exception message and try to
  recover.
• finally if (out ! null)
• System.out.println("Closing PrintWriter")
• out.close()
• else
• System.out.println("PrintWriter not open")


18
Scenario 1 A FileNotFoundException
Occurrs(Continued)

• The constructor for the FileWriter throws an
  FileNotFoundException.
• The runtime system immediately stops executing
  the try block
• method calls being executed are not completed.
• The runtime system then starts searching at the
  top of the method call stack for an appropriate
  exception handler.
• The FileWriter constructor is at the top of the
  call stack. However, the FileWriter constructor
  doesn't have an appropriate exception handler.

19
Scenario 1 A FileNotFoundException
Occurrs(Continued)

• The runtime system then checks the next method in
  the call stack
• The writeList method has two exception handlers
• One for FileNotFoundException and one for
  IOException.
• The runtime system checks writeList's handlers in
  the order in which they appear after the try
  statement.
• The argument to the first exception handler
  matches the type of exception that was thrown.
• So the runtime system ends its search for an
  appropriate exception handler.
• Now that the runtime has found an appropriate
  handler, the code in that catch block is
  executed.

20
Scenario 1 A FileNotFoundException
Occurrs(Continued)

• After the exception handler executes, the runtime
  system passes control to the finally block.
• Code in the finally block executes regardless of
  the exception caught above it.
• In this scenario, the FileWriter was never opened
  and doesnt need to be closed.
• After the finally block finishes executing, the
  program continues with the first statement after
  the finally block.

21
Scenario 2 An IOException Occurrs

• In this scenario, everything happens in the same
  order as in Scenario 1, except for the search for
  an handler.
• The argument to the first exception handler does
  not match the type of exception that was thrown.
• So the runtime system searches the next handler,
  which handles exceptions of type IOException.
• The argument to the second exception handler
  matches the type of exception that was thrown.
• So the runtime system ends its search for an
  appropriate exception handler.
• Now that the runtime has found an appropriate
  handler, the code in that catch block is
  executed.

22
Scenario 3 Try Block Executes Successfully

• In this scenario, all the statements within the
  scope of the try block execute successfully and
  throw no exceptions.
• Execution falls off the end of the try block, and
  the runtime system passes control to the finally
  block.
• Because everything was successful, the
  PrintWriter is open when control reaches the
  finally block, which closes the PrintWriter.
• Again, after the finally block finishes
  executing, the program continues with the first
  statement after the finally block.

23
Question?

• What happens if the order of the handlers were
  reversed and a FileNotFoundException was
  generated?

24
Specifying the Exceptions Thrown by a Method

• Sometimes, its better to let a method further up
  the call stack handle the exception.
• In this case, its better to not catch the
  exception and to allow a method further up the
  call stack to handle it.
• To forward an exception, use the throws keyword
  in the method declaration in which the exception
  may occur
• public void writeList() throws IOException
• The throws clause comprises the throws keyword
  followed by a comma-separated list of all the
  exceptions thrown by that method.

25
How to Throw Exceptions

• Before you can catch an exception, some code
  somewhere must throw one.
• Any code can throw an exception. For example
• Your code,
• Code in the java packages platform,
• The Java runtime environment.
• Exceptions are always thrown with the throw
  statement.
• throw someThrowableObject

26
How to Throw Exceptions Example

• public Object pop()
• . . .
• if (size 0)
• throw new EmptyStackException()
• . . .
