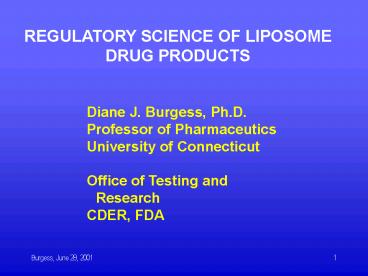

REGULATORY SCIENCE OF LIPOSOME DRUG PRODUCTS

• Diane J. Burgess, Ph.D.
• Professor of Pharmaceutics
• University of Connecticut
• Office of Testing and Research
• CDER, FDA

2
Outline

• What are liposomes?
• What are they used for?
• What drugs?
• Why liposomes?
• Liposome formulation
• Liposome characterization
• Safety concerns
• Performance concerns
• In vitro release testing
• stability

3
Outline Continued

• Purpose of in vitro release tests?
• Design of in vitro release test
• Accelerated/stress tests
• Method variables affecting release
• Methods under development
• In vivo factors affecting release
• In vivo data and models?
• IVIVC?
• Research proposal

4
LIPOSOMES

• Liposomes are colloidal, lipid vesicles
  consisting of one or more self-assembled lipid
  bilayers enclosing a similar number of aqueous
  compartments.
• Lipids, such as lecithin (diacylphosphatidylcholin
  e), are amphiphilic molecules. Due to the bulky
  nonpolar part of the molecule they do not pack
  into spherical micelles in aqueous phase but
  rather self-assemble into bilayers which tend to
  self-close at low concentrations into spherical
  structures.

5
LIPOSOMES Contd.

• Liposomes can be subcategorized into
• Small unilamellar vesicles (SUV), 25 to 100 nm
  in size
  that consist of a single lipid bilayer
• Large unilamellar vesicles (LUV), 100 to 400 nm
  in size that consist of a single lipid bilayer
• Multilamellar vesicles (MLV), 200 nm to several
  microns, that consist of two or more concentric
  bilayers
• Vesicles above 1 µm are known as giant vesicles.

6
Liposomes

• Localized and rate controlled delivery
• Improved therapeutic response
• Achieve appropriate tissue or blood levels
• Reduced adverse reactions
• Less drug administered
• Targeted drug release
• Lower dosing frequency
• Improved patient compliance
• Simpler dosing regimens
• Lower cost per dose
• Utilization of otherwise un-useable compounds
• Poorly soluble drugs

7
Drug Candidate Selection

• Known therapeutics with clear toxicity and
  pharmacokinetic profiles
• Potent compounds
• Not Narrow Therapeutic Index drugs
• Problems associated with the current dosage
  forms
• First pass effects or poor absorption
• Gastric irritation
• Rapid clearance
• Medical need for improved delivery
• Drugs compatible with manufacturing conditions

8
.

• APPROVED LIPOSOME PRODUCTS
• Doxil Daunorubicin 1995
• Daunoxome Daunorubicin 1996
• Ambisome Amphotericin B 1997
• Depocyt Cytarabine 1999
• APPROVED LIPID COMPLEX PRODUCTS
• Ambelcet Amphotericin B 1995
• Amphotec Amphotericin B 1997

9
SELECTION OF DELIVERY SYSTEM

• Liposomes targeted delivery. They can deliver
  agents directly into cells. Routes i.v., s.c.,
  i.m., topical, pulmonary
• Microspheres - can provide continuous drug
  delivery over periods of months to years.
  Systemic and localized. i.m., s.c., oral,
  pulmonary
• Emulsions - can be used to make highly water
  insoluble compounds bioavailable. i.v., oral,
  topical

10
LIPOSOME FORMULATION

• LIPOSOMES
• Liposomal composition determines the properties
  (e.g. surface charge, rigidity and steric
  interactions) and the in vitro and in vivo
  performance.
• Both water soluble and water insoluble drugs may
  be encapsulated
• Processing methods affect particle size,
  percentage drug entrapment, stability and release
  rates

11
LIPOSOME FORMULATION

• Processing methods
• Extrusion, ultrasonication and microfluidization
  for hydrophobic drugs and
• Reversed phase and freeze-thaw for hydrophilic
  drugs.

12
Liposomes Factors Affecting Performance

• Release Rate and Stability
• Phase transition temperature (Tg) effects
  membrane changes from ordered solid to disordered
  fluid and is dependent on the length and degree
  of saturation of the hydrocarbon chains.
• Cholesterol - disordering of the ordered phase
  and ordering of the disordered phase eventually
  leading to an elimination of the phase
  transition. High stability and low leakage
• Surface charge and steric interaction RES
  targeting/avoiding RES uptake

13
Types of Liposomes

• Conventional Liposomes
• Prepared form natural neutral and anionic lipids
  and have nonspecific interactions with their
  environment
• Relatively unstable, have low carrying
  capacities, and tend to be leaky to entrapped
  drug substances
• May literally fall apart on contact with plasma,
  particularly those of high fluidity,
• Choleterol is often added to increase plasma
  stability

14
Types of Liposomes

• Non-conventional Liposomes
• Small sized ( 100 nm), surface modified to
  overcome some of the short comings of
  conventional liposomes
• Modified to reduce negative charge, decrease
  fluidity and cause steric hinderance to
  phagocytosis
• Properties altered (e.g. by incorporation of
  cholesterol)
• Polymerized liposomes more stable and less
  leaky
• Polyetheylene glycol, pegylated liposomes,
  avoid uptake by the mononuclear phagocytic cells

15
TYPES OF LIPOSOMES

• Target specific ligands, such as antibodies,
  immunoglobulins, lectins and oligosaccharides
  attached to the surface to actively target to
  specific sites in the body
• Targeting via particle size
• Liposomes prepared with cationic and fusogenic
  lipids are currently being utilized in gene
  therapy to deliver DNA into target cells

16
TYPES OF LIPOSOMES

• Highly reactive liposomes - readily undergo phase
  transition in particular situation
• sensitive to pH, ions, heat and light
• For example, pH-sensitive liposomes can undergo
  phase transition in acidic conditions resulting
  in increased membrane fluidity and loss of
  encapsulated materials

17
CRITICAL FACTORS IN LIPOSOME PREPARATIONJ

• Particle size
• Method of manufacture
• Lipid types
• Phase transition temperature
• Polymerization
• Interfacial charge
• Steric stabilization
• Sterilization

18
Liposomes Factors Affecting Performance

• Liposome preparations can be stored frozen, in
  liquid form and as a freeze dried powder.
• Reconstitution of liposomes may affect particle
  size and size distribution.

19
SAFETY CONCERNS LIPOSOME FORMULATION

• Lipid toxicity (RBC lysis)
• Type and concentration
• Lyso-lipids
• Presence of protein and lipoprotein for natural
  lipids
• Residual solvent
• Overload of RES
• Particle size
• (tail above 1 um) - Blockage of capillaries
• Size affects RES uptake and tissue targeting
• Stability shelf-live and in vivo
• Dose dumping (via protein binding)
• Sterility

20
LIPOSOME CHARACTERIZATION

• StabilIty
• Drug
• Lipids
• Liposome
• Phase transition temperature
• Percent drug loading
• Percent free drug
• Drug release rate/stability
• Particle size
• Morphology (lamellarity)
• Sterility

21
STERILITY

• Terminal sterilization?
• Aseptic processing
• Must consider both internal and external
  sterility

22
STABILITY

• Active
• Inactives (especially the lipids)
• Liposome as a whole need
• Any change in particle size can affect targeting,
  RES uptake, safety and efficacy.
• In vivo stability of whole liposome is
  particularly important for targeted liposomes,
  since they should remain stable in the plasma
  without loss of contents until uptake at the
  target site.

23
LIPOSOME DESTABILIZATION

• Protein binding
• Membrane fusion

24
Drug Release from Liposomes

• Release profiles are application dependent.
• Targeted liposomes should remain intact until
  delivery at site
• Other (short term CR and solubilization) release
  during appropriate time scale.
• Release controlled by
• Fluidity/stability (lipids/co-lipids)
• Condition sensitivity of lipids
• Size
• MLV or a SUV
• Physicochemical properties of drug
• Drug/lipid interaction

25
In Vitro Drug Release

• Apparatus?
• Media?
• Sampling methods?
• Testing intervals?
• Total percent release?
• No standard method at present

26
Liposome Performance In Vitro Release and
Stability

• Separation of liposomes from dissolution media
  complicates testing
• Current USP methods designed for oral and
  transdermal routes
• In vitro tests need to take into account the
  expected in vivo performance of liposomes

27
Liposome Performance In Vitro Release and
Stability

• Release test for a targeted liposome would need
  to show
• 1) liposome is stable until uptake at the site
• 2) liposome releases drug at the site (based on
  the mechanism of release in vivo).
• Release test for an immediate release liposome
  would need to show
• Drug is released immediately in conditions
  mimicking human plasma.

28
Current Methods of In Vitro Testing of Liposome
Systems

• Membrane Diffusion Technique
• Sample and Separate Technique
• In Situ Technique
• Continuous Flow Technique

29
Development of In Vitro Release and Stability
Methods for Liposomes

• Purpose methods to be used in setting
  regulatory specifications for these products for
  quality control (QC) purposes to differentiate
  between good and bad batches.
• Tests design will vary depending on the intended
  in vivo performance of liposomes

30
Purpose of In Vitro Release Test?

• Quality control and safety evaluation
• Batch to batch
• Manufacturing process changes
• Substantiation of label claims
• Evaluation of potential dose dumping
• Assessment of in vivo stability
• Real time vs accelerated/stress test
• In vitro - in vivo correlation

31
Design of In Vitro Release Method

• Select media and apparatus to achieve
  reproducible results
• Attempt to overcome limitations of existing
  methods
• Miniaturize methods
• Prepare formulation variants with different in
  vivo performance
• Test formulation variants in vitro and in vivo
• Modify in vitro test if not discriminatory
• Determine in vivo factors that effect release
• Modify in vitro methods to obtain IVIV
  relationship

32
Accelerated In Vitro Release Methods

• These tests should be predictive of real time
  in vitro tests
• Drug release mechanism should not be altered
• Accelerated test should not simply dissolve the
  liposome

33
Media and Methods that can affect Release

• Solvents
• pH
• Temperature
• Agitation
• Enzymes
• Cell culture
• Sink conditions
• Volume
• Sampling interval

34
In Vivo Factors Affecting Drug Release
35
In Vivo Factors

• Delivery System Independent (Type I)
• Delivery System Dependent (Type II)

• Barriers to drug diffusion fluid viscosity,
• tissue barriers (e.g. connective tissue)
• Drug partitioning at the site
• Available volume at the site
• Motion at Site

• Enzymatic degradation of delivery system
• Protein adsorption
• Phagocytosis
• Inflammatory response

36
In Vivo Data

• Systemic delivery, then plasma levels
• may be suitable

• Localized delivery, plasma levels will be
• low and unrepresentative.
• Requires tissue levels
• Use animal models in method development
• Use Biomarkers

37
In Vivo Data

• Use animal model to help design in vitro test
• Establish relationship between in vitro data and

• animal in vivo data
• Establish a relationship between animal in vivo

• data and human PK, biomarkers, PD response
• Develop relationship between in vitro data
• Human data

38
(No Transcript)
