Title: Magnetostratigraphy

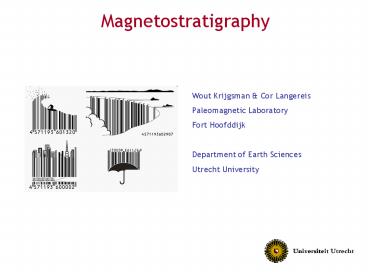

1
Magnetostratigraphy
  • Wout Krijgsman Cor Langereis
  • Paleomagnetic Laboratory
  • Fort Hoofddijk
  • Department of Earth Sciences
  • Utrecht University

2
MagnetostratigraphyPossibilities, pitfalls and
applications
  • Cor Langereis, Wout Krijgsman
  • Paleomagnetic Laboratory Fort Hoofddijk
  • Dept. of Earth Sciences, Utrecht University
  • Giovanni Muttoni
  • Dept. of Earth Sciences, University of Milan
  • Manfred Menning
  • Geoforschungs Zentrum Potsdam, Germany

3
Magnetostratigraphya dipole reversing at
irregular times
4
Origin of reversals
5
GPTS Geomagnetic Polarity Time Scale
Barcode may give unique solutions - but of an
essentially BINARY nature - and can be distorted
in the rock record
6
Magnetostratigraphy ? part of integrated
stratigraphy
  • Biostratigraphy first-order chronology
  • - taxonomy, reworking, diachrony, ages
  • Magnetostratigraphy globally synchonous barcode
  • - depends on good paleomagnetic signal
    recording
  • Cyclostratigraphy astronomical dating,
    fine-tuning
  • - astronomical solutions (gt 20 Ma)
  • - interpretation of phase relations

7
Integrated stratigraphy
  • Biostratigraphy
  • - first-order chronology
  • Magnetostratigraphy
  • - globally synchonous barcode
  • Cyclostratigraphy
  • - fine-tuning astronomical dating

8
Geomagnetic time scales
9
K/Ar dating of lavas Cox et al., 1964
10
Magneto-bio-stratigraphy
Opdyke et al., 1966
- Advent of deep-sea cores inclination only -
Biostratigraphy (faunal zones) for dating
11
Marine magnetic anomalies
12
Marine magnetic anomalies
13
Marine magnetic anomalies
14
Pitman and Heirtzler, 1966
15
MarineMagneticAnomalies
DeepSeaCores
vs.
16
Continental drift
17
Developing the GPTS
18
PaleomagnetismDRM vs. CRM- inclination
error- delayed NRM acquisition
19
Accuracy of recording reversals
Watkins, 1968
20
Geomagnetic Polarity Time Scale(GPTS)or
Polarity zones (subchrons) or excursions
(cryptochrons) ?
Geomagnetic Instability Time Scale(GITS)reve
rsal excursions
21
Magnetostratigraphic resolution
  • Laj Channell (2007) proposed

Resolution depends on - sampling resolution
(easy just take more samples) - sediments
sedimentation rate suitable recording medium -
diagenesis, lock-in depth, overprints, etc., etc.
22
Magnetostratigraphic resolution
Nomenclature OK but for practical (integrated)
stratigraphy and constraints on
chronostratigraphy ?
23
Marine magnetic anomalies
World crustal age
24
Triassic magnetostratigraph beyond the sea
floor record
25
Even oldermagneto-stratigraphy ?
26
The times they are a-changin
(Bob Dylan, 1964) Wout Krijgsman
27
Time dates and rates
Tools Biostratigraphy Magnetostratigraphy Astroch
ronology Isotopic dating
Aims Marine-continental Paratethys-Mediterranean
Synchrony-diachrony Event stratigraphy
28
Geological Time ScaleGradstein et al.
(2004)GTS2004
Neogene based on astronomical ages
Paleogene based on radio-isotopic ages
29
Magnetostratigraphy Cyclostratigraphy
Astronomical TuningClimate cyclesAstronomical
solutions
Hilgen et al., 2004
30
Astronomical Polarity Time Scale (APTS) for the
Mediterranean Neogene
31
(No Transcript)
32
Sicily, 2 weeks ago
33
Sampling, 15 years ago
Sicily, 2 weeks ago
34
Cyclostratigraphy astronomical tuning ... ATNTS
in GTS2004
Lourens et al., 2004
35
Biostratigraphy vs. Magnetostratigraphy
  • Problems
  • Taxonomy
  • Diachrony
  • Reworking
  • Ages
  • Problems
  • Correlation
  • Primary signal
  • vs. overprint
  • Ages

36
Correlation Requires unique pattern fit
Magneto age 7.6 0.1
K/Ar age 6.16 0.30
Garces et al., 2001
37
Ages GPTS not independent of other dating
techniques
38
The times they are a-changing Ages change
with time
39
Astrochronology
  • Problems
  • Cycle recognition
  • Phase relation
  • Correlation
  • Astronomical solution

40
Astrochronology correlation of cyclic variations
in the geological record to computed astronomical
(age) curves
41
Milankovitch cycles
42
Sapropel-marl cycles, upper Miocene, Sicily
Eccentricity minimum
Precession minimum
Gibliscemi, Sicily, Italy
43
Partial Unit-Stratotype of the Zanclean stage
(Lower Pliocene)
Punta di Maiata, Sicily, Italy
44
Lignite-marls cycles, Mio-Pliocene, Greece
Precession minimum
Ptolemais quarry, Greece
45
Sand-marls cycles, Mio-Pliocene, Romania
PONTIAN Acc. rate in C3r
137cm/kyr Periodicity cycles 22.7kyr
Putna river section,eastern Carpathians
46
Clay-carbonate cycles, Miocene, Spain
Orera section, Spain
47
Clay-carbonate cycles, Triassic, USA
Painted desert/Petrified forrest, Arizona
48
MioceneAPTS
  • Astrochronology for the Late Miocene
  • Sections on Crete correlated bed-to-bed to Sicily
  • Hilgen et al. (1995)

49
Messinian evaporites Northern Apennines (Italy)
50
Messinian Chronology
51
Messinian Salinity Crisis
Evaporites synchronous all over Mediterranean at
5.96 Ma
Krijgsman et al. 1999
52
Chronology evaporites
Cyclostratigraphy Italy Evaporites 16 cycles
(Marabini and Vai, 1988)
53
Chronology evaporites
Cyclostratigraphy Spain Evaporites 14-17 cycles
(Dronkert, 1976 M.S.G.l. Fortuin et al., 2000
Sed. Geol.)
54
Chronology evaporites
Top of Lower Evaporites 5.60-5.52 Ma (Krijgsman
et al. 2001 Sed. Geol.)
55
La93 ltgt La2004
56
Radio-Isotopic dating
  • Problems
  • Technique (K/Ar vs. Ar/Ar)
  • Error determination
  • Mineral dating standards

57
Error determination
Ar/Ar ratio mass spectrometer precision depends
on e.g. measurement protocol, mass discrimination
Decay constant
J is an irradiation parameter and its accuracy
depends on an accurately known age of a mineral
standard.
58
Mineral dating standards Fish Canyon Tuff
59
Betic Corridor problem
K/Ar age of 6.16 0.30
Ar/Ar age of 7.71 0.11
Magnetostratigraphy Tortonian Salinity Crisis
Fortuna Basin (Garces et al. 1998 2001)
60
Method Garces et al. (2001) Magnetic age 7.6
0.1 Ma Bellon et al. (1983) K/Ar age 6.16
0.30 Ma Kuiper et al. (2002) Ar/Ar age 7.71
0.11 Ma
61
Intercalibration Isotopic ages and astronomical
ages
Faneromeni section Messinian, Crete
62
40Ar/39Ar vs. astronomical ages
6.94 Ma
Fan-a1, Crete Miocene, marine 2? 0.01 Ma N
44 3 different irradiations
6.65
6.75
6.85
6.95
7.05
7.15
Age (Ma)
Kuiper et al., 2003
63
40Ar/39Ar vs astronomical ages
Ptolemais SLM3T
Ptolemais SR3M
4.39 Ma
4.31Ma
4
4.1
4.2
4.3
4.4
4.5
4
4.1
4.2
4.3
4.4
4.5
Age (Ma)
Age (Ma)
Messadit Me-1
Messadit Me-11
6.45 Ma
6.58 Ma
6.2
6.3
6.4
6.5
6.6
6.7
6.2
6.3
6.4
6.5
6.6
6.7
Age (Ma)
Age (Ma)
64
Intercalibration Isotopic ages and astronomical
ages
Morocco / Spain Kuiper et al., 2008
65
Intercalibration Inter-laboratory calibration
Kuiper et al., 2008 (Science)
66
Intercalibration Isotopic ages and astronomical
ages
K/T Boundary Zumaia (Spain) new age of 65.96 Ma
67
Mediterranean vs Paratethys Late Miocene -Early
Pliocene
68
Evolution of the Time Scales from Eastern
Paratethys
10 TIMES longer
69
Carpathians foredeep
Pontian
Dacian
  • Stoica et al., submittted

70
Carpathians foredeep
EC
SC
  • Vasiliev et al., 2004 2005

71
Putna Valley
PONTIAN Acc. rate in C3r
137cm/kyr Periodicity cycles 22.7kyr
72
Southern Carpathians
Eastern Carpathians
73
The evolution of Paratethys the lost sea of
Central Eurasia
Vici project 2011 3 PhD / 2 Postdoc positions
