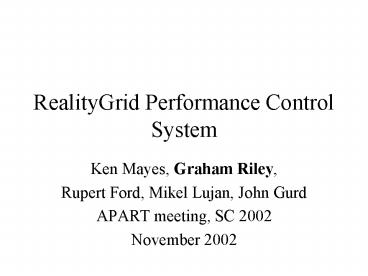

RealityGrid Performance Control System

1
RealityGrid Performance Control System

• Ken Mayes, Graham Riley,
• Rupert Ford, Mikel Lujan, John Gurd
• APART meeting, SC 2002
• November 2002

2
Overview

• Set the context
• RealityGrid and a Use Case
• Design of our Performance Control System
• Brief look at prototype implementation
• Role of performance analysis
• Related projects at Manchester

3
Context

• Grid applications will be distributed and, in
  some sense, component-based.
• To deliver the power grid model, adaption is key!
• Elevate users above Grid resource and performance
  details.
• Our work is considering adaption and its impact
  on performance
• Adaption in coupled modelling deployment,
• Flexibility in deployment of compositions of
  coupled models,
• Adaption due to malleable components.
• Present an example of the latter from the
  RealityGrid project.

4
RealityGrid - Aims

• A UK e-Science testbed project.
• Predict realistic behaviour of matter
• Large scale simulation, computational steering
  and high performance visualisation.
• Techniques Lattice Boltzman (LB), Molecular
  Dynamics (MD), Monte Carlo (MC).
• Discovery of new materials through the
  integration of prediction and experiments (LUSI
  facility).

5
Application Codes

• LB3D (LB) Lattice Boltzman simulation of oil,
  water and surfactant (detergent) in porous media.
• Plus reduced version, without surfactants
• LAMMPS (MD) atomistic/molecular simulation
• Oxford MC code TINKER

6
Academic partners
Queen Mary, University of London Imperial
College University of Manchester University of
Edinburgh University of Oxford University of
Loughborough
7
Industrial Partners

• Schlumberger
• Edward Jenner Institute for Vaccine Research
• Silicon Graphics Inc
• Computation for Science Consortium
• Advanced Visual Systems
• Fujitsu

8
RealityGrid Use Case
Tracking a parameter search
Params 1
LB3D
Output rate 1 Resolution 1
T100
User Changes dynamically
Output rate 2 Resolution 2
T100
LB3D
Display simulation time equal
Params 2
9
RealityGrid Use Case
Tracking a parameter study
Params 1
LB3D
Output rate 1 Resolution 1
Params 2
LB3D
Output rate 2 Resolution 2
User Display rates equal
10
Malleable LB3D - mechanisms

• Lb3d will respond to requests to change resources
• Use more (or less) pes ( mem) on current system
• Move from one system to another
• Via machine independent (parallel)
  checkpoint/restart
• Lb3d will output science data (for remote
  visualisation) at higher or lower rates
• Lb3d will (one day) respond to requests to
  continue running at higher (or lower) lattice
  resolution
• Each of the above affects performance (e.g.
  timesteps per second rate)
• Each has an associated cost

11
Use Case - detail

• User might be tracking many parameter set
  developments (one per lb3d instance)
• Some will be uninteresting (for a while)
• Lower output rate / resolution / terminate
• Some will become interesting
• Increase output rate / resolution
• One aim Re-distribute resources amongst all lb3d
  instances to maintain highest possible timestep
  rate

12
A General Grid Application
Generate Data
Component 1
Component 2
Component 3
Computational Grid Resources
Applications and components exhibit phased
behaviour
13
Performance Steerers - Design
Initial deployment Run-time adaption
Component Framework
Computational Grid Resources
14
Full System
External Resource Scheduler
Application Performance Repository
Component Performance Repository
Loader
Resource Usage Monitor
15
Performance Prediction

• Role of APS
• To distribute available resources amongst
  components such that the predicted performance of
  components gives a minimum predicted execution
  time.
• Role of CPS
• To utilise resources and component performance
  effectors (actuators) so that the predicted
  execution time of the steered component is
  minimised.

16
Two Types of Predictor

• History and Heuristics
• NewSystemApplicationParameters
  PREDICTOR(HistoryPerfData)
• Parameters plus models
• PredictedPerfData PREDICTOR(SystemApplicationPa
  rameters)
• Therefore need a repository of information about
  the components and the application.

17
Application Progress Points

• Assume that the execution of the application
  proceeds through phases. Phase boundaries are
  marked by Progress Points.
• NB. Can take decisions about performance and take
  actions at the progress points
• Must be safe points

18
Component Progress Points
APS
Application progress points
CPS
Component progress points
Component
Time

• Information about progress points will be
  contained in some repository.

19
Implementation
APS as daemon, CPS as library
Comms I/f
CPS Progress
Sockets (rpc)
Comms I/f
Component Interface
Procedure calls
Component control
20
Implementation
Machine 1
APS
socket
Machine 3
Machine 2
CPS
LB3D
shmem
shmem
MPIRUN
Component Loader
Component Loader
socket
DUROC RSL GLOBUS GRIDFTP
21
Start-up Process

• GlobusRun, RSL script for Component loaders (one
  per machine in Grid) plus APS daemon.
• Loaders connect to each other.
• LB3D started by Loader (via MPIRUN), calls CPS (a
  library) at start-up.
• CPS connects to APS.
• Lb3d calls CPS at each subsequent progress point
  and CPS communicates with APS.
• Continue until LB3D completed (e.g. no. of
  timesteps complete).

22
Example

• Every N tsteps, move LB3D between machines 2 and
  3 determined by APS.
• At tstep mod N progress point in LB3D, APS tells
  CPS, which tells the component, to checkpoint,
  CPS writes certain status information to the
  shmem area and then lb3d (and CPS) dies.
• Loader on machine it ran on communicates to
  loader on machine it is to run on. The restart
  file is Gridftpd along with restart info. (e.g.
  tstep to shmem area of new loader).
• New LB3D is started and CPS manages the restart.
• Continue until no more tsteps.

23
Role of Performance Analysis

• Description of phased behaviour
• Progress points and APART regions etc.
• At component and application level
• Information kept in repositories
• Capturing the performance/resource use data
• populating the component and application
  repositories.
• Performance prediction/derivation
• History-based / model-based, through analysis of
  contents of repositories.
• On-line and off-line.

24
Role of Performance Analysis

• Note traditional APART performance analysis is
  part of the development process NOT the
  production process.
• Early Grid systems will probably clearly
  distinguish development phases from production
  phases!
• At least, service providers will

25
Related Projects at Manchester

• APART 2, joint EC-NSF working group funding.
• Met Office FLUME, design of next generation
  software
• Coupled models
• Tyndall Centre Climate Impact, Integrated
  assessment modelling
• Coupling climate and economic models
• DCD-ICE proposal (expected soon)
• Coupled modelling in aircraft wing ice domain
• Computational Markets
• UK e-Science funded (Imperial College led)
