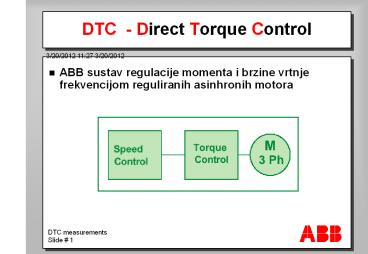

DTC - Direct Torque Control

1
DTC - Direct Torque Control

• ABB sustav regulacije momenta i brzine vrtnje
  frekvencijom reguliranih asinhronih motora

2
Usporedba reguliranih pogona
3
Energetski krug pretvaraca ACS 600 20-40 kVA
4
DTC sustav regulacije
5
Blok shema pretvaraca ACS600 snage 60-100 kVA
6
Measurements - Mjerenja

• Step response of torque control Odziv
  regulacije momenta
• Torque ramp at zero speed Linearna promjena
  momenta na 0 brzine
• Estimated shaft speed in torque ramp Brzina
  osovine pri promjeni momenta
• Slow fast reversing Polagano i brzo
  reverziranje
• Dynamic speed accuracy Tocnost regulacije
  brzine
• All measurements are on DTC if not otherwise
  stated all DTC measurements are done without
  tacho.

7
Step response of torque control

• 70 torque reference step at 25 Hz. Measured
  air-gap torque and phase current.

8
Step response of torque control

• 70 torque reference step at 25 Hz. Estimated
  air-gap torque.

9
Torque ramp at zero speed DTC

• Torque ramp from 100 to -100 at zero speed
  (shaft locked). Shaft torque is measured.

10
Torque ramp at zero speed scalar control

• Torque ramp from 100 to -100 at zero speed
  (shaft locked). Shaft torque is measured.

11
Torque ramp at zero speed vector control

• Torque ramp from 100 to -100 at zero speed
  (shaft locked). Shaft torque is measured.

12
Estimated shaft speed in torque ramp
Zero speed torque ramp from Tnom to - Tnom

• Speed accuracy is better than 0,5 at zero
  speed. No tacho.

13
Slow reversing

• Slow reversing with constant torque reference
  (80 ). Shaft torque and speed are measured.

14
Fast reversing

• Fast reversing with constant torque load (-20
  ). Shaft torque and speed are measured.

15
Fast reversing

• Fast reversing with constant torque load (-20
  ). Phase current is measured.

16
Dynamic speed accuracy

• Shaft speed with nominal torque step speed ctl.
  gain high

17
Dynamic speed accuracy

• Shaft speed with nominal torque step speed ctl.
  gain low

18
Dynamic speed accuracy

• Shaft speed with nominal torque step speed ctl.
  gain low

19
Step response of speed control

• Step response of speed control (without
  tachometer)

20
Opteretivost pogona s DTC pretvaracem
