Semantic Web Services

1

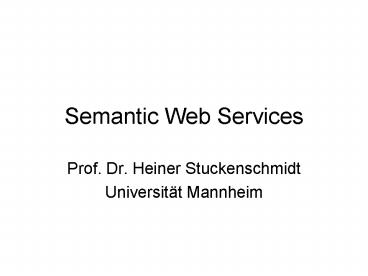

Semantic Web Services

• Prof. Dr. Heiner Stuckenschmidt
• Universität Mannheim

2
Überblick

• Web Services
• Web Service Descriptions
• Semantic Web Services
• Web Service Ontologies
• Learning Web Service Ontologies

3
From the Web to Web Services
Semantic
Semantic Web
Annotation
Functionality
Traditional Web
Service Web
Syntactic
Static
Dynamic
4
Service Oriented Architecture

• Service oriented architecture provides a standard
  means for interoperability of application
• that operate over the Internet where speed and
  reliability cannot be guaranteed
• whose deployment cannot be managed centrally
• that run on different platforms and vendor
  products
• need to be exposed for use over a network, such
  as the Internet

5
Definition Web Service

• A web service is
• a software system
• designed to support interoprable
  machine-to-machine interaction
• over a network.
• A web service has
• An interface
• typically conveyed using HTTP with an XML
  serialization
• described in a machine processable format.

6
Web Service Descriptions

• A service description specifies
• The format of massages to communicate with the
  service
• Datatypes used to represent in- and outputs of
  the service
• Transport protocols and serialization to be used
• Service Semantics (not part of the description !)
• the expected behavior of the service in response
  to a message.
• the intended meaning of the input and output data

7
Interaction via Web Services

• Requester and Provider become known to each other

• Requester and Provider agree on service
  description and semantics
• Service descriptions are realized by the agents
• Requester and provider agents exchange messages,
  thus performing the task

1
Requester
Provider
2
WSD
WSS
3
3
Requester Agent
Provider Agent
4
8
Tasks connected with Web Services

• Web Service Discovery Selection
• Find an airline that can fly me to Marina del
  Rey, CA.
• Web Service Invocation
• Book flight tickets from USAirways to arrive 12th
  Oct.
• Web Service Composition Interoperation
• Arrange taxis, flights and hotel for travel from
  Southampton to Portland, OR, via Marina del Rey,
  CA.
• Web Service Execution Monitoring
• Has the taxi to Gatwick Airport been reserved
  yet?

9
Web Service Discovery

• A registry is an authoritative, centrally
  controlled store
• Service providers actively place service
  description in the registry
• The registry owner decides who inserts what
  information
• An index is an automatically created guide to
  information
• Information about available services is collected
  and stored
• Different parties can maintain different indices
• In a P2P setting discovery is done dynamically
• Services know about neighboring services
• Queries by requester agents are forwarded to
  neighbors

10
Web Service Technologies

• The general architecture is implemented in W3C
  standards

Base Technologies XML, XML Schema
Descriptions WSDL Web Service Description
Language
Messages SOAP Simple Object Access Protocol
Communication HTTP Hypertext Transfer Protocol
11
Web Service Description Language

• A WSDL document is an XML document defining
• Service a collection of related network
  endpoints
• Operations actions supported by the service
• Port Types Sets of operations supported by an
  endpoint
• Binding concrete protocol and data format for a
  port type
• Port a single endpoint in terms of a binding and
  an address
• Types a container for data type definitions
• Messages typed definitions of data being
  exchanged

12
WSDL Structure
Service

• portType
• Abstract definition of a service (set of
  operations)
• Multiple bindings per portType
• How to access it
• SOAP, JMS, direct call
• Ports
• Where to access it

Port (e.g. http//host/svc)
Port
Binding (e.g. SOAP)
Binding
Abstract interface
portType
operation(s)
inMesage
outMessage
13
An Example Stock Quotes

• The service supports a single operation called
  GetLastTradePrice
• The operation is deployed using the SOAP protocol
  over HTTP.
• The service accepts a ticker symbol of type
  string as input and returns the trade price as a
  float number.

ltservice nameStockQuoteServicegt
ltdocumentationgtAn Example Web Servicelt/documentati
ongt ltport nameStockQuotePort
bindingtnsStockQuoteBindinggt
ltsoapaddress locationhttp//example.com/stockqu
ote/gt lt/portgt lt/servicegt
14
Ports and Messages
ltportType nameStockQuotePortTypegt
ltoperation nameGetLastTradePricegt
ltinput messagetnsGetLastTradePriceInput/gt
ltoutput messagetnsGetLastTRadePriceOutput
/gt lt/operationgt lt/portTypegt
ltmessage nameGetLastTradePriceInputgt
ltpart namebody elementxsd1TradePriceRequest
/gt lt/messagegt ltmessage nameGetLastTradePriceOut
putgt ltpart namebody elementxsd1TradePr
ice/gt lt/messagegt
15
Type Definitions
lttypesgt ltschema targetNamespacehttp//exampl
e.com/stockquotes.xsd xmlnshttp//www.w3.o
rg/2000/10/XMLSchemagt ltelement
nameTradePriceRequestgt
ltcomplexTypegt ltallgt
ltelement nametickerSymbol
typestringgt lt/allgt
lt/complexTypegt lt/elementgt
ltelement nameTradePricegt
ltcomplexTypegt ltallgt
ltelement nameprice typefloatgt
lt/allgt lt/complexTypegt
lt/elementgt lt/typesgt
16
Role of WSDL

• WSDL provides a definition of the programming
  interface of the service
• Ports define physical access points for the
  service
• Port types specify possible operations
• Messages define in- and outputs of operations
• Types define XML format in which in- and outputs
  have to be provided

17
Tasks revisited

• Web Service Discovery Selection
• Find an airline that can fly me to Marina del
  Rey, CA.
• Web Service Invocation
• Book flight tickets from USAirways to arrive 12th
  Oct.
• Web Service Composition Interoperation
• Arrange taxis, flights and hotel for travel from
  Southampton to Portland, OR, via Marina del Rey,
  CA.
• Web Service Execution Monitoring
• Has the taxi to Gatwick Airport been reserved
  yet?

18
Specifying Service Semantics

• Web Service Discovery requires to search for
  appropriate services based on functionality
  descriptions (Semantics).
• An appropriate Language for representing
  functional descriptions should at least be
• Web friendly (based on URIs and globally
  scalable)
• Unambiguous
• Capable of expressing complex functionality
• Capable of expressing new vocabularies and
  relations between functionalities

19
to Semantic Web Services
Semantic
Semantic Web Services
Functionality
Semantic Web
Annotation
Annotation
Functionality
Traditional Web
Service Web
Syntactic
Static
Dynamic
20
Requirements for Semantic Descriptions

• For computer programs to successfully interact
• There must be an agreement on the communication
  channel
• There must be an agreement on the form of the
  data
• There must be an agreement on the intended
  meaning of data
• There must be an agreement on the behavior of a
  service

21
Semantic Web Service

• Semantic WS - semantically annotated WS to
  automate discovery, composition, execution
• Example

lt rdfIDWS1"gt
ltowlshasInput rdfresource /gt
ltowlshasInput rdfresource
/gt ltowlshasOutput
rdfresource
/gt lt/ gt
22
OWL-S A Service Ontology

• OWL-S is an OWL ontology for describing services.

• It can be combined with domain ontologies
  describing the meaning of the data processed by a
  service

Service
Service Profile
Service Model
Service Grounding
How to access it data models and communication
What it does functionality and tasks
How it works behavior of the service
23
Service vs. Ontology
OWL Ontology
OWL Ontology
Profile Ontology
OWL-S
E_Commerce
Profile
Service
Process
Grounding
Book_Selling
Airline_Ticketing

• Domain Ontology
• Airport
• Flight Itinerary
• confirmation
• Reservation Number

OWL Ontology
Profile-Description BravoAir is an airline
ticketing service Input departure and arrival
airport Output confirmation and flight
itinerary or reservation number
Instance
24
A Closer Look at OWL-S
25
A Closer Look at OWL-S
26
Service Grounding
27
Domain Ontology OWL Web Ontology Language
Base Technologies RDF, RDF Schema
Service Semantics OWL-SService Ontology
Descriptions WSDL Web Service Description
Language
Base Technologies XML, XML Schema
Messages SOAP Simple Object Access Protocol
Communication HTTP Hypertext Transfer Protocol
28
Beispiel Flugbuchung

• Suche nach möglichen Flügen
• Auswahl eines Fluges

29
Beispiel Flugbuchung

• Buchung des ausgewählten Fluges

30
Domänen-Ontologie

• Beschreibung der Domäne
• Beschreibung von In- und Output sowie Bedingungen
• Relationen zwischen den entsprechenden Klassen

31
Atomare Prozesse

• Erstellung von Prozess Instanzen
• Verbindung zu Input und Output (Klassen)
• Bestimmung der Datentypen

32
Grounding

• Abbildung Atomarer Prozesse auf WSDL Ports

• Abbildung von Parametern auf Teile von WSDL
  Messages

33
Komplexe Prozesse

• Atomare Prozesse
• Kontrollstruktur
• Parameterübergabe

34
Service Profile

• Erstellung eines Profils für den Service
• Profil beinhaltet Input und Output Parameter
• Parameter im Profil müssen Teilmenge der
  eigentlichen Parameter sein

35
Semantic Services in myGrid

• Grid middleware to support in silico experiments
  in biology
• Bioinformatics programs are exposed as semantic
  web services
• GOALS
• Support Expert to learn
• From more services
• In less time
• A Better ontology (for SWS descriptions

600 (Services)
550 Concepts But only 125 (23) used for SWS tasks
36
Extraction method
Replace or delete sequence sections.
D0. Corpus
word 1 replace replace V i
word 2 or or U 1
lex-mod word 3 delete delete
V 1 lex-dep word 4 sequence sequence
N 5 nn word 5 sections section
N 1 obj
S1. MINIPAR (A)
D1. Tagged Corpus
37
Implementation in the GATE Framework
38
Quantitative Evaluation

• After Pruning
• Low noise gt high precision
• Many new additions, especially for Methods

39
Qualitative Evaluation
I wish I had that before!
40
Summary Learning Web Service Ontologies

• Achievements
• Methods for Extracting Ontologies from Software
  Documentation
• Implementation of the Methods in the GATE
  Framework
• Evaluation in realistic scenarios
• Impact
• Reference Application for GATE in the Semantic
  Web Area
• Contribution to the myGrid Project
