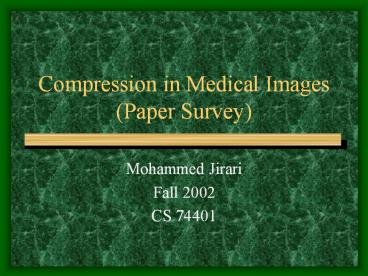

Compression in Medical Images (Paper Survey)

1
Compression in Medical Images(Paper Survey)

• Mohammed Jirari
• Fall 2002
• CS 74401

2
Need for Image Compression in Medical Images

• Image compression plays an important role in
  telematics applications and especially in
  telemedicine.
• Diagnosis is effective only when compression
  techniques preserve all the relevant info needed.
  (Lossless)

3
Lossy Compression

• More efficient in storage and transmission.
• No guarantee that characteristics needed for
  medical image diagnosis are preserved.
• Image characteristics are preserved in the
  coefficients of the domain space in which the
  original image is transformed. (In DWT, the
  wavelet coefficients keep all the info).
• Goal is to discard only the irrelevant wavelet
  coefficients according to a criterion (magnitude
  of values).

4
2 Proposed Methods

• Applying different thresholds to uniquely defined
  regions of the transform domain (opposed to the
  DWT where the same threshold is applied to the
  whole image).
• Separately, applying the same transformation to
  the regions of interest in which the image could
  be divided according to a predetermined
  characteristic (texture).

5
First Method

• The original image is transformed via the 2D DWT
  into bands of wavelet coefficients.
• Fuzzy c-means clustering is applied to each band,
  dividing it into 2 classes.
• Important regions have lower compression ratio
  than non-important ones.
• To reconstruct, the inverse 2D DWT is applied to
  the remaining wavelet coefficients (ones removed
  during compression are equal to 0).

6
Second Method

• Cluster the image into 2 classes (significant and
  non-significant textural regions).
• Texture identification analysis is performed
  based on 4 cooccurrence matrices
• Energy Angular Second Moment
• Correlation

7
Second Method (cont.)

• Inverse Difference Moment
• Entropy

8
Second Method (cont.)

• When pattern is texturally significant and
  cooccurrence matrices are used, then upper left
  point of the corresponding sliding window takes
  on label 255, otherwise 0. (for each gray level
  image a new black-white image IMP results)
• Decompose the original image into 2 images G1 and
  G2 by
• G1(x0,y0)MIN(G0(x0,y0),IMPG0(x0,y0))
  G2(x0,y0)MIN(G0(x0,y0),255-IMPG0(x0,y0))

9
Second Method (cont.)

• 2D DWT is applied to G1 and G2 (compression ratio
  for DWT-G1 is 60 and DWT-G2 is 80, we get
  DWT-G1 and DWT-G2 respectively).
• Reconstruct the image by
• G0aINV-2D-DWT-(DWT-G1)
• bINV-2D-DWT-(DWT-G2)
• NOTE Main problem is the elimination of
  blocking effects in the partitions boundaries
  (need to smooth the reconstructed image in these
  boundaries).

10

11
Region Of Interest Colon CT Image Compression
12
Segmentation of ROI

• Segmenting the colon from the CT data sets
  consists of three steps
• The air is separated away from the tissue
  by intensity thresholding
• The colon wall that surrounds the air is
  extracted by 3D extension of Sobels derivative
  operation.
• A morphological 3D grassfire operation
  determines the colon-wall region within 5- pixel
  margin.

13
(No Transcript)
14
ROI Based Compression Scheme

• Once the ROI is segmented in each slice
• A hybrid compression scheme is used for coding
  the images.
• The first slice of the volume is compressed with
  a lossless coder.
• Each slice is then coded by motion compensated
  coding.
• The difference between the real image ROI block
  and the predicted ROI block is coded by an
  entropy minimizing lossless coder(Huffman).

15
