1

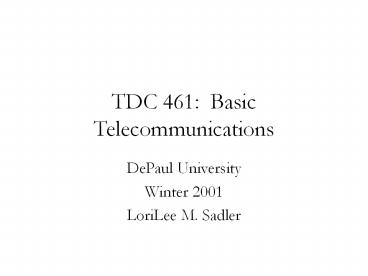

TDC 461 Basic Telecommunications
  • DePaul University
  • Winter 2001
  • LoriLee M. Sadler

2
Agenda
  • Welcome to TDC 461
  • Course Overview
  • Syllabus Overview
  • Intro to Telecommunications
  • Brief History of Telecom
  • Voice Characteristics
  • Analog vs. Digital
  • Telephone Set
  • Modems
  • Fax Machines

3
Course Overview
  • What youll get out of this course
  • basic concepts and info
  • sense of the real world application of telecom
  • heightened awareness of legal/social issues
    surrounding telecom technologies
  • ability to use your knowledge to evaluate
    proposed systems for feasibility and fit

4
Course Overview, cont.
  • What do you want to get out of this course?

5
Syllabus Overview
  • Instructor Info
  • Course Logistics
  • Grading
  • Homeworks
  • Exams
  • Academic Integrity
  • Class schedule

6
Class Tools
  • Web site
  • 461 Web tools

7
What is Telecommunications?
  • Voice
  • Data
  • Video
  • Integrated

8
Why Telecommunications Technology?
  • Helps solve communications problems of physical
    distance.
  • Helps solve communications problems of physical
    barriers.

9
Quality Measures of Telecommunications Systems
  • Cost
  • Efficiency
  • Quality
  • Time
  • Ease of Use

10
Problems in Telecom
  • Legacy systems
  • Interoperability public standards vs.
    proprietary standards
  • Costs

11
Communications Networks
  • What are they?
  • Why do we have them?
  • What is required to make them work?

12
Network Structure
POP Point of Presence PBX Private Branch
Exchange
13
Telecom History1876 - 1998
  • Technologies continuously improving
  • Regulatory Issues Who pays for all this? How
    much competition?
  • Business Issues How much does it cost? What
    services are available?

14
History of Transmission Technology
  • Through history, voice and data transmission
    systems are getting
  • Higher capacity
  • Lower cost

15
Analog Trunk Technology
16
Analog Trunk Technology
17
Digital Trunk Technology(T-Carrier hierarchy)
18
Digital Trunk TechnologySynchronous Optical
Network (SONET)
19
Switching History
20
Regulatory History
  • Alexander Graham Bell said
  • . . . and the lawsuits began.

Watson, Come Here! I need you!
21
Regulatory History
22
Regulatory History
23
Regulatory History
24
Regulatory History
25
Regulatory History
26
Modified Final Judgement1984
  • 7 Regional Holding Companies (RHCs) or Regional
    Bell Operating Companies (RBOCs) formed
  • Each RHC composed of multiple Local Exchange
    Companies (LECs)
  • Interexchange Carriers (IXCs) provide
    long-distance service.

27
Regional Holding Companies
US West
NYNEX (Bell Atl)
Pacific Telesis (SBC)
Ameritech
Bell Atlantic
SBC
Bell South
28
Modified Final Judgement1984
  • Examples
  • Ameritech, SBC, Southwestern Bell, etc. are Local
    Exchange Carriers (LECs)
  • ATT, MCI, Sprint, etc. are Interexchange
    Carriers (IXCs)

29
Network Structure
POP Point of Presence PBX Private Branch
Exchange
30
Modified Final Judgement (1984)
  • 231 Local Access and Transport Areas (LATAs)
    defined in US.
  • LECs can provide only intra-LATA service.
  • IXCs provide only inter-LATA service.
  • LECs must give customers equal access to all IXCs.

31
Problems with MFJ of 1984
  • No single company (LEC or IXC) can provide all
    communications services for its customers. This
    is inefficient.
  • LATA boundaries limit LEC services.
  • Many other companies (Cable TV, Competitive
    Access Carriers, etc.) are not constrained by MFJ.

32
The Solution? Deregulation!
  • Telecommunications Act of 1996
  • Allows IXCs to offer local service
  • Allows LECs to offer long-distance service (when
    they can show competition)
  • Allows Competitive LECs (CLECs) to share LEC
    facilities (for fair competition).
  • Allows combination of voice, data, video service
    packages.

33
Telecommunications Act (1996)
  • LECs must give competitors
  • All services at wholesale prices.
  • Access to telephone numbers, operator services,
    directory listings.
  • Access to poles, ducts, and right-of-ways.
  • Physical co-location of equipment within LEC
    buildings.

34
Telecommunications Act (1996)
  • A LEC can offer inter-LATA services when
    substantial competition exists on its network.
  • The courts are still deciding exactly what this
    means...

35
Telecommunications Act (1996)
  • Universal Service
  • LECs must provide affordable access for
    Schools, Libraries, Health Departments,
    Hospitals, etc.

36
Problems - Telecom Act 1996
  • IXCs are moving slowly on providing local service
    due to wiring costs.
  • LECs are still in court deciding
  • Cable TV carriers find it expensive to offer
    voice services over cable.

37
The Telephone Set
  • Telephone Set
  • Handset
  • Dial Pad

38
What is Speech?
  • Speech is a continuous change in air pressure
    over time generated by a vibrating larynx.
  • It is an analog waveform (can take any value).
  • It is a periodic waveform (repeats itself in time)

39
Periodic Signals
  • Amplitude (A) signal height volume
  • Measured in volts
  • Frequency of signal cycles/sec
  • Measured in Hertz (cycles per second)

40
Periodic Signals
  • Example For the signal above
  • Amplitude 3 volts
  • Fundamental Frequency 100 Hz

41
Voice Characteristics
42
Bandwidth-Limited Circuits
  • analog bandwidthgt
  • telephone circuit bandwidthgt
  • filteringgt

43
Why is Filtering done?
  • To save money
  • Quality is still good

44
Speech TransmissionVarying Air Pressure
Varying Electrical Current
Person produces changes in air pressure via
vibrating larynx.
Carbon granules in telephone receiver produce
varying resistance in response to changes in air
pressure
45
Speech Reception Varying Electrical Current
Varying Air Pressure
Changes in air pressure move ear drum and are
interpreted as speech.
Electromagnet in earpiece moves a diaphragm in
response to electrical current changes and
produces varying air pressure.
46
Analog vs. Digital Information
  • Analog information contains a continuously
    changing stream of values.
  • Digital information contains bits (binary digits)
    representing 0 or 1.

47
Analog vs. Digital Signals
  • Analog signals vary continuously and can take any
    value.
  • Digital signals change at discrete times and take
    only fixed discrete values.

48
Analog vs. Digital Transmission
  • Analog repeater circuits take weak signals and
    amplify them.
  • Digital repeater circuits analyze signals,
    amplify and remove accumulated noise.

Regenerator
49
Analog Signaling of Digital Data
50
Analog Signaling of Digital Data
Analog POTS in the PSTN
Digital ISDN in the PSTN
Digital Network (e.g. ISDN)
Analog Signal
51
Digital Signaling of Analog Data
  • Analog Data (e.g.voice) needs to be converted
    to/from a digital signal
  • for ISDN service, conversion performed in phone
    (or ISDN modem at desk top)
  • for analog POTS, conversion performed within line
    card at CO (in switch)
  • Conversion is performed by a CODEC (Coder /
    Decoder)
  • Desired qualities in a analog signaling scheme
    include
  • minimal data rate
  • minimal quantization noise
  • retention of voice fidelity

52
CODEC Operation
CODEC Process
  • Sampler samples the analog signal at fixed
    intervals defined by the sampling frequency,
    FSAMPLE.
  • Quantizer digitizes PAM samples into discrete
    levels and encodes a n bit binary pattern for
    each quantized sample

53
CODEC Operation- analog -gt digital -
  • Resulting data rate FSAMPLE x n

54
CODEC Operation- digital -gt analog -
  • PCM digital bit stream is collected into eight
    bits
  • sample is placed in the middle of quantization
    interval defined by binary code
  • resulting quantization error lead to quantization
    noise, QNOISE
  • signal is sent through a LPFFMAX

55
Modems
  • Essentially a CODEC
  • MOdulate/DEModulate
  • Standard Interface

56
MODEM Features
  • Half duplex vs full duplex
  • Synchronous vs asynchronous
  • Loopback testing is normally integrated into
    modem
  • Modems accept commands to provision and operate
    (e.g. FDXHDX or dial number) using the Hayes
    Command set
  • driver software uses the commands to provision
    the modems

57
MODEM standards
58
Fax Machines
  • Operation
  • Regulation ITU
  • Group 3
  • Group 4
