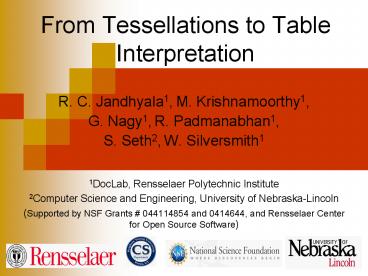

From Tessellations to Table Interpretation

1
From Tessellations to Table Interpretation

• R. C. Jandhyala1, M. Krishnamoorthy1,
• G. Nagy1, R. Padmanabhan1,
• S. Seth2, W. Silversmith1
• 1DocLab, Rensselaer Polytechnic Institute
• 2Computer Science and Engineering, University of
  Nebraska-Lincoln
• (Supported by NSF Grants 044114854 and 0414644,
  and Rensselaer Center for Open Source Software)

2
Goal Construction of a narrow-domain ontology
from semi-structured web data (table
understanding )
3
Outline
Tilings (rectangular tessellations) X-Y trees
(1984)
Grammars
Tables
Wang Categories (1996)
A B C D
4
Outline
Tilings (rectangular tessellations) X-Y trees
(1984)
Grammars
Tables
Wang Categories (1996)
A B C D
5
Web tables

• Cannot precisely define human-understandable
  tables.
• Convert to smaller set of admissible tables.
• Why? Algorithmic ease.

6
Admissible Tables

• Have stub, headings and data cells.

7
Factor out layout-equivalent tables
8
Outline
Tilings (rectangular tessellations) X-Y trees
(1984)
Grammars
Tables
Wang Categories (1996)
A B C D
9
Rectangular Tessellations

• Partition of an isothetic rectangle into
  rectangles.
• Uniquely defined by junction points (location and
  type).
• Number of tessellations increases rapidly with
  table size.

10
XY Tessellations

• Special case of rectangular tessellations.
• Successive horizontal and vertical cuts.
• Easily represented by trees.

11
A tiling and its X-Y Tree(aka slicing structure,
puzzle tree, tree map)
12
Non-slicing structures No XY tree
In fact, X-Y tilings are an infinitesimal
fraction of all tilings. This helps, because
tables never contain this spiral structure.
13
Fundamental Idea

• Use XY trees to automate table processing and
  understanding.

14
Table to XY tree EX2XY

• Applicable to any XY tessellation.
• Input Excel Table
• Copy and paste or Import.
• Edit to make admissible.
• Output XY tree
• as XML for portability.
• as parenthesized string for grammars.

15
Example
(http//www40.statcan.ca/l01/cst01/econ50-eng.htm)
16
After import into Excel
17
After Editing
18
Output - XML

• ltblock id'1.1.2.1' range'17,230,2'gt
• ltcontentgt
• Real gross domestic product, expenditure-based,
  by province and territory (millions of chained
  (2002) dollars)
• lt/contentgt
• lt/blockgt

19
Outline
Tilings (rectangular tessellations) X-Y trees
(1984)
Grammars
Tables
Wang Categories (1996)
A B C D
20
Table Grammars

• Can characterize entire families of tables.
• Developed grammar for one family.
• Input - Nested parenthesized notation .
• Output Accept/Reject as example of family.

21
Grammar

• For parsing column headers
• S A (Rule 1)
• A B (Rule 2)
• B c X B c X (Rules 3 and 4)
• X c X A X A c (Rules 5, 6, 7 and
  8)
• S is start symbol.
• A generates all admissible column headers.
• B generates category trees.
• c is a root category.
• X generates sub-categories.

22
Table Grammars

• Cannot check if table is consistent.
• Need further geometric alignment and lexical
  checks.

23
Outline
Tilings (rectangular tessellations) X-Y trees
(1984)
Grammars
Tables
Wang Categories (1996)
A B C D
24
Logical Structure of Tables

• How to interpret a table?
• Describe relationship between header cells and
  content cells Wang, U. Waterloo,1996.
• Wang notation
• Elegant description.
• Dimensionality Number of category trees.
• Cartesian product maps categories to data.

25
Layout independent Wang Notation
Different layout and same information means same
Wang Notation
26
Wang Category Trees for either table

• characteristic
• gonsity
• hepth
• fleck burlam falder multon
• Any data cell can be designated by a path
  through each category tree.
• Leaves correspond to row or column headings.

27
Real Table Understanding

• Analyzing logical structure not sufficient.
• Need additional information from title,
  footnotes, captions, etc.
• Semantic analysis of the labels also important
  need external knowledge.

28
Does Wang Notation always exist?

• Not always!
• Inconsistent tables do not have Wang Notation.
• Others can be edited using virtual headers.

29
XY tree to Wang Notation Algorithm

• Input XY trees.
• Output XML version of Wang Notation.
• Checks for table consistency.

30
Algorithm

• Locate principal regions - stub, headers and
  content cells.
• Extract Wang categories.
• Compute Cartesian product of category paths.
• Match each key to the content of a delta cell.

31
Conclusions

• Admissible layouts identified for ease of
  processing.
• Algorithms developed for
• extracting XY trees from tables.
• extracting Wang notation from XY trees.
• Family of tables identified using a grammar.

32
Future work

• Augmentations - captions, aggregates, units, etc.

• Expand the grammar.
• Automate conversion of table to admissible
  formats.

(http//www40.statcan.ca/l01/cst01/agri111a-eng.ht
m)
33
THANK YOU
34
Goal construction of a narrow-domain
ontologyfrom semi-structured web data(table
understanding )

• Currently multon is the best choice for rapitting
  velters. It is about 25 better than burlam or
  falder, which have the same girby (hepth/gonsity
  ratio).
• Check another table to see whether elmer is even
  better.
• NOT TODAY!

35
H-first tree can be transformed into V-first
tree(and vice-versa)
36
EX2XY Algorithm

• Two workhorses
• Vertical_cut returns leftmost sub-rectangle of
  a given rectangle.
• Horizontal_cut returns topmost sub-rectangle of
  a given rectangle.

37
EX2XY Algorithm (contd.)

• Used in a pair of procedures P1 and P2.
• P1 cuts vertically and submits first
  sub-rectangle to P2 for horizontal cuts.
• Similarly with P2.

38
Parenthesized notation

• P-notation has 11 correspondence with general
  trees.
• For above table, the XY tree sentence is
• Sxy c c c c c c c c c c c c.

39
A table with six Wang dimensions
40
XY2WANG Other features

• Handles more complex scenarios
• Higher dimensionality.
• Deeper nesting of headers.
• Repetitive headers.

41
(http//www40.statcan.ca/l01/cst01/econ50-eng.htm)
42
Table Augmentations Example
43
Raghavs Experiment
44
Results
45
Results (Contd.)
46
Conclusion

• Average total time to process a table - 231
  seconds.
• Average table size - 587 cells before
  preprocessing.
• Average preprocessing time - 104 seconds.
• 3 category tables took approximately 27 seconds
  more than 2 category tables.

47
Conclusion (Contd.)

• Tables with aggregates and footnotes - more time
  to process.
• Strong correlation between processing time and
  table size.
• For future automatically segmenting
  augmentations, categories and delta cells using
  visual cues.
