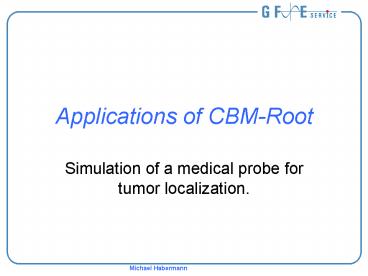

Applications of CBM-Root

• Simulation of a medical probe for tumor
  localization.

2
Overview

• GFE
• Medical Aspects
• Our Approach
• Phantom Simulations
• Electronic Simulation

3
Gesellschaft für Forschungs- und
Entwicklungsservice mbH
GFE delivers physical-technical
RD-services.   Our goal ist to apply and
transfer key-technologies especially from GSI
developed methods, techniques and qualifications.
4
Positron Emission Tomography

• Uses 18F (ß-Emitter, ?110 minutes)
• 18F is attached to tracer (Glucose)
• Glucose is enriched in body parts with high
  energy intake
• Tumors need much energy to grow fast

5
Conventional Low Energy Probewith 99mTc
Kollimator
Detektor
Tumor 10kBq/ml
Water 1 kBq/ml
6
Conventional Low Energy Probewith 18F
7
Electronic Collimation
8
Our Design
9
?-Locator DXI
10
Phantom-Measurements
Sphere
11
Phantom-Measurements
12
Real Scenario
13
CBMRoot-Simulation
14
Implementation
15
Data analysis
16
Data analysis
17
Summary

• No redundance of application sourcecode for
  simulation
• Easy adaption of scenarios through text files
• Use of ROOT for presentation of analysis results
