Highthroughput sequence alignment using Graphics Processing Units

1

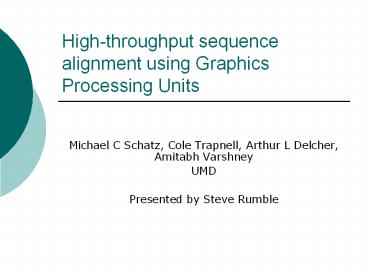

High-throughput sequence alignment using Graphics
Processing Units

• Michael C Schatz, Cole Trapnell, Arthur L
  Delcher, Amitabh Varshney
• UMD
• Presented by Steve Rumble

2
Motivation

• NGS technologies produce a ton of data
• AB SOLiD 22e6 25-mers
• Others are even worse
• How does 200e6 50-mers sound?
• Algorithms have been pushed hard, but typically
  assume same workstation CPU
• Wozniak and others showed S-W could be
  well-parallelised on special H/W.
• What of other algorithms/hardware?

3
Motivation

• GPUs have recently evolved general purpose
  programmability (GPGPU)
• E.g. nVidia 8800 GTX
• 16 multiprocessors
• 8 processors each
• gt 128 stream processors
• 768MB onboard
• 1.35GHz clock
• Almost a year old now

4
Short GPU Overview

• Highly parallel execution (hundreds of
  simultaneous operations)
• Hundreds of gigaflops per chip!
• Large on-board memories (up to 2GB)
• Limitations
• No recursion (no stacks)
• Each multiprocessors constituent processors
  execute same instruction
• Thread Divergence due to conditionals hurts
• No direct host memory access
• Small caches (locality is key)
• High memory latency
• No dynamic memory allocation (why one would ever
  do that, I dont know)

5
Short GPU Overview

• GPGPU environments
• Previously had to reduce problems to graphics
  primitives no more
• Simplified C-like programming
• Paper has very little detail, but they make it
  sound enticingly simple
• Each processor runs the same kernel

6
Muh-muh-muh MUMmer!

• Maximal Unique Match
• Find longest match for each subsequence of a read
  (of reasonable length)
• Employs Suffix Trees

7
MUMmerGPU

• Plug-and-play replacement for MUMmer
• MUMmer is not arithmetic intensive
• Is the GPU a good fit?
• Six-step process
• 1) Build Suffix Tree of reference genome
  (Ukkonens alg. O(n)) on host CPU
• 2) Suffix Tree -gt GPU Memory
• 3) Queries -gt GPU Memory
• 4) Kick off the GPU
• 5) Results -gt Host Memory
• 6) Final processing on Host CPU

8
Suffix Trees

• We want to find the longest subsequence of a
  string (query) quickly
• Suffix Trees permit O(m) string search, m
  string length
• Space complexity is O(n)
• But constants are apparently pretty big

9
Suffix Trees

• Definition
• Node edges have a node label
• A string subsequence
• Non-empty (but can be terminating)
• A path label is the sequence formed by traversing
  from root to leaf
• 1-1 correspondence of suffixes of S to path
  labels
• Internal nodes have at least 2 children
• n leaf nodes one for each suffix of S

10
Suffix Trees

• O(n) space
• n leaf nodes
• gt at most n 1 internal nodes
• gt n (n 1) 1 2n nodes (worst case)

n 3 n 1 2 3 2 root 6 nodes
11
Suffix Trees

• Example TORONTO
• is terminating character

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
12
Suffix Trees

• Example TORONTO
• Searching for ONT

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
13
Suffix Trees

• Example TORONTO
• Searching for ONT

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
14
Suffix Trees

• Example TORONTO
• Searching for ONT

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
15
Suffix Trees

• Example TORONTO
• Searching for ONT

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
ONT at position 3 in S
16
Suffix Trees

• MUMmer wants to find all maximal unique matches
  for all suffixes
• E.g., for query ACCGTGCGTC, we want
• ACCGTGCGTC
• CCGTGCGTC
• CGTGCGTC
• GTGCGTC
• Up to some reasonable limit
• Dont want to go back to root of tree each time

17
Suffix Trees

• Suffix Links
• All internal, non-root nodes have a suffix link
  to another node
• If x is a single character and a is a (possibly
  empty) string (subsequence), then the path from
  the root to a node v spelling ax (path-label is
  ax) has a suffix link to node v, whose
  path-label is a.
• Got that?

18
Suffix Trees

• Example TORONTO
• Suffix Links Dont backtrack (bad ex.)

T
NTO
O
RONTO
4
2
RONTO
ORONTO

O
NTO
6
0
5
3
1
19
Suffix Trees

• Example BANANA
• Better example of Suffix Links

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
20
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
21
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
22
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
23
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
24
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
25
Suffix Trees

• Example BANANA
• Searching for suffixes of ANANA

A
NA
BANANA
NA

NA

0
2
4
5

NA
1
3
26
Memory Limitations

• Suffix trees take up a fair bit of memory
• GPUs have 100s of MBs, but this is still small
• Divide the target sequence into k segments with
  overlaps

27
Cache Optimisation

• Memory latency high, cache performance crucial
• Were walking a tree here, not crunching numbers
  down an array
• Can store read-only data in 2D textures nVidia
  caching scheme optimises access
• Re-order and squish tree nodes into texel
  blocks such that
• Nodes near root are level-ordered (BFS)
• Nodes further down are ordered with descendants

28
Cache Optimisation

• Texture cache organized in 2x2 blocks.
• Try to place all children of a node are in the
  same cache block

Shamelessly cribbed from http//www.cbcb.umd.edu/
software/cmatch/FastExactStringMatching.ppt
29
Cache Optimisation

• Reference Sequence stored in 4x216 blocks of a 2D
  array
• Sequence A B C D E F G H

.
A E B F C G D H
.
a F ß ? G ? ? O
Why? It worked well.
30
Cache Optimisation

• Memory layouts heuristically determined
• nVidia cache details not public
• Cache optimisation improves execution speed by
  several fold.

31
Conclusions

• GPGPU isnt just good for arithmetic intensive
  applications
• 5-11x speed-up for NGS data

32
Conclusions

• Fine Print
• 5-11x is for the Suffix Tree kernel on the GPU
• Reality is different!
• 3.5x speed-up for real data in terms of total
  application runtime.
• Pretty constant across read lengths (35-700 bp)
• Careful management of memory layout is crucial
• Authors claim several-fold performance increase
  (could be difference between some improvement and
  none)

33
Conclusions

• Runtime dominated by serial parts of MUMmer

34
Food for Thought

• 8800 GTX costs 400, uses 100-150 watts
• Quad Core 2 chip runs 250, uses 100-130 watts
• Each core approx. 2x faster than their test CPU
• MUMmerGPU maximally 3.5x faster than test CPU
• What have we won here?

35
Food for Thought

• Confusing reports
• Fast Exact String Matching on the GPU (Schatz,
  Trapnell) claims up to 35x improvement
• Earlier course paper (early/mid-2007)
• Why from 35x down to 5-11x with MUMmerGPU?

36
My Impressions

• (whatever theyre worth)
• GPU is not a clear win (in this case)
• Suffix trees seem unsuited
• Cache locality trouble
• O(n) footprint, but multiplicative constants are
  still substantial
• Host CPUs seem to be as good or better (in and
  watts)

37
My Impressions

• GPGPUs arent a great fit here
• At least for this algorithm
• MUMmerGPU isnt the order-of-magnitude win it
  claims to be
• But this is a first-generation, general-purpose
  chip
• geared toward number-crunching, not
  pointer-traversing
• I dont think weve seen the last (nor the best)
  of GPUs
