CST 460 Final Project

1

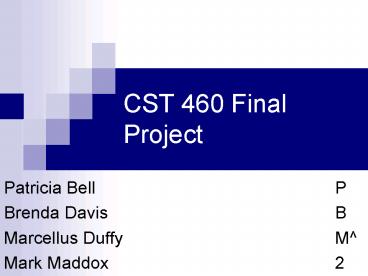

CST 460 Final Project

• Patricia Bell
• Brenda Davis
• Marcellus Duffy
• Mark Maddox

P B M 2
2
(No Transcript)
3
Room Layout
md
4
md
5
(No Transcript)
6
ELECTRICAL WIRING
md
7
md
8
Clear the floor

• Remove power from the floor track
• There are two tracks running west to east down
  the center of the room. These tracks should be
  removed
• Cost approx. 200.00

md
9
POWER

• Wall power
• Power for up to 20 devices will need to be run
  along the north and south walls
• No new circuits needed at first inspection
• Cost approx. 350.00

md
10
Electric Plan

• The total electrical plan will cost 550.00 the
  new wiring will greatly improve the safety in the
  room by removing the need to have any power cords
  on the floor much less the middle of the room.

md
11
Furniture
md
12
pb
13
DESKS FOR PROJECT

• Built with 1" thick work surfaces that have a
  tough thermally fused wood grain laminate with
  vinyl T-mold edge. Legs are built of 1"x 1" steel
  tubing. The modesty panels are 20-gauge steel.
  Metal parts are finished with a superior powder
  coat process.-Modesty panel comes standard with
  cable channels. -Can be locked together by using
  unit-to-unit brackets to create a room layout for
  added stability. -Comes in two sizes - one for
  laptops and one for computersDimensions Item
  36008 - 60"W (front) x 30" W (back) x 26" D x
  27" H (computers) / 59 lbs.Colors Laminate
  Bannister Oak or Metal Putty
• Desk will be used in a semi-circle 6 trapezoid
  desks will be needed for the project.

Trapezoid Desk Table for Computers Price
519.00
pb
14
DESKS

• Adjustable Corner Connector, grommet hole, cord
  management, modesty panel (Truck - Call for
  Freight Quote)Mfr. 3511-GM
• (Trim Cardinal, Quartz, Polo, Topaz Surface
  Grey Laminate)

274.72
pb
15
DESKS

• Student Desk This wonderful desk will make life
  easier for any student, no matter what their age.
  Maple vinyl laminate on MDF, metal base in black
  finish. Features a keyboard and shelf for hard
  drive.
• 47-3/4"W x 23-1/2"D x 30-1/4"H. Imported.
• 30 Desk are needed.

59.99
pb
16
CHAIRS NEEDED FOR PROJECT

• Product Description
• Deep-sculptured contoured foam padding on seat
  and back provides relaxation during work
• Waterfall seat reduces stress to your legs
• Pneumatic seat height adjustment
• The durable plastic protects seat back and bottom
  from tears
• Back Size 15" W x 11" H Seat Size 17" W x 16"
  D Seat Height adj 16 1/2" to 20 1/2"

pb
17
CHAIRS

• Stacking Chair - Office Star - STC3000

• Stacking chair from Office Star.
• The Worksmart series stack chair collection you
  see here offers an excellent choice of chairs.
• We also have a dolly that can easily move 12-15
  chairs.
• All of our stack chairs are available in a wide
  variety of fabrics at value prices.

pb
18
Network

md
19
(No Transcript)
20
Hub Requirements

• Space Requirements
• The new planned layout of the lab requires at
  least
• the use of 30 ports for the following
• 26 student computers
• 1 instructor computer
• 1 server
• 2 printers

bd
21
Hub Requirements

• Space Requirements
• 1 D-Link 48-Port Managed Layer Switch for 1000
• or
• 2 D-Link 24-Port Managed Layer Switch for 539
  each

Choosing either of these hubs will leave you with
space of 18 open ports for future expansion.
bd
22
Projector and Screen

bd
23
bd
24
Throw Distance

• The throw distance refers to the distance between
  the
• projector and the screen. It is the distance the
  image is
• "thrown and it is the foundation for determining
  the screen
• size, and it also helps determine if you need to
  use an
• additional lens.

bd
25

• Throw Ratio for the LP240-
• 1.8 2.151
• Space from Screen-
• The minimum projection distance for the LP240
• with a standard lens is 1.46m and the maximum
• projection distance is 8.85m.

bd
26
Screen Types

• The following screens are available from
• InFocus for the LP240 Projector
• Portable 50 Inch Screen 288
• InFocus Deluxe 60 Inch Screen 538
• Regular 84 Inch Pull Down Screen 138

50 Inch Portable
60 Inch Deluxe
84 Inch Pull Down
bd
27
Projector Ceiling Mount

• The InFocus Ceiling Mount Kit for the LP240
• includes the following
• Ceiling mount base box
• Projector mounting plate
• Hardware

• The cost of this mounting kit is 262 and it can
  also be mounted on concrete.

bd
28
Projector Connection

• Cables needed for connection of the projector

Total Cost of Cabling for Projector Connection
460.00
bd
29
Switch Board Screen Control

• Fully intergraded switch system allowing the
  presenter to choose screen position and video
  feed from a touch panel
• Semi intergraded system option 1 allowing the
  presenter to control the screen position from a
  touch panel
• Semi intergraded system option 2 allowing the
  presenter to control the video feed from a touch
  panel.
• Cost 300-1000

mm
30
mm
31
mm
32
mm
33
Server setup

• Location
• Will vented securable cabinet should be placed
  near the hanging rack and the server should be
  placed in it.
• Configuration
• Windows 2000 server
• Special components unknown

mm
34
Computers / PrintersComputer Configuration
mm
35
COMPUTERS

• Current
• 4 Dell OptiPlex GMT 575
• 64MB Ram, p75, 1.2gb drive, Win 98
• 2 Compaq
• 32mb Ram, p133, 1.2gb drive, Win 98
• 64mb Ram, p133, 3gb drive, Win 98
• 5 Homegrown
• 64 mega Ram, p133, 2.5gb drive, Win 98

mm
36
Proposed New PCs
mm
37
Monitors
mm
38
PRINTER

• Printer
• New
• Current (operational unknown, service 250.00
  plus parts)
• HP Laser Jet printers
• Laser Jet 4
• Laser Jet 4ml
• Laser Jet Series III
• 1 Epson Stylist Color 400
• Instructor Printer Lexmark 3000 Color Series

mm
39
(No Transcript)
40
Disposals

• Prices
• Requirements for pickup
• Options for disposal
• List of equipment to be disposed

md
41
(No Transcript)
42
List of equipment to be disposed

• 22 towers
• 10 monitors
• 4 printers
• small parts (keyboards, mice, power cords)

md
43
COMPUTER RECYCLING
pb
44
HOW TO RECYCLE

• Seniortechspecialist_at_lycos.com
• Web Innovations and Tech. Services
• 4660 West Florissant
• St. Louis, MO 63115
• (314)-382-1650
• [phone] fax
• Earth Day Collection Event
• Upper Muny Forest Park
• April 25th, 930 - 530 p.m.
• Asking for a goodwill donation and 5.00 for each
  non-working monitor

• Laclede_at_use.com
• Laclede Computer Trading Co.
• 9405 Gravois Road
• St. Louis Mo 63123
• 314-644-5888
• Accepts all computer equipment . CTS shipped to
  Doe Run
• Charges 15 dollars per monitor

pb
45
Time and Price
