Wire Scanner 3WS1

1

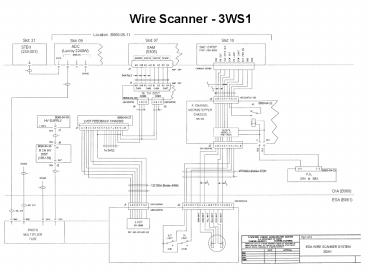

Wire Scanner - 3WS1
2
Wire Scanner - 3WS2
3
Wakefield box - 3wake1
4

Beam Position Monitor 3BPM4
This plan a standard setup for each BPM. This is
as yet not fully labeled since as some components
are still being assembled.
Belden 8451
From toroid
5

• Problems
• Cables cannot be ordered until we have properly
  assessed what is already available, and the
  wakefield box setup confirmed.
• Complete cable layouts for BPMs are not finished
  as I do not have a full picture of the whole BPM
  system.
• The wakefield box drawing shows only one stepper
  motor system since I am unsure how the stepper
  motors come together and what other hardware will
  be used in conjunction with the box.
• Next Steps
• Finalise cable requirements and rack layout.
• Arrange schedule for hardware installation.
• Integrate hardware for wakefield box into cable
  layout
• Determine space required for hardware for other
  experiments
