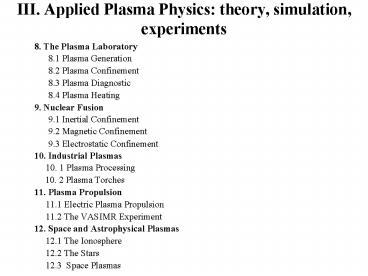

III. Applied Plasma Physics: theory, simulation, experiments

1
III. Applied Plasma Physics theory, simulation,
experiments

• 8. The Plasma Laboratory
• 8.1 Plasma Generation
•       8.2 Plasma Confinement
•      8.3 Plasma Diagnostic
• 8.4 Plasma Heating
• 9. Nuclear Fusion
•       9.1 Inertial Confinement
•       9.2 Magnetic Confinement
• 9.3 Electrostatic Confinement
• 10. Industrial Plasmas
• 10. 1 Plasma Processing
• 10. 2 Plasma Torches
• 11. Plasma Propulsion
• 11.1 Electric Plasma Propulsion
• 11.2 The VASIMR Experiment
• 12. Space and Astrophysical Plasmas
• 12.1 The Ionosphere
• 12.2 The Stars
• 12.3 Space Plasmas

2
Part III
BACK

• Applied Plasma Physics theory, simulation,
  experiments

3
III. Applied Plasma Physics theory, simulation,
experiments

• 8. The Plasma Laboratory
• 9. Nuclear Fusion
• 10. Industrial Plasmas
• 11. Plasma Propulsion
• 12. Space and Astrophysical Plasmas

4
8. The Plasma Laboratory
BACK

• 8.1 Plasma Generation
• 8.2 Plasma Confinement
• 8.3 Plasma Heating
• 8.4 Plasma Diagnostics

5
8.1 Plasma Generation

• 8.1.1 Plasma Sources Generalities
• 8.1.2 RF Plasma Sources
• 8.1.3 RF Magnetized Plasma Sources
• 8.1.4 DC Plasma Sources

6
8.1.1 Plasma Sources Generalities

• To produce a plasma, electron separation from
  atoms or molecules in the gas state (ionization)
  is required.
• Ionization takes place when an atom or a molecule
  gains enough energy from an external source or
  through collisions
• Common kinds of plasma sources gaseous,
  metallic, and laser-based plasma sources

7
Plasma Sources Generalities (II)

• Many plasma sources, such as direct current (DC),
  RF-Glow Discharge, and electron cyclotron
  resonance (ECR) sources are operated at
  low-pressure since the breakdown electric field
  is smaller and the current is more controllable.
• These plasma sources can generate large area
  uniform plasma with a well controlled electron
  density.
• Some other plasmas such as corona discharge and
  arc plasma are generated at atmospheric pressure

8
Plasma Sources Generalities (III)

• In general, plasma is generated by applying a
  potential through the gas
• Breakdown potential depends on the pressure and
  discharge gap width.

9
Plasma Sources Generalities (IV)
Relationship between the breakdown potential of
air and pressure
10
Plasma Sources Generalities (V)

• The relationship between the current and voltage
  in a low-pressure gas discharge shows four
  regions
• (1) dark or Townsend discharge prior to
  spark ignition,
• (2) normal glow
• (3) abnormal glow
• (4) arc discharge where the plasma becomes
  highly conductive

11
Plasma Sources Generalities (VI)
Relationship between the current and voltage in
a low-pressure gas discharge
12
Plasma Sources Generalities (VII)

• In atmospheric pressure the discharge has a
  simpler characteristic
• The discharge can be divided into two regions
• (1) corona discharge where the discharge current
  is very small, and
• (2) arc discharge where the gas becomes highly
  conductive and a rapid drop in voltage with
  increasing current occurs.
• The arc discharge mode is widely used in welding,
  cutting, and plasma spraying.

13
8.1.2 RF Plasma Sources

• Radio frequency (RF) glow discharge plasma source
  (RFGD) produce a large volume of stable plasma
• RF electric potential, coupled with the plasma
  through antennas, produces ionization
• The RF discharges are classified into two types
  according to the method of coupling the RF power
  with the load capacitive or inductive coupling
• Capacitive RF discharges were the etching
  industry standard for years, and are slowly being
  replaced by inductively coupled plasmas.
• Both modes can use internal or external electrodes

14
RF Plasma Sources (II)
Currentvoltage Characteristic of a RF Glow
Discharge plasma source.
15
RF Plasma Sources (III)

• Inductive coupling RF current is passed through
  a conducting coil separated from the plasma
  chamber by an insulating window
• A current is induced in the plasma much in the
  same way as in an air core transformer
• With external electrodes a discharge tube that is
  made of glass (quartz or borosilicate glass) is
  used
• External electrodes eliminate the plasma
  interaction on the electrode materials
• RF at 13.56 MHz is a industry-standard for in
  RFGDs

16
RF Plasma Sources (IV)
Vacuum Chamber
Typical low-pressure inductively coupled plasma
(ICP) source
17
RF Plasma Sources (V)

• RFGD typical parameters
• The pressure during discharge is between 10-3 and
  100 Torr (1 atm760 torr1.013 10 3 Pa)
• The electron density in low-pressure (10-3 to 1
  Torr) varies from 1015 to1017 m-3,
• the electron density in medium pressure (1100
  Torr) can reach 1018 m-3
• Electron temperature is several eV and the ion
  temperature is a fraction of eV

18
RF Plasma Sources (VI)

• Microwave cavity discharges. A resonant
  microwave cavity is placed around a glass or
  quartz tube
• The resulting standing wave excites a plasma
  through the glass
• This technique is commonly used for creating a
  downstream oxygen plasma for plasma photoresist
  stripping in semiconductor manufacturing

19
8.1.3 RF Magnetized Plasma Sources

• Electron cyclotron resonance (ECR) plasma source
  generate high-density plasmas at low-pressure.
• Microwave power is introduced into the plasma
  chamber through a quartz window
• Magnetic coils are arranged around the periphery
  of the chamber to achieve the ECR conditions

20
RF Magnetized Plasma Sources (II)
Schematic of an ECR plasma source
21
RF Magnetized Plasma Sources (III)

• When a magnetic field is applied to the plasma,
  the electrons begin to rotate in a helical orbit
  about the magnetic field lines.
• Plasma resonance can be obtained by adjusting the
  magnetic field to match the cyclotron frequency
  of the electrons with the RF (microwave)
  frequency
• In general, an ECR plasma source is operated at a
  pressure between 10-5 and 10-3 Torr.
• The electron density can reach 1018 m-3

22
RF Magnetized Plasma Sources (IV)

• The mean ion charge state is high because of the
  high collision frequency between the electrons
  and ions.
• Plasma distribution is not very uniform
• Electron temperature is larger than that of the
  ion temperature

23
8.1.4 DC Plasma Sources

• Simplest type of plasma discharge DC voltage
  across two electrodes inside of a plasma chamber
• The gas is ionized and maintained in the plasma
  state
• A negative bias is applied to one electrode
  (cathode) and the grounded chamber walls is used
  as the positive electrode (anode)
• DC discharges are typically used in metal
  sputtering and for ion implantation into
  mechanical materials for surface treatment.

24
DC Plasma Sources (II) - Corona

• Corona discharge plasma source appears as a
  luminous glow localized in space around a pointed
  tip in a highly non-uniform electric field
• If the characteristic size of the anode is
  comparable to that of the cathode, a voltage
  between the wires produces a spark instead of a
  corona discharge.
• Typical voltage applied to the anode exceeds
  several kVs and the magnitude of the discharge
  current varies from 10-10 to 10-10 A.

25
DC Plasma Sources (III) - Corona
Schematic of a corona discharge plasma source
26
DC Plasma Sources (IV) - Corona

• In the plasma near the tip electrode the plasma
  density rapidly decreases with distance from
  about 1019 to 1015 m-3.
• The electron temperature within the plasma
  averages about 5 eV, and the ion temperature is
  very low.
• In the region outside the discharge, the electron
  density is much lower and near 1012 m-3

27
DC Plasma Sources (V) - Torch

• Plasma spray torch a typical configuration
  includes a nozzle-shaped anode serving also as a
  constrictor.
• Stick-type cathode with a conical tip
• Outer grounded and water-cooled shield as an
  anode may be used
• In order to sustain a plasma torch, the discharge
  current and power density are very high
• The plasma develops between the cathode and anode
  where an electrically conducting gas at T gt 8000
  K and 105 Pa

28
DC Plasma Sources (VI) - Torch


_


_
_
Schematic of a plasma spray torch
29
DC Plasma Sources (VII) - Torch

• The electron density in the plasma torch ranges
  from 1022 to 1025 m-3,
• Electron temperature varies from 7.0 to 9.0 eV,
  but the ion temperature is an order of magnitude
  lower at 0.30.9 eV
• High plasma flow velocity (nearly 103 m/s)
• The high-temperature in the plasma causes the
  melting of almost all solid particles
• Atmospheric plasma torches are widely used in
  plasma spraying

30
DC Plasma Sources (VIII) - Vacuum Arc

• In general, a vacuum arc plasma source is
  composed of two parts plasma production unit and
  macro-particle filter
• When a high voltage pulse (several kVs) is
  applied to the trigger electrode, an arc
  discharge between the cathode and anode is
  ignited.
• The arc discharge current is concentrated at the
  cathode surface
• Formation of non-stationary locations of
  extremely high current density, in the order of
  1012 A/m2 (cathodic spots)

31
DC Plasma Sources (IX) - Vacuum Arc
Schematic of a vacuum arc plasma source
32
DC Plasma Sources (XI) - Vacuum Arc
Schematic of a vacuum arc plasma source
33
DC Plasma Sources (XII) - Vacuum Arc

• The high current density is associated with the
  extremely high local power density (on the order
  of 1013 W/m)
• Conditions for the localized transformation from
  the solid cathode material to fully ionized
  plasma
• The plasma produced at the cathode spots expands
  rapidly into the vacuum ambient
• Typical ion flow ion velocities are in the range
  of 104 m/s corresponding to approximately20 eV
  for light elements and 200 eV for heavy elements.

34
DC Plasma Sources (XIII) - Vacuum Arc

• Curved macro-particle filters are used to
  mitigate macro-particle (impurities)
  contamination from the cathodic arc plasma stream
• Neutral macro-particles are not be affected by
  the magnetic field and impact the outer surface
  of the curved duct
• Cathodic arc process produces of a large quantity
  of ions of the cathode materials
• Almost every electrical conductive material can
  be made into a cathode.

35
DC Plasma Sources (XIII) - Vacuum Arc

• The electron density in the cathode spot plasma
  can reach 1026 m3
• Expanding plasma produces a highly ionized jet
  with ion charge states typically between 1 and 3
• High plasma flux velocity prevents diffusion
  effects
• Plasma flux is not very uniform in both the axial
  and radial directions

36
8.1.5 Laser Plasma Source

• Plasma generated by the interaction of
  high-density laser pulses with a solid target
• Low laser fluence laser beam passes nearly
  unattenuated through the vapor produced by the
  leading edge of the pulse
• Evaporation occurs from the liquid metal
• High laser fluence the vapor temperature is high
  enough to cause appreciable atomic excitation and
  ionization.
• Vapor begins to absorb the incident laser
  radiation leading to vapor breakdown and plasma
  formation

37
Laser Plasma Source (II)
Schematic of a laser plasma source
38
Laser Plasma Source (IV)
Plasma in a laser source
39
Laser Plasma Source (V)

• Typical laser intensity in the order of 1012 to
  1014 W/m2.
• Metallic and composite targets that coupled with
  gas feeding can generate gaseous plasma and
  compensate for gas loss during evaporation.
• Max. electron density 1024 to 1026 m-3
• Electron/Ion temperature in the range of 15 eV
