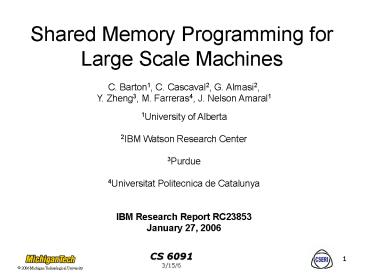

Shared Memory Programming for Large Scale Machines

1
Shared Memory Programming for Large Scale Machines
C. Barton1, C. Cascaval2, G. Almasi2, Y. Zheng3,
M. Farreras4, J. Nelson Amaral1 1University of
Alberta 2IBM Watson Research Center 3Purdue 4Un
iversitat Politecnica de Catalunya IBM Research
Report RC23853 January 27, 2006
2
Abstract

• UPC is scalable and competitive with MPI on
  hundreds of thousands of processors.
• This paper discusses the compiler and runtime
  system features that achieve this performance on
  the IBM BlueGene/L.
• Three benchmarks are used
• HPC RandomAccess
• HPC STREAMS
• NAS Conjugate Gradient (CG).

3
1. BlueGene/L

• 65,536 x 2-way 700MHz processors (low power)
• 280 sustained Tflops on HPL Linpack
• 64 x 32 x 32 3d packet-switched torus network
• XL UPC compiler and UPC runtime system (RTS)

4
2.1 XL Compiler Structure

• UPC source is translated to W-code
• An early version did as MuPC calls to the RTS
  were inserted into W-code. This prevents
  optimizations such as copy propagation and common
  sub-expression elimination.
• The current version delays the insertion of RTS
  calls. W-code is extended to represent shared
  variables and the memory access mode (strict or
  relaxed).

5
XL Compiler (contd)

• Toronto Portable Optimizer (TPO) can apply all
  the classical optimizations to shared memory
  accesses.
• UPC-specific optimizations are also performed.

6
2.2 UPC Runtime System

• The RTS targets
• SMPs using Pthreads
• Ethernet and LAPI clusters using LAPI
• BlueGene/L using the BlueGene/L message layer
• TPO does link-time optimizations between the user
  program and the RTS.
• Shared objects are accessed through handles.

7
Shared objects

• The RTS identifies five shared object types
• shared scalars
• shared structures/unions/enumerations
• shared arrays
• shared pointers sic with shared targets
• shared pointers sic with private targets
• Fat pointers increase remote access costs and
  limit scalability.
• (optimizing remote accesses is discussed soon)

8
Shared Variable Directory (SVD)

• Each thread on a distributed memory machine
  contains a two-level SVD containing handles
  pointing to all shared objects.
• The SVD in each thread has THREADS1 partitions.
• Partition i contains handles for shared objects
  in thread i, except the last partition which
  contains handles for statically declared shared
  arrays.
• Local sections of shared arrays do not have to be
  mapped to the same address on each thread.

9
SVD benefits

• Scalability Pointers to shared do not have to
  span all of shared memory. Only the owner knows
  the addresses of its shared object. Remote
  access are made via handles.
• Each thread mediates access to its shared objects
  so coherence problems are reduced1.
• Only nonblocking synchronization is needed for
  upc_global_alloc(), for example.

1 Runtime caching is beyond the scope of this
paper.
10
2.3 Messaging Library

• This topic is beyond the scope of this talk.
• Note, however, that the network layer does not
  support one-sided communication.

11
3. Compiler Optimizations

• 3.1 upc_forall(init limit incr affinity)
• 3.2 local memory optimizations
• 3.3 update optimizations

12
3.1 upc_forall

• The affinity parameter may be
• pointer-to-shared
• integer type
• continue
• If the (unmodified) induction variable is used
  the conditional is eliminated.
• This is the only optimization technique used.
• ... even this simple optimization captures most
  of the loops in the existing UPC benchmarks.

13
Observations

• upc_forall loops cannot be meaningfully nested.
• upc_forall loops must be inner loops for this
  optimization to pay off.

14
3.2 Local Memory Operations

• Try to turn dereferences of fat pointers into
  dereferences of ordinary C pointers.
• Optimization is attempted only when affinity can
  be statically determined.
• Move the base address calculation to the loop
  preheader (initialization block).
• Generate code to access intrinsic types directly,
  otherwise use memcpy.

15
3.3 Update Optimizations

• Consider operations of the form r r op B, where
  r is a remote shared object and B is local or
  remote.
• Implement this as an active message Culler, UC
  Berkeley.
• Send the entire instruction to the thread with
  affinity to r.

16
4. Experimental Results

• 4.1 Hardware
• 4.2 HPC RandomAccess benchmark
• 4.3 Embarrassingly Parallel (EP) STREAM triad
• 4.4 NAS CG
• 4.5 Performance evaluation

17
4.1 Hardware

• Development done on 64-processor node cards.
• TJ Watson 20 racks, 40960 processors
• LLNL 64 racks, 131072 processors

18
4.2 HPC RandomAccess

• 111 lines of code
• Read-modify-write randomly selected remote
  objects.
• Use 50 of memory.
• Seems a good match for the update optimization.

19
4.3 EP STREAM Triad

• 105 lines of code
• All computation is done locally within a
  upc_forall loop.
• Seems like a good match for the loop
  optimization.

20
4.4 NAS CG

• GWs translation of MPI code into UPC.
• Uses upc_memcpy in place of MPI sends and
  receives.
• It is not clear whether IBM used GWs
  hand-optimized version.
• IBM mentions that they manually privatized some
  pointers, which is what is done in GWs optimized
  version.

21
4.5 Performance Evaluation

• Table 1
• FE is MuPC-style front end containing some
  optimizations
• Others all use TPO front end
• no optimizations
• indexing is shared to local pointer reduction
• update is active messages
• forall is upc_forall affinity optimization
• Speedups are relative to no TPO optimization
• maximum speedup for random and stream is 2.11

22
Combined Speedup

• The combined stream speedup is 241!
• This is attributed to the shared to local pointer
  reductions.
• This seems inconsistent with indexing speedups
  of 1.01 and 1.32 for random and streams
  benchmarks, respectively.

23
Table 2 Random Access

• This is basically a measurement of how many
  asynchronous messages can be started up.
• It is not known whether the network can do
  combining.
• Beats MPI (0.56 vs. 0.45) on 2048 processors.

24
Table 3 Streams

• This is EP.

25
CG

• Speedup tracks MPI through 512 processors.
• Speedup exceeds MPI on 1024 and 2048 processors.
• This is a fixed-problem-size benchmark so network
  latency eventually dominates.
• The improvement over MPI is explained In the
  UPC implementation, due to the use of one-sided
  communication, the overheads are smaller
  compared to MPI two-sided overhead. But the
  BlueGene/L network does not implement one-sided
  communication.

26
Comments? I have some

• Recall slide 12 ... even this simple
  upc_forall affinity optimization captures most
  of the loops in the existing UPC benchmarks.
• From the abstract We demonstrate not only that
  shared memory programming for hundreds of
  thousands of processors is possible, but also
  that with the right support from the compiler and
  run-time system, the performance of the resulting
  codes is comparable to MPI implementations.
• The large-scale scalability demonstrated is for
  two 100-line codes for the simplest of all
  benchmarks.
• The scalability of CG was knowingly limited by
  fixed problem size. Only two data points are
  offered that outperform MPI.
