2L490 SOM 1

1

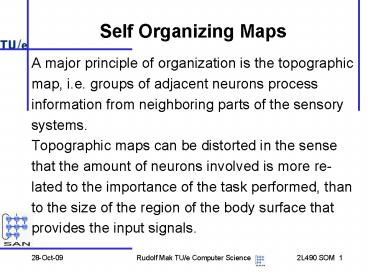

Self Organizing Maps

• A major principle of organization is the
  topographic
• map, i.e. groups of adjacent neurons process
• information from neighboring parts of the sensory

• systems.
• Topographic maps can be distorted in the sense
• that the amount of neurons involved is more re-
• lated to the importance of the task performed,
  than
• to the size of the region of the body surface
  that
• provides the input signals.

2
Brain Maps

• A part of the brain that contains many
  topographic
• maps is the cerebral cortex. Some of these are
• Visual cortex
• Various maps, such as retinotopic map
• Somatosensory cortex
• Somatotopic map
• Auditory cortex
• Tonotopic map

3
Somatotopic Map
The somatosensory cortex processes
the information of the sen- sory neurons that
lie below the skin. Note that both the skin and
the somatosensory cortex can be seen
as two-dimensional spaces
4
Somatosensory Man
Picture of the male body with the body parts
scaled accor- ding to the area de- voted to these
parts in the somatosenso- ry cortex
5
Unsupervised Selforganizing Learning

• The neurons are arranged in some grid of fixed
  topology
• The winning neuron is the neuron with its weight
  vector nearest to the supplied input vector
• In principle all neurons are allowed to change
  their weight
• The amount of change of a neuron, however,
  depends on the distance (in the grid) of that
  neuron to the winning neuron. Larger distance
  implies smaller change.

6
Grid Topologies

• The following topologies are frequently used
• One-dimensional grids
• Line
• Ring
• Two-dimensional grids
• Square grid
• Torus
• Hexagonal grid
• If additional knowledge of the input space is
  avail-
• able more sophisticated topologies can be used.

7
Neighborhoods box distance
Square and hexagonal grid with neighborhoods
based on box distance
Grid-lines are not shown
8
Manhattan or Link Distance
Distance to the cen- tral cell measured in number
of links
9
Euclidean Distance
10
Topologically Correct Maps
The aim of unsupervised self-organizing learning
is to construct a topologically correct map of
the input space. For any two neurons i and j
in the grid, let d(i,j) be their fixed distance
in the grid.
A mapping is called topological correct when
11
Neighborhood Functions

• The allowed weight change of neuron j when i
• is the winning neuron is given by the neighbor-
• hood function h(i, j). Common choices are
• (Winner
  takes it all)

12
Unsupervised Self-organizing Learning(incremental
version)
13
Unsupervised Self-organizing Learning (batch
version)
14
Error Function
15
Gradients of the Error functions
Because It follows that the gradient of the
error is given by
16
Tuning the Learning Process

• The learning process usually consists of
• two phases
• A phase in which the weight vectors reorder and
  become disentangled. In this phase neigh-borhoods
  (b) must be large.
• A phase in which the weight vectors are fine-
  tuned to the part of the training set for which
  they are the respective winners. In this phase
  the neighborhoods (b) must be small to avoid
  interference from other neurons.

17
Phonotopic Map

• Input vectors are 15 dimensional speech samples
  from the Finnish language
• Each vector component represents the average
  output power over 10ms interval in a certain
  range of the spectrum (200 Hz 6400 Hz)
• Neurons are organized in a 8x12 hexagonal grid
• After formation of the map, the individual
  neurons were calibrated to represent phonemes
• The resulting map is called the phonetic
  typewriter

18
Phonetic Typewriter
The phonetic typewriter is constructed by Tuevo
Kohonen, see e.g. his book Self-Organizing
Maps, Springer, 1995.
19
Travelling Salesman Problem
TSP is one of the notorious difficult
(NP-Complete) combinatorial optimization
problems. The so-called elastic net method can be
used to (approximately) solve the Euclidean
version of this problem (Durbin and
Willshaw). To that end one uses a SOM in which
the neurons are arranged in a one-dimensional
cycle.
http//www.patol.com/java/TSP/index.html
20
Space-filling curves
More space filling curves
