Title: Tech Meeting

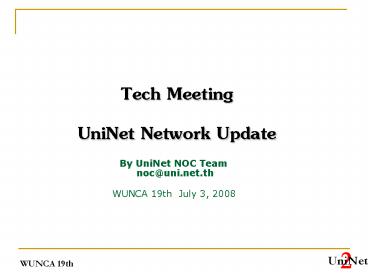

1
  • Tech Meeting
  • UniNet Network Update

By UniNet NOC Team noc_at_uni.net.th
WUNCA 19th July 3, 2008
2
UniNet Network Update Schedule WUNCA 19th
  • UniNet Network Update
  • Co-Operation with Regional POP
  • UniNet Network Future Plan (2009-2010)
  • R/E Routing Problem
  • Security Policy

3
UniNet Network Update Current Status
  • Expand Local Domestic
  • Northern Regional 4x155 Mbps
  • North-Easthern Regional 4x155 Mbps
  • Westhern Regional 2x155 Mbps
  • Easthern Regional 2x155 Mbps
  • Southern Regional 3x155 Mbps
  • Expand Domestic eXchange
  • Bandwidth to CAT-NIX 1x10Gbps
  • Bandwidth to TOT-NIX 1x1Gbps
  • Expand Global Internet
  • Bandwidth to CAT-IIG 2.5 Gbps

4
UniNet Network Topology Current Status
  • Network Diagram
  • Regional POP Configuration Diagram

5
UniNet Network Topology Current Status 2008
6
Regional POP Configuration Diagram
7
Peering Network
Global Internet
Domestic Exchange
TOT-NIX
CAT-IIG
CAT-NIX
2.5 Gbps
1 Gbps
10 Gbps
Internet2
155 Mbps
Abilene,KAREN,CalREN
UniNet
Research Internet
155 Mbps
TEIN2
1 Gbps
1 Gbps
ThaiSARN
MOE
8
IPv6 UniNet Status
  • Allocated a subTLA IPv6 Addresses from APNIC
    (200103C8/32).
  • All Member Can request IPv6 Form UniNet (/48)
  • Current Connected with 14 Campus Network and 6
    Peering Network
  • Support 6-to-4 Relay
  • V6Tunnel Broker soon!!!

9
Multicast Network Update
  • UniNet Backbone Multicast Support
  • MBGP
  • MSDP
  • PIM-ASM
  • PIM-SSM
  • Support Both IPv4 and IPv6

10
Co-Operation with Regional POP
  • Facility Support
  • Power supply, Air Condition, Area for Implement
    Network System, Telephone for Remotely,etc
  • People Operation Support
  • Operation Management
  • Connected Management
  • Communication Management
  • Helpdesk Management

11
Point Of Present POP List
  • Chiangmai POP,Chiangrai POP
  • Phisanulok POP
  • Khonkean POP,Sakon POP,Ubon POP
  • Nakonratchasima POP
  • Chonburi POP
  • Nakonpratom POP
  • Songkla POP, Nakonsri POP
  • Bangken POP,Payathai POP,Patumwan POP
  • Bangmod POP, Bangsue POP

12
(No Transcript)
13
What is
is Next Generation of UniNet Network
  • UniNet 2 Mission
  • Develop and deploy advanced network applications
    and
  • technologies, accelerating the creation of
    tomorrows
  • Internet.
  • UniNet 2 Goals
  • Enable new generation of applications
  • Re-create leading edge RE network capability In
  • Thailand

14
UniNet Network Future Plan (2009-2010)
15
UniNet Network Update Plan 2009-2010
  • Expand Local Domestic
  • Northern Regional 2x10Gbps (Lamda)
  • North-Easthern Regional 2x10Gbps (Lamda)
  • Westhern Regional 2x10 Gbps
  • Easthern Regional 2x10 Gbps
  • Southern Regional 3x10 Gbps
  • Expand Domestic eXchange
  • Bandwidth to CAT-NIX 2x10Gbps
  • Bandwidth to TOT-NIX 1x10Gbps
  • Expand Global Internet
  • Bandwidth to CAT-IIG 4 Gbps

16
UniNet Network Update Plan 2009-2010 cont
  • Dedicate Research Traffic to 1x10 Gbps (Lamda)
  • Create New Research POP for Research Traffic Only
  • Chiangmai POP ,Phisanulok POP
  • Khonkean POP,Nakonratchasima POP
  • Nakonpatom POP,Chonburi POP
  • Songkla POP,Nakonsri POP
  • Bangken POP,Payathai POP

17
UniNet Network Update Plan 2009-2010 cont
  • Network Diagram
  • Regional_POP Diagram

18
UniNet Network Update Plan 2009-2010
19
Regional POP Configuration Diagram
20
UniNet Network Update Plan 2009-2010 cont
  • Support IPv4 and IPv6 both unicast and multicast
  • Support QoS
  • Support High Speed Application such as GRID,
    HighDefination Video Broadcast Over Multicast,
    DVTS,Telemedicine , HighDefination Video
    Conference System
  • Support Connected to 1 Gbps Minimum
  • Not Commercial Traffic

21
HDTV Multicasting TestbedBetween Kokok Univ. and
WUNCA19th (02-07-2008) by UniNet
22
Network Diagram for HDTV Multicasting
TestbedBetween KU and WUNCA19th (02-07-2008) by
UniNet
23
Research and Education Routing
  • Description of the problem
  • Description of inter-networking in both R/E and
    commercial networks
  • Example of a R/E routing problem
  • Summary and Recommendations

24
Example of a R/E routing problem
25
Example of a R/E routing problem
ISP
UniNet
ISP
26
Example of a R/E routing problem
27
Security Policy
  • Please Take Care
  • Phishing or ZOMBI
  • SPAM or Open Mail Relay (and Inverse DNS)
  • Web Filtering
  • Bandwidth Management for Research Education
  • Internet Access (Wire and Wireless Attack)
    Identifier
  • Computer Crime ACT
  • Admin Contact

28
Thanks you
If you need more information please contact
E-Mail noc_at_uni.net.th Tel.66-2-354-5678
ext.5003-5011
