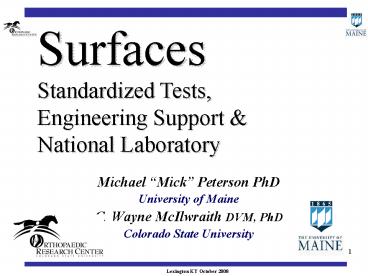

Title: Michael Mick Peterson PhD


1
  • Michael Mick Peterson PhD
  • University of Maine
  • C. Wayne McIlwraith DVM, PhD
  • Colorado State University

2
Recommendations of The Welfare and Safety of
the Racehorse Summit Keeneland Sales Pavilion
Lexington, Kentucky March 17-18,
2008
RECOMMENDATION 1 TRACK SURFACES Primary
Objective Promote consistent and safe track
surfaces conditions
3
What is Needed?
  • Clearinghouse for surfaces data
  • Reliable consistent testing
  • Risk assessment data
  • Sharing of methods
  • Understand regional needs
  • Create a culture of data

4
Practice Not Research
  • Track Materials Synthetic Natural
  • Non-linear More loadthe harder
  • Strain rate dependent
  • Synthetic creep
  • Dirt shows dynamic softening
  • Not easy or standard tests

5
Consistent Track Composition
  • Consistent test methods
  • New methods when needed
  • Database of results for research
  • Open to all usersNon-proprietary methods
  • A Single Reliable Lab for the Industry

6
Measurement MethodsDirt Composition
  • Many tests for dirt established
  • Need comparative data
  • Not repeatable between labs
  • Clay mineralogy (X-Ray Diffraction)
  • Fiber weight percentage

7
ImplementationX-Ray Diff. (XRD)
  • Clay mineralogy
  • East Coast vs. California
  • No clay in most east coast tracks

8
Measurement MethodsSynthetic
Composition
  • Wax composition
  • Temperature sensitivity

New Funding
9
ImplementationQuality Control of Materials
  • Sand Matterseven in synthetic surfaces
  • Microscopy
  • XRD Mineralogy

10
Implementation Wax DSC
Added wax
High temperature wax used initially
New wax reduces temperature sensitivity at
critical 100-125F
11
Laboratory for Analysis of Track Materials
  • A central lab to compare between tracks
  • Consistent data
  • Current labsagriculture civil engineering
  • Data for research
  • Link to injury database
  • Developing new tests of materials
  • Coordinating high cost specialized testing XRD,
    DSC

12
Central Track Surfaces Lab
  • Modeled on drug testing labs But this is on
    the ground floor
  • National facility Regional duplication only
    if needed
  • Initial seed money
  • Capital costs
  • Initial labor, training and certification
  • Continuing funding
  • Initial investors, forms part of the board to
    determine research priorities
  • Tracks subscribe, standard package
  • Pay per test on added materials and as needed

13
Maintenance Matters
  • Different tracks do things differently
  • Justified reasons
  • Weather
  • Design
  • Usage
  • Develop best practices

14
Maintenance Condition Reporting System
Start simple, research leads to expansion The
model start simple On-Track Injury catastrop
hic, then expand Jeff Blea Wayne McIlwraith
other injuries
15
Maintenance Condition Reporting System
  • Weather data logging
  • Data logger for at standard location
  • Temperature, humidity, precipitation, wind, UV
    visible light, evaporation rate and track
    temperatures
  • Linked to maintenancereporting database (and
    handicapping?)

16
Performance Testing
  • The perfect surface needs to perform in the real
    world
  • Temperature
  • Moisture
  • Maintenance
  • Performance of the surface
  • Shear strength
  • Stiffness

Performance Testing
17
Performance testing
  • On-site performance monitoring
  • Research must show that the measures relate to
    safety of the horse
  • Daily measurement of performance
  • Periodic measurement of composition

Do the research and determine which factors pose
a risk
18
Surface has different function during phases of
gait Impact/loading
  • Lower vertical modulus reduces strain rate and
    peak loads
  • Shear failure reduces horizontal peak
    accelerations

19
Surface has different function Breakover/Propuls
ion
  • Shear strength to support hoof during propulsion
  • Control hoof rotation during turn

http//www.wyammyranch.com/horses/sangria.jpg
20
Biomechanical Hoof Tester
  • Biomechanical Hoof Tester
  • Started in 1998, testing in 2004
  • Comparison of 26 tracks and 6 Synthetic Tracks
  • During breaks (40 min)
  • Simultaneously measure shear and hardness

21
SurfacePerformance
Vertical Variability
Shear Variability
  • Location on the graphAmount of variability

22
Example What Happens? Rip, Till and then Set a
Racetrack?
Softer More Variable
Slightly Faster
A hard track is not necessarily low shear
23
Simpler Tests
Temperature
  • Clegg hammerNo correlation to times at Del Mar
  • Temperature was a better (and easier) predictor
  • Clegg hammer may work on turf (not harrowed)

Time (sec.)
Clegg
24
Centralize Results for Research
  • Central data repository
  • Maintenance methods
  • Performance testing
  • Track composition
  • Data can be tied to outcomes
  • Learn as methods evolve

25
Funding to get to this Stage
  • Initial funding AQHA Racing
  • Second year of funding Oak Tree, Del Mar,
    Fairplex, CARF, Santa Anita, Hollywood, TOC
  • Funding from Dolly Green, Southern California
    Equine Foundation and Oak Tree
  • Pay for services from tracks since 2005
  • Current research grant Grayson-Jockey Club
  • Need a mechanism to implement the research

26
Laboratory Anticipated Cost and Revenue Model
  • Not expected to be self supporting until fourth
    year,
  • Depends on number of participating tracks
  • Total capital costs 178,500
  • Total labor costs (first three years) 205,000
  • Capital costs primarily year 1 and 2
  • Labor expenses growth through year 3
  • After capital costs 20 tracks to support
    operation

27
Track Testing Machine
  • Cost of first machine
  • Requires additional design engineering
  • Primary cost is end user software
  • Significant on-site support for initial tests
  • First machine, 208,000
  • Machine 2 through 5
  • Continuing improvement in machine software
  • Real time database link
  • Significant fabrication savings
  • Overall cost 22 lower

28
Database and Monitoring
  • Database costs and track personnel costs
  • Make use of existing personnel
  • IT people with backside experience
  • Integrate into existing workflow
  • Capital costs modest
  • Weather station and wireless system 2600
  • Hardware for maintenance system 3000

29
Philosophy
  • Need to provide a common set of measures
  • Measures based on
  • Biomechanics
  • Procedures
  • Consistent track material
  • Support research
  • What surfaces are safe?
  • When are they unsafe (climate, composition?)
  • Provide tools lab support to evaluate materials

30
How to Move Forward
  • All track maintain shear without excess hardness
  • Multiple answers
  • Climate
  • Materials
  • Basic performance tests consistently performed
  • Evaluate the results safety performance!

31
The remaining question
Epidemiology?It only matters is we help horses
and riders
32
New Whip Rules
  • Need to quantify effects of changes in rules
  • New whips
  • Test existing whips for compliance
  • Quantitative measures

33
8 Whips in Initial Group
34
Testing of Impact
  • Force from a whip depends on
  • Compliance, kinematics and kinetics of the
    projectile (whip end)
  • Compliance of the target (the horse)
  • The impact event
  • At least a 5 kHz response
  • Peak loads of

35
Approach
  • 2-d mechanism to move whip
  • Based on simplified kinematics of an arm
  • Motion from linear force springs and shock
    cords
  • Dynamic load cell with compliant surface
    (Durometer)

36
Dynamic Measurement
  • Load cell1 kN with 5 kHz bandwidth
  • Amplifier
  • Data acquisition
  • Resonance higher than impact

37
What will we get?
  • Look at
  • Peak force
  • Impulse time
  • Compare whips for impact force
  • Quantitative comparison
  • Total Cost 4 months, 18,735,

38
Acknowledgements
  • Initial support encouragement, Dan Fick AQHA
    Racing
  • Continued research funding Grayson Jockey Club
    Research Foundation, Polytrack, Del Mar,
    Keeneland, Santa Anita, CARF, TOC, Fairplex,
    Dolly Green Foundation, Oak Tree Racing
    Association

39
