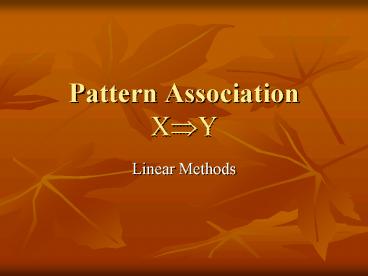

Pattern Association XY

1
Pattern AssociationX?Y

• Linear Methods

2
Goal

• Given sets of xs, X, produce their associated
  sets of ys, Y.
• The model should incorporate associations between
  multiple pattern pairs.
• i.e., X1 should produce Y1, X2-gtY2, X3-gtY3
• And all of these associations should be encoded
  within the same model.

3
Autoassociation

• A special form of association is autoassociation
• When given X1, model should produce X1.
• Why? Its a form of fuzzy memory retrieval.
• If only part of X1 is given, can system retrieve
  the rest?
• If a distortion of X1 is given, can system
  retrieve the learned pattern X1 (i.e., clean up
  the pattern).

4
How are patterns represented?

• Conceptually, each feature is represented by a
  node in the system.
• Each node is connected to every other node
  through some bidirectional weighted connection.
• For any given pattern, X1, the nodes of the
  network are set to a particular activation value.

5
Autoassociative Memory
6
Other representations - Vectors and Matrices

• Rather than represent all of those activations
  and connections in a diagram, you can use vectors
  and matrices.
• X1 is represented as an n-length vector,
• e.g. 1, 1, 1, -1
• The connections are represented by an n x n
  symmetric matrix.

7
Weight matrix, W
8
An aside Linear algebra

• Vector representations
• Collections of features/microfeatures at the
  input level

9
Measuring vector similarity

• Many methods leverage the Dot product
• Sum of pairwise products
• a,b,c,d,e.f,g,h,i,j af bg ch di
  ej
• 1,2,1,-1,0.2,-1,3,2,4
• 2-23-20 -1
• Note, when two vectors point in same direction,
  their dot product is maximal.
• 1,2,1,-1,0.1,1,1,-1,0 5
• 1,2,1,-1,0.-1,-1,-1,3,0 -7
• Dot product is similar to correlation
• Positive values similar, negative values
  opposites, 0 unrelated.
• However, dot product is not standardized to
  -1,1.

10
Orthogonal vectors

• Vectors which have a dot product of 0 are
  orthogonal.
• This is analogous to two vectors being at right
  angles.
• Indicates that the sets of features are
  uncorrelated.
• This is different from negatively correlated,

11
Standardizing dot products Vector length

• Square root of sum of squares of all components.
• This is the multivariate extension of Pythagorean
  theorem (a2 b2 c2)
• c square root of (a2 b2)
• Length of any vector is v square root(v.v)

12
Computing similarity between two vectors

• Method 1 Based on the angle between the two
  vectors.
• If angle is 0, then perfectly similar (1.0).
• If angle is 90, then orthogonal not similar
  (0.0)
• If angle is gt 90, then negative similarity (lt
  0.0).
• Computed from the Normalized dot product
• Cosine of angle bt the vectors range of -1,1

13
Other methods of computing similarity

• There are many methods, well encounter a couple
  others (e.g., the Minkowski metric) later in
  course

14
Propagation of activity in a network Matrix
Algebra

• Propagation of activations is easily computed
  using matrix algebra
• Dot product of a matrix and a vector is a vector
• Matrix designated using capital letter, vector
  with small.
• W and a. W has i rows and j columns. a has j
  values. W1 designates first row of W.
• First value of resultant vector is W1.a, second
  value is W2.a, etc.

15
Example

• Picture form and matrix form

16
Autoassociation How to encode a vector?

• We want a set of weights, W, that satisfies the
  following relationship, W.x x, for a number of
  different x vectors.
• The weights are analogous to the bs of linear
  regression
• In other words, we want a network that encodes
  the set of vectors, X, and can retrieve them.
• Remember why - we can give network partial,
  noisy, or similar inputs and have it complete,
  clean, or retrieve similar memories.

17
Finding W

• When relationships are linear, we could just
  solve for W, but Hebbian learning is incremental
• Hebbian learning encodes correlations
• W xxT
• Wx o x, or outer(x,x) (outer product) in R
• When two units are on or off at same time, the
  weight between them is increased, when one is off
  while other is on, weight is decreased.

18
Hebbian learning, cont

• When more than one pattern, x, must be learned,
  just repeat
• W x xT for first pattern
• Wnew Wold x xT for subsequent patterns
• There are problems with this approach
• 1. Weights grow without bound.
• 2. Retrieved vector will be a multiple of the
  original (pointing in right direction, but wrong
  length)
• 3. Interference between memories if xs are not
  orthogonal.

19
Example 1

• Want to encode the following vectors
• 1,0,1,2 and -1,1,-1,0
• Compute W
• x1 lt- c(1,0,1,2)
• x2 lt- c(-1,1,-1,0)
• W outer(x1,x1)
• W W outer(x2,x2)
• ,1 ,2 ,3 ,4
• 1, 2 -1 2 2
• 2, -1 1 -1 0
• 3, 2 -1 2 2
• 4, 2 0 2 4

20
Retrieving Example 1

• W x1 8, -2, 8, 12
• Original was 1,0,1,2
• W x2 -5, 3,-5, -4
• Original was -1,1,-1,0
• How close to right direction?
• Use normalized dot product and show standardized
  vectors
• x1 .983 0.41, 0.00, 0.41, 0.82 0.48, -.12,
  0.48, 0.72
• x2 .867 -.58, 0.58, -0.58, 0.00 -.58,
  0.35,-.58, -.46

21
Example 2

• Same weight matrix as previous example that
  encoded 1,0,1,2 and -1,1,-1,0
• Lets try to retrieve a partial version of x1.
• x1p lt- c(1,0,1,0)
• x1pr lt- W x1p
• Std(orig) 0.41, 0.00, 0.41, 0.82
• Std(retr) 0.55,-0.28, 0.55, 0.55
• Not too bad, but lets run it through again
• x1prr lt- W x1pr
• Std(again) 0.52,-0.20, 0.52, 0.64
• And again, and again, and again 200 times
• Std(mult) 0.51,-0.15, 0.51, 0.68

22
Example 3

• Same weight matrix as previous example that
  encoded 1,0,1,2 and -1,1,-1,0
• Lets try to retrieve a noisy version of x1.
• x1n lt- c(1.2,-.1,.78,2.3)
• x1nr lt- W x1n
• Std(orig) 0.41, 0.00, 0.41, 0.82
• Std(retr) 0.48,-0.11, 0.48, 0.73
• Not too bad, but lets run it through again 200
  times
• Std(mult) 0.51,-0.15, 0.51, 0.68
• Huh? Same answer as last time!

23
Example 4 - Lets try that again

• Same weight matrix as previous example that
  encoded 1,0,1,2 and -1,1,-1,0
• Lets try to retrieve a noisy version of x2.
• x2n lt- c(-1.2, .9, -.8,.1)
• x2nr lt- W x2n
• Std(orig) -.58, 0.58, -.58, 0.00
• Std(retr) -.58, 0.36, -.58, -.44
• Not too bad, but lets do it again 200 times
• Std(mult) -.51, 0.15, -.51, -.68
• Huh? Thats just the negative of the previous
  answer.

24
Autoassociators as attractor networks

• Effectively, the network encodes attractors (in
  the chaos theory sense).
• Hebbian learning creates these attractors at
  locations based on the vectors to be encoded.
• During each retrieval, the system tries to
  minimize energy (not error).
• Attractor states are minimal energy states.
• Any particular weight matrix is limited in the
  number of attractors that it can encode.

25
Capacity of autoassociators

• Patterns that are orthogonal are easy to encode
  with no interference, but there are a limited
  number of orthogonal patterns.
• Theoretically, the largest number of distinct
  patterns that you can encode in a Hebbian network
  is the maximum number of orthogonal patterns that
  can be represented in N units
• So, pmax N.

26
Spurious Attractors

• A spurious attractor is an attractor that doesnt
  correspond to any of the patterns that you used
  during training.
• A noisy or partial version of a pattern could
  settle into a spurious attractor.

27
Typical maximum capacity

• Rule of thumb given prior research
• For P(error) .001, a system with N units can be
  expected to have up to .105N stable attractors
  (i.e., 10 units will have about 1 good stable
  attractor).
• For P(error) .05, a system with N units can be
  expected to have up to .37N stable attractors.
• For P(error) .10, a system with N units can be
  expected to have up to .61N stable attractors.
• If you exceed that maximum number, the
  performance of the system rapidly degrades
• BUT, even if youre below it, youll still get
  errors if the to-be-encoded patterns are highly
  similar.

28
Hopfield networks

• An aside - a Hopfield network is a Hebbian
  autoassociator that uses threshold
  (McCulloch-Pitts) units.
