Persistent Store Engine and Graphical Interface

1

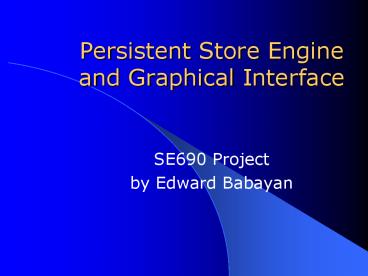

Persistent Store Engine and Graphical Interface

• SE690 Project
• by Edward Babayan

2
JOPSE

• What is it?
• Its features
• JOPSE vs. Other Database Systems
• Design Characteristics
• Architecture details
• Swing Components vs. AWT Components
• Define Problems
• Outline Solutions
• Discuss the background and prerequisite knowledge
• Controls used in the Development Process
• Discuss the solutions/results/recommendations
• Summary of contributions
• Discuss Future Work and Direction

3
JOPSE

• Stores data as objects in persistent way
• Easy to learn and user
• Platform independent
• Graphical implementation based on Java Object
  Store technology (originally developed by Dr.
  Jia)

4
Java Object Store

• Console tool object database
• Used for persistent storage of objects
• Designed to be used with Java
• Completely implemented in Java

5
JOPSE vs. Other Database Systems(RDMS)

• Stored Data Object Sets (special kind of
  objects) vs. Tables
• Data Records Elements (in the Object Set) vs.
  Rows of records in a table
• Queries Can be based on the values of fields or
  the results of method invocations of the objects
  in an Object Set.
• Element Object Structure consists of fields and
  methods. May be of different types. Its
  polymorphic.

6
JOPSE vs. Other Database Systems

• JOPSE vs. Object Relational Database
• Objects stored as Pure Java Objects vs. Blobs
• (binary large objects)
• JOPSE vs. SQLJ
• Pure Java Implementation vs. SQL embedded in
  Java. (To use pure java for SQLJ, we need
  preprocessor to convert SQLJ to pure Java
  programs)

7
Design Characteristics

• Simplicity easy to learn and use. The
  persistent layer provided by the JOS database
  component is nearly transparent to the
  programmer.
• Objects Sets extensions of the regular Java
  collections and sets.
• Lightweight small in size, efficient. The
  Runtime Jar file of Object Store component is
  only 55 KBs.
• Extensibility - support a variety of
  interchangeable implementations of the database,
  storage and indexing policies.

8
Architecture behind the Seen

• JOS component stores all database files in
  specified directory.
• Objects to be stored in JOS component must be
  serializable implementing java.io.Serializable
  interface.
• Example
• public class User implements java.io.Serializable

• public User ()
• // Default contractor
• //Methods follow
• //Fields follow

9
Architecture behind the Seen

• Some current functionality
• To store an object in the Object Store, we could
  use one of the following methods
• public void bind (Object object, String name)
• Creates new binding
• public void rebind (Object object, String name)
• Replaces current binding with the new one

10
Architecture behind the Seen

• ObjectStoreManager class
• main class responsible for Opening object stores
  for
• read and write. If the object store does not
  exist a
• New one will be created and returned. Objects can
• be stored in the Object Store or in the Object
  Set.
• import xj.ostore.
•   public class AddObjectUsers
• public static void main(String args)
• try
• ObjectStore odb ObjectStoreManager.open
  (db1, ObjectStore.OPEN_READWRITE)
•   ObjectSet users odb.createObjectSet
  (users)
• Users.add (new User (user01, pw01,
  Jack))
• odb.bind (new User (user01, pw01,
  Jack), u1)
• odb.bind (new User (user02, pw02,
  Jill), u2)
• odb.bind (new Student (Jack, 123450001,
  3.6f), s1)
• odb.bind (new Student (Jill, 123450002,
  3.6f), s2)
• odb.close()
• catch (ObjectStoreException e)

11
Architecture behind the Seen
12
Architecture behind the Seen

• Key Features of Object Store
• Storing/Retrieving Objects
• Creating Object sets
• Indexing and Selecting
• Query Predicates
• Updating Named Objects/ Updating Elements in the
  Object Set
• Removing Names Objects/ Removing Elements in the
  Object Set
• Deleting Object Store

13
Graphical Interface

• Graphical User Interface Modeling
• Goal is to create interactive GUI
• Simple and Powerful Interface several iterations
  are necessary!
• Component Abstraction and Reuse
• Usage of object oriented GUI components,
  encapsulated components called Visuals can be
  used.
• Visuals can easily be customized to fulfill
  particular needs.
• Maintenance Aspect
• More structured design results in enhancement of
  maintainability.
• Any change, enhancement or redesign of general
  use can be performed in the base visual class.

14
Swing Components vs. AWT Components

• Swing
• Part of JFC which encompass a group of features
  to help people build graphical user interfaces
  (GUIs)
• Code name of the project that developed new GUI
  components
• First available as an Add-on to JDK1.1
• Java 2 strongly encourages to use Swing
  components
• Swing components start with letter J
• Swing components are in the package javax.swing
  where is AWT components are in java.awt.

15
Swing Components vs. AWT Components

• As a rule, programs should not use "heavyweight"
  AWT components alongside Swing components.
  Heavyweight components include all the
  ready-to-use AWT components, such as Menu and
  Scroll Pane, and all components that inherit from
  the AWT Canvas and Panel classes. When Swing
  components (and all other "lightweight"
  components) overlap with heavyweight components,
  the heavyweight component is always painted on
  top.

16
Swing Components vs. AWT Components

• What are JFC and Swing?
• The Swing components
• Include everything from buttons to split panes to
  tables
• Plug gable Look and Feel Support
• Gives any program that uses Swing components a
  choice of looks and feels. For example, the same
  program can use either the Java TM look and feel
  or the Windows look and feel.
• Java 2D API
• Easily incorporates high-quality 2D graphics,
  text, and images in applications and applets.
• Drag and Drop Support
• the ability to drag and drop between a Java
  application and a native application

17
Swing Components vs. AWT Components

• Swing components implemented with absolutely no
  native code.
• Swing components can be shipped as an Add on to
  JDK1.1, in addition to being part of Java 2
  platform
• Swing lets you specify which look and feel your
  program's GUI uses. By contrast, AWT components
  always have the look and feel of the native
  platform

18
Swing Components vs. AWT Components

• Swing buttons and labels can display images
  instead of, or in addition to, text.
• Can easily add or change the borders drawn around
  most Swing components. For example, it's easy to
  put a box around the outside of a container or
  label.
• You can easily change the behavior or appearance
  of a Swing component by either invoking methods
  on it or creating a subclass of it.
• Swing components don't have to be rectangular.
  Buttons, for example, can be round.
• Assistative technologies such as screen readers
  can easily get information from Swing components.
  For example, a tool can easily get the text
  that's displayed on a button or label.

19
Swing Components vs. AWT Components

• Be aware of a few got Chas when using Swing
  components and AWT
• Programs should not, as a rule, use "heavyweight"
  components alongside Swing components.
  Heavyweight components include all the
  ready-to-use AWT components (such as Menu and
  Scroll Pane) and all components that inherit from
  the AWT Canvas and Panel classes. This
  restriction exists because when Swing components
  (and all other "lightweight" components) overlap
  with heavyweight components, the heavyweight
  component is always painted on top.
• Swing components aren't thread safe. If you
  modify a visible Swing component -- invoking its
  set Text method, for example -- from anywhere but
  an event handler, then you need to take special
  steps to make the modification execute on the
  event-dispatching thread.
• The containment hierarchy for any window or
  applet that contains Swing components must have a
  Swing top-level container at the root of the
  hierarchy. For example, a main window should be
  implemented as a JFrame instance rather than as a
  Frame instance.
• You don't add components directly to a top-level
  container such as a JFrame. Instead, you add
  components to a container (called the content
  pane) that is itself contained by the JFrame.

20
Swing Component Hierarchy
21
Define Tasks

• Dynamically creating Object Store if one doesnt
  exist
• Dynamically adding Objects / Object Sets to the
  existing Object Store
• Dynamically removing Objects / Object Sets from
  the existing Object Store
• Modifying existing Table View of data in
  application to be able to see fields and their
  related types of stored Objects inside a
  particular Set selected.
• Modifying existing Table View of data to be able
  to see Column names as fields of Objects stored
  in a Set and their values for instant updating of
  information.
• Building OstoreSecurityChecker tool to facilitate
  process of validating Users to the System
• Develop additional components that will minimize
  the process of using command line tools currently
  available for testing of the framework.

22
Outline Solutions

• Extension of the Menu components
• Availability of Menus based on what is being
  selected by user in GUI tool
• The Concept of Select GUI Item and Choose Menu
• comes from the tool called DB Visualizer
  developed by Minq Software AB, that is
  lightweight database tool.
• Object Tree adapts to the current database, shows
  appropriate objects such as schemas. Database
  data and table type information.
• Ability to click on the column header and grids
  are sorted ascending or descending order. Grids
  are sized automatically according to the content
• Intuitive and fast GUI
• User always geared toward the Menu bar for
  assistance and becomes a natural action to do.

23
Outline Solutions

• The concept of Select GUI Item and Right Click
  Pop Up Menu
• Gives right on the spot choice to make by user
  based on the GUI item selected.

24
Discuss the background and prerequisite knowledge

• Java Object Store Tutorial
• To learn its architecture and component classes,
  specially xj.ostore.tool package.
• Java Swing 1.1 Sun Micro Systems Tutorial
• To learn components such as Jdialogs, Jframes,
  Jpanel, JscrollPane, JSplitPane, JTabbbedPane,
  Jbutton, Jmenu, JTextField, Jlabel, Jtable, Jtree
  and Reflection mechanism.
• Great library of examples and sample codes!!!!!
• Quick Reference
• Beginning Java by Ivor Horton (WROX)
• How to Program in Java by Deitel Deitel

25
Controls used in my development process

• Jlabel
• Ability to display images
• Supplying an Image Icon to the constructor
• Call to set Icon.
• Ability to place borders around the labels
• Ability to use HTML to format the label
• If the string for the Label begins with lthtmlgt
  then the string is interpreted as HTML rather
  than taken literally.
• Lets you make multi-line labels
• Labels with mixed colors and fonts
• Capability has several significant limitations
• Only works in JDK 1.2.2 or later, or in Swing
  1.1.1 or later
• Label must begin with lthtmlgt, not ltHTMLgt
• Embedded images are not supported in the HTML.
• Jlabel fonts are ignored if HTML is used
• Example
• JLabel label new JLabel ("lthtmlgtBold Text")

26
Controls used in my development process

• Jbutton
• Ability to associate images with buttons. Swing
  introduced an utility class called Image Icon
  that lets you very easily specify an image file.
• To associate an image with a Jbutton is to pass
  the Image Icon to the constructor, either in
  place of the text or in addition to it.
• Can change the alignment of the text or icon in
  the button and change where the text is relative
  to the icon.
• Easily can set keyboard mnemonics via set
  Mnemonic. This results in the specified character
  being underlined on the button, and also in
  ALT-char activating the button.
• Ability to use HTML in Jbutton for labeling of
  the buttons providing multi-line labels, mixed
  fonts and colors.
• JButton buttons new JButton2
• buttonst.setText("Add " classDefiner.getName()
  )
• buttonst.addActionListener(new
  ActionListener()
• public void actionPerformed(Action Event e)
• add_Object(e)
• )

27
Controls used in my development process

• JFrame
• Components go in the content pane, not directly
  in the frame.
• Changing other properties (layout manager,
  background color, etc.) also apply to the content
  pane.
• Access content pane via get Content Pane method,
  or if you want to replace the content pane with
  your container, use set Content Pane
• Jframe closes automatically when you click on the
  close button unlike AWT frames.
• Your main Jframe still needs a Window Listener
  while closing the last Jframe to exit Java.
• Jpanel
• Used in the same way as Panel.
• Allocate it , drop components in it, then add the
  Jpanel to some Container.
• Also acts as a replacement for Canvas (there is
  no JCanvas)

28
Controls used in my development process

• JDialog
• Modal When a modal dialog is visible, it blocks
  user input to all other windows in the program.
  The dialogs that JOption Pane provides are modal.
• To create a non-modal dialog, you must use the
  Jdialog class directly.
• Jdialog class is a subclass of the AWT
  java.awt.Dialog class.
• Adds to Dialog root Pane and support for a
  default close operation.
• Static methods in the JOptionPane class let you
  easily create modal dialogs to show messages
  (JOptionPane.showMessageDialog), to ask for
  confirmation (JOptionPane.showConfirmDialog), let
  the user enter text or to choose among predefined
  options (JOptionPane.showInputDialog), or to
  choose among a variety of buttons
  (JOptionPane.showOptionDialog). Each of these
  methods either returns an int specifying which
  button was pressed, or String specifying the
  option selected.
• JDialog dlgOK new JDialog()
• JOptionPane paneOK new JOptionPane()
• paneOK.showMessageDialog(dlgOK, "ODB Home field
  hasn't been filled!", "Java
• ObjectStore Message Box", paneOK.WARNING_MESSAGE)

• dlgOK.getContentPane().add(paneOK)

29
Controls used in my development process

• JTree
• Used to create Objects of type DefaultMutableTreeN
  ode to act as the Node of the Tree.
• Gets its data by querying its Data Model
• Node that can have children is called Branch node
• Node that has no children is called a Leaf node
• User Object when you supply a value to
  DefaultMutableTreeNode constructor that acts as
  the value at each node. The to String() method of
  that User Object is what is displayed for each
  node

30
Controls used in my development process

• JTree
• Once we have some nodes, we hook them up together
  in a tree structure via parent Node.add(child
  Node).
• We pass the node to JTree constructor
• Since trees can usually change size based on the
  user input (expanding and collapsing nodes),
  trees are usually placed inside a JScrollPane
• DefaultMutableTreeNode root new
  DefaultMutableTreeNode ("Root")
• DefaultMutableTreeNode child1 new
  DefaultMutableTreeNode ("Child 1")
• root. add(child1)
• DefaultMutableTreeNode child2 new
  DefaultMutableTreeNode ("Child 2")
• root. add(child2)
• JTree tree new JTree (root)
• SomeWindow.add (new JScrollPane (tree))
• User Objects
• The argument to the DefaultMutableTreeNode
  constructor
• an object that contains or points to the data
  associated with the tree node.
• The user object can be a string, or it can be a
  custom object
• If you implement a custom object, you should
  implement its to String method so that it returns
  the string to be displayed for that node.
• Responding to the Tree Node Selections is simple,
  we implement TreeSelectionListener and register
  it on the Tree.

31
Controls used in my development process

• Jtree
• To customize display of the Tree control, you can
  specify to draw lines detailing the relationships
  between nodes, use this code tree.putClientProper
  ty ("JTree.lineStyle", "Angled").
• If you want to change the Icons or text used in
  describing the Nodes and branches, you can use
  Default Tree Cell Render Component to do that by
  using set Leaf Icon, set Close Icon, set Open
  Icon and so on. Default Tree Cell Render
  Component is a subclass of a JLabel.
• Use Trees set Cell Renderer method to specify
  that the Default Tree Cell Renderer paint its
  nodes.
• JScrollPane
• provides a scrollable view of a component. When
  screen real estate is limited, use a scroll pane
  to display a component that is large or one whose
  size can change dynamically.
• TextArea new JTextArea (5, 30)
• JScrollPane scroll Pane new JScrollPane
  (textArea)
• ContentPane.setPreferredSize (new Dimension (400,
  100))
• ContentPane.add (scroll Pane, BorderLayout.CENTER)

• View port Object
• Used by JScrollPane to manager the visible area
  of the client. The view port is responsible for
  computing the bounds of the current visible area,
  based on the positions of the scroll bars, and
  displaying it.

32
Controls used in my development process

• JSplit Pane
• displays two components, either side by side or
  one on top of the other. By dragging the divider
  that appears between the components, the user can
  specify how much of the split pane's total area
  goes to each component. You can divide screen
  space among three or more components by putting
  split panes inside of split panes.
• Better put each component into a scroll pane.
  Then put the scroll panes into the split pane.
  This allows the user to view any part of a
  component of interest, without requiring the
  component to take up a lot of screen space or
  adapt to displaying itself in varying amounts of
  screen space.
• //Create a split pane with the two scroll panes
  in it.
• SplitPane new JSplitPane (JSplitPane.HORIZONTAL
  _SPLIT,
• ListScrollPane, pictureScrollPane)
• SplitPane.setOneTouchExpandable (true)
• SplitPane.setDividerLocation (150)
• //Provide minimum sizes for the two components
  in the split pane
• Dimension minimumSize new Dimension (100, 50)
• ListScrollPane.setMinimumSize (minimumSize)
• PictureScrollPane.setMinimumSize (minimumSize)

33
Controls used in my development process

• JTabbed Pane
• Allows to have several components to share the
  same space
• User chooses which component to view by selecting
  the tab corresponding to the desired component
• To create Tabbed Pane
• Instantiate JTabbedPane class
• Create components you wish it to display
• Add components to the tabbed pane using the add
  Tab method.
• JPanel contentPane new JPanel()
• tabbedPane.addTab(classDefiner.getName(), null,
• ContentPane, "Add " classDefiner.getName())

34
Controls used in my development process

• JMenus
• Provides a space-saving way to let the user
  choose one of several options.
• Supports two kinds of keyboard alternatives
• Mnemonics and accelerators
• Mnemonics offer a way to use the keyboard to
  navigate the menu hierarchy, increasing the
  accessibility of programs. It makes already
  visible menu item to be chosen
• Accelerators offer keyboard shortcuts to bypass
  navigating the menu hierarchy. It is key
  combination that causes a menu item to be chosen,
  whether or not it is visible.
• You can also change the way menu Items are
  displayed by changing Layout manager. The default
  one is Box Layout.

35
Controls used in my development process

• JTextField
• Used to provide text fields. Lets user enter
  small amount of text.
• If you need to provide password field an
  editable text field that doesnt show the
  characters the user types use the
  JPasswordField class instead.
• As a subclass of JtextComponent, it can be
  configured and customized.
• JPasswordField, as another security precaution,
  stores its value as an array of characters,
  rather than as string. By default a password
  field displays an asterisk for each character
  typed. The call to setEchoChar changes it to a
  pound sign .
• JTable
• Allows to display tables of data, optionally
  allowing user to edit the data
• It doesnt contain or cache data it is simply a
  vie of your data
• Each column in a table is represented by a
  TableColumn object.
• Two constructors that accept data
• Jtable(Object rowData, Object
  columnNames)
• Jtable(Vector rowData, Vector columnNames)
• These constructs make every cell editable, treat
  all data the same ( as a String).
• Every table gets its data from an Object that
  implements TableModel interface.
• Cell Renderer used to draw all of the cells in a
  column. Often, this cell renderer is shared
  between all columns that contain the same type of
  data.

36
Controls used in my development process

• Table
• Cell Editor when a user starts to edit the
  cells data, this object takes over the cell,
  controlling the cells editing behavior.
• By Default. The cell renderer for a
  Number-containing column uses a single Jlabel
  instance to draw the appropriate numbers, right
  aligned, on the columns cells. If the user
  begins editing one of the cells, the default cell
  editor uses a right-aligned JTextField to control
  cell editing.
• Currently, tables put the following types of data
  in the list
• Boolean renderered with a check box
• Number renderered by a right-aligned label
• Image Icon renderered by centered label
• Object renderered by a label that displays the
  objects string value
• Data Manipulator specialized table models. This
  manipulator sits between the table and the data
  model to control sorting of the tables data
• You can use the Table Map and Table Sorter
  classes when implementing your data manipulator.
  Table Map.java implements TableModel and servers
  as a super class for data manipulators. Table
  Sorter.java is a Table Map subclass that sorts
  the data provided by another table model.
• Implementing Sorting with Table Sorter

37
Controls used in my development process

• Implementing Sorting with Table Sort.
• TableSorter sorter new TableSorter (myModel)
• Jtable table new Jtable(sorter)
• Sorter.adddMouseListenerToHeaderInTable(table)
• REFLECTION
• Helps to create an Object if you dont know its
  class name until run time
• Helps to get values of an objects fields, even
  if you dont know the name of the object, or even
  its class until run time.
• Given an object, you can find out what methods
  its class defines, and then invokes the methods.
• get Fields() method returns an array of Field
  objects containing one object per accessible
  public field.
• A public field is accessible if it is a member of
  either objects class, super class of objects
  class, interface implemented by objects class or
  interface extended from the interface implemented
  by objects class.
• Methods provided by Field class allow you to
  retrieve fields name, type and set of
  modifiers.You can even get and set a value of the
  field

38
Controls used in my development process

• REFLECTION
• You must be able to obtain values by
• Create a Class Object
• Create a Field object by invoking get Fields ()
  on the Class Object
• Invoke one of the get methods on the Field object
  to get its value.
• To retrieve Class object
• If the instance of the Class is available, you
  can invoke Object.get Class. The get Class method
  is useful when you want to examine an object but
  you dont know its class.
• Class c object.get Class()
• If you know the name of the class at compile
  time, you can retrieve its Class object by
  appending class to its name. In the next example,
  the Class object that represents the Button class
  is retrieved.
• Class s java.awt.Button.class
• If the class name is unknown at compile time, but
  available at run time, you can use forName
  method. If the String name strg is set to
  java.awt.Button then forName returns the Class
  object associated with the Button class
• Class c Class. forName(strg)

39
Discuss solutions/results/recommendations

• independent creation of components that would
  define the extension of Graphical Interface for
  the current tool.
• created a Testing Tree Control with the Test Menu
  and continued to plug the menus in the Test
  Application to see if my new developments would
  perform to specifications that would be defined
  later.
• each control developed such as Menu Items to Add
  Objects, Create Store, Delete Store, Close Store,
  Objects Menu, Add Object Set, Remove Object were
  all at first independent components that could be
  plugged in and out of the testing application.
• extended the main application and added new
  components to the already existing menu bar for
  more specific testing and validation of controls.

• Goal was to enable and disable menu items when a
  user pressed particular DefaultMutableTreeNode in
  the main tree and give user addition tools to
  work with accordingly.

40
Summary of Contributions

• Created new Menu Item to create Object Store
  dynamically if one doesnt exist
• Created confirmation Dialog to ask if use wants
  to delete existing Object Store
• Created input Dialog used to enter new
  information for new Object Store to be created.
  Its directory name and its name.
• Developed OstoreSecurityChecker, which is a
  console tool used separately from the application
  to validate user to the System based on the users
  that exists in the Java Object Store.
• Extended application to include and show new
  dynamic functionality existing in the Java Object
  Store
• Created Menu Item used for providing a Dialog to
  add new Objects to Java Object Store.
• Developed a Dialog used to add new Objects to
  Java Object Store. Can be extends to add new
  Objects.
• Created a Menu Item to close current Java Object
  Store application view.
• Created Menu to add three menu items such as
  Create OstoreItem, Delete OstoreITem, Close
  Ostore Item menu Items. To manage their
  availability.
• Developed a Menu Item to add empty Object Sets to
  Java Object Store.
• Created a Menu Item to remove Objects/Object Set
  (s) from the Object Store.

41
Summary of Contributions

• Created a Reader and Writer to keep track of the
  different Objects added to the system and
  accessing the next counter to be used in the
  addition of Objects to the Object Store.
• Created a Validation Dialog box to message the
  status of the fields filled in the Add Objects
  Dialog.
• Modified the view of Table to see Field and Type
  Columns once the user clicks on the Set selected.
  User is presented with the view of the fields and
  their types that are defined in the Objects
  stored in particular Set selected.
• Modified the view of Table to see Object Field
  Columns and their values if Available when user
  clicks on the Leaf representing Object stored in
  the Object Store directly or in the Object Set
  selected.
• Added Table listeners for Rows and Columns and
  Cells of the Table that is used for
  representation of data for further updating of
  Objects information.

42
Future work and directions

• Make Object Store Add Objects Dialog more
  generic for development process and smaller in
  size.
• Modify Validator component to validate fields of
  the Objects that currently is of protected type.
• Modify table view to be able to update
  information displayed on the fly for Objects/
  Object Sets.
• Debug currently existing code and modifications
  to test full capabilities of application.
  Optimize existing coding techniques, use of
  pattern programming.
