Title: THE NEAR EARTH SPACE ENVIRONMENT


1

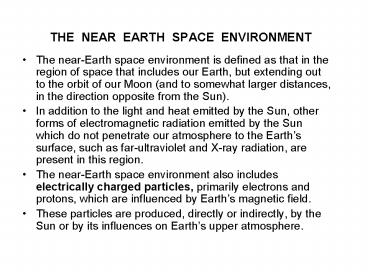

THE NEAR EARTH SPACE ENVIRONMENT
  • The near-Earth space environment is defined as
    that in the region of space that includes our
    Earth, but extending out to the orbit of our Moon
    (and to somewhat larger distances, in the
    direction opposite from the Sun).
  • In addition to the light and heat emitted by the
    Sun, other forms of electromagnetic radiation
    emitted by the Sun which do not penetrate our
    atmosphere to the Earths surface, such as
    far-ultraviolet and X-ray radiation, are present
    in this region.
  • The near-Earth space environment also includes
    electrically charged particles, primarily
    electrons and protons, which are influenced by
    Earths magnetic field.
  • These particles are produced, directly or
    indirectly, by the Sun or by its influences on
    Earths upper atmosphere.

2
THE NEAR EARTH SPACE ENVIRONMENT
  • The ionosphere, the electrically charged
    component of Earths upper atmosphere, is
    produced by solar far-ultraviolet and X-ray
    radiation effects on the upper atmosphere, and
    (indirectly) by solar charged particle emissions.
  • The ionosphere is of great practical importance,
    because it makes possible long-distance radio
    communications, due to its reflection of radio
    waves around the Earth.
  • The ionosphere is also significantly influenced
    by Earths magnetic field at higher altitudes,
    giving rise to the plasmasphere.

3
THE NEAR EARTH SPACE ENVIRONMENT
  • The solar wind is a low density, high temperature
    flow of ionized gas outward from the Sun (an
    extension of the solar corona) which travels
    throughout the solar system, guided by
    interplanetary magnetic field lines, which also
    originate in the Sun.
  • The interaction of the solar wind with Earths
    magnetic field gives rise to the magnetosphere.
  • Because the ionosphere, plasmasphere, and
    magnetosphere (and the interplanetary space
    environment, in general) are affected by solar
    activity, these have given rise to the new
    subject of space weather.

4
THE SUN AND ITS EFFECTS ON THE NEAR-EARTH
SPACE ENVIRONMENT
  • The Sun, which provides us with the essential
    heat and light we utilize on Earths surface,
    also has (much more variable) effects on Earths
    upper atmosphere, and on the near-Earth and
    interplanetary space environments.
  • These effects are produced by high-energy
    (far-ultraviolet and X-ray) electromagnetic
    radiation, and also by highly energetic charged
    particles emitted by the Sun.
  • The far-UV and X-ray radiations, and (to a great
    extent) charged particle emissions, cannot be
    observed from Earths surface because Earths
    atmosphere absorbs all of the solar far-UV and
    X-ray radiations, and scatters visible light from
    the solar disk, which makes it very difficult or
    impossible to observe the corona and coronal mass
    ejections (except during the extremely rare total
    eclipses of the Sun by the Moon).

5
THE SUN AND ITS EFFECTS ON THE NEAR-EARTH
SPACE ENVIRONMENT
  • These primarily affect humans and space vehicles
    traveling above Earths lower atmosphere, but
    also can affect long-distance radio
    communications and, in extreme cases, electric
    power transmission, on or near Earths surface.
  • These effects also are becoming of greater
    interest as we plan future human and robotic
    explorations of the Moon and other planets in our
    solar system.
  • Charged particles emitted by the Sun, especially
    the highly energetic particles emitted in coronal
    mass ejections, can be hazardous to the health of
    astronauts, and damaging to electronic equipment,
    in vehicles traveling in regions of space beyond
    the near-Earth space environment.

6
SOLAR FAR-UV AND X-RAY EMISSIONS
  • The Suns output of far-ultraviolet and X-ray
    emissions are much more variable with solar
    sunspot activity, than is its output of visible
    light.
  • Solar flares and coronal mass ejections are most
    common during the times when the Sun has its
    greatest (average) number of visible dark
    sunspots (which varies over an 11-year cycle,
    from maximum to minimum and back to maximum).
  • Active regions on or near the solar surface, such
    as solar flares, can best be detected and
    monitored in the far ultraviolet and x-ray
    wavelength ranges, because these zones are of
    much higher temperature, but (typically) much
    lower gas density, than the visible-light
    photosphere.

7
SPACE OBSERVATIONS OF SOLAR VISIBLE LIGHT
EMISSIONS
  • The solar corona, and coronal mass ejections, can
    be observed in visible light, but this can be
    done from the ground only during total eclipses
    of the Sun by the Moon because of the extreme
    visible-light brightness of the Suns disk, and
    the scattering of this light by Earths
    atmosphere.
  • Coronagraphs in space avoid these problems, and
    can be used to observe the Suns corona
    continuously, 24 hours a day, 7 days per week!
  • The simultaneous monitoring of the Sun, using
    both far-UV and X-ray imaging of the solar disk,
    and visible-light monitoring of its corona, is of
    great importance to both the scientific research
    on, and the early warning of, potentially
    hazardous solar eruptions.

8
Solar Corona Observed in a Total Eclipse
9
Solar Chromospheric Prominence, in H? Light
(656.3 nm) as Observed in a Total Eclipse
10
Temperature vs. Altitude Above Solar Photosphere
11
The Solar Visible and Ultraviolet Spectrum
Solar Visible and Near-IR Spectrum Dashed Line
Black Body Equivalent Spectrum
Note transition from an absorption line spectrum
in the visible, to an emission line spectrum in
the far- and extreme-ultraviolet. Note also, the
emission lines in the far- and extreme-UV are
produced in the chromosphere and corona of the
Sun, where temperatures are much higher than the
5800 K temperature of the visible-light
photosphere.
12
The Sun as Viewed at Different Wavelengths
Visible (White) Light
Extreme UV (30.4 nm)
X-Rays (lt10 nm)
Extreme UV (19.5 nm)
13
Effects of Solar Far-UV and X-Ray Emissions on
Earths Ionosphere and Exosphere
  • The major constituents of Earths upper
    atmosphere, atomic and molecular oxygen and
    molecular nitrogen, are subject to ionization by
    solar far- and extreme-ultraviolet radiation and
    X-rays, constituting the region known as the
    ionosphere.
  • In addition, the neutral gases in the upper
    atmosphere (mostly atomic oxygen and molecular
    nitrogen), the region known as the exosphere, are
    heated by these radiations, and thereby increase
    the atmospheric neutral density at high altitudes
    (hence increasing the atmospheric drag on
    satellites in low Earth orbits).
  • Since the solar ionizing radiation is much more
    variable than the solar visible, near-UV, and
    middle-UV radiations, but cannot be observed from
    the ground, long-term space-based observations
    are necessary to monitor these radiations, and to
    compare these measurements with radio
    measurements and other studies of the ionosphere.

14
Typical Density vs. Altitude of Atmospheric
Constituents in the Earths Upper Atmosphere
15
(No Transcript)
16
Intensity and Solar-Cycle Variability vs.
Wavelength in the Solar Spectrum
17
SOLAR PARTICLE EMISSIONS
  • Another way in which the Sun affects the solar
    system space environment is by its ejection of
    charged particles (mostly electrons and protons),
    emanating from its upper atmosphere, or corona.
  • These are, primarily, a relatively constant
    outflow of relatively low energy particles, known
    as the solar wind.
  • These particles travel outward along solar
    magnetic field lines, which permeate the entire
    solar system, along spiral paths (due to the
    Suns rotation on its axis).
  • However, on occasions (especially during times of
    high solar activity), explosive eruptions from
    the Sun, such as solar flares, send much higher
    energy and density gas clouds out into the solar
    system, known as coronal mass ejections.

18
SOLAR PARTICLE EMISSIONS
  • The Suns corona can be seen in visible light
    from the ground only in total eclipses of the Sun
    by the Moon, because it is much fainter the
    Earths bright daytime sky.
  • However, coronagraphs in space, which are free of
    Earths daytime atmospheric skyglow, can monitor
    the Suns corona 24 hours a day, 7 days a week,
    and give early warning of coronal mass ejections.
  • These instruments are usually accompanied, on the
    same spacecraft, with ones which can observe the
    Suns far-ultraviolet and X-ray emissions
    (without using coronagraphs) simultaneously with
    the coronagraph visible-light observations of the
    solar corona and coronal mass ejections.

19
Coronal Mass Ejection Observed with the
Large-Angle Solar Coronagraph (LASCO) on the
Solar and Heliospheric Observatory (SOHO)
White circles indicate size of the visible-light
solar disk, hidden from direct view by the
coronagraphs occulting disks.
20
The Solar Wind
The apparent directions of the solar wind and
interplanetary magnetic field lines, as seen from
Earth, are not from the direction of the Sun, but
at an angle, due to the Suns rotation on its
axis and Earths revolution around the Sun.
21
THE SOLAR WIND
Because of the Suns magnetic field and its
rotation on its axis, solar wind particles travel
outward at much higher speeds along the magnetic
polar directions than along its magnetic
equatorial plane.
22
(No Transcript)
23
Motions of Charged Particles in Magnetic Fields
  • The effects of magnetic fields on charged
    particles are not simple attraction or repulsion.
  • The force acts only on particles moving in a
    direction perpendicular to both the velocity of
    the particle, and the direction of the magnetic
    field. In vector notation,
  • F q v x B
  • In the simple case of a uniform magnetic field,
    and velocity perpendicular to the magnetic field,
    the magnetic force causes the particle to travel
    in a circular orbit around the magnetic field
    lines, with centripetal force equal to the
    magnetic force
  • mv2/r qvB
  • The particles orbit radius (called the
    cyclotron radius) rc mv/qB.
  • In actuality, the trajectories of charged
    particles are rarely perpendicular to the
    magnetic fields, and the magnetic fields
    themselves are not uniform in geometry and
    intensity, so the actual situations are
    considerably more complex.

24
The Earths Magnetic Field
The current loop model is considered to be the
closest approximation to the actual source of
Earths magnetic field.
25
Interactions of Solar Particles with Earths
Magnetosphere
  • The magnetosphere is defined as the region of
    near-Earth space in which Earths magnetic field
    has significant influence on the motions of solar
    wind and coronal mass ejection particles.
  • The size and configuration of Earths
    magnetosphere are highly variable with solar
    activity, due to the variations in both energy
    and number of solar particles.
  • Solar wind and solar flare particles can interact
    with Earths magnetosphere to produce a variety
    of phenomena.
  • Energetic particles can be trapped in
    donut-shaped regions surrounding Earth, giving
    rise to the Van Allen radiation belts.
  • These particles can be hazardous to the health of
    astronauts and to electronic equipment in
    near-Earth space.

26
Interactions of Solar Particles with Earths
Magnetosphere
  • Charged particles (mostly of lower energy than
    those in the radiation belts) can also be
    directed, by complex processes in the
    magnetosphere, downward into Earths atmosphere
    in regions near the magnetic poles, producing
    auroras.
  • The zones in which auroras occur most frequently
    are rings surrounding the magnetic poles, called
    the auroral zones.
  • The sizes of the auroral zones, and the
    intensities of auroral displays, are strongly
    influenced by solar activity.

27
Note, solar wind particles cannot cross into the
magnetosphere directly.
28
Note that solar wind particles interact with
Earths magnetic field down wind of Earth, and
can then return to Earths vicinity along regions
of magnetic field reversal (reconnection).
29
Earths Inner Magnetosphere and Particle
Interactions
30
(No Transcript)
31
Charged Particle Trapping in Earths Radiation
Belts
32
Earths Radiation Belts
33
(No Transcript)
34
EARTHS POLAR AURORAS
  • The polar auroras are the most visible, and
    longest known, examples of the interaction of
    solar wind particles with Earths atmosphere.
  • The particles that produce the auroras typically
    have much lower energies than those that produce
    the radiation belts.
  • The frequency, brightness, and latitude of
    observance of auroras are highly dependent on
    solar activity.
  • The colors of auroras are representative of the
    spectral emissions of the upper atmospheric
    species involved, and (to some extent) the nature
    and energy of the incoming particles.
  • Spectroscopic measurements of the auroras, as
    well as measurements of the altitudes at which
    the emissions occur, provide information about
    the energetics of the auroral particles, and
    whether they are due to electrons or protons.
  • Observations from spacecraft, and with the Hubble
    Space Telescope, have shown that other planets
    (such as Jupiter and Saturn) also have polar
    auroras.

35
Ground-Based Image of an Aurora
36
Auroral Color Variations
37
Observation of Aurora from a Space Shuttle
38
Far-UV Image of Aurora from High Altitude
Satellite
39
(No Transcript)
40
EARTHS POLAR AURORAS
  • The polar auroras are not produced by solar wind
    particles entering Earths upper atmosphere
    directly, along Earths magnetic field lines, but
    by a more complex and indirect route which
    involves both the interplanetary and Earths
    magnetic fields.
  • As shown in earlier charts, the solar wind
    particles are brought into the magnetosphere by
    magnetic field interactions well beyond Earths
    distance from the Sun, and then can approach the
    polar regions from the rear.
  • The magnetic field lines inside the auroral ovals
    are open, that is, extend into interplanetary
    space, whereas those outside of the auroral oval
    are closed, that is, connect with the opposite
    magnetic hemisphere of Earth.

41
EARTHS POLAR AURORAS
  • The auroras tend to be more intense, and the
    auroral zones tend to extend further from the
    magnetic polar regions, with higher solar
    activity (which increases both the flux and
    energy of incoming solar wind particles).
  • Auroral particles are typically much less
    energetic than those in the Van Allen radiation
    belts, and normally cannot enter the atmosphere
    to altitudes of less than about 100 km.
  • However, intense auroral activity can cause
    communications interference, and may induce
    electric currents in the ground and in power
    lines which can cause major power outages.

42
(No Transcript)
43
(No Transcript)
44
Far-UV Images of Auroras on Jupiter and
Saturn Obtained with Hubble Space Telescope
45
Vacuum Chamber Setup for Aurora Simulation at
Naval Research Laboratory
The auroral simulation equipment included a
hollow stainless steel float ball, 4 inches in
diameter, inside of which was placed a
vertically-oriented bar magnet. The negative high
voltage electrode is in the tube extending from
the main chamber in the left image (to the left
in the right image).
46
Aurora Simulation in Vacuum Chamber at NRL
Electron Beam Direction
47
THE IMAGE SPACE MISSION
  • The Imager for Magnetopause-to-Aurora Global
    Exploration (IMAGE) is the first NASA mission
    dedicated to imaging Earths magnetosphere.
  • IMAGE was launched into a highly eccentric polar
    orbit (1000 km perigee, 45,871 km apogee).
  • With the exception of the auroras, most
    magnetospheric particles and phenomena cannot be
    directly observed using conventional remote
    sensing techniques based on the emission or
    absorption of electromagnetic radiation.
  • In addition to direct imaging in the far- and
    extreme-ultraviolet spectral ranges, IMAGE makes
    use of new technologies, for Neutral Atom
    imaging, and Radio Plasma Imaging.
  • The High, Medium, and Low Energy neutral atom
    imagers (HENA, MENA, and LENA) detect the neutral
    atoms produced when energetic plasma particles
    are converted into neutral atoms by capturing an
    electron.
  • The advantage of being able to observe energetic
    neutral atoms is that their trajectories are not
    affected by Earths (or the interplanetary)
    magnetic fields hence their directions of origin
    can be accurately determined from a distance.

48
Electron and Proton Auroras Observed by the IMAGE
Satellite
49
Time Variations of Polar Aurora, Observed in
Far-UV by IMAGE Satellite
50
Extreme-UV Images of Earths Plasmasphere
Obtained by the IMAGE Satellite
51
IMAGE Image of Earths Magnetosphere in Energetic
Neutral Particles
Sun Direction
Write a Comment
User Comments (0)
About PowerShow.com
