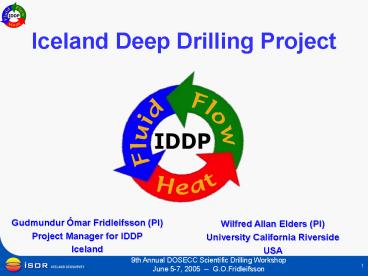

IDDP presentation at DOSECC meeting 2005

1
Iceland Deep Drilling Project
Gudmundur Ómar Fridleifsson (PI) Project Manager
for IDDP Iceland
Wilfred Allan Elders (PI) University California
Riverside USA
2
IDDP
The Iceland Deep Drilling Project
www.iddp.is
3
(No Transcript)
4
(No Transcript)
5
Earthquake frequency (0 5 on Richter scale)
6
Simplified model of a high-temperature geothermal
system
7
The Icelandic energy consortium
(National Energy Authority)
8
International Scientific Continental Drilling
Program (ICDP) supported meetings and 2
Workshops in 2001 and 2002
A team of international scientists has already
been established and is ready to participate
60 research proposals waiting for a go ahead
100 to150 international scientists and engineers
are involved, from 15 countries
Status 2005 Response for funds for scientific
drilling by ICDP (1.5 M USD?) and by NSF (2.7 M
USD?) Candidate drillhole was drilled late in
2004 and completed to 3.1 km depth in February
2005. Cost to Hitaveita Sudurnesja 5 M USD
9
Economic Goals

• The IDDP is a long-term geothermal research
  program, established 5 years ago by a consortium
  of Icelandic energy companies and the State
  of Iceland. The program is expected to continue
  for the next 15 years (2005- 2020) and to involve
  at least three 4-5 km deep drillholes
• Its purpose is to improve the economics of
  geothermal energy by producing supercritical
  hydrous fluids from drillable depths
• The IDDP feasibility study indicates that
  producing supercritical hydrous fluid is
  feasible, while it requires 4-5 km deep wells to
  reach temperatures of 450-600C. Power output
  from such wells compared to conventional wells
  may increase by a factor of 10 from some 4-5
  MWe to some 40-50 MWe.

10

Temperatures in many high-T wells in
Iceland follow the BPD-curve with increasing depth
Examples from Krafla (K) Nesjavellir
(NJ) Reykjanes (RN)
11
IDDP
12
2005
13
Reykjanes geology
Lavas, sediments, tuffs and pillow breccias
Sheeted dyke complex
14
Basic Funding Model

• Industry/government consortium funds costs
  equivalent to drilling and testing an exploration
  well
• Science agencies fund costs of sampling, coring
  and testing required by the science program and
  subsequent studies

15
Million 0 2 4
6 8 10 12
14 16
16
spot cores
17
DOSECC
Drilling, Observation and Sampling of the Earth's
Continental Crust
DOSECC has a hybrid coring system DHCS (shown in
red) that can be fitted to a conventional rig.
The IDDP costestimate is based on using this
equipment
18
Coring services from Baker Huges (Christensen)
for spot coring was tested in April 2005
19
1st spot core collected in 2005
20
(No Transcript)
21
The IDDP Work Plan
Step I IDDP feasibility study (2001-2003)
International collaboration established.
(Value 1 M USD)
Step II Detailed planning and funding for
drilling (2003-2005)
(cost 0.75 M USD)
Step III First drillhole (Phase 1 drilled to
3.1 km in 2004-2005) Phase 2, planned for
deepening in 2006 to 4 km (Phase 3 planned for
continuous core drilling to 5 km in 2007
(Cost up to 16 M USD)
Step IV Fluid handling and pilot study (Phase
4) Should commence in 2008-2009
(Estimated cost 6 M USD)
Step V Drilling and testing of holes 2 and 3
(2010-2020). (Estimated cost
up to 44 M USD?)
22
Funded (5 M )
Cost 5 M (1.3 M from ICDPNSF) (3.7 M
request from DV)
Cost 6 M (2.1 M from NSF ICDP) (3.9 M
request from DV)
23
FUNDING MODEL DRAFT pending approval
Work in progress
24
Search for international funds

• ICDP has funded our science activity 3 times
  prior to 2005 first in 2001, then in 2002 and
  in 2004 - (altogether 0.25 M )
• In 2005 ICDP responded to our funding request for
  coring (1.5 M ?)
• In 2005 the US NSF responded to our funding
  request for coring (2.7 M ?)
• IODP has refused to accept a proposal from IDDP
  as we will be drilling on land
• European Commission Framework Programs (EC-FP6)
  does not fund drilling directly We submitted a
  proposal for building high-temperature downhole
  tools in collaboration with France, Germany,
  Greece, Luxemburgh and UK, requesting 3 M Euros.
• EC-FP7 the 7th framework program begins in
  2007. We intend to request considerable funds for
  the IDDP phase 4 fluid flow tests in 2008-2009

25
Effects of phased drilling program

• Positive effects
• Opportunity for flow testing and fluid sampling
  after each drilling phase
• Science and technical program can be re-evaluated
  after each phase
• Funding phased over several years
• Meets environmental restrictions during bird
  nesting season.
• Negative effects
• Increased mobilization costs
• Currency fluctuation affects cost estimates in
  different currencies
• Inflation e.g. price of steel casings increased
  by 100 in 2.5 yr
• Stressing the casings and cement due to repeated
  thermal cycling

26
Advantages of the Industry/Government/Science
Collaboration

• Feasibility study and site selection studies
  provided by industry
• Huge data base of geophysical and borehole data
  available
• First phase borehole provided by industry (with
  alternative choices possible)

• Sharing costs of deepening and sampling
• Industry technical experience and expertise
• Diverse advanced scientific studies.

27
Science Plan

• The IDDP well will produce fluid samples from
  tests at 3, 4 and 5 km
• Drill cuttings down to 4 km depth, and spot
  cores from 3 - 4 km
• Drill cores from 4 - 5 km depth
• Pressure, Temperature and flow-meter logs
  over the whole drilled interval

• Depending on the fluid P, the drilled interval
  between 3 and 4 km should
• approach geochemical and P-T conditions
  similar to those of black smokers

• The drilling to 5 km is designed to penetrate
  into supercritical fluids which must underlie
  black smoker hydrothermal systems, and which play
  an extremely important role in heat transfer and
  hydrothermal alteration

• Supercritical fluids have greatly enhanced
  rates of mass transfer and chemical
• reaction

• These environments have never been available
  for such comprehensive direct
• study and sampling

25
28
Wider Research Goals

• Mid-ocean rifting and hot spots.
• Sheeted dike complexes.
• Heat transfer from magma.
• Natural supercritical phenomena.
• Deep permeable convection cells.
• Hydrothermal water-rock reaction.
• Fracturing, self-sealing and permeability.
• Techniques drilling, well completion and
  logging.
• Scientific, industrial, and economic spin-offs.

26
29
2005
www.iddp.is
Welcome to the 1st IDDP drillsite
Thanks for your attention !
