Title: Simulation Modeling and Design

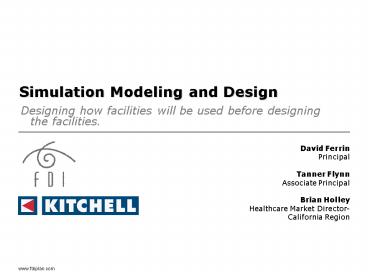

1
Simulation Modeling and Design
Designing how facilities will be used before
designing the facilities.
David Ferrin Principal Tanner Flynn Associate
Principal Brian Holley Healthcare Market
Director- California Region
2
Agenda
  • Lean Philosophy
  • What is Simulation Who uses it?
  • Comparing Simulation To Spreadsheet Planning
  • Simulation In Action - Methodology
  • Case Study Outcomes and Conclusions

3
Lean Philosophy
  • Lean means eliminating waste from any process or
    product.
  • The first step is to identify the true Value
    Stream of a business process. A clearly defined
    and agreed upon Value Stream throughout the
    organization is the basis for any improvement
    action to achieve high process performance at a
    significantly reduced cost base.

4
Lean Philosophy
  • Conceptually, the business processes in Lean are
    viewed from the customers perspective.
  • The value of an activity is solely defined by the
    customer.
  • Activities that add value to the customer are
    those that make the product or service resemble
    more of what the customer actually wants and for
    which he is willing to pay.
  • Non value-added activities, however, do not
    create any value for the customer, and therefore
    all nonessential, non-value-added activities are
    considered as waste.
  • Waste is any activity in the workflow that adds
    time, effort or cost but does not create value.

5
Six Sigma and Lean
Six Sigma Lean
  • Eliminate defects as defined by the customer
  • Recognizes that variations hinder our ability to
    reliably deliver high quality products
  • Requires data-driven decisions
  • Set tools for effective problem solving
  • Focus on maximizing process velocity
  • Tools for analyzing process flows and delays
  • Centers on value added vs non-value added
  • Means for quantifying and eliminating complexity

6
Lean and Six Sigma
  • Lean Improved process flow
  • Six Sigma Reduced process variation

7
Agenda
  • Lean Philosophy
  • What is Simulation Who uses it?
  • Comparing Simulation To Spreadsheet Planning
  • Simulation In Action - Methodology
  • Case Study Outcomes and Conclusions

8
How industry analysts regard simulation
  • "Virtually all of the Fortune 50, a majority of
    the Fortune 1000 and military planning units of
    all technologically advanced countries, use
    simulation rather than subjective notions to make
    decisions about key manufacturing and logistics
    process decisions. There are no good reasons why
    simulation should not be used to aid decisions
    about key business processes. On the contrary,
    there are numerous good reasons why simulation
    should be used for BPR."
  •
  • Robert Crosslin
  • "Simulation, The Key to Designing and Justifying
    Business Reengineering Projects"
  • The Electronic College of Process Innovation
  • .
  • Simulation and animation technology offers
    ... organizations the potential to more
    rigorously test, analyze, validate and
    communicate their business processes and systems
    before they invest in implementation.
  • - The Gartner Group

9
Organizations our team members have helped
realize the benefits of Simulation Modeling
10
When should we use simulation?
  • Simulation is the only tool that can provide the
    right answer when
  • You cant afford to miss the design the first
    time.
  • You need to evaluate complex system interactions
    - when operations have lots of steps with wide
    time variations and require multiple individuals
    and physical resources.
  • You need to understand the combined financial,
    operational, and human experience of the design

11
Agenda
  • Lean Philosophy
  • What is Simulation Who uses it?
  • Comparing Simulation To Spreadsheet Planning
  • Simulation In Action - Methodology
  • Case Study Outcomes and Conclusions

12
Most Planning Is Done Using Static Models Based
on Averages
  • Example
  • Let us attempt to model ED flow using averages
    (e.g. the spreadsheet model)
  • Patients arrive every 10 minutes
  • Each activity lasts 10 minutes
  • Can you predict what the mean patient LOS will
    be?
  • What will be the 95-ile range?

13
The Results Are Predictable And Do Not Mirror
Real Processes!
  • Results of the spreadsheet model are at the
    right
  • Notice the process behavior of the model
  • Physicians finish their activity just as the next
    patient arrives
  • Patients never wait in queue
  • The LOS never varies
  • Patients move with drum-beat synchronicity
    through the ED
  • Physician utilization is effectively 100

Do real processes behave like this?
14
Simulation Accounts for Process Variability
Let us introduce variability into this example
(ED flow) and analyze the process
  • Patient arrival is exponential with a mean of
    10mins
  • Assessment is triangularly distributed, so that
    it always takes 8mins, usually takes 10mins, but
    never more than 12mins
  • Note-average times for these activities are still
    10mins give or take a couple!

Can you predict the new patient LOS? What will
be the 95-ile range?
15
Simulation Model Produces Drastically Different
Outcomes From Spreadsheet Model
  • Results of the simulation model are at the right
    (50 iterations of 1 week are run)
  • Notice the process behavior of this model
  • Patient LOS is 3 5 hours
  • Long queue waiting for Physician 1
  • Physician utilization still 100
  • Notice how small variations in the process
    increased patient LOS dramatically

Only about 10 of the total LOS is value-added
time the rest is time spent in queue how would
you account for this on a spreadsheet?
16
Agenda
  • Lean Philosophy
  • What is Simulation Who uses it?
  • Comparing Simulation To Spreadsheet Planning
  • Simulation In Action - Methodology
  • Case Study Outcomes and Conclusions

17
(No Transcript)
18
(No Transcript)
19
(No Transcript)
20
(No Transcript)
21
A Process Map of an Emergency Department
22
Number of ED Arrivals By Time of Day
23
Impact of Inpatient Discharge Time of Day on ED
Length of Stay
13h 11m
11h 28m
10h 28m
10h 15m
10h 6m
9h 17m
Inpatient Discharge Time of Day
24
Identifying a Facility Break Point
How many visits to the Emergency Department can
our facility handle as designed with 32 ED Beds
and 370 IP Beds?
ED LOS (hrs)
25
Animations
Patient Care Throughput
ED 1
Operating Room
Patient Care Throughput 2
ED 2
Operating Room 2
Loading Dock
Clinics (3)
ED 3
Radiology
Construction
26
Agenda
  • Lean Philosophy
  • What is Simulation Who uses it?
  • Comparing Simulation To Spreadsheet Planning
  • Simulation In Action - Methodology
  • Case Study Outcomes and Conclusions
  • LACUSC Medical Center
  • UCSF Pharmacy
  • Medical Center Operating Room
  • California Department of Corrections and
    Rehabilitation

27
Case Study - LACUSC Medical Center
28
Case Study LACUSC Medical Center
  • Simulations
  • Emergency Department
  • Operating Suites
  • House-wide Patient Throughput
  • Outpatient Clinic Operations/Space Allocation
  • Loading Dock

29
Case Study LACUSC Medical Center
  • Project History
  • Flagship Hospital of Los Angeles County Dept. of
    Health Services
  • Originally 4 hospitals with 2,104 licensed beds
  • 2 hospitals were destroyed in 1994 earthquake
  • Complete replacement hospital approved designed
    for 946 beds - approved for construction of 600
    beds

30
Case Study LACUSC Medical Center
  • Facility Configuration
  • Current Facility New Facility
  • Inpatient Beds 671 600
  • Outpatient Visits 520,000 350,000
  • Admissions 38,000 -
  • ED Visits 172,000 -
  • Clinic Exam Rooms 340 217
  • Inpatient Length of Stay 6.1 days 5.5 days

31
The Effects of a Volume Increase on the Emergency
Department Design
3 Scenarios Volumes increase by 5, 10, and 15
(95 IP Occupancy)
5
10
15
32
Adding Observation Beds Allows Faster Discharge
Patient Flow
Process Times Associated With Addition of 22
Observation Beds
125 7h
15 11h 13m
7h 30m
13h 11m
3h 6m
21h 57m
88
20 18h
38 55
39 4.5h
Wait Time For An IP Bed
Time to ED Bed
Time to ED Bed 95
ED LOS
Time ED General Bed Are Full
33
Building a Duplicate ED To Test ED Capacity
Simulation Results if ED Had Twice the Number of
Beds and Staff
2X 12h 44m
7h 30m
21h 57m
13h 11m
3h 6m
88
28 9h 28m
43 9h 29m
81 1h 24m
69 27
Time to ED Bed
Time to ED Bed 95
ED LOS
Time ED General Bed Are Full
Wait Time For An IP Bed
34
Inpatient Bed Availability Is The Major
Bottleneck In ED Operations
7h 30m
21h 57m
13h 11m
7 20h 25m
10 11h 52m
16 6h 20m
28 9h 30m
30 15h 22m
46 4h
52
6h 20m
76 5h 16m
83 1h 16m
30
10
20
Time to ED Bed
Time to ED Bed 95
ED LOS
35
Case Study LACUSC Medical Center
  • Emergency Department
  • Sized for 946 Inpatient Beds v. 600
    OPERATIONAL/DESIGN MISMATCH causing a dramatic
    impact on the ED
  • More than 85 of inpatient admissions enter via
    the ED
  • 3X the square footage with the same number of ED
    Beds
  • 6 free-standing EDs moving into one location
  • 172,000 visits - 3rd busiest ED in the US

36
Case Study LACUSC Medical Center
  • Emergency Department - What did we learn?
  • Current demand v. new demand
  • Waiting Room Capacity Impact
  • Geographic Staffing
  • Impact of changes to Inpatient Occupancy Rate,
    LOS and DTOD
  • Effect of various changes to internal ED
    processes radiology TAT Discharge process, etc.

37
Case Study LACUSC Medical Center
  • Outpatient Clinic Design Challenges
  • Excluded Primary Care (Internal Medicine Clinic)
    - Primary Care is on Campus today, with highest
    volume of all Clinic Groups
  • Designed to accommodate up to 350,000 Annual
    Visits - Must maintain current visits of over
    500,000 annual visits. (42 increase)
  • Designed to accommodate Infusion Therapy Services
    for 22 patients in one location (Adult and Peds
    combined) - Current Infusion Therapy Services
    accommodates over 54 Infusion patients in one
    location (trending upwards)
  • Exam Rooms - 50 reduction
  • Existing Buildings 340
  • New Building 171

38
Case Study LACUSC Medical Center
  • Outpatient Clinic - Project Goals
  • Accommodate current service volumes
  • Minimize the move of services to the Community
    Health Centers
  • No addition of evening/off-hours sessions due to
    staffing limitations
  • Minimize session/schedule change to the extent
    possible
  • Minimize session over-time
  • Optimize space utilization of the new facility

39
Case Study LACUSC Medical Center
  • Simulation gave us a way to
  • Accommodate 500 individual Clinics in 104
    Service Groups
  • Minimize clinic schedule changes to just 23
    Services
  • Identify the 64 Services that needed to adjust
    their time per patient to sustain current volumes
    (benchmarked for feasibility)
  • Address numerous factors in the clinic
    operations to assess impact of clinic designation
    such as patient arrival patterns, appointment
    slots, physician ratios, etc.
  • Redesign, refine and standardized clinic
    processes
  • Experiment with over 120 scenarios to determine
    best fit for each clinic service

40
Case Study LACUSC Medical Center
  • Without Simulation
  • We would have had to try multiple scenarios using
    post-it notes and averages!
  • Move or eliminate services that we would have
    otherwise assumed would fit and function
  • Alternatives would have been tried in the
    facility at the expense of the patients

41
Case Study - Pharmacy Operations and Construction
Phase Model Final Report
42
Situation Challenge
  • Pharmacy is transforming from centralized manual
    pick operation to a decentralized automated
    operation
  • Must stay operational with very limited space
    available for temporary setup.
  • Typical healthcare renovation challenges exist
    (ILS, ICRA, OSHPD, etc)

43
Narc
Current
BS
Visual Representation of the pharmacy as it
exists today. The departure point for the 4
phased construction project.
IJS
TI
MP
IV
UD
44
New
MP
SL
NARC
All work stations are now in place Swiss Log
Carousals are installed for operation
BS
IJS
IV
UD
45
Objectives
  • Establish realistic expectations for the
    operational impacts and necessary planning during
    the design phase.
  • Communicate the phasing plan to the department
    users.
  • Define metrics for evaluating/ managing the plan.
  • Simulate results and define monitoring points

46
Approach
  • Phasing Overview
  • Design Team BFHL Architects- San Francisco, C
  • Current versus New
  • Phases 1 4
  • Metrics
  • Simulation Result- example of findings from data
    evaluation.

47
Narc
UD
Phase I
BS
MP
IJS
Unit Dose is moved to location in front of
Narc. Manual Pick is moved to previous order
entry location Transplant/Investigational
Order Entry is displaced elsewhere in the
facility
IV
48
NARC
Phase 2
UD
BS
MP
IVAS is moved to new home Inject able storage is
moved to the previous transplant/Investigational
IJS
IV
49
NARC
Phase 3
MP
Bulk Storage is moved to new home Inject able
storage is moved to new home Unit Dose is moved
to new home
BS
IJS
IV
UD
50
Phase 4
MP
NARC
Narc is moved to new home Manual Pick is moved
to new home
BS
IJS
IV
UD
51
Metrics
The project analysis was focused on two
components
Workload - defined by the number of Orders
processed
Orders may contain several sub-orders (referred
to as labels) 85.8 of all orders had 1 label and
were processed the same day
52
Metrics
The project analysis was focused on two
components
Storage Capacity - defined by the physical
storage space necessary to accomplish the workload
53
Reducing IVAS Techs/Space
Approach This graph represents the effect of
reducing an IVAS tech/space vs. the time it takes
to have an order ready for delivery once the
order has been electronically forwarded to the
IVAS pharmacist.
124
2hr 28m
82
39m
Key Points Reducing 1 tech/space will have no
effect for the IVAS area. A slight increase,
however, was noted in the time it takes to have
an order ready for delivery in the Unit dose
area. This is due to the fact that some Unit dose
orders require use of an IVAS work area. Reducing
2 tech/space results in significant increases in
both IVAS and Unit dose times.
0
22m
0 66m
22m
0
4.6 69m
- 1
- 2
- 1
- 2
Baseline
Baseline
IVAS
Unit Dose
54
Summary
  • In addition to confirming the operational impact
    of a design..
  • Simulation can be an invaluable design /
    construction planning tool for implementing
    complex hospital projects.
  • Communicate phase planning in operational terms.
  • Test the results before the OSHPD permit /
    construction barricades
  • Define key monitoring points for managing the plan

55
Case Study Operating Room
56
Case Study
  • Project History
  • The hospital needed to redesign their work
    processes, Identify capacity constraints and
    operational bottlenecks, and determine mitigation
    approaches for their new Operating Room. The
    facility is planning for the same number of
    operating rooms, but needs to handle more volume.

57
Case Study
  • Simulations
  • Operating Suite with Demographic Changes for
    2010, 2015 2018

58
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • PACU 3 beds

59
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • PACU 3 beds

60
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • PACU 4 beds
  • Recommendation
  • PACU 4 beds 2010

61
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • PACU 5 beds

62
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • PACU 6 beds

63
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • PACU 3 beds

64
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • PACU 4 beds
  • Recommendation
  • PACU 4 beds 2015

65
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • PACU 5 beds

66
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • PACU 6 beds

67
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • PACU 3 beds

68
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • PACU 4 beds

69
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • PACU 5 beds
  • Recommendation
  • PACU 5 beds

70
Average Minutes PACU Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • PACU 6 beds

71
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 7 beds

72
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 8 beds

73
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 9 beds

74
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 10 beds

75
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 11 beds
  • Recommendation
  • Pre Op 11 beds 2010

76
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2010
  • Number of ORs 6
  • Pre Op 12 beds

77
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 7 beds

78
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 8 beds

79
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 9 beds

80
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 10 beds

81
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 11 beds

82
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 12 beds
  • Recommendation
  • Pre Op 12 beds 2015

83
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2015
  • Number of ORs 6
  • Pre Op 13 beds

84
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 7 beds

85
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 8 beds

86
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 9 beds

87
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 10 beds

88
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 11 beds

89
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 12 beds
  • Recommendation
  • Pre Op 12 beds 2018

90
Average Minutes Pre Op Full in an Hour
  • Key Points
  • Yr 2018
  • Number of ORs 6
  • Pre Op 13 beds

91
Capacity Summary/Recommendations
  • Operating Rooms6
  • 2010 OR5
  • 2015 OR6
  • 2018 OR6
  • PACU Beds5 Pre/Post Op Beds 11
  • 2010 PACU4 Pre Op11
  • 2015 PACU4 Pre Op12
  • 2018 PACU5 Pre Op12

92
Proposed OR LayoutAnimation
93
CDCR Receiving and Release Simulation Model
David Ferrin Principal Tanner Flynn Associate
Principal Steve Faller Sr. Project
Engineer September 24, 2008
94
Case Study CDCR Receive and Release
  • Simulations
  • The Process of Receiving and Releasing Inmates

95
Case Study CDCR Receive and Release
  • The reception centers process all inmates coming
    in to the system. The reception center assesses
    each inmates health and routes them to the
    correct prison. The inmates then wait at the
    reception center until the selected prison has an
    available bed for them. The challenge for the
    reception center was to reduce the typical
    three-day period assessment to six hours per
    inmate on the day of arrival.

96
CDCR Reception Release Process
  • Standardizing the inmate property received to the
    lowest acceptable level from the counties
  • This was supposed to improve the value stream
    (processed inmates) by removing a bottle neck and
    increasing the percent of inmates completed in
    six hours and decreasing the inmates time to be
    seen
  • Although this did not have the desired effect it
    was found that the staffing hours per week could
    be dramatically reduced using this standard
  • The following two slides show how the numbers
    played out

97
ScenarioReduce Inventory Property Times (To-Be)
Methodology Green is GOOD Red is BAD
  • Key Points
  • Does not have a major impact on the complete
    in 6 hours
  • The other 8 activities in the parallel process
    dilute the time that is saved in this one activity

8 6 h 53 m
2 56 m
5 7 h 36 m
3 2 h 19 m
3 2 h 24 m
6 2 h 11 m
5 38
6 38
1 86
7 h 59 m
2 h 18 m
7 h 27 m
2 h 24 m
2 h 28 m
37
85
36
57 m
NK
SQ
Wasco
NK
SQ
Wasco
NK
SQ
Wasco
Complete in 6 hours
Time Waiting to Begin Process
Time in Parallel Process
98
ScenarioHours Per Week Required for Inventory
Property Screening (To-Be)
Methodology Green is GOOD Red is BAD
75 h
  • Key Points
  • Hours saved per week by reducing the inventory
    property
  • NK 24 hours
  • SQ 20 hours
  • W 48 hours

47 h
36 h
51 23 h
64 27 h
56 16 h
NK
Wasco
SQ
Hours per Week
99
CDCR Reception and Release Process
  • Doubling the quantity of resources revealed that
    the only additional space necessary would be for
    additional RN offices.
  • Doubling the RN offices increased the velocity of
    inmates on the reception end of the process

100
Analysis to increase the quantity of resources by
Double
Methodology Green is GOOD Red is BAD
42 52
  • Key Points
  • Resource analysis
  • Each bar is a different scenario with that sole
    resource being doubled
  • The bottleneck resource will give the highest
    improvement

9 40
1 36
4 38
5 39
4 38
3 38
37
17 30
  • Resources Doubled to
  • Counter 30
  • Live Scan 10
  • Photo Room 2
  • LVN Station 4
  • Nurse Office 4
  • Lab Table 4
  • Panorex 4
  • Psych Room - 10

Baseline
Counter
Live Scan
Photo Room
Psych Room
Panorex
Lab Table
Nurse Office
LVN Station
Complete in 6 hours
101
David Ferrin 602-212-3565 (office)630-258-0141
(cell)dferrin_at_fdiplan.comTanner
Flynn602-212-3579602-538-2640tflynn_at_fdiplan.com

FDI Simulation is the largest Healthcare
Simulation Modeling firm in the country with more
than 20 years experience, providing custom models
incorporating best-practices and hospitals own
data routinely yielding multi-million dollar
financial impacts. FDIs models simulate and
analyze hundreds of scenarios projecting
multi-annual impacts in minutes. FDI uniquely
provides prioritized implementation strategies
for patient throughput and capacity issues. Our
prioritization is based on the greatest and
quickest financial and patient experience
benefits with the least amount of change required.
www.fdiplan.com
Write a Comment
User Comments (0)
About PowerShow.com
