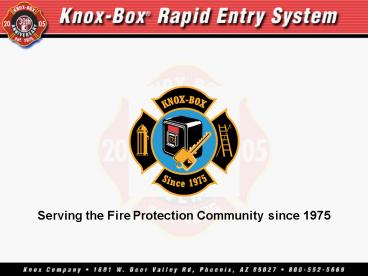

Serving the Fire Protection Community since 1975

1
Serving the Fire Protection Community since 1975
2
Thirty years ago, Knox developed the first rapid
entry system for firefighters. Today, Knox-Box
key boxes are the standard for secure and
reliable rapid entry.
3
Knox Company provides products and services to
more than 7,500 fire departments in the U.S.
4
Order Authorization Process

• Knox provides product catalogs with customized
  authorization forms
• Fire Department approves and distributes forms as
  needed
• Building owners or installers order products
  directly from Knox

5
Order Process Option

• Choose Blanket Authorization
• to save time without giving up
• Knox System control.
• Take advantage of many online
• services at www.knoxbox.com

6

• www.knoxbox.com
• Receive immediate notification
• of Knox product shipments to
• your jurisdiction.
• Specify a custom selection of products available
  to property owners.
• Incorporate flexible hours for Knox program
  management.
• Utilize all established Knox security procedures.

7
(No Transcript)
8
Knox Program Services

• Installation database
• Email notification of orders
• Product literature
• Newsletters with shared ideas
• Sample ordinances
• Specification support
• Presentations and education
• Community awareness programs

9
All of the Model Fire Codessupport a Key Box
program.

• International Fire Code
• NFPA1 / UFC Fire Code

10
Underwriters Laboratories sets the standard for
safety and adaptability to fire protection
systems. Knox product listings include

• UL 437 Standard for Safety for Key Locks
• UL 1037 Standard for Antitheft Alarms Devices
• UL 1610 Standard for Central Station Alarms

11
KNOX-BOX Rapid Entry System Benefits

• Access property with one master key
• Immediate building entry day or night
• Time-saving response to false alarms
• Meet fire and building code requirements
• for listed products
• Eliminate waiting for key holder
• High security protection

12

• More System Benefits
• Shorten response time
• Keep vehicles in service
• Eliminate forced entry delays
• Help prevent firefighter injury
• Reduce property damage
• Maintain building security

13

• KNOX-BOX 3200 Series
• Black, dark bronze or aluminum
• Surface or recessed
• Magnetic dust cover
• UL Listed
• Alarm tamper switches
• High Security UL Listed lock
• Hinge door option
• 10 key capacity / Access cards

14

• Knox-Vault 4400 Series
• Black, dark bronze or aluminum
• Surface or recessed
• Magnetic dust cover
• UL Listed
• Alarm tamper switches
• High security UL Listed Lock
• Dual lock option
• 50 key capacity
• Access cards, Building information

15

• Knox Cabinet
• Light Grey
• UL Listed
• Magnetic dust cover
• Alarm tamper switches
• High security UL Lock
• 27 key standard capacity
• 231 key maximum capacity
• On site document storage
• Dual lock option

16

• Knox Key Switch
• Single switch assembly
• Switch on mounting plate
• Magnetic dust cover
• Switch keeps gate locked open in
• emergency position
• Accessed by same Knox-Box key

17

• Knox Padlock
• Exterior, all conditions
• UL Listed
• Shackle size 5/16
• Stainless steel
• EPDM boot shackle seal
• UL Listed Lock
• Manual or electric gates
• Secure valves

18

• Knox Residential
• For residential use only
• Black
• Surface or door mount
• Hinged door option
• UL Listed key box and lock
• Single key capacity
• Residential medical aid

19

• International Fire Code 2003
• 912.3.1 Locking fire department connection caps.
  The fire code official is authorized to require
  locking caps on fire department con-nections for
  water-based fire protection systems when the
  responding fire department carries appropriate
  keywrenches for removal.

20

• International Building Code
• Chapter 903.3.7.1
• Locking Fire Department
• Connection Caps

21
Sentralok Key Retention System

• Encoder
• Located at dispatch center
• Transmits vehicle specific
• release code
• Works with standard radio
• systems

• Decoder
• Mounted on vehicle
• Key always secure and
• available
• Override option for radio

22
KeySecure Master Key Lock Up

• Provides self contained key retention
• Inventories key in a locked, visible position
• Releases key after authorized pin code entry
• Audit trail option

23
Key Security Rules

• Keep all keys in a secure place.
• Do not release the Knox provided keys to any non
  fire
• department or law enforcement personnel.
• Do not provide Knox installation database access
  to any
• non fire department or law enforcement
  personnel unless required by law.
• Maintain a record of key serial numbers and their

• respective locations.
• Notify Knox immediately of loss, theft or
  attempted
• duplication of any key.

24
Knox-Box Applications
25
Installation Guidelines

• Develop a mounting standard for your
  community 1. Height above standing surface 2.
  Distance from access points 3. Prominent
  location - not hidden
• Use knowledgeable locksmith or alarm companies
  1. Connect to a monitored alarm system
• Hardware - Use Knox installation instructions

26
Installation Diagram
27
Decals

• Red life safety decal for upper right hand corner
  of main entry doors.

• Yellow warning decal for interior master key
  cabinet used by building manager.

28
Knox Rapid Entry System The only complete high
security system available.
