CTBTO Technical Training Program TTP Part 2 Seismic

1
(No Transcript)
2
GSN Station Operator Technical Training Program
(TTP 2005)

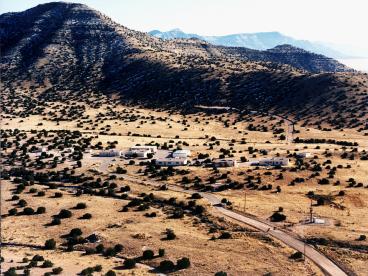

• Albuquerque Seismological Laboratory

ASL
3
(No Transcript)
4
Training

• Installation, maintenance and operation training
  are conducted during the initial installation of
  the station.
• Refreshed during any maintenance visit.

5
Glossary

• ASL Albuquerque Seismological Laboratory
• Comm-link Remote system connection from DAU to
  DPU
• DA or DAU Data Acquisition (Unit) of a Remote
  system.
• DAU/DPU Combined Data Acquisition Unit and Data
  Processing Unit (Local System)
• DCC Data Collection Center
• DP or DPU Data Processing Unit. The recording
  portion of a Remote system.
• GPS Global Positioning Satellite

6
Glossary Continued

• GSNMAINT Technical personnel at ASL that handle
  Global Seismograph Network Maintenance
• I/O Input or Output to a module or device
• IRIS Incorporated Research Institutions for
  Seismology
• LISS Live Internet Seismic Server
• QC Quality Control
• UPS Uninterruptible Power System

7
Training Agenda

• Effective communication with ASL
• System hardware descriptions
• Software operation
• Maintenance procedures
• Trouble shooting
• Data analysis
• Grounding and lightning protection
• Shipping hardware to ASL

8
Contacting ASL By E-mail

• Send all station specific messages to
  gsnmaint_at_asl.cr.usgs.gov
• This is a mail list of all technical persons at
  Albuquerque Seismological Laboratory
• Use the format below to help us sort mail and
  quickly respond to your station problems.
• Subject CODE Problem description

9
Why Do We Use Mail Lists?

• More than one person is aware of the problem.
  Multiple points of contact.
• Maintenance priority is assigned.
• Actions taken.
• Data quality is verified.
• Mail List is notified when the problem is solved.

10
Problem Handling Flowchart
11
Data Flow from SAML to ASL
12
GSN System
13
Q330 Recording System Example
14
Detailed System Hardware Descriptions and Training

• Conducted by Field Engineers on hardware systems
  matching the specific configuration for each
  participating station.

15
Local Power System
16
Power System Component Descriptions

• Voltage Regulator
• Used to regulate AC voltage.
• Corrects for low or high commercial power.
• Constant Voltage Transformer
• Conditions the input AC voltage to the DC UPS
  (battery charger).

17
Power System Component Descriptions

• DC UPS (Battery Charger)
• Converts commercial AC power to 24 VDC to the
  operate the DA and charge the stationary
  batteries.
• Stationary Batteries
• Power for the DA and seismometers during a
  commercial AC power outage.

18
Power System Component Descriptions

• Battery Preventive Maintenance
• Keep the battery terminals clean and dry.
• Check for proper voltage in loaded and
  unloaded conditions.
• Battery Replacement
• Report any abnormal conditions to GSN Maintenance
  for replacement instructions.

19
Photo Voltaic (PV)Power System and VSAT
20
GSN Q680 System
21
Q330 and Packet Baler
22
Equipment Installed in TA Vault
23
VSAT Antenna and PV Array Examples
24
Seismometers

• Borehole Installations
• KS54000i
• CMG3-TB
• Surface Installations
• STS-1/VBB
• STS-2
• CMG-3T
• FBA-23 (Accelerometer)
• Episensor (Accelerometer)

25
Seismometers

• Basic Information
• NEVER move a seismometer without locking the
  mass.
• Prevent temperature changes to seismometer and
  inside vault.
• Eliminate seismic noise near seismometers.

26
Seismometers

• Operator Maintenance Requirements
• Depends on the type of seismometer
• Monitor the data quality
• Check the mass positions (if data is available)
• Center the masses (not possible on all
  seismometers)
• Align the seismometer if it has been replaced
  (surface instruments only)
• Troubleshoot problems

27
Seismometers

• STS-2
• Monitor the data for problems
• Check mass positions on status screen
• Center all masses if any mass is more than or-
  5 volts from zero. Use the current procedure
  provided by GSN Maintenance
• Center the masses whenever power is lost to the
  seismometer
• Troubleshooting
• If data is noisy or spiking, check for moisture
  problems and re-level the instrument
• If there is no seismic or mass position data,
  this is most likely due to a faulty Host Box
• Request help from ASL

28
(No Transcript)
29
(No Transcript)
30
Grounding

• Grounding is for protection of personnel and
  reliable equipment operation.
• Lightning or equipment failures can cause voltage
  transients that can damage equipment or kill you.
• All equipment is grounded to one place Single
  Point Ground
• Maintain the integrity of the grounding system
  installed with the GSN equipment.

31
Grounding

• The importance of correctly installing and
  maintaining a reliable grounding system is
  explained.
• Exothermic welding connections are demonstrated.

32
System Software

• Training conducted by Software Engineers and
  Field Engineers.
• On hardware systems configured for the specific
  stations.
• Running the station operational software.

33
Quality Control

• Quality Control analysts explain how they verify
  seismic content of the data.
• Field Engineers and Quality Control analysts
  demonstrate and explain the capabilities of data
  analysis software.

34
System Maintenance

• Training is conducted by Field Engineers on
  hardware configurations for each specific
  station.
• Test systems are setup for any unique hardware
  configurations.

35
Trouble Shooting

• Conducted by Field Engineers to locate common
  problems.
• Present solutions for possible temporary repairs
  to keep the station operational.

36
PRIMARY PROBLEM TROUBLESHOOTING POINTS

• Before contacting ASL for technical assistance
  with a station problem please insure the
  following troubleshooting procedures have been
  completed.

37

• Is power available at all equipment locations?
  Has there been a commercial power outage?
• If power is available but a component is not
  functioning, are fuses blown?
• Verify normal operation of all LEDs on the
  system and make notes to inform GSN Maintenance
  if they are ON or OFF or FLASHING.

38

• Note status of Radio or Modem comm- link LEDs if
  you have this hardware.
• Inform GSN Maintenance of any electrical storms
  that may have been in the area when the problem
  started.
• If you are not familiar with the above actions
  ask for guidance from GSN Maintenance.

39
(No Transcript)
40
LIGHTS ON THE QUANTERRA SYSTEM(Example of a
Troubleshooting Checklist)

• CPU Central Processing Unit Board
• FAIL (red) OFF Normal Operation.
• STATUS (yellow) FLASHING Normal operation.
• RUN (green) FLASHING Normal operation.
• SCON (green) ON Normal operation.
• MVME 712/M Interface Module
• Visible through a hole in the front panel are two
  lights (yellow and green) ON Normal operation.
• The light in the terminator connector on the
  front panel (green) ON Normal operation
• QPWR Quanterra Power Module
• The top light (yellow) OFF Normal operation.
• The top light is a blown fuse indicator for the
  incoming power and will also illuminate when the
  top power switch is turned off.
• The center light (yellow) OFF Normal operation.
• The center light is also a blown fuse indicator.
  ON 24 VDC power is lost to the QAP modules.
• The bottom light (green) ON Normal operation.
• If the bottom light is not illuminated, there is
  less than 20 VDC available at the input
  connector.
• QDP Quanterra Digital Processor Modules
• All 3 (red) lights Flashing brightly each second
  Normal operation.
• All 3 lights on continuous CPU has Reset.
• Lights flashing rapidly Memory failure.

41
(No Transcript)
42
Operator Responsibilites

• Tasks to monitor station operational
• Daily
• Weekly
• Periodic
• These general tasks are tailored for each station.

43
Contacting ASL By E-mail

• Send all station specific messages to
  gsnmaint_at_asl.cr.usgs.gov
• This is a mail list of all technical persons at
  Albuquerque Seismological Laboratory
• Use the format below to help us sort mail and
  quickly respond to your station problems.
• Subject CODE Problem description
