HARTMANN CONTROLS

1
INTRODUCTION
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System

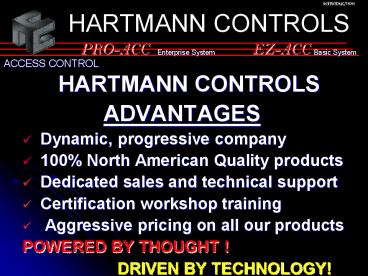

ACCESS CONTROL

• HARTMANN CONTROLS
• ADVANTAGES
• Dynamic, progressive company
• 100 North American Quality products
• Dedicated sales and technical support
• Certification workshop training
• Aggressive pricing on all our products
• POWERED BY THOUGHT !
• DRIVEN BY TECHNOLOGY!

2
FOUNDED
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Founded in 1998, Hartmann Controls is a
  privately held, 100 Canadian company that
  develops and manufactures its own line of
  controllers and software.

3
SOLD IN
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Our products are sold in
• Canada, USA, Mexico, Australia,
• India, Central and South America

4
SAMPLE CUSTOMERS
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Some of the facilities that use Hartmann
• Controls products are

Toronto District School Board uses Hartmann to
control more than 104 buildings all over TCPIP
Niagara Casino uses a custom system to control 5
million Cardholders
5

• EZ-ACC

HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL
EZ-ACC
MAKING ACCESS CONTROL SIMPLE !!!
6
EZ-ACC CONTINUED
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Simplicity is Efficiency !

EZ-ACC

• User friendly, non threatening GUI
• 14 screens total to navigate
• Point and click, drag and drop operation
• Convenient and versatile administration

7
EZ-ACC OVERVIEW
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL
EZ-ACC

• 2 Door controller (up to 16 Doors),
• 1000 users maximum
• Supports several reader technologies
  (Proximity, Biometrics, RF, Bar code,
• mag stripe)
• Supports USB and TC/PIP communication
  channels

8
EZ-ACC PANEL
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Panel Features
• Removable headers
• All headers neatly organized and clearly marked
• Communication LED
• Active relay LED
• 12vdc Power LED

9
EZ-ACC WIZARD
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• A new installation
• produces a Simple
• one page wizard
• Quick and EZ

10
EZ-ACC GRAPHICS
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Simple graphics
• and the basic
• point and click,
• drag and drop
• feature is
• employed
• throughout.

11
EZ-ACC SUMMARY
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL
EZ-ACC

• Designed and engineered for ease of
• installation and administration, EZ-ACC
• is the most user friendly, and most
• COST EFFECTIVE door access system
• on the market

12
PRO-ACC INTODUCTION
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL
PRO-ACC is the next generation HARTMANN-CONTOLS
Access Systems
Global Anti-pass back Active Maps 10
Clients Control 4000 doors 65000 Card
Holders Connectivity Via TCP/IP, USB,
Dialup Alarm Interfacing And the list Goes On
13
PRO-ACC TOPOLOGY
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Panels are simply daisy chained via cat5 cable.
• TCP/IP, USB, Dialup Connectivity supported.
• Each channel supports any mix of panels.
• Up to 10 Workstations can be used to administer
  system
• System is fully distributed meaning all panels
  run completely independent of Server Software
  with the exception of Global Anti-Pass Back.

14
PRO-ACC PANELS
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Snap off headers
• Communication Led
• Led on all inputs and outputs
• 12V and 5V led
• AC Led
• All headers nicely organized and clearly marked.
• All controllers come in a custom enclosure with
  enough room for a 12V7AH battery and wiring.
• They have on board communications and Power
  supply for themselves as well as readers and
  small peripherals. (Single Panel Design)

No more messing with multiple or old oversized
panels to get your doors running.
15
PRO-ACC WIZARD
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• A new installation produces a one page wizard
  which once filled out will have your first panel
  and card up and running in seconds.

New Installer Quote Installing your system was
as easy as pushing a button
16
PRO-ACC OVERVIEW
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Although our focus has been to keep it simple the
  PRO-ACC does not fall short on features.
• With control of up to 40 communication channels
  via RS485, TCP/IP or dialup you can configure a
  system controlling hundreds of readers on
  buildings around the world.
• With onboard capability for 65000 cardholders,
  255 access privilege groups, 200 time zones and
  more our panels stand with the best.

17
PRO-ACC OVERVIEW
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• The PRO-ACC system is fully distributed meaning
  the panels once configured run 100 stand alone
  and each store up to 2000 transactions.
• The PRO-ACC controls
• Doors (up to 4000),
• Elevators (up to 64 floors each),
• Input (alarm) points,
• and output points.

18
PRO-ACC 4 DOOR CONTROLLER
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• HCDC- 4 (4 Door Controller) Supports 4 card
  readers
• On Board Power Supply for powering panel and
  readers. Battery Back-Up Circuitry by 12VDC 7
  Ah battery 4 Dedicated Request to Exit Inputs,
  4 Dedicated Door Contact Inputs, 4
• Dedicated Door Lock Outputs for easy
  setup 4 Auxiliary Outputs Controlled by Door
  Alarms, Card Shunting or Time Zones. On
  board firmware clock. Power Requirements
  12-16VAC _at_ 40VA transformer. Relays are Form C
  contact rated at 10A 125VAC. On board Visual
  LEDs to indicate communications, Active
  Relays, AC source, as well as state of inputs
  making it very service friendly.The HCDC-4 is a
  stand-alone unit.  Each Door Panel has a unique
  address . All panels operate fully independent of
  the server or other panels on the network once
  its database is updated.

19
PRO-ACC 2 DOOR CONTROLLER
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• HCDC- 2 (2 Door Controller) Supports 2 card
  readers
• On Board Power Supply for powering panel and
  readers. Battery Back-Up Circuitry by 12VDC 7
  Ah battery 2 Dedicated Request to Exit Inputs,
  2 Dedicated Door Contact Inputs, 2
• Dedicated Door Lock Outputs, for easy
  setup 2Auxiliary Outputs Controlled by Door
  Alarms, Card Shunting or Time Zones. On
  board firmware clock. Power Requirements
  12-16VAC _at_ 40VA transformer. Relays are Form C
  contact rated at 10A 125VAC. On board Visual
  LEDs to indicate communications, Active
  Relays, AC source, as well as state of inputs
  making it very service friendly.The
  HCDC-2 is a stand-alone unit.  Each Door Panel
  has a unique address . All panels operate fully
  independent of the server or other panels on the
  network once its database is updated.

20
PRO-ACC ELEVATOR CONTROLLER
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• HCEC- 8 (8 Floor Elevator Controller) Floor
  control Battery back up Circuitry
• On board firmware clock Power Requirements
  12-16VAC _at_ 40VA transformer Option Stand By
  battery 12VDC 7.0Ah Control up to 64 floor by
  adding HCEC8 (8 floor Expanders). Relays are
  Form C contact rated at 10A 125VAC On board LED
  to indicate communications, Active Relays, AC
  source, as well as the state of the inputs
  making it very service friendly. The Elevator
  Controller is a stand-alone unit similar to our
  door controllers.  Each panel has a unique
  address. When a valid card is presented, all
  relays that card is good for will be activated
  for the programmed time.

21
PRO-ACC I/O CONTROLLER
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• HCSIOC- 8 (Smart Input / Output Controller) 8
  Input and Output controller. 8 Unsupervised
  Input Control. 8 Relay Outputs. On board
  firmware clock. Battery back up Circuitry.
  Power Requirements 12-16VAC _at_ 40VA
  transformer. Option Stand By battery 12VDC
  7.0Ah. Relays are Form C contact rated at 10A
  125VAC. On board LED to indicate
  communications, Active Relays, AC source, as
  well as the state of the inputs making it very
  service friendly. The Smart I/O8 is a
  stand-alone unit similar to our door controllers.
   Each I/O Panel has a unique address.  Inputs are
  programmed to arm according to an assigned time
  zone.  Outputs can be programmed to activate
  according to an assigned time zone or to follow
  input for buzzer activation, etc.  This Panel
  operates fully independent of the server or other
  panels on the network

22
Quick Overview of System Features
PRO-ACC FEATURES
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• 4000 Door Capacity
• 65,000 Card capacity
• 200 Timezones
• 255 Access Privileges
• 32 Holidays
• Supports Multiple Reader Technologies (Proximity,
  Wiegand, Biometrics, Magstripe, Barcode)
• Multiple card formats and facility codes
• Global Anti-Passback
• Timed Anti-Passback
• Emailing of alarms and events
• Up to 100 Controllers per communication channel,
  up to 40 communication channels
• Multi Site Control

23
Quick Overview of System Features
PRO-ACC FEATURES CONTINUED
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Photo Badging Verification
• Time Attendance
• Active Graphical Maps
• Multi Language
• Elevator Controllers
• DVR and CCTV Integration (Bosh, Toshiba, Samsung,
  Open Eye)
• Communicate via Direct USB to RS422, LAN / WAN
  and Dial-up
• On-board power supply
• Visual Diagnostic LEDs
• Quick Connect Terminals
• Separate Door and Request to Exit Inputs
• Integrated Backup / Purge Utility

24
PRO-ACC OVERVIEW
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• The PRO-ACC system has been installed in some
  very prestigious sites such as NASA, North West
  Tel, Several US Banks, Niagara Casino just to
  mention some.
• To date our largest installation is the Toronto
  District School board located in Ontario Canada.
  It is one of the largest 4 school boards in North
  America. They have approximately 600 buildings
  spread out across the Toronto district.
• The PRO-ACC system is currently controlling 104
  buildings with all panels networked back to the
  central PRO-ACC server. There are thousands of
  users and cardholders are being added and removed
  daily. They are planning to add most of their
  buildings to this system.
• To date the School board Is very pleased with the
  performance of the PRO-ACC system and we have had
  no complaints of any kind.
• If PRO-ACC can control such a large site
  successfully we are sure you will be pleased with
  the system Performance for your site.

25
PRO-ACC Top 10 Features
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• 1.) Door Controls are available in 2 and 4 reader
  configuration (Saves and space on larger jobs)
• 2.) Time Attendance Calculator (Using In and
  Out readers)
• 3.) PRO-ACC Software is always included-No
  license fees, no add on modules and always free
  updates from the web
• 4.) Alarm Interface-Configure a reader to allow
  certain individuals to Arm and Disarm the Alarm
  panel with there access card. When activated an
  audible and visual notification is given. Review
  your history reports to who armed and disarmed
  the system.

26
PRO-ACC Top 10 Features
PRO-ACC TOP 10 FEATURES 2
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• 5.) Customize the Logon menu with your own
  corporate logo
• 6.) DVR Integration-Fully integrates with Open
  Eye, Bosch, Honeywell, Samsung, PC Open Toshiba
  -Trigger a camera on an event to display in the
  PRO-ACC Video window, for quick investigation of
  an abnormal incident.- Click on an events date
  and time to call out to the DVR to see what was
  recorded. Review the video events
• 7.) Import Function-The Import function allows
  you to quickly take an existing database in a CSV
  format and import it into our system. This
  speeds up the process for setting up your
  cardholders. This can also be used to tie into an
  HR system eliminating repetitive cardholder
  entry.

27
PRO-ACC Top 10 Features
PRO-ACC TOP 10 FEATURES 3
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• 8.) First Card In- this feature will not unlock
  the door until the first valid user presents a
  card. This is great protection from having your
  door unlock on a schedule (snow day feature!)
• 9.) Timed Anti-Pass Back- Extremely flexible
  features, which prevent sharing of cards for a
  predetermined time. An example would be for paid
  parking once the cad is used, it would not be
  able to work on that reader for the predetermined
  time.
• 10.) Site Code Update-When dong takeovers of an
  existing system with readers and cards and you do
  not know the site/facility code, simply enter 0
  into our system for site, code and we will create
  a file when the cards are used. When cards have
  been used simply click on Update Site codes to
  properly assign all 0 site codes to appropriate
  site code that was registered.

28
PRO-ACC SUMMARY
PRO-ACC SUMMARY
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL

• Simplicity
• On all fronts from configuring what is needed to
  installing to administering to servicing.
• Competitive
• The most competitive full-featured system.
• Dependability
• Over 99 Quality Assurance
• In house software and hardware development
• Availability
• North American Manufactured makes product readily
  available
• Typically shipped within 48 hours
• Support
• After hours support 8am to 11pm 7 days a week.

29
Thank YOU
HARTMANN CONTROLS
PRO-ACC
EZ-ACC
Enterprise System
Basic System
ACCESS CONTROL
Powered by Thought! Driven by Technology! We
look forward to any questions or comments you may
have to help us serve you better. Hartmann
Controls, Ontario, Canada www.hartmann-controls.co
m North America Toll Free- 1-877-411-0101
