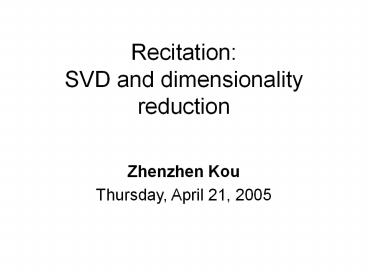

Recitation: SVD and dimensionality reduction

1
RecitationSVD and dimensionality reduction
Zhenzhen Kou Thursday, April 21, 2005
2
SVD

• Intuition find the axis that shows the greatest
  variation, and project all points into this axis

f2
e1
e2
f1
3
SVD Mathematical Background
4
SVD The mathematical formulation

• Let X be the M x N matrix of M N-dimensional
  points
• SVD decomposition
• X U x S x VT
• U(M x M)
• U is orthogonal UTU I
• columns of U are the orthogonal eigenvectors of
  XXT
• called the left singular vectors of X
• V(N x N)
• V is orthogonal VTV I
• columns of V are the orthogonal eigenvectors of
  XTX
• called the right singular vectors of X
• S(M x N)
• diagonal matrix consisting of r non-zero values
  in descending order
• square root of the eigenvalues of XXT (or XTX)
• r is the rank of the symmetric matrices
• called the singular values

5
SVD - Interpretation
6
SVD - Interpretation

• X U S VT - example

7
SVD - Interpretation

• X U S VT - example

variance (spread) on the v1 axis
x
x

8
SVD - Interpretation

• X U S VT - example
• U L gives the coordinates of the points in
  the projection axis

x
x

9
Dimensionality reduction

• set the smallest eigenvalues to zero

x
x

10
Dimensionality reduction
x
x

11
Dimensionality reduction
x
x

12
Dimensionality reduction
x
x

13
Dimensionality reduction

14
Dimensionality reduction

• Equivalent
• spectral decomposition of the matrix

x
x

15
Dimensionality reduction

• Equivalent
• spectral decomposition of the matrix

l1
x
x

u1
u2
l2
v1
v2
16
Dimensionality reduction

• spectral decomposition of the matrix

m
r terms


...
n
n x 1
1 x m
17
Dimensionality reduction

• approximation / dim. reduction
• by keeping the first few terms (Q how many?)

m


...
n
assume l1 gt l2 gt ...
18
Dimensionality reduction

• A heuristic keep 80-90 of energy ( sum of
  squares of li s)

m


...
n
assume l1 gt l2 gt ...
19
Another example-Eigenface

• The PCA problem in HW5
• Face data X
• Eigenvectors associated with the first few large
  eigenvalues of XXT have face-like images

20
Dimensionality reduction

• Matrix V in the SVD decomposition
• (X USVT ) is used to transform the data.
• XV ( US) defines the transformed dataset.
• For a new data element x, xV defines the
  transformed data.
• Keeping the first k (k lt n) dimensions, amounts
  to keeping only the first k columns of V.

21
Principal Components Analysis (PCA)

• Transfer the dataset to the center by subtracting
  the means let matrix X be the result.
• Compute the matrix XTX.
• The covariance matrix except for constants.
• Project the dataset along a subset of the
  eigenvectors of XTX.
• Matrix V in the SVD decomposition
• (X U S VT ) contains the eigenvectors of XTX.
• Also known as K-L transform.
