Flower Power

1

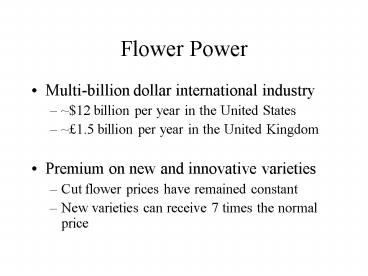

Flower Power

• Multi-billion dollar international industry
• 12 billion per year in the United States
• 1.5 billion per year in the United Kingdom
• Premium on new and innovative varieties
• Cut flower prices have remained constant
• New varieties can receive 7 times the normal price

2
Alterable Flower Traits
plus many more . . .
3
Limitations on Normal Breeding and Selection

• Process is slow
• Limited by gene pool of species

4
Alterable Flower Traits
plus many more . . .
5
Genetic Engineering Strategies to Produce New
Flower Varieties

• Change gene expression levels or location
• Reduce or increase transcription levels
• Introduce new genes
• Mutate existing ones to modify activity

6
Moondust
7
Major Flower Pigments

• Carotenoids (Yellows)
• Flavonoids (Reds and Blues)

8
Other Uses of Pigments

• Anti-inflammatory
• Anti-ulcer
• Wound healing
• Antioxidant
• 200 million per year for anthocyanin production
  from grapes in the United States
• Read about astaxanthin in Glick and Pasternack
  pp. 566-569

9
Anthocyanins

• Major flower pigment in higher plants
• Flavonoid
• Expressed in epidermal cells of petals, leaves,
  and stems
• Accumulates in vacuoles

10
Anthocyanin Color

• Red, pink, violet, and blue
• Dependent on
• Pigment concentration
• pH of vacuole
• Hydroxylation of anthocyanins

11
Anthocyanin Biosynthesis
12
Anthocyanin Biosynthesis
Brick Red
Red
Blue
13
Anthocyanin Biosynthesis
CHS
p-Coumaroyl-CoA
14
Petunias
CHS
4,2,4,6-Tetrahydrocychalcone
p-Coumaroyl-CoA
Naringenin
Dihydrokaempferol
F3,5H
F3,5H
Dihydroquercetin
DFR
DFR
Cyanidin-3-glucoside
Delphinidin-3-glucoside
15
Petunias Maize Dfr
CHS
4,2,4,6-Tetrahydrocychalcone
p-Coumaroyl-CoA
Naringenin
Dihydrokaempferol
F3,5H
F3,5H
Dihydroquercetin
Maize DFR
DFR
DFR
Cyanidin-3-glucoside
Delphinidin-3-glucoside
16
Antisense Suppression
17
Antisense Suppression
18
Antisense Suppression
19
White Chrysanthemums
CHS
SHC
p-Coumaroyl-CoA
20
Sense Suppression

• Goal Make purple petunias more purple
• Strategy Overexpress CHS by introducing CHS
  transgene using Agrobacterium binary vector
• Construct

21
Results of Transformation
Napoli et al. The Plant Cell. 1990.
22
Results are Heritable with Transgene
Napoli et al. The Plant Cell. 1990.
Napoli et al. The Plant Cell. 1990.
23
RNAi Initiation
Waterhouse et al. Nature. 2001
24
RNAi Propagation
Vaucheret et al. J, of Cell Science. 2001
25
RNAi Propagation
Waterhouse et al. Nature. 2001
26
RNAi Maintenance
27
Use of RNAi

• Very difficult to make knockouts of genes in
  plants
• Many gene copies
• Homologous recombination not possible
• RNAi silences all copies of gene
