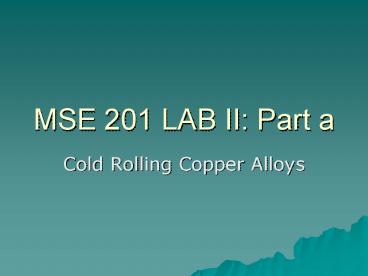

MSE 201 LAB II Part a

• Cold Rolling Copper Alloys

2
What is Cold Rolling?

• Deformation below the recrystallization
  temperature

COLD ROLLING
HOT ROLLING
3
(No Transcript)
4
Lab Overview

• 4 Alloys Rolled Today
• Pure Copper
• 5 Zinc
• 10 Zinc
• 20 Zinc
• This is called Alpha Brass
• Solid solution of one phase (the alpha phase)

5
Why Add Zinc?

• Zinc hardens copper by Solid Solution Hardening.

Cu Z29 Zn Z30
(click to play)
6
Rolling Causes Deformation

• Deformed microstructure has many more defects,
  thus it is harder.

(click to play)
7
Goal Hardness vs. CW
Increased Dislocation Density with CW
Solid Solution Hardening
8
How to Measure CW?

• Percent Cold Work (CW) is the Change in
  Cross-sectional Area.

• Area of these samples Width Thickness.

9
Making It Easier

• Assume width doesnt change.

10
Using a Micrometer
11
Using a Micrometer (cont.)Measuring to 0.001
12
Using a Micrometer (cont.)The Vernier Scale
(0.0001)
13
Lab Procedure

• Measure initial thickness
• Calculate target thickness values for each CW
• Measure initial width, hardness
• Roll sample to reach the target thickness
• (Set micrometer to target thickness for
  pass-thru test to save time)
• Measure Actual Thickness
• Measure hardness
• Reset micrometer and go to step 4

14
Notes on Hardness Measurement

• Start with HRF scale (60kgf load)
• If reading is gt100 HRF, switch to HRB (100kgf)
• If indent is visible on the back side of the
  sample, use superficial scale
• HR30T for softer samples, or
• HR45T for harder samples
• Use spot anvil to negate curvature

15
Upon Completion of Rolling

• Average hardness (HRF/HRB) and convert to DPH
• Make sure data sheet is completely filled out
• Write on your copper strip
• Alloy (Pure, 5, 10, 20)
• Class Time (125 or 325)
• Team members names
• Turn in to TA the following
• Data sheet
• Copper strip
• Micrometer

NO REPORT DUE THIS TIME, BUT LAB MEETS NEXT WEEK
TO FINISH THE EXPERIMENT!!!
NO REPORT DUE THIS TIME, BUT LAB MEETS NEXT WEEK
TO FINISH THE EXPERIMENT!!!
16
Lets Roll!
