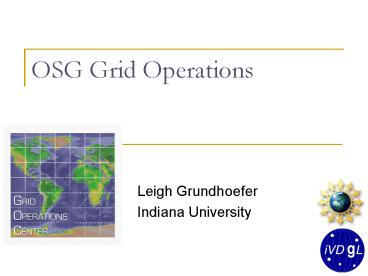

OSG Grid Operations

1
OSG Grid Operations

• Leigh Grundhoefer
• Indiana University

2
Agenda

• Grid Operations Development
• OSG Functional Service Cycle
• Deployment
• Integration
• Provisioning
• Production
• OSG Operations Activities

3
Big Picture Goals

• The OSG Operations activity and Support Centers
  Group has been tasked with the role of preparing,
  provisioning and running the infrastructure used
  for the OSG production environment.
• The operations activities duties to the OSG are
  to ensure that the production environment is
  usable for the current application base and to
  continue to evolve as a common service
  environment which is able to support multiple
  sciences with a application-friendly grid
  infrastructure.

4
Grid Operations
Other Grids
Security, Policy and Authentication
Registration, Verification and Monitoring
5
Operations Environment

• Organization and Definition of core elements
• Grids
• Support Centers
• Virtual Organizations
• Resources
• Registration by Owners and Providers
• Common software services
• Verification and ongoing evaluation
• Resources and services
• Support Center ticketing, ticketing response
• VO services

6
Operations Environment (cont.)

• Information from monitoring
• Job slots and file transfers
• Published policies
• Accounting
• Coordination of OSG Help Desk
• Coordinator of support centers
• Definition and execution of Standard Operational
  Procedures (SOPs).

7
Grid to Grid relationships

• Understand and create specialized help desk and
  trouble reporting schemas
• Understand and create monitoring and accounting
  interfaces
• Create and deploy identity and authorization
  interfaces

8
Agenda

• Grid Operations Development
• OSG Functional Service Cycle
• Deployment
• Integration
• Provisioning
• Production
• OSG Operations Activities

9
Where do you get this stuff?(Architecture and
Requirements)
Release Candidate
Blueprint (ARCH)
ITB 0.3
Integration Test Bed
Operations OSG 0.4
Provisioning
VOs
Deployment Activity
Release Description
Service Development (Sponsored Activities)
Technical Groups
10
OSG Integration Activity
OSG Integration Activity
Readiness plan Effort Resources
Readiness plan adopted
VO Application Software Installation
Software packaging
OSG Deployment Activity
Service deployment
OSG Operations-Provisioning Activity
Release Candidate
Application validation
Middleware Interoperability
Functionality Scalability Tests
feedback
Metrics Certification
Release Description
11
Provisioning

• Finalize all installation software and procedures
• OSG based software packages
• Pre-compiled binaries
• Source code (compiled during installation)
• Post configuration scripts ( configure_osg.sh )
• Create production Grid Support documentation
  for all software and defined procedures.

12
Provisioning

• Translate OSG operations model into production
  operations activities
• Provide timelines for Resources and Support
  Centers
• Setup versioning using release procedures
• Install or upgrade grid wide services

13
Production

• Reports
• Usage reports from OSG monitoring
• Operations reports to the OSG community
• Daily Sites Status reports to Support Centers
• Meetings
• Weekly Operations Activity
• Release-based provisioning Activity
• Weekly Support Centers Technical Group
• Weekly Documentation Activity
• Monitors for verification
• ACDC Operations Dashboard

14
Verification of Resouces

• ACDC Operation Dashboard provides detailed cyclic
  testing of all resources
• Tests based upon site-verify tool distributed
  with OSG common software, around 30 tests
• Tests results output available per test per site
• Five possible results
• No Information
• Pass
• Fail
• Error
• Not Tested
• Resources are grouped in to three areas
  Production, Pending or Offline

15
Agenda

• Grid Operations Development
• OSG Functional Service Cycle
• Deployment
• Integration
• Provisioning
• Production
• OSG Operations Activities

16
GOC A Communications Hub

• Grid Operations Center
• Leveraged Coverage from GRNOC
• Abilene, NLR, TransPAC
• OSG Trouble Ticket System
• Trouble Ticket Exchange with Support Centers /
  Grids
• Weekly Issue tracking report
• Web Page Development and Documentation
• OSG Production web site www.opensciencegrid.org
• Commonly answered questions Knowledge Base
• Collaborative development information -
  osg.ivdgl.org
• OSG Registration Database

17
GOC A Service Center

• Grid wide Information Services
• Registration Database Catalog
• Production Software Caches
• OSG Knowledge Base
• OpenScienceGrid web site
• Grid wide Monitoring Services
• GLUE information providers
• ACDC Dashboards
• GridCat
• MonaLisa archive
• Multiple OSG ITB resources
• Small but demonstrative OSG production resource

18
GOC Incident Response

• Response has been defined by the Security
  Technical Group
• All incidents should be reported mail aliases
  which are monitored by the GOC.
• The GOC maintains a list of local site security
  contacts, derived from the registrations.
• The GOC designed and implemented a specialized
  mail service for secure correspondence
• A response team leader forms a group to access,
  contain, and report on each incident.

19
GOC Policy Procedures

• Grid Service Change or Upgrade
• Registrations
• Support Centers
• Virtual Organizations
• Resources
• Critical OSG Release Update

20
Support Center Registration
21
Virtual Organization Registration
22
Resource/Service Registration
23
Critical Release Update
24
(No Transcript)
25
OSG Community Support

• How do we support issues that fall outside the
  Support Model?
• Open Support Model
• Mailing Lists (OSG-General)
• Knowledge Base and Release Documentation
• Jabber chat room
• Weekly meetings

26
(No Transcript)
27
GOC Conclusions

• Enables Users and Usage
• Creates a known and usable service environment
• Allows status, monitoring and accounting
• Helps users and applications bridge the gap
  between single use and grid based resource
  utilization

28
Thank you!
