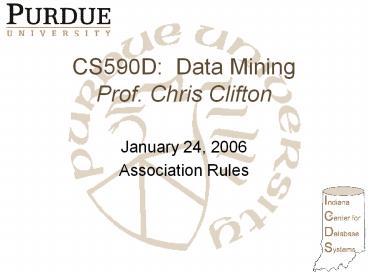

CS590D Data MiningProf. Chris Clifton

• January 24, 2006
• Association Rules

2
Association Rule Mining

• Given a set of transactions, find rules that will
  predict the occurrence of an item based on the
  occurrences of other items in the transaction

Market-Basket transactions
Example of Association Rules
Diaper ? Beer,Milk, Bread ?
Eggs,Coke,Beer, Bread ? Milk,
Implication means co-occurrence, not causality!
3
Mining Association Rules in Large Databases

• Association rule mining
• Algorithms for scalable mining of
  (single-dimensional Boolean) association rules in
  transactional databases
• Mining various kinds of association/correlation
  rules
• Constraint-based association mining
• Sequential pattern mining
• Applications/extensions of frequent pattern
  mining
• Summary

4
What Is Association Mining?

• Association rule mining
• Finding frequent patterns, associations,
  correlations, or causal structures among sets of
  items or objects in transaction databases,
  relational databases, and other information
  repositories.
• Frequent pattern pattern (set of items,
  sequence, etc.) that occurs frequently in a
  database AIS93
• Motivation finding regularities in data
• What products were often purchased together?
  Beer and diapers?!
• What are the subsequent purchases after buying a
  PC?
• What kinds of DNA are sensitive to this new drug?
• Can we automatically classify web documents?

5
Why Is Association Mining Important?

• Foundation for many essential data mining tasks
• Association, correlation, causality
• Sequential patterns, temporal or cyclic
  association, partial periodicity, spatial and
  multimedia association
• Associative classification, cluster analysis,
  iceberg cube, fascicles (semantic data
  compression)
• Broad applications
• Basket data analysis, cross-marketing, catalog
  design, sale campaign analysis
• Web log (click stream) analysis, DNA sequence
  analysis, etc.

6
Basic ConceptsAssociation Rules
Transaction-id Items bought
10 A, B, C
20 A, C
30 A, D
40 B, E, F

• Itemset Xx1, , xk
• Find all the rules X?Y with min confidence and
  support
• support, s, probability that a transaction
  contains X?Y
• confidence, c, conditional probability that a
  transaction having X also contains Y.

Let min_support 50, min_conf 50 A ? C
(50, 66.7) C ? A (50, 100)
7
Mining Association RulesExample
Min. support 50 Min. confidence 50
Transaction-id Items bought
10 A, B, C
20 A, C
30 A, D
40 B, E, F
Frequent pattern Support
A 75
B 50
C 50
A, C 50

• For rule A ? C
• support support(A?C) 50
• confidence support(A?C)/support(A) 66.6

8
Mining Association RulesWhat We Need to Know

• Goal Rules with high support/confidence
• How to compute?
• Support Find sets of items that occur
  frequently
• Confidence Find frequency of subsets of
  supported itemsets
• If we have all frequently occurring sets of items
  (frequent itemsets), we can compute support and
  confidence!

9
Definition Frequent Itemset

• Itemset
• A collection of one or more items
• Example Milk, Bread, Diaper
• k-itemset
• An itemset that contains k items
• Support count (?)
• Frequency of occurrence of an itemset
• E.g. ?(Milk, Bread,Diaper) 2
• Support
• Fraction of transactions that contain an itemset
• E.g. s(Milk, Bread, Diaper) 2/5
• Frequent Itemset
• An itemset whose support is greater than or equal
  to a minsup threshold

10
Definition Association Rule

• Association Rule
• An implication expression of the form X ? Y,
  where X and Y are itemsets
• Example Milk, Diaper ? Beer
• Rule Evaluation Metrics
• Support (s)
• Fraction of transactions that contain both X and
  Y
• Confidence (c)
• Measures how often items in Y appear in
  transactions thatcontain X

11
Mining Association Rules in Large Databases

• Association rule mining
• Algorithms for scalable mining of
  (single-dimensional Boolean) association rules in
  transactional databases
• Mining various kinds of association/correlation
  rules
• Constraint-based association mining
• Sequential pattern mining
• Applications/extensions of frequent pattern
  mining
• Summary

12
Apriori A Candidate Generation-and-Test Approach

• Any subset of a frequent itemset must be frequent
• if beer, diaper, nuts is frequent, so is beer,
  diaper
• Every transaction having beer, diaper, nuts
  also contains beer, diaper
• Apriori pruning principle If there is any
  itemset which is infrequent, its superset should
  not be generated/tested!
• Method
• generate length (k1) candidate itemsets from
  length k frequent itemsets, and
• test the candidates against DB
• Performance studies show its efficiency and
  scalability
• Agrawal Srikant 1994, Mannila, et al. 1994

13
The Apriori AlgorithmAn Example
Itemset sup
A 2
B 3
C 3
D 1
E 3
Itemset sup
A 2
B 3
C 3
E 3
Database TDB
L1
C1
Tid Items
10 A, C, D
20 B, C, E
30 A, B, C, E
40 B, E
1st scan
Frequency 50, Confidence 100 A ? C B ? E BC
? E CE ? B BE ? C
C2
C2
Itemset sup
A, B 1
A, C 2
A, E 1
B, C 2
B, E 3
C, E 2
Itemset
A, B
A, C
A, E
B, C
B, E
C, E
L2
2nd scan
Itemset sup
A, C 2
B, C 2
B, E 3
C, E 2
C3
L3
Itemset
B, C, E
3rd scan
Itemset sup
B, C, E 2
14
The Apriori Algorithm

• Pseudo-code
• Ck Candidate itemset of size k
• Lk frequent itemset of size k
• L1 frequent items
• for (k 1 Lk !? k) do begin
• Ck1 candidates generated from Lk
• for each transaction t in database do
• increment the count of all candidates in
  Ck1 that are
  contained in t
• Lk1 candidates in Ck1 with min_support
• end
• return ?k Lk

15
Important Details of Apriori

• How to generate candidates?
• Step 1 self-joining Lk
• Step 2 pruning
• How to count supports of candidates?
• Example of Candidate-generation
• L3abc, abd, acd, ace, bcd
• Self-joining L3L3
• abcd from abc and abd
• acde from acd and ace
• Pruning
• acde is removed because ade is not in L3
• C4abcd

16
Definition Association Rule

• Association Rule
• An implication expression of the form X ? Y,
  where X and Y are itemsets
• Example Milk, Diaper ? Beer
• Rule Evaluation Metrics
• Support (s)
• Fraction of transactions that contain both X and
  Y
• Confidence (c)
• Measures how often items in Y appear in
  transactions thatcontain X

17
Computational Complexity

• Given d unique items
• Total number of itemsets 2d
• Total number of possible association rules

If d6, R 602 rules
18
Frequent Itemset Generation Strategies

• Reduce the number of candidates (M)
• Complete search M2d
• Use pruning techniques to reduce M
• Reduce the number of transactions (N)
• Reduce size of N as the size of itemset increases
• Used by DHP and vertical-based mining algorithms
• Reduce the number of comparisons (NM)
• Use efficient data structures to store the
  candidates or transactions
• No need to match every candidate against every
  transaction

19
Reducing Number of Candidates

• Apriori principle
• If an itemset is frequent, then all of its
  subsets must also be frequent
• Apriori principle holds due to the following
  property of the support measure
• Support of an itemset never exceeds the support
  of its subsets
• This is known as the anti-monotone property of
  support

20
How to Generate Candidates?

• Suppose the items in Lk-1 are listed in an order
• Step 1 self-joining Lk-1
• insert into Ck
• select p.item1, p.item2, , p.itemk-1, q.itemk-1
• from Lk-1 p, Lk-1 q
• where p.item1q.item1, , p.itemk-2q.itemk-2,
  p.itemk-1 lt q.itemk-1
• Step 2 pruning
• ? itemsets c in Ck do
• ? (k-1)-subsets s of c do
• if (s is not in Lk-1) then delete c from Ck

21
How to Count Supports of Candidates?

• Why counting supports of candidates a problem?
• The total number of candidates can be very huge
• One transaction may contain many candidates
• Method
• Candidate itemsets are stored in a hash-tree
• Leaf node of hash-tree contains a list of
  itemsets and counts
• Interior node contains a hash table
• Subset function finds all the candidates
  contained in a transaction

22
Example Counting Supports of Candidates
Transaction 1 2 3 5 6
1 2 3 5 6
1 3 5 6
1 2 3 5 6
23
Efficient Implementation of Apriori in SQL

• Hard to get good performance out of pure SQL
  (SQL-92) based approaches alone
• Make use of object-relational extensions like
  UDFs, BLOBs, Table functions etc.
• Get orders of magnitude improvement
• S. Sarawagi, S. Thomas, and R. Agrawal.
  Integrating association rule mining with
  relational database systems Alternatives and
  implications. In SIGMOD98

24
Challenges of Frequent Pattern Mining

• Challenges
• Multiple scans of transaction database
• Huge number of candidates
• Tedious workload of support counting for
  candidates
• Improving Apriori general ideas
• Reduce passes of transaction database scans
• Shrink number of candidates
• Facilitate support counting of candidates

25
DIC Reduce Number of Scans
ABCD

• Once both A and D are determined frequent, the
  counting of AD begins
• Once all length-2 subsets of BCD are determined
  frequent, the counting of BCD begins

ABC
ABD
ACD
BCD
AB
AC
BC
AD
BD
CD
Transactions
1-itemsets
B
C
D
A
2-itemsets
Apriori


Itemset lattice
1-itemsets
2-items
S. Brin R. Motwani, J. Ullman, and S. Tsur.
Dynamic itemset counting and implication rules
for market basket data. In SIGMOD97
3-items
DIC
26
Partition Scan Database Only Twice

• Any itemset that is potentially frequent in DB
  must be frequent in at least one of the
  partitions of DB
• Scan 1 partition database and find local
  frequent patterns
• Scan 2 consolidate global frequent patterns
• A. Savasere, E. Omiecinski, and S. Navathe. An
  efficient algorithm for mining association in
  large databases. In VLDB95

27
CS490DIntroduction to Data MiningProf. Chris
Clifton

• February 2, 2004
• Association Rules

28
Sampling for Frequent Patterns

• Select a sample of original database, mine
  frequent patterns within sample using Apriori
• Scan database once to verify frequent itemsets
  found in sample, only borders of closure of
  frequent patterns are checked
• Example check abcd instead of ab, ac, , etc.
• Scan database again to find missed frequent
  patterns
• H. Toivonen. Sampling large databases for
  association rules. In VLDB96

29
DHP Reduce the Number of Candidates

• A k-itemset whose corresponding hashing bucket
  count is below the threshold cannot be frequent
• Candidates a, b, c, d, e
• Hash entries ab, ad, ae bd, be, de
• Frequent 1-itemset a, b, d, e
• ab is not a candidate 2-itemset if the sum of
  count of ab, ad, ae is below support threshold
• J. Park, M. Chen, and P. Yu. An effective
  hash-based algorithm for mining association
  rules. In SIGMOD95

30
Eclat/MaxEclat and VIPER Exploring Vertical Data
Format

• Use tid-list, the list of transaction-ids
  containing an itemset
• Compression of tid-lists
• Itemset A t1, t2, t3, sup(A)3
• Itemset B t2, t3, t4, sup(B)3
• Itemset AB t2, t3, sup(AB)2
• Major operation intersection of tid-lists
• M. Zaki et al. New algorithms for fast discovery
  of association rules. In KDD97
• P. Shenoy et al. Turbo-charging vertical mining
  of large databases. In SIGMOD00

31
Bottleneck of Frequent-pattern Mining

• Multiple database scans are costly
• Mining long patterns needs many passes of
  scanning and generates lots of candidates
• To find frequent itemset i1i2i100
• of scans 100
• of Candidates (1001) (1002) (110000)
  2100-1 1.271030 !
• Bottleneck candidate-generation-and-test
• Can we avoid candidate generation?

32
CS590D Data MiningProf. Chris Clifton

• January 26, 2006
• Association Rules

33
Mining Frequent Patterns Without Candidate
Generation

• Grow long patterns from short ones using local
  frequent items
• abc is a frequent pattern
• Get all transactions having abc DBabc
• d is a local frequent item in DBabc ? abcd is
  a frequent pattern

34
Construct FP-tree from a Transaction Database
TID Items bought (ordered) frequent
items 100 f, a, c, d, g, i, m, p f, c, a, m,
p 200 a, b, c, f, l, m, o f, c, a, b,
m 300 b, f, h, j, o, w f, b 400 b, c,
k, s, p c, b, p 500 a, f, c, e, l, p, m,
n f, c, a, m, p
min_support 3

1. Scan DB once, find frequent 1-itemset (single
   item pattern)
2. Sort frequent items in frequency descending
   order, f-list
3. Scan DB again, construct FP-tree

F-listf-c-a-b-m-p
35
Benefits of the FP-tree Structure

• Completeness
• Preserve complete information for frequent
  pattern mining
• Never break a long pattern of any transaction
• Compactness
• Reduce irrelevant infoinfrequent items are gone
• Items in frequency descending order the more
  frequently occurring, the more likely to be
  shared
• Never be larger than the original database (not
  count node-links and the count field)
• For Connect-4 DB, compression ratio could be over
  100

36
Partition Patterns and Databases

• Frequent patterns can be partitioned into subsets
  according to f-list
• F-listf-c-a-b-m-p
• Patterns containing p
• Patterns having m but no p
• Patterns having c but no a nor b, m, p
• Pattern f
• Completeness and non-redundency

37
Find Patterns Having P From P-conditional Database

• Starting at the frequent item header table in the
  FP-tree
• Traverse the FP-tree by following the link of
  each frequent item p
• Accumulate all of transformed prefix paths of
  item p to form ps conditional pattern base

Conditional pattern bases item cond. pattern
base c f3 a fc3 b fca1, f2, c2 m fca2,
fcab1 p fcam2, cb1
38
From Conditional Pattern-bases to Conditional
FP-trees

• For each pattern-base
• Accumulate the count for each item in the base
• Construct the FP-tree for the frequent items of
  the pattern base

m-conditional pattern base fca2, fcab1

Header Table Item frequency head
f 4 c 4 a 3 b 3 m 3 p 3
All frequent patterns relate to m m, fm, cm, am,
fcm, fam, cam, fcam
f4
c1
b1
b1
c3
?
?
p1
a3
b1
m2
p2
m1
39
Recursion Mining Each Conditional FP-tree
Cond. pattern base of am (fc3)

Cond. pattern base of cm (f3)
f3
cm-conditional FP-tree

Cond. pattern base of cam (f3)
f3
cam-conditional FP-tree
40
A Special Case Single Prefix Path in FP-tree

• Suppose a (conditional) FP-tree T has a shared
  single prefix-path P
• Mining can be decomposed into two parts
• Reduction of the single prefix path into one node
• Concatenation of the mining results of the two
  parts

?
41
Mining Frequent Patterns With FP-trees

• Idea Frequent pattern growth
• Recursively grow frequent patterns by pattern and
  database partition
• Method
• For each frequent item, construct its conditional
  pattern-base, and then its conditional FP-tree
• Repeat the process on each newly created
  conditional FP-tree
• Until the resulting FP-tree is empty, or it
  contains only one pathsingle path will generate
  all the combinations of its sub-paths, each of
  which is a frequent pattern

42
Scaling FP-growth by DB Projection

• FP-tree cannot fit in memory?DB projection
• First partition a database into a set of
  projected DBs
• Then construct and mine FP-tree for each
  projected DB
• Parallel projection vs. Partition projection
  techniques
• Parallel projection is space costly

43
Partition-based Projection

• Parallel projection needs a lot of disk space
• Partition projection saves it

44
FP-Growth vs. Apriori Scalability With the
Support Threshold
Data set T25I20D10K
45
FP-Growth vs. Tree-Projection Scalability with
the Support Threshold
Data set T25I20D100K
46
Why Is FP-Growth the Winner?

• Divide-and-conquer
• decompose both the mining task and DB according
  to the frequent patterns obtained so far
• leads to focused search of smaller databases
• Other factors
• no candidate generation, no candidate test
• compressed database FP-tree structure
• no repeated scan of entire database
• basic opscounting local freq items and building
  sub FP-tree, no pattern search and matching

47
Implications of the Methodology

• Mining closed frequent itemsets and max-patterns
• CLOSET (DMKD00)
• Mining sequential patterns
• FreeSpan (KDD00), PrefixSpan (ICDE01)
• Constraint-based mining of frequent patterns
• Convertible constraints (KDD00, ICDE01)
• Computing iceberg data cubes with complex
  measures
• H-tree and H-cubing algorithm (SIGMOD01)

48
Max-patterns

• Frequent pattern a1, , a100 ? (1001) (1002)
  (110000) 2100-1 1.271030 frequent
  sub-patterns!
• Max-pattern frequent patterns without proper
  frequent super pattern
• BCDE, ACD are max-patterns
• BCD is not a max-pattern

Tid Items
10 A,B,C,D,E
20 B,C,D,E,
30 A,C,D,F
Min_sup2
49
MaxMiner Mining Max-patterns

• 1st scan find frequent items
• A, B, C, D, E
• 2nd scan find support for
• AB, AC, AD, AE, ABCDE
• BC, BD, BE, BCDE
• CD, CE, CDE, DE,
• Since BCDE is a max-pattern, no need to check
  BCD, BDE, CDE in later scan
• R. Bayardo. Efficiently mining long patterns from
  databases. In SIGMOD98

Tid Items
10 A,B,C,D,E
20 B,C,D,E,
30 A,C,D,F
Potential max-patterns
50
Frequent Closed Patterns

• Conf(ac?d)100 ? record acd only
• For frequent itemset X, if there exists no item y
  s.t. every transaction containing X also contains
  y, then X is a frequent closed pattern
• acd is a frequent closed pattern
• Concise rep. of freq pats
• Reduce of patterns and rules
• N. Pasquier et al. In ICDT99

Min_sup2
TID Items
10 a, c, d, e, f
20 a, b, e
30 c, e, f
40 a, c, d, f
50 c, e, f
51
Mining Frequent Closed Patterns CLOSET

• Flist list of all frequent items in support
  ascending order
• Flist d-a-f-e-c
• Divide search space
• Patterns having d
• Patterns having d but no a, etc.
• Find frequent closed pattern recursively
• Every transaction having d also has cfa ? cfad is
  a frequent closed pattern
• J. Pei, J. Han R. Mao. CLOSET An Efficient
  Algorithm for Mining Frequent Closed Itemsets",
  DMKD'00.

Min_sup2
TID Items
10 a, c, d, e, f
20 a, b, e
30 c, e, f
40 a, c, d, f
50 c, e, f
52
Mining Frequent Closed Patterns CHARM

• Use vertical data format t(AB)T1, T12,
• Derive closed pattern based on vertical
  intersections
• t(X)t(Y) X and Y always happen together
• t(X)?t(Y) transaction having X always has Y
• Use diffset to accelerate mining
• Only keep track of difference of tids
• t(X)T1, T2, T3, t(Xy )T1, T3
• Diffset(Xy, X)T2
• M. Zaki. CHARM An Efficient Algorithm for Closed
  Association Rule Mining, CS-TR99-10, Rensselaer
  Polytechnic Institute
• M. Zaki, Fast Vertical Mining Using Diffsets,
  TR01-1, Department of Computer Science,
  Rensselaer Polytechnic Institute

53
Visualization of Association Rules Pane Graph
54
Visualization of Association Rules Rule Graph
55
Mining Association Rules in Large Databases

• Association rule mining
• Algorithms for scalable mining of
  (single-dimensional Boolean) association rules in
  transactional databases
• Mining various kinds of association/correlation
  rules
• Constraint-based association mining
• Sequential pattern mining
• Applications/extensions of frequent pattern
  mining
• Summary

56
Mining Various Kinds of Rules or Regularities

• Multi-level, quantitative association rules,
  correlation and causality, ratio rules,
  sequential patterns, emerging patterns, temporal
  associations, partial periodicity
• Classification, clustering, iceberg cubes, etc.

57
Multiple-level Association Rules

• Items often form hierarchy
• Flexible support settings Items at the lower
  level are expected to have lower support.
• Transaction database can be encoded based on
  dimensions and levels
• explore shared multi-level mining

58
ML/MD Associations with Flexible Support
Constraints

• Why flexible support constraints?
• Real life occurrence frequencies vary greatly
• Diamond, watch, pens in a shopping basket
• Uniform support may not be an interesting model
• A flexible model
• The lower-level, the more dimension combination,
  and the long pattern length, usually the smaller
  support
• General rules should be easy to specify and
  understand
• Special items and special group of items may be
  specified individually and have higher priority

59
Multi-dimensional Association

• Single-dimensional rules
• buys(X, milk) ? buys(X, bread)
• Multi-dimensional rules ? 2 dimensions or
  predicates
• Inter-dimension assoc. rules (no repeated
  predicates)
• age(X,19-25) ? occupation(X,student) ?
  buys(X,coke)
• hybrid-dimension assoc. rules (repeated
  predicates)
• age(X,19-25) ? buys(X, popcorn) ? buys(X,
  coke)
• Categorical Attributes
• finite number of possible values, no ordering
  among values
• Quantitative Attributes
• numeric, implicit ordering among values

60
Multi-level Association Redundancy Filtering

• Some rules may be redundant due to ancestor
  relationships between items.
• Example
• milk ? wheat bread support 8, confidence
  70
• 2 milk ? wheat bread support 2, confidence
  72
• We say the first rule is an ancestor of the
  second rule.
• A rule is redundant if its support is close to
  the expected value, based on the rules
  ancestor.

61
CS590D Data MiningProf. Chris Clifton

• January 31, 2006
• Association Rules

62
Closed Itemset

• An itemset is closed if none of its immediate
  supersets has the same support as the itemset

63
Maximal vs Closed Itemsets
Transaction Ids
Not supported by any transactions
64
Maximal vs Closed Frequent Itemsets
Closed but not maximal
Minimum support 12
Closed and maximal
Closed 9 Maximal 4
65
Maximal vs Closed Itemsets
66
Multi-Level Mining Progressive Deepening

• A top-down, progressive deepening approach
• First mine high-level frequent items
• milk (15), bread
  (10)
• Then mine their lower-level weaker frequent
  itemsets
• 2 milk (5),
  wheat bread (4)
• Different min_support threshold across
  multi-levels lead to different algorithms
• If adopting the same min_support across
  multi-levels
• then toss t if any of ts ancestors is
  infrequent.
• If adopting reduced min_support at lower levels
• then examine only those descendents whose
  ancestors support is frequent/non-negligible.

67
Techniques for Mining MD Associations

• Search for frequent k-predicate set
• Example age, occupation, buys is a 3-predicate
  set
• Techniques can be categorized by how age are
  treated
• 1. Using static discretization of quantitative
  attributes
• Quantitative attributes are statically
  discretized by using predefined concept
  hierarchies
• 2. Quantitative association rules
• Quantitative attributes are dynamically
  discretized into binsbased on the distribution
  of the data
• 3. Distance-based association rules
• This is a dynamic discretization process that
  considers the distance between data points

68
CS490DIntroduction to Data MiningProf. Chris
Clifton

• February 6, 2004
• Association Rules

69
Static Discretization of Quantitative Attributes

• Discretized prior to mining using concept
  hierarchy.
• Numeric values are replaced by ranges.
• In relational database, finding all frequent
  k-predicate sets will require k or k1 table
  scans.
• Data cube is well suited for mining.
• The cells of an n-dimensional
• cuboid correspond to the
• predicate sets.
• Mining from data cubescan be much faster.

70
Quantitative Association Rules

• Numeric attributes are dynamically discretized
• Such that the confidence or compactness of the
  rules mined is maximized
• 2-D quantitative association rules Aquan1 ?
  Aquan2 ? Acat
• Cluster adjacent
• association rules
• to form general
• rules using a 2-D
• grid
• Example

age(X,30-34) ? income(X,24K - 48K) ?
buys(X,high resolution TV)
71
Mining Distance-based Association Rules

• Binning methods do not capture the semantics of
  interval data
• Distance-based partitioning, more meaningful
  discretization considering
• density/number of points in an interval
• closeness of points in an interval

72
Interestingness Measure Correlations (Lift)

• play basketball ? eat cereal 40, 66.7 is
  misleading
• The overall percentage of students eating cereal
  is 75 which is higher than 66.7.
• play basketball ? not eat cereal 20, 33.3 is
  more accurate, although with lower support and
  confidence
• Measure of dependent/correlated events lift

Basketball Not basketball Sum (row)
Cereal 2000 1750 3750
Not cereal 1000 250 1250
Sum(col.) 3000 2000 5000
73
Mining Association Rules in Large Databases

• Association rule mining
• Algorithms for scalable mining of
  (single-dimensional Boolean) association rules in
  transactional databases
• Mining various kinds of association/correlation
  rules
• Constraint-based association mining
• Sequential pattern mining
• Applications/extensions of frequent pattern
  mining
• Summary

74
Constraint-based Data Mining

• Finding all the patterns in a database
  autonomously? unrealistic!
• The patterns could be too many but not focused!
• Data mining should be an interactive process
• User directs what to be mined using a data mining
  query language (or a graphical user interface)
• Constraint-based mining
• User flexibility provides constraints on what to
  be mined
• System optimization explores such constraints
  for efficient miningconstraint-based mining

75
Constraints in Data Mining

• Knowledge type constraint
• classification, association, etc.
• Data constraint using SQL-like queries
• find product pairs sold together in stores in
  Vancouver in Dec.00
• Dimension/level constraint
• in relevance to region, price, brand, customer
  category
• Rule (or pattern) constraint
• small sales (price lt 10) triggers big sales
  (sum gt 200)
• Interestingness constraint
• strong rules min_support ? 3, min_confidence
  ? 60

76
Constrained Mining vs. Constraint-Based Search

• Constrained mining vs. constraint-based
  search/reasoning
• Both are aimed at reducing search space
• Finding all patterns satisfying constraints vs.
  finding some (or one) answer in constraint-based
  search in AI
• Constraint-pushing vs. heuristic search
• It is an interesting research problem on how to
  integrate them
• Constrained mining vs. query processing in DBMS
• Database query processing requires to find all
• Constrained pattern mining shares a similar
  philosophy as pushing selections deeply in query
  processing

77
Constrained Frequent Pattern Mining A Mining
Query Optimization Problem

• Given a frequent pattern mining query with a set
  of constraints C, the algorithm should be
• sound it only finds frequent sets that satisfy
  the given constraints C
• complete all frequent sets satisfying the given
  constraints C are found
• A naïve solution
• First find all frequent sets, and then test them
  for constraint satisfaction
• More efficient approaches
• Analyze the properties of constraints
  comprehensively
• Push them as deeply as possible inside the
  frequent pattern computation.

78
CS590D Data MiningProf. Chris Clifton

• February 1, 2005
• Association Rules

79
Application of Interestingness Measure
80
Computing Interestingness Measure

• Given a rule X ? Y, information needed to compute
  rule interestingness can be obtained from a
  contingency table

Contingency table for X ? Y
Y Y
X f11 f10 f1
X f01 f00 fo
f1 f0 T

• Used to define various measures
• support, confidence, lift, Gini, J-measure,
  etc.

81
Drawback of Confidence
Coffee Coffee
Tea 15 5 20
Tea 75 5 80
90 10 100
82
Statistical Independence

• Population of 1000 students
• 600 students know how to swim (S)
• 700 students know how to bike (B)
• 420 students know how to swim and bike (S,B)
• P(S?B) 420/1000 0.42
• P(S) ? P(B) 0.6 ? 0.7 0.42
• P(S?B) P(S) ? P(B) gt Statistical independence
• P(S?B) gt P(S) ? P(B) gt Positively correlated
• P(S?B) lt P(S) ? P(B) gt Negatively correlated

83
Statistical-based Measures

• Measures that take into account statistical
  dependence

84
Example Lift/Interest
Coffee Coffee
Tea 15 5 20
Tea 75 5 80
90 10 100

• Association Rule Tea ? Coffee
• Confidence P(CoffeeTea) 0.75
• but P(Coffee) 0.9
• Lift 0.75/0.9 0.8333 (lt 1, therefore is
  negatively associated)

85
Drawback of Lift Interest
Y Y
X 10 0 10
X 0 90 90
10 90 100
Y Y
X 90 0 90
X 0 10 10
90 10 100
Statistical independence If P(X,Y)P(X)P(Y) gt
Lift 1
86
There are lots of measures proposed in the
literature Some measures are good for certain
applications, but not for others What criteria
should we use to determine whether a measure is
good or bad? What about Apriori-style support
based pruning? How does it affect these measures?
87
Properties of A Good Measure

• Piatetsky-Shapiro 3 properties a good measure M
  must satisfy
• M(A,B) 0 if A and B are statistically
  independent
• M(A,B) increase monotonically with P(A,B) when
  P(A) and P(B) remain unchanged
• M(A,B) decreases monotonically with P(A) or
  P(B) when P(A,B) and P(B) or P(A) remain
  unchanged

88
Comparing Different Measures
10 examples of contingency tables
Rankings of contingency tables using various
measures
89
Property under Variable Permutation

• Does M(A,B) M(B,A)?
• Symmetric measures
• support, lift, collective strength, cosine,
  Jaccard, etc
• Asymmetric measures
• confidence, conviction, Laplace, J-measure, etc

90
Property under Row/Column Scaling
Grade-Gender Example (Mosteller, 1968)
Male Female
High 2 3 5
Low 1 4 5
3 7 10
Male Female
High 4 30 34
Low 2 40 42
6 70 76
2x
10x
Mosteller Underlying association should be
independent of the relative number of male and
female students in the samples
91
Property under Inversion Operation
Transaction 1
. . . . .
Transaction N
92
Example ?-Coefficient

• ?-coefficient is analogous to correlation
  coefficient for continuous variables

Y Y
X 60 10 70
X 10 20 30
70 30 100
Y Y
X 20 10 30
X 10 60 70
30 70 100
? Coefficient is the same for both tables
93
Property under Null Addition

• Invariant measures
• support, cosine, Jaccard, etc
• Non-invariant measures
• correlation, Gini, mutual information, odds
  ratio, etc

94
Different Measures have Different Properties
95
Anti-Monotonicity in Constraint-Based Mining
TDB (min_sup2)

• Anti-monotonicity
• When an itemset S violates the constraint, so
  does any of its superset
• sum(S.Price) ? v is anti-monotone
• sum(S.Price) ? v is not anti-monotone
• Example. C range(S.profit) ? 15 is anti-monotone
• Itemset ab violates C
• So does every superset of ab

TID Transaction
10 a, b, c, d, f
20 b, c, d, f, g, h
30 a, c, d, e, f
40 c, e, f, g
Item Profit
a 40
b 0
c -20
d 10
e -30
f 30
g 20
h -10
96
Which Constraints Are Anti-Monotone?
Constraint Antimonotone
v ? S No
S ? V no
S ? V yes
min(S) ? v no
min(S) ? v yes
max(S) ? v yes
max(S) ? v no
count(S) ? v yes
count(S) ? v no
sum(S) ? v ( a ? S, a ? 0 ) yes
sum(S) ? v ( a ? S, a ? 0 ) no
range(S) ? v yes
range(S) ? v no
avg(S) ? v, ? ? ?, ?, ? convertible
support(S) ? ? yes
support(S) ? ? no
97
Monotonicity in Constraint-Based Mining
TDB (min_sup2)
TID Transaction
10 a, b, c, d, f
20 b, c, d, f, g, h
30 a, c, d, e, f
40 c, e, f, g

• Monotonicity
• When an intemset S satisfies the constraint, so
  does any of its superset
• sum(S.Price) ? v is monotone
• min(S.Price) ? v is monotone
• Example. C range(S.profit) ? 15
• Itemset ab satisfies C
• So does every superset of ab

Item Profit
a 40
b 0
c -20
d 10
e -30
f 30
g 20
h -10
98
Which Constraints Are Monotone?
Constraint Monotone
v ? S yes
S ? V yes
S ? V no
min(S) ? v yes
min(S) ? v no
max(S) ? v no
max(S) ? v yes
count(S) ? v no
count(S) ? v yes
sum(S) ? v ( a ? S, a ? 0 ) no
sum(S) ? v ( a ? S, a ? 0 ) yes
range(S) ? v no
range(S) ? v yes
avg(S) ? v, ? ? ?, ?, ? convertible
support(S) ? ? no
support(S) ? ? yes
99
Succinctness

• Succinctness
• Given A1, the set of items satisfying a
  succinctness constraint C, then any set S
  satisfying C is based on A1 , i.e., S contains a
  subset belonging to A1
• Idea Without looking at the transaction
  database, whether an itemset S satisfies
  constraint C can be determined based on the
  selection of items
• min(S.Price) ? v is succinct
• sum(S.Price) ? v is not succinct
• Optimization If C is succinct, C is pre-counting
  pushable

100
Which Constraints Are Succinct?
Constraint Succinct
v ? S yes
S ? V yes
S ? V yes
min(S) ? v yes
min(S) ? v yes
max(S) ? v yes
max(S) ? v yes
count(S) ? v weakly
count(S) ? v weakly
sum(S) ? v ( a ? S, a ? 0 ) no
sum(S) ? v ( a ? S, a ? 0 ) no
range(S) ? v no
range(S) ? v no
avg(S) ? v, ? ? ?, ?, ? no
support(S) ? ? no
support(S) ? ? no
101
The Apriori Algorithm Example
Database D
L1
C1
Scan D
C2
C2
L2
Scan D
C3
L3
Scan D
102
Naïve Algorithm Apriori Constraint
Database D
L1
C1
Scan D
C2
C2
L2
Scan D
C3
L3
Constraint SumS.price lt 5
Scan D
103
The Constrained Apriori Algorithm Push an
Anti-monotone Constraint Deep
Database D
L1
C1
Scan D
C2
C2
L2
Scan D
C3
L3
Constraint SumS.price lt 5
Scan D
104
The Constrained Apriori Algorithm Push a
Succinct Constraint Deep
Database D
L1
C1
Scan D
C2
C2
L2
Scan D
C3
L3
Constraint minS.price lt 1
Scan D
105
Converting Tough Constraints
TDB (min_sup2)

• Convert tough constraints into anti-monotone or
  monotone by properly ordering items
• Examine C avg(S.profit) ? 25
• Order items in value-descending order
• lta, f, g, d, b, h, c, egt
• If an itemset afb violates C
• So does afbh, afb
• It becomes anti-monotone!

TID Transaction
10 a, b, c, d, f
20 b, c, d, f, g, h
30 a, c, d, e, f
40 c, e, f, g
Item Profit
a 40
b 0
c -20
d 10
e -30
f 30
g 20
h -10
106
Convertible Constraints

• Let R be an order of items
• Convertible anti-monotone
• If an itemset S violates a constraint C, so does
  every itemset having S as a prefix w.r.t. R
• Ex. avg(S) ? v w.r.t. item value descending order
• Convertible monotone
• If an itemset S satisfies constraint C, so does
  every itemset having S as a prefix w.r.t. R
• Ex. avg(S) ? v w.r.t. item value descending order

107
Strongly Convertible Constraints

• avg(X) ? 25 is convertible anti-monotone w.r.t.
  item value descending order R lta, f, g, d, b, h,
  c, egt
• If an itemset af violates a constraint C, so does
  every itemset with af as prefix, such as afd
• avg(X) ? 25 is convertible monotone w.r.t. item
  value ascending order R-1 lte, c, h, b, d, g, f,
  agt
• If an itemset d satisfies a constraint C, so does
  itemsets df and dfa, which having d as a prefix
• Thus, avg(X) ? 25 is strongly convertible

Item Profit
a 40
b 0
c -20
d 10
e -30
f 30
g 20
h -10
108
What Constraints Are Convertible?
Constraint Convertible anti-monotone Convertible monotone Strongly convertible
avg(S) ? , ? v Yes Yes Yes
median(S) ? , ? v Yes Yes Yes
sum(S) ? v (items could be of any value, v ? 0) Yes No No
sum(S) ? v (items could be of any value, v ? 0) No Yes No
sum(S) ? v (items could be of any value, v ? 0) No Yes No
sum(S) ? v (items could be of any value, v ? 0) Yes No No

109
Combing Them TogetherA General Picture
Constraint Antimonotone Monotone Succinct
v ? S no yes yes
S ? V no yes yes
S ? V yes no yes
min(S) ? v no yes yes
min(S) ? v yes no yes
max(S) ? v yes no yes
max(S) ? v no yes yes
count(S) ? v yes no weakly
count(S) ? v no yes weakly
sum(S) ? v ( a ? S, a ? 0 ) yes no no
sum(S) ? v ( a ? S, a ? 0 ) no yes no
range(S) ? v yes no no
range(S) ? v no yes no
avg(S) ? v, ? ? ?, ?, ? convertible convertible no
support(S) ? ? yes no no
support(S) ? ? no yes no
110
Classification of Constraints
Monotone
Antimonotone
Strongly convertible
Succinct
Convertible anti-monotone
Convertible monotone
Inconvertible
111
CS590D Data MiningProf. Chris Clifton

• February 2, 2006
• Association Rules

112
Mining With Convertible Constraints
TDB (min_sup2)
TID Transaction
10 a, f, d, b, c
20 f, g, d, b, c
30 a, f, d, c, e
40 f, g, h, c, e

• C avg(S.profit) ? 25
• List of items in every transaction in value
  descending order R
• lta, f, g, d, b, h, c, egt
• C is convertible anti-monotone w.r.t. R
• Scan transaction DB once
• remove infrequent items
• Item h in transaction 40 is dropped
• Itemsets a and f are good

Item Profit
a 40
f 30
g 20
d 10
b 0
h -10
c -20
e -30
113
Can Apriori Handle Convertible Constraint?

• A convertible, not monotone nor anti-monotone nor
  succinct constraint cannot be pushed deep into
  the an Apriori mining algorithm
• Within the level wise framework, no direct
  pruning based on the constraint can be made
• Itemset df violates constraint C avg(X)gt25
• Since adf satisfies C, Apriori needs df to
  assemble adf, df cannot be pruned
• But it can be pushed into frequent-pattern growth
  framework!

Item Value
a 40
b 0
c -20
d 10
e -30
f 30
g 20
h -10
114
Mining With Convertible Constraints
Item Value
a 40
f 30
g 20
d 10
b 0
h -10
c -20
e -30

• C avg(X)gt25, min_sup2
• List items in every transaction in value
  descending order R lta, f, g, d, b, h, c, egt
• C is convertible anti-monotone w.r.t. R
• Scan TDB once
• remove infrequent items
• Item h is dropped
• Itemsets a and f are good,
• Projection-based mining
• Imposing an appropriate order on item projection
• Many tough constraints can be converted into
  (anti)-monotone

TDB (min_sup2)
TID Transaction
10 a, f, d, b, c
20 f, g, d, b, c
30 a, f, d, c, e
40 f, g, h, c, e
115
Handling Multiple Constraints

• Different constraints may require different or
  even conflicting item-ordering
• If there exists an order R s.t. both C1 and C2
  are convertible w.r.t. R, then there is no
  conflict between the two convertible constraints
• If there exists conflict on order of items
• Try to satisfy one constraint first
• Then using the order for the other constraint to
  mine frequent itemsets in the corresponding
  projected database

116
Interestingness via Unexpectedness

• Need to model expectation of users (domain
  knowledge)
• Need to combine expectation of users with
  evidence from data (i.e., extracted patterns)

Pattern expected to be frequent
-
Pattern expected to be infrequent
Pattern found to be frequent
Pattern found to be infrequent
-

Expected Patterns
-

Unexpected Patterns
117
Interestingness via Unexpectedness

• Web Data (Cooley et al 2001)
• Domain knowledge in the form of site structure
• Given an itemset F X1, X2, , Xk (Xi Web
  pages)
• L number of links connecting the pages
• lfactor L / (k ? k-1)
• cfactor 1 (if graph is connected), 0
  (disconnected graph)
• Structure evidence cfactor ? lfactor
• Usage evidence
• Use Dempster-Shafer theory to combine domain
  knowledge and evidence from data

118
Continuous and Categorical Attributes
How to apply association analysis formulation to
non-asymmetric binary variables?
Example of Association Rule Number of
Pages ?5,10) ? (BrowserMozilla) ? Buy No
119
Handling Categorical Attributes

• Transform categorical attribute into asymmetric
  binary variables
• Introduce a new item for each distinct
  attribute-value pair
• Example replace Browser Type attribute with
• Browser Type Internet Explorer
• Browser Type Mozilla
• Browser Type Mozilla

120
Handling Categorical Attributes

• Potential Issues
• What if attribute has many possible values
• Example attribute country has more than 200
  possible values
• Many of the attribute values may have very low
  support
• Potential solution Aggregate the low-support
  attribute values
• What if distribution of attribute values is
  highly skewed
• Example 95 of the visitors have Buy No
• Most of the items will be associated with
  (BuyNo) item
• Potential solution drop the highly frequent items

121
Handling Continuous Attributes

• Different kinds of rules
• Age?21,35) ? Salary?70k,120k) ? Buy
• Salary?70k,120k) ? Buy ? Age ?28, ?4
• Different methods
• Discretization-based
• Statistics-based
• Non-discretization based
• minApriori

122
Handling Continuous Attributes

• Use discretization
• Unsupervised
• Equal-width binning
• Equal-depth binning
• Clustering
• Supervised

Attribute values, v
Class v1 v2 v3 v4 v5 v6 v7 v8 v9
Anomalous 0 0 20 10 20 0 0 0 0
Normal 150 100 0 0 0 100 100 150 100
bin3
bin1
bin2
123
Discretization Issues

• Size of the discretized intervals affect support
  confidence
• If intervals too small
• may not have enough support
• If intervals too large
• may not have enough confidence
• Potential solution use all possible intervals

Refund No, (Income 51,250) ? Cheat
No Refund No, (60K ? Income ? 80K) ? Cheat
No Refund No, (0K ? Income ? 1B) ? Cheat
No
124
Discretization Issues

• Execution time
• If intervals contain n values, there are on
  average O(n2) possible ranges
• Too many rules

Refund No, (Income 51,250) ? Cheat
No Refund No, (51K ? Income ? 52K) ? Cheat
No Refund No, (50K ? Income ? 60K) ?
Cheat No
125
Approach by Srikant Agrawal

• Preprocess the data
• Discretize attribute using equi-depth
  partitioning
• Use partial completeness measure to determine
  number of partitions
• Merge adjacent intervals as long as support is
  less than max-support
• Apply existing association rule mining algorithms
• Determine interesting rules in the output

126
Approach by Srikant Agrawal

• Discretization will lose information
• Use partial completeness measure to determine how
  much information is lost
• C frequent itemsets obtained by considering
  all ranges of attribute values P frequent
  itemsets obtained by considering all ranges over
  the partitions P is K-complete w.r.t C if P ?
  C,and ?X ? C, ? X ? P such that
• 1. X is a generalization of X and support
  (X) ? K ? support(X) (K ? 1) 2. ?Y ?
  X, ? Y ? X such that support (Y) ? K ?
  support(Y)
• Given K (partial completeness level), can
  determine number of intervals (N)

Approximated X
X
127
Interestingness Measure

• Given an itemset Z z1, z2, , zk and its
  generalization Z z1, z2, , zk P(Z)
  support of Z EZ(Z) expected support of Z based
  on Z
• Z is R-interesting w.r.t. Z if P(Z) ? R ? EZ(Z)

Refund No, (Income 51,250) ? Cheat
No Refund No, (51K ? Income ? 52K) ? Cheat
No Refund No, (50K ? Income ? 60K) ?
Cheat No
128
Interestingness Measure

• For S X ? Y, and its generalization S X ? Y
• P(YX) confidence of X ? Y P(YX)
  confidence of X ? Y ES(YX) expected
  support of Z based on Z
• Rule S is R-interesting w.r.t its ancestor rule
  S if
• Support, P(S) ? R ? ES(S) or
• Confidence, P(YX) ? R ? ES(YX)

129
Statistics-based Methods

• Example
• BrowserMozilla ? BuyYes ? Age ?23
• Rule consequent consists of a continuous
  variable, characterized by their statistics
• mean, median, standard deviation, etc.
• Approach
• Withhold the target variable from the rest of the
  data
• Apply existing frequent itemset generation on the
  rest of the data
• For each frequent itemset, compute the
  descriptive statistics for the corresponding
  target variable
• Frequent itemset becomes a rule by introducing
  the target variable as rule consequent
• Apply statistical test to determine
  interestingness of the rule

130
Statistics-based Methods

• How to determine whether an association rule
  interesting?
• Compare the statistics for segment of population
  covered by the rule vs segment of population not
  covered by the rule
• A ? B ? versus A ? B ?
• Statistical hypothesis testing
• Null hypothesis H0 ? ? ?
• Alternative hypothesis H1 ? gt ? ?
• Z has zero mean and variance 1 under null
  hypothesis

131
Statistics-based Methods

• Example
• r BrowserMozilla ? BuyYes ? Age ?23
• Rule is interesting if difference between ? and
  ? is greater than 5 years (i.e., ? 5)
• For r, suppose n1 50, s1 3.5
• For r (complement) n2 250, s2 6.5
• For 1-sided test at 95 confidence level,
  critical Z-value for rejecting null hypothesis is
  1.64.
• Since Z is greater than 1.64, r is an interesting
  rule

132
Min-Apriori (Han et al)
Document-term matrix
Example W1 and W2 tends to appear together in
the same document
133
Min-Apriori

• Data contains only continuous attributes of the
  same type
• e.g., frequency of words in a document
• Potential solution
• Convert into 0/1 matrix and then apply existing
  algorithms
• lose word frequency information
• Discretization does not apply as users want
  association among words not ranges of words

134
Min-Apriori

• New definition of support

Example Sup(W1,W2,W3) 0 0 0 0 0.17
0.17
135
Mining Association Rules in Large Databases

• Association rule mining
• Algorithms for scalable mining of
  (single-dimensional Boolean) association rules in
  transactional databases
• Mining various kinds of association/correlation
  rules
• Constraint-based association mining
• Sequential pattern mining
• Applications/extensions of frequent pattern
  mining
• Summary

136
Sequence Databases and Sequential Pattern Analysis

• Transaction databases, time-series databases vs.
  sequence databases
• Frequent patterns vs. (frequent) sequential
  patterns
• Applications of sequential pattern mining
• Customer shopping sequences
• First buy computer, then CD-ROM, and then digital
  camera, within 3 months.
• Medical treatment, natural disasters (e.g.,
  earthquakes), science engineering processes,
  stocks and markets, etc.
• Telephone calling patterns, Weblog click streams
• DNA sequences and gene structures

137
What Is Sequential Pattern Mining?

• Given a set of sequences, find the complete set
  of frequent subsequences

A sequence lt (ef) (ab) (df) c b gt
A sequence database
An element may contain a set of items. Items
within an element are unordered and we list them
alphabetically.
SID sequence
10 lta(abc)(ac)d(cf)gt
20 lt(ad)c(bc)(ae)gt
30 lt(ef)(ab)(df)cbgt
40 lteg(af)cbcgt
lta(bc)dcgt is a subsequence of lta(abc)(ac)d(cf)gt
Given support threshold min_sup 2, lt(ab)cgt is a
sequential pattern
138
Challenges on Sequential Pattern Mining

• A huge number of possible sequential patterns are
  hidden in databases
• A mining algorithm should
• find the complete set of patterns, when possible,
  satisfying the minimum support (frequency)
  threshold
• be highly efficient, scalable, involving only a
  small number of database scans
• be able to incorporate various kinds of
  user-specific constraints

139
Studies on Sequential Pattern Mining

• Concept introduction and an initial Apriori-like
  algorithm
• R. Agrawal R. Srikant. Mining sequential
  patterns, ICDE95
• GSPAn Apriori-based, influential mining method
  (developed at IBM Almaden)
• R. Srikant R. Agrawal. Mining sequential
  patterns Generalizations and performance
  improvements, EDBT96
• From sequential patterns to episodes
  (Apriori-like constraints)
• H. Mannila, H. Toivonen A.I. Verkamo.
  Discovery of frequent episodes in event
  sequences, Data Mining and Knowledge Discovery,
  1997
• Mining sequential patterns with constraints
• M.N. Garofalakis, R. Rastogi, K. Shim SPIRIT
  Sequential Pattern Mining with Regular Expression
  Constraints. VLDB 1999

140
A Basic Property of Sequential Patterns Apriori

• A basic property Apriori (Agrawal Sirkant94)
• If a sequence S is not frequent
• Then none of the super-sequences of S is frequent
• E.g, lthbgt is infrequent ? so do lthabgt and lt(ah)bgt

Given support threshold min_sup 2
141
GSPA Generalized Sequential Pattern Mining
Algorithm

• GSP (Generalized Sequential Patter
