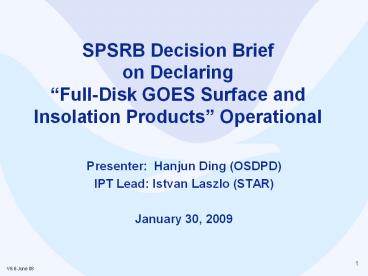

SPSRB Decision Briefon Declaring Full-Disk
GOES Surface and Insolation Products Operational

• Presenter Hanjun Ding (OSDPD)
• IPT Lead Istvan Laszlo (STAR)
• January 30, 2009

2
Capabilities Assessment - Insolation
Current Capabilities Requested Capabilities Proposed Capabilities
Satellite Source (s) GOES-E GOES-W GOES-E and GOES-W same as Requested Capability
Product Name GSIP-CONUS GSIP-fd same as Requested Capability
Accuracy rms errors 90 Wm-2 (hourly), 25 W m-2 (daily) at least the same as current same as Requested Capability
Latency 50 minutes 50 minutes same as Requested Capability
Timeliness one hour one hour same as Requested Capability
Coverage CONUS extended hemispheres and full disk same as Requested Capability
Resolution horizontal 0.5x0.5 degrees vertical N/A horizontal 1/8x1/8 degrees vertical N/A same as Requested Capability
Other attributes limited ocean coverage, not evaluated over water, minimum quality control evaluation over both ocean and land, thorough quality control same as Requested Capability
2
3
Capabilities Assessment - PAR
Current Capabilities Requested Capabilities Proposed Capabilities
Satellite Source (s) GOES-E GOES-W GOES-E and GOES-W same as Requested Capability
Product Name GSIP-CONUS GSIP-fd same as Requested Capability
Accuracy unknown not specified rms errors 50 Wm-2 (hourly), 15 W m-2 (daily)
Latency 50 minutes 50 minutes same as Requested Capability
Timeliness one hour one hour same as Requested Capability
Coverage CONUS extended hemispheres and full disk same as Requested Capability
Resolution horizontal 0.5x0.5 degrees vertical N/A horizontal 1/8x1/8 degrees vertical N/A same as Requested Capability
Other attributes limited ocean coverage, not evaluated over water, minimum quality control evaluation over both ocean and land, thorough quality control same as Requested Capability
3
4
New GSIP domains
GOES West
GOES East
Full Disk
Extended Northern Hemisphere
5

• Applications of GSIP Data
• Coral Reef Watch (CRW) combines insolation (PAR)
  from GSIP-fd with operational thermal stress
  products in an algorithm based on bleaching
  physiology.
• NCEP validates NWP Model predicted fields of
  cloud properties, radiation fluxes and land
  surface skin temperature with GSIP-fd.
• Woods Hole Oceanographic Institute (WHOI) uses
  radiation data in estimating heat flux components
  over the coastal ocean to drive ocean circulation
  models and the PAR data to drive coupled ocean
  biophysical models.
• Board Decision
• System is operational with improvements
  added (2-3 month).
• Data Access
• Real-time data now available on
  experimental processing site at
• ftp//ftp.star.nesdis.noaa.gov/pub
  /smcd/gsip/

6
Product Deliverable Details
Product Type and Number of Products Product Type and Number of Products Product Type and Number of Products Product Type and Number of Products
Product Delivery/Tracking Name Environmental Observational Parameters Satellites Sensors N E R T O Tailoring Options or Comments
SW downward surface radiative flux GOES-11, GOES-12 Imager 2 10 Hourly Extended Hemispheric and full disk every 3 hours Formats binary, HDF, NetCDF
SW upward surface radiative flux 2 10
SW downward TOA radiative flux 2 10
SW upward TOA radiative flux 2 10
SW downward surface clear radiative flux (Insolation) 2 10
SW upward surface clear radiative flux 2 10
SW upward TOA clear radiative flux 2 10
LW downward surface radiative flux 2 10
LW upward surface radiative flux 2 10
LW upward TOA radiative flux (OLR) 2 10
Visible downward surface radiative flux (PAR) 2 10
Total cloud fraction 2 10
Ice cloud fraction 2 10
Water cloud fraction 2 10
Cloud type 2 10
Cloud liquid water path (LWP) 2 10
Cloud ice water path (IWP) 2 10
Cloud top temperature 2 10
Cloud top pressure 2 10
Cloud optical depth 2 10
Surface temperature 2 10
Radiative temperature 2 10
GOES Full-Disk Surface and Insolation Product
(GSIP-fd)
SW shortwave (0.2-4.0 microns) TOA top of
atmosphere
NNew EEnhanced RReplacement
TTailored OOther
