Title: Multimedia Lecture

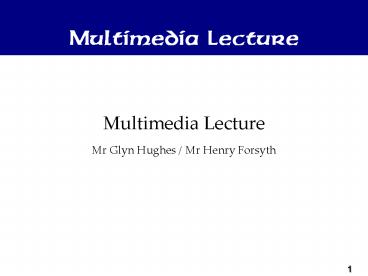

1
Multimedia Lecture
  • Multimedia Lecture
  • Mr Glyn Hughes / Mr Henry Forsyth

2
Some Definitions
  • Multimedia is the seamless integration of text,
    sound, image and controlling software within a
    single digital environment
  • Multimedia Systems encompass the computer and
    software systems that are used in multimedia
    environments
  • Distributed Multimedia Systems operate over some
    form of network infrastructure

3
Classify Media Types
Static Media
Dynamic Media
Created electronically
Text
Synthesised Audio
Computer Graphics
Computer Animation
Captured from the real world
Video
Images
Natural Audio
4
Relative Media Sizes
smaller
larger
5
The Big Picture
Multimedia Systems
Distributed MultimediaSystems
Multimedia
Video
Media Asset Management
Network
Text
Authoring
Frameworks
Speech
Audio
Tools
Streaming Video
Web Pages
Virtual Worlds
Streaming Audio
6
Brief Multimedia History
  • Early IBM PCs had no sound other than the beep
  • Apple Mac, Amiga, Atari ST had better sound
  • Video or graphics capabilities were also limited
  • Generally text based or small, few colour
    graphics
  • CD-ROM (Compact Disk-Read Only Memory)
  • 72 minutes of audio or 650 MB of data
    (approximately)
  • DVD (Digital Versatile Disk . . . not Video)

7
Modern Multimedia PC
  • 3D graphics cards with 128 or 256 MB of memory
  • 64 note sound cards with wavetable synthesis
  • 1GB or 2GB of system memory (DDR, DDR2)
  • 100s of GBs of hard disk space
  • 52 speed CD-R CD-RW
  • 512kbps, 1mbps or even 10 mbps broadband internet

8
Multimedia Applications
  • Multimedia applications can be linear or
    interactive
  • Linear multimedia plays from some start position
    to some end position with little or no
    intervention
  • Just like this lecture
  • Interactive multimedia allows the user to jump
    around the material by interacting with it
  • It has no enforced hierarchy

9
Barriers To Multimedia
  • What works on Microsoft Windows operating systems
    does not necessarily work on Apple Mac or Linux
  • Different hardware on each type of machine
  • e.g. two different graphics cards may not
    be able to display
    fog effects as intended
  • Do you produce multimedia applications for the
    best specification or the lowest common
    denominator?
  • PC Games vs. Console Games

10
Multimedia Development
Input
Output
Process
Capture from device Read from a
file Receive over a network
Apply effect filters and transforms Compress or
decompress Convert between formats
Present Save to a file Send across a network
11
What is an Image?
  • An image is the graphical and visual
    representation of some information that can be
    displayed on a computer screen or printed out
  • Images play an important part in multimedia
  • Navigation
  • User Interface Components
  • Help Systems
  • Clip Art

12
Image Types
  • Images can be generally divided into two formats
  • Bitmapped or Raster Images
  • Vector Graphics
  • Bitmapped images are stored as an array of pixels
  • Vector graphics are stored as the set of graphic
    primitives required to represent the image

13
Bitmaps
  • A pixel is the smallest element of
    resolution on a computer screen
  • A bitmap is an array of pixels
  • Each pixel can be in a specific colour
  • The range of these colours is known as the colour
    depth
  • The more colours that are allowed per
    pixel, the greater the size of the

14
Colour Depth
  • Colour depth is measured in bits per pixel
  • 1 bit per pixel 2 colours (monochrome)
  • 4 bits per pixel 16 colours
  • 8 bits per pixel 256 colours
  • Generally good enough for colour images
  • 16 bits per pixel 65536 colours
  • Better quality for photographs, also known as
    high colour
  • 24 bits per pixel gt16 million possible colours
  • Used to recreate photo realistic images, also
    known as true colour

15
Colour Depth Example
24 bit colour (16 million colours)
4 bit colour (16 colours)
1 bit colour (2 colours)
16
Scaling Bitmapped Images
Original Image
Shown Magnified
17
Anti Aliasing
  • This is a technique used to avoid the jagged
    edges found in bitmapped graphics
  • It fools the eye into thinking that edges are
    smooth by colouring neighbouring pixels in
    similar colours
  • Most modern bitmap graphics editing
    software can perform anti aliasing
  • Usually only on 24 bit colour images
  • We can see this in action in the lab exercise

18
Anti Aliasing Example
Anti Aliased Line
Jagged Line
Try squinting at the anti aliased line from a
distance, do the same for the jagged line. Which
line looks best?
19
Popular Bitmap Formats
  • Microsoft Bitmap (.bmp)
  • Used in Microsoft Windows
  • JPEG - Joint Photographic Expert Group (.jpg)
  • Useful for storing photographic images
  • GIF - Graphics Interchange Format (.gif)
  • Used a lot on web sites
  • PNG - Portable Network Graphics (.png)
  • A new format for web graphics

20
Calculating Raster Images Sizes
  • Where
  • Width is measured in pixels
  • Height is measured in pixels
  • Colour depth is measured in bits per pixel
  • Remember
  • 1024 bytes 1 kilobyte (KB)
  • 1024 kilobytes 1 megabyte (MB)

21
An Example
  • A 640 x 480 pixel image in 24 bit colour
    would require how much disk space?

22
Vector Images
  • Vector images are stored as the set of graphic
    primitives required to represent the image
  • A graphic primitive is a simple graphic shape
  • e.g. square, line, ellipse, arc, etc
  • Each primitive has various attributes
    that go to make up the entire
  • e.g. x/y location, fill colour, line colour, line
    style, etc
  • Example
  • RECTANGLE (0, 0, 200, 200, red)

23
Graphic Primitives
  • Basic
  • Line
  • Polyline
  • Arc
  • Bezier Curve
  • Shapes
  • Circle
  • Ellipse
  • Rectangle
  • Square
  • Pie Segment
  • Triangle
  • Pentagon, hexagon, etc

24
Vector Images
  • Resizing a vector does not introduce
    jagged edges like resizing a bitmap
  • Scaling a vector is a mathematical operation,
    only the attributes
    change, the image is unaffected
  • e.g. to double the size of a square whose sides
    are 4 units long we multiply the
    side length by 2
  • The file size of a vector image is proportional
    to the number of graphic primitives it contains
    (and the number of attributes for each primitive)

25
Scaling Vector Images
Original Image
Shown Magnified
26
3D Models
  • A 3D Model is a variation on the vector format
  • The location is specified using x, y and z
    co-ordinates
  • Further primitives can be found in 3D Models
  • Cube, sphere, pyramid, etc

X
Y
Z
27
Summary
  • Today we have met the various types of image that
    are useful when creating multimedia
    applications
  • Any Questions?
