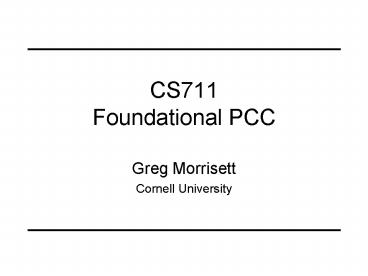

CS711 Foundational PCC

1
CS711Foundational PCC

• Greg Morrisett
• Cornell University

2
Claimed Contributions

• Types and typing rules not baked in
• PCC has to prove soundness consistency of these
  rules at meta-level
• Allocation initialization
• PCC/TAL treated these issues in a funky way
• Much wider variety of type constructors
• records, tagged unions, 1st class functions and
  labels, ADTs, unions, intersections, covariant
  recursive types
• Remove VCGen (i.e., decompilation of machine code
  into logic)
• no need to prove correctness of VCGen

3
The Logic

• Higher-order logic
• Natural numbers, arithmetic, induction
• Semantics of machine instructions
• Predicates describing readability/writeability/jum
  pability of machine addresses

4
Semantics Relational

• upd(f,d,x,f') defAll z.(d z f'(z) x) or
  (d ! z f'(z) f(z))
• add(d,s1,s2)(r,m,r',m') defupd(r,d,r(s1)r(s2),
  r') m m'
• load(d,s,c)(r,m,r',m') defreadable(r(s)c)
  upd(r,d,m(r(s)c),r') m m'

5
Semantics Contd.

• store(s1,s2,c)(r,m,r',m') defwritable(r(s2)c)
  upd(m,r(s2)c,r(s1),m') r r'
• jump(d,s,c)(r,m,r',m') defExists
  r''.upd(r,pc,r(s)c,r'') upd(r'',d,pc,r') m
  m'

6
Decoding is Explicit

• decode(e,m,i)
• address e of machine m has instruction i
• Exists d,s1,s2. format(m(v),0,d,s1,s2) i
  add(d,s1,s2)or Exists d,s1,s2.
  format(m(v),1,d,s1,s2) i addi(d,s1,s2)or ...

• Here, format(...) is a predicate for showing that
  a given instruction assembles into a particular
  number.

7
The Step and Multi-Step Rlns

• step(r,m,r',m') def Exists i,
  r''.decode(r(pc),m,i) upd(r,pc,r(pc)1,r'')
  i(r'',m,r',m')
• only holds when code is "safe"
• The multi-step rule is a co-inductive extension
  of the single-step
• intuition start with set of all (finite
  infinite) sequences of states and weed out only
  those that can't arise from the step relation.

8
Neat Things

• No restriction (in principle) on self-modifying
  code
• In practice, you immediately assume as part of
  the safety policy that code is immutable.

9
Types

• int(m)(v) def true
• any value is an integer
• record(t1,t2) m v def readable(v)
  readable(v1) t1 m(m v) t2 m(m(v 1))
• v and v1 must be readable
• the values in memory m at locations v and v1
  must have types t1 and t2 respectively (in memory
  m)
• Necula's rule for traversal of a pair is then
  trivial

10
Prob how to create a pair?

• Because the types are inductively defined, any
  write to memory could invalidate the type of
  something else.
• record2(record2(int,int),int)) m r1
• means in memory m, r1 has type (intint)int
• if I do a store, then I get a new memory m'
• so, it is no longer the case that r1 has type
  (intint)int
• we could establish this fact as long as we knew
  the update either
• (a) preserved the type of r1 or
• (b) didn't write any locations in common with
  r1's traversal (e.g., r1, m(r1), m(r11),
  m(m(r1)), m(m(r1)1))

11
Soln for allocation

• Types indexed not only by memory, but also the
  current set of allocated locations
• record(t1,t2)(a,m) v def v in a v1 in a
  readable(v) readable(v1) t1(a,m)(m v)
  t2(a,m)(m,v)
• a is a predicate on the set of allocated values.
• In this paper, just set of values in some
  pre-determined range (e.g., 100 up to r6)

12
Extension

• To support allocation, a value should retain its
  type even if
• the allocated set grows
• there are writes to the unallocated set
• Hence, the notion of validity on types
• valid(t) def All a,a',m,v. (a subset a')
  gt t(a,m)v gt t(a',m)v All a,m,m',v. (All
  x in a.m(x) m'(x)) gt t(a,m)v gt t(a,m')v

13
Remarks

• What they're doing is giving a semantics for
  types using the machine.
• We're used to seeing a semantics for types as
  sets or PERs or some other mathematical objects.
• These extension properties had to be shown for
  TAL as well.
• if a heap H is described by T, then Hx-gtv is
  also described by T.
• Of course, we had to show this was true.
• Here, you can't define a type unless it is true.

14
Given This Setup

• constty i (a,m) v def vi
• char(a,m) v def 0 lt v lt 256
• boxed(a,m) v def v gt 256
• ptr t (a,m) v def v in a readable(v) t
  (a,m) (m v)
• offset i t (a,m) def t(a,m)(vi)
• field i t def offset i (ptr t)
• union(t1,t2)(a,m) v def t1(a,m)v or t2(a,m)v
• intersect(t1,t2)(a,m)v def t1(a,m)v t2(a,m)v
• record2(t1,t2) def intersect(field 0
  t1, field 1 t2)

15
More Constructors

• aref t(a,m) v def v in a readable(v) Exists
  a'.(a' subset a) v not in a' t(a',m)(m v)
• acyclic mutable refs
• giving a semantics for (possibly) cyclic refs is
  hard (see next paper)
• existential(F)(a,m)v def Exists t.(F t)(a,m)v
  valid(t)
• universal(F)(a,m)v defAll t.valid(t) gt (F
  t)(a,m) v

16
Code Pointers

• codeptr(P)(a,m) v defAll r',m'. r'(pc) v
  stdp(r',m') // global invariants
  P(stda(r',m'),m')(r') // "call convention"
• gt safe(r',m')
• The code type wraps up the implicit global
  invariants (e.g., the heap can grow with out
  invalidating the old types) as well as the
  calling convention (e.g., this register holds the
  allocation pointer.)

17
Recursive Types

• subtype(t1,t2) def All a,m,v.t1(a,m)v gt
  t2(a,m)(v)
• rec(F) def All t.valid(t) gt
  subtype(F(t),t) gt t(a,m)(v)
• e.g., list(char) def rec(fn t gt
  union(constty 0,
  intersect(boxed,record2(char,t))))

18
Validity Recursive Types

• rec(F) is valid for any function that preserves
  validity and is monotone
• preserves_valid(F) def All t.valid(t) gt
  valid(F(t))
• monotone(F) def All t1,t2. subtype(t1,t2) gt
  subtype(F(t1),F(t2))
• In particular, this gives usrec(F)(a,m)(v) ltgt
  (F(rec(F)))(a,m)(v)

19
Bad News

• Does not handle code types (in general)
• e.g., datatype d D of d-gtd
• any negative occurrence will not be monotone
• This is (also) the problem with supporting refs
  in general
• when the heap has cycles, you need recursive
  types to describe it.
• Could construct a more elaborate semantics based
  on domain theory
• but then you have to code up all of domain theory
  in the logic

20
Good News

• See the next paper w. McAllester
• there is a simple model
• easy to code up in the logic
• (go over this next time)

21
Stepping Back

• What's been accomplished with FPCC?
• assume only h.o. logic and machine semantics
  (TCB)
• build enough math to encode the semantics of your
  types
• proofs are much more detailed
• less brittle than syntactic approaches?
• yes working at the machine level, can define
  new derived type constructors w/out reproving
  correctness, admissible rules, etc.
• no have to bake in details (e.g., allocation
  framework, safety policy, etc.) and scaling the
  semantics to realistic languages is much harder

22
