Title: Greedy

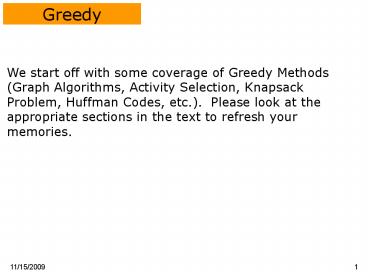

1
Greedy
  • We start off with some coverage of Greedy Methods
    (Graph Algorithms, Activity Selection, Knapsack
    Problem, Huffman Codes, etc.). Please look at
    the appropriate sections in the text to refresh
    your memories.

2
Greedy
What is a Greedy Algorithm?
  • Solves an optimization problem
  • the solution is best in some sense.
  • Greedy Strategy
  • At each decision point, do what looks best
    locally
  • Choice does not depend on evaluating potential
    future choices or solving subproblems
  • Top-down algorithmic structure
  • With each step, reduce problem to a smaller
    problem
  • Optimal Substructure
  • optimal solution contains in it optimal solutions
    to subproblems
  • Greedy Choice Property
  • locally best globally best

3
Greedy
  • Examples
  • Minimum Spanning Tree
  • Minimum Spanning Forest
  • Dijkstra Shortest Path
  • Huffman Codes
  • Fractional Knapsack
  • Activity Selection

4
Greedy
  • Minimum Spanning Tree

Time O(ElgE) given fast FIND-SET, UNION
Produces minimum weight tree of edges that
includes every vertex.
Time O(ElgV) O(ElgE) slightly faster
with fast priority queue
for Undirected, Connected, Weighted Graph
G(V,E)
source 91.503 textbook Cormen et al.
5
Greedy
  • Single Source Shortest Paths Dijkstras
    Algorithm

for (nonnegative) weighted, directed graph G(V,E)
source 91.503 textbook Cormen et al.
6
Greedy
  • Huffman Codes

7
Greedy
  • Fractional Knapsack

50
Value 60 100 120
30
20
10
knapsack
item1
item2
item3
8
Greedy Example
  • Activity Selection Problem Instance
  • Set S 1, 2,..., n of n activities
  • Each activity i has
  • start time si
  • finish time fi
  • Activities i, j are compatible iff
    non-overlapping
  • Objective
  • select a maximum-sized set of mutually compatible
    activities

9
Greedy
  • Greedy Algorithm

source 91.503 textbook Cormen, et al.
  • Algorithm
  • S presort activities in S by nondecreasing
    finish time
  • and renumber
  • GREEDY-ACTIVITY-SELECTOR(S)
  • n lengthS
  • A 1
  • j 1
  • for i 2 to n
  • do if
  • then
  • j i
  • return A

10
Greedy
  • Why does this all work?
  • Why does it provide an optimal (maximal)
    solution? It is clear that it will provide a
    solution (a set of non-overlapping activities),
    but there is no obvious reason to believe that it
    will provide a maximal set of activities.
  • We start with a restatement of the problem in
    such a way that a dynamic programming solution
    can be constructed. This solution will be shown
    to be maximal. It will then be modified into a
    greedy solution in such a way that maximality
    will be preserved.

11
Greedy
  • Consider the set S of activities, sorted in
    monotonically increasing order of finishing time
  • Where the activity ai corresponds to the time
    interval si, fi).
  • The subset a3, a9, a11 consists of mutually
    compatible activities, but is not maximal.
  • The subsets a1, a4, a8, a11, and a2, a4, a9,
    a11 are also compatible and are maximal.

i
  • 2 3 4 5 6 7 8 9 10 11
  • 1 3 0 5 3 5 6 8 8 2 12
  • 4 5 6 7 8 9 10 11 12 13 14

si
fi
12
Greedy
  • First Step find an optimal substructure an
    optimal solution to a subproblem that can be
    extended to a full solution.
  • Define an appropriate space of subproblems
    Sij ak S fi sk lt fk sj,
  • the set of all those activities compatible with
    ai and aj and with those that finish no later
    than ai and start no earlier than aj. Add two
    activities
  • a0, 0) an1 , )
  • which come before and after, respectively, all
    activities in S S0,n1.
  • Assume the activities are sorted in
    non-decreasing order of finish f0 f1 fn
    lt fn1.
  • Then Sij is empty whenever i j.

13
Greedy
  • We define the suproblems find a maximum size
    subset of mutually compatible activities from
    Sij, 0 i lt j n1.
  • What is the substructure?
  • Substructure suppose a solution to Sij contains
    some activity ak, fi sk lt fk sj. ak generates
    two subproblems, Sik and Skj.
  • The solution to Sij is the union of a solution
    to Sik, the singleton activity ak, and a
    solution to Skj.
  • Any solution to a larger problem can be obtained
    by patching together solutions for smaller
    problems.
  • Cardinality (number of activities) is also
    additive.

14
Greedy
  • Optimal Substructure assume Aij is an optimal
    solution to Sij, containing an activity ak.
  • Then Aij contains a solution to Sik (the
    activities that end before the beginning of ak)
    and a solution to Skj (the activities that begin
    after the end of ak) .
  • If these solutions were not already maximal, then
    one could obtain a maximal solution for, say, Sik
    , and splice it with ak and the solution to Skj
    to obtain a solution for Sij of greater
    cardinality, thus violating the optimality
    condition assumed for Aij.

15
Greedy
  • Use Optimal Substructure to construct an optimal
    solution
  • Any solution to a nonempty problem Sij includes
    some activity ak, and any optimal solution to Sij
    must contain optimal solutions to Sik and Skj.
  • For each ak in S0,n1, find (recursively)
    optimal solutions of S0k and Sk,n1, say A0k and
    Ak,n1. Splice them together, along with ak, to
    form solutions Ak. Take a maximal Ak as an
    optimal solution A0,n1.
  • We need to look at the recursion in more detail
    (cost??)

16
Greedy
  • Second Step the recursive algorithm.
  • Let ci,j denote the maximum number of
    compatible activities in Sij. It is easy to see
    that ci,j 0, whenever i j - and Sij is
    empty.
  • If, in a non-empty set of activities Sij, the
    activity ak occurs as part of a maximal
    compatible subset, this generates two
    subproblems, Sik and Skj, and the equation
  • ci,j ci,k 1 ck,j,
  • which tells us how the cardinalities are related.
    The problem is that k is not known a priori.
    Solution
  • ci,j maxiltkltj (ci,k 1 ck,j), if Sij
    ? .
  • And one can write an easy bottom up (dynamic
    programming) algorithm to compute a maximal
    solution.

17
Greedy
  • A better mousetrap. Recall Sij ak S fi
    sk lt fk sj.
  • Theorem 16.1. Consider any nonempty subproblem
    Sij, and let am be the activity in Sij with the
    earliest finish time fm minfk ak in Sij.
    Then
  • am is used in some maximum size subset of
    mutually compatible activities of Sij (e.g., Aij
    Aim U am U Amj).
  • The subproblem Sim is empty, so that choosing am
    leaves the subproblem Smj as the only one that
    may be nonempty.
  • Proof 2) if Sim is nonempty then Sij must
    contain an activity (finishing) prior to am.
    Contradiction.
  • 1) Suppose Aij is a maximal subset. Either am is
    in Aij, and we are done, or it is not. If not,
    let ak be the earliest finishing activity in Aij.
    It can be replaced by am (since it finishes no
    earlier than am) thus giving a maximal subset
    containing am.

18
Greedy
  • Why is this a better mousetrap?
  • The dynamic programming solution requires
    solving j - i 1 subproblems to solve
    Sij. Total Running Time???
  • Theorem 16.1 gives us conditions under which
    solving Sij requires solving ONE subproblem only,
    since the other subproblems implied by the
    dynamic programming recurrence relation are
    empty, or irrelevant (they might give us other
    maximal solutions, but we need just one)
  • Lots less computation
  • Another benefit comes from the observation that
    the problem can be solved in a top-down
    fashion take the earliest finishing activity,
    am, and you are left with the problem Sm,n1. It
    is easy to see that each activity needs to be
    looked at only once linear time (after sorting).

19
Greedy
  • The Algorithm
  • R_A_S(s, f, i, j)
  • m i 1
  • while m lt j and sm lt fi // find first activity in
    Sij
  • do m m 1
  • if m lt j
  • then return amR_A_S(s, f, m, j)
  • else return .
  • The time is - fairly obviously .

20
Greedy
The Recursive Activity Selector Algorithm
Cormen, Leiserson, Rivest, Stein Fig. 16.1
21
Greedy
  • A Slightly Different Perspective.
  • Rather than start from a dynamic programming
    approach, moving to a greedy strategy, start with
    identifying the characteristics of the greedy
    approach.
  • Make a choice and leave a subproblem to solve.
  • Prove that the greedy choice is always safe -
    there is an optimal solution starting from a
    greedy choice.
  • Prove that, having made a greedy choice, the
    solution of the remaining subproblem can be added
    to the greedy choice providing a solution to the
    original problem.

22
Greedy
  • Greedy Choice Property.
  • Choice that looks best in the current problem
    will work no need to look ahead to its
    implications for the solution.
  • This is important because it reduces the amount
    of computational complexity we have to deal with.
  • Cant expect this to hold all the time
    maximization of a function with multiple relative
    maxima on an interval - the gradient method would
    lead to a greedy choice, but may well lead to a
    relative maximum that is far from the actual
    maximum.

23
Greedy
  • Optimal Substructure.
  • While the greedy choice property tells us that we
    should be able to solve the problem with little
    computation, we need to know that the solution
    can be properly reconstructed an optimal
    solution contains optimal sub-solutions to the
    subproblems.
  • An induction can then be used to turn the
    construction around (bottom-up).
  • In the case of a problem possessing only the
    Optimal Substructure property there is little
    chance that we will be able to find methods more
    efficient than dynamic programming (with
    memoization).

24
Greedy
  • Some Theoretical Foundations unifying the
    individual methods.
  • Matroids. A matroid is an ordered pair M (S,
    I) s.t.
  • 1. S is a finite non-empty set
  • 2. I is a non-empty family of subsets of S,
    called the independent subsets of S, such that B
    I and A B, then A I. We say that I is
    hereditary if it satisfies this property. Note
    that Ø is a member of I.
  • 3. If A I and B I, and A lt B, then there
    is an element x B-A such that A x I. We
    say that M satisfies the exchange property.
  • Ex. the set of rows of a matrix.

25
Greedy
  • Graphic Matroids MG (SG, IG), where we start
    from an undirected graph G(V, E).
  • The set SG is defined to be E, the set of edges
    of G
  • If A is a subset of E, then A IG is and only
    if A is acyclic - i.e., a set of edges is
    independent if and only if the subgraph GA (V,
    A) forms a forest.
  • We have to prove that the object so created (MG)
    is, in fact, a matroid. The relevant theorem is

26
Greedy
  • Theorem. If G is undirected graph, then MG (SG,
    IG) is a matroid.
  • Proof. SG E is finite
  • IG is hereditary, since a subset of a forest is
    still a forest (removing edges cannot introduce
    cycles).
  • We are left with showing MG satisfies the
    exchange property. Let GA (V, A) and GB (V,
    B) be forests of G, with B gt A (A and B are
    acyclic sets of edges with B containg more edges
    than A).
  • Claim a forest with k edges has exactly V - k
    trees.
  • Proof start with a forest with no edges and add
    one edge at a time.
  • GA contains V - A trees, while GB contains
    V - B trees GA contains more trees than GB.

27
Greedy
  • GB must contain some tree T whose vertices are in
    two trees of GA (everything is acyclic). Since T
    is connected, it must contain an edge (u, v) such
    that vertices u and v are in different trees of
    GA, and so can be added to GA without creating a
    cycle.
  • But this is exactly the exchange property.
  • All three properties are satisfied, and MG is a
    matroid.

28
Greedy
  • Def. given a matroid M (S, I), we call an
    element x / A an extension of A I if A x
    I.
  • Ex. if A is an independent set of edges in MG,
    the edge e is an extension of A if adding e to A
    does not introduce a cycle.
  • Def. if A is an independent set in a matroid M,
    A is maximal if it has no extensions.
  • Theorem 16.6. All maximal independent subsets ina
    matroid have the same size.
  • Proof if not, and A lt B, both maximal, then
    A can be extended. Contradiction

29
Greedy
  • Ex. Let MG be a graphic matroid for a connected,
    undirected graph G.
  • Every maximal independent subset of MG must be a
    free tree with exactly V - 1 edges a spanning
    tree of G.
  • Def. a matroid is weighted if there is a
    strictly positive weight function on the edges of
    the matroid. It can be extended to sets of edges
    by summation
  • w(A) sum x A w(x)
  • Ex. minimum spanning tree problem. We must find
    a subset of the edges that conencts all the
    vertices and has minimum total length. How is
    this a matroid problem??

30
Greedy
  • Let MG be a weighted matroid with weight function
  • w(e) w0 - w(e),
  • where w(e) is the positive weight function on the
    edges and w0 is a positive number larger than the
    weight of any edge.
  • Each maximal independent subset A corresponds to
    a spanning tree and
  • w(A) (V - 1)w0 - w(A)
  • for any such set, an independent set that
    maximizes w(A) is one that minimizes w(A).
  • The algorithm is on the next slide. SM denotes
    the edges, IM denotes the independent sets.

31
Greedy
  • GREEDY(M, w)
  • Running Time let n S. Then sorting takes n
    lg(n). Line 4 is executed n times, once for each
    element of S. This requires a check that
    is independent, for time, say O(f(n)). Thus the
    total time is O(n lg(n) n f(n)).
  • Furthermore, A is independent.

32
Greedy
  • Lemma. (Matroids exhibit the greedy choice
    property)
  • Suppose that M (S, I) is a weighted matroid
    with weight function w and that S is sorted into
    nondecreasing order by weight. Let x be the first
    element of S such that x is independent, if any
    such x exists. If x exists, then there exists an
    optimal subset A of S that contains x.
  • Proof. If no such x exists, the only independent
    subset is the empty set, and we are done.
    Otherwise, let B be any nonempty optimal subset.
    If x B, let A B, and we are done. If x /
    B, no element of B has weight greater than x (x
    is a heaviest independent element and every
    element of B is independent by the hereditary
    property of I).

33
Greedy
  • Start with A x. A is independent because x
    is. Using the exchange property, repeatedly find
    a new element of B that can be added to A, while
    preserving the independence of A, until A
    B. The construction gives that A (B - y)
    x for some y B, and so
  • w(A) w(B) - w(y) w(x) w(B).
  • Since B is optimal, A must also be optimal, and
    since
  • x A,
  • The result follows.

34
Greedy
  • Lemma. Let M (S, I) be a matroid. If x is an
    element of S such that x is not an extension of
    Ø, then x is not an extension of any independent
    subset A of S.
  • Proof. The contrapositive assume x is an
    extension of an independent subset A of S. Then
    A x is independent. By the hereditary
    property x is independent, which automatically
    implies that it is an extension of Ø.
  • Another way of stating this result is that any
    item than cannot be used right now, cannot be
    used in the future

35
Greedy
  • Lemma. (Matroids exhibit the optimal substructure
    property) Let x be the first element of S chosen
    by GREEDY for the weighted matroid M (S, I).
    The remaining problem of finding the
    maximum-weight independent subset containing x
    reduces to finding a maximum-weight independent
    subset of the weighted matroid M' (S', I'),
    where
  • and the weight function for M' is the weight
    function for M, restricted to S'. (We call M' the
    contraction of M by the element x)

36
Greedy
  • Theorem. (Correctness of the greedy algorithm on
    matroids) If M(S, I) is a weighted matroid with
    weight function w, then the call GREEDY(M, w)
    returns an optimal subset.
  • Proof.
Write a Comment
User Comments (0)
About PowerShow.com
