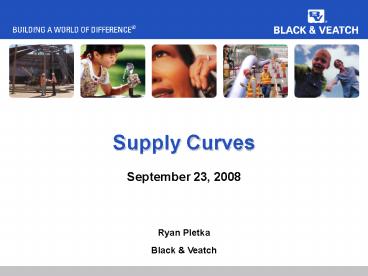

Supply Curves

1
Supply Curves

• September 23, 2008

Ryan Pletka Black Veatch
2
Agenda

• Review of CSAs vs REZs
• ZITA inputs to modeling
• Supply Curves

3
Zone Identification Process
All RenewableResources
Preliminary ScreeningCriteria
CandidateStudyAreas
REZ Identification
Environ- mental and Other Land Exclusions
Non-REZ Resources
4
Nevada
California
Hypothetical, for example only
5
Nevada
California
Hypothetical, for example only
6
Nevada
California
Hypothetical, for example only
7
Nevada
California
Hypothetical, for example only
8
Nevada
California
Hypothetical, for example only
9
Nevada
California
Hypothetical, for example only
10
Zone Identification Process
All RenewableResources
Preliminary ScreeningCriteria
CandidateStudyAreas
REZ Identification
Environ- mental and Other Land Exclusions
11
ZITA Information Needed for Modeling

• REZ Information
• REZ definition and a list of all resources
  included in the REZ
• Precise location of transmission interconnection
  point for the REZ
• Central collector point for all resources within
  the REZ
• Centroid or other point

12
ZITA Information Needed for Modeling

• Resource Information for Each Resource in Each
  Zone
• Resource type and technology
• Block size (e.g. 500 MW of wind generation
  capacity)
• Performance Information
• Capacity Factor (annual)
• Temporal Profile (12x24 or more precise ... to
  evaluate complementary-ness).

13
ZITA Information Needed for Modeling

• Resource Information for Each Resource in Each
  Zone (Contd)
• Cost Assumption
• Capital Costs -- /kW (inclusive of construction
  financing and interconnection to collector point)
• Operations and Maintenance (Fixed - /kW/yr
  Variable (/MWh)
• Fuel (if applicable)
• Financial Assumptions
• Economic life, financing structure, taxes,
• Incentives and depreciation

14
Properly Characterizing Resource Cost

• Renewables costs vary tremendously based on
  resource quality
• Limited number of very good renewable project
  sites
• Costs rise as low-hanging projects are
  developed
• Supply curves capture these effects

15
Supply Curve Concept Example
16
Supply Curves are a Visualization Tool

• Type of Renewables
• Locations
• Timeframes
• Economic Metrics
• Busbar Generation Cost
• Energy / Capacity Value
• Transmission Cost

17
Example Geothermal Supply Curve
Source RETI DRAFT 1B Report Generation Cost
Only
18
Example Biomass Supply Curve
Source RETI DRAFT 1B Report Generation Cost
Only
19
Example Wind Supply Curve
Source RETI DRAFT 1B Report Generation Cost
Only
20
Example Solar Supply Curve
Source RETI DRAFT 1B Report Generation Cost
Only
21
Example Arizona Supply Curve (Demand Limited)
Note 2025 assumptions exclude current tax
incentives
Generation cost only no TOD energy or capacity
value
