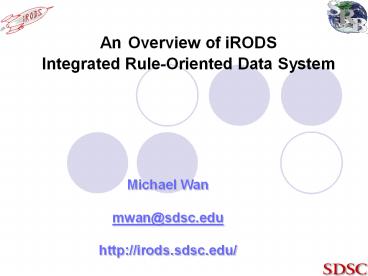

An Overview of iRODSIntegrated Rule-Oriented
Data System
Michael Wan mwan_at_sdsc.edu http//irods.sdsc.edu/

2
Motivation for iRods

• Based on experience with SRB - Distributed Data
  Management System
• Global Logical Name space - UNIX like directories
  and files
• Single Global User Name Space - Single sign-on
• Federated middleware system
• Client/server model
• Federation of resource servers with uniform
  interfaces
• Robust access control
• MCAT Metadata catalog
• SRB used by many projects and many different
  requirements and configurations

3
BIRN Biomedical Information Research Network
4
NOAO Data Flow
5
Archive Service Architecture
Remote Institute Site
UK eScience Archive process Data Path
Local Storage
Filer
Central Cache Site
RAL
Site WAN
Firewall
1
JANET WAN
ads0sb01.cc.rl.ac.uk
Local machines
Central SRB Server
2
Local SRB Server
Tape Traffic
Sphymove in to container
SRB-ADS Server
ADS Tape Resource
3
disk
disk
Sreplcont
ADS SRB Disk Cache Resource
disk
Local Vault
4
Central cache Vault
Firewall
Firewall

• Archive Submission Interface
• Data Ingestion of collection hierarchy into SRB
• Uses Java jargon API interface (equivalent of
  Sput b)
• Ingested to /bbsrc/institute/scratch/project/year
  /user/dateandtime
• At end of ingestion data logically moved using
  Smv to/bbsrc/institute/local-archive/project/yea
  r/user/dateandtime

1

• Scheduled transfer to ADS resource
• Implemented via CRON job using Sreplcont command
  which is driven by central SRB Server
• Entire container replicated using Sreplcont
  command
• Logical Structure preserved as /bbsrc/institute/re
  mote-archive/project/year/user/dateandtime

3

• Scheduled transfer to Central SRB Server (Driven
  from Central SRB Server)
• Smkcont command used to create container on
  central SRB Server
• Data moved from Site SRB to container on central
  SRB Server using Sphymove
• Upon data transfer completion archived data is
  logically move with Smv to /bbsrc/institute/remote
  -archive/project/year/user/dateandtime

2

• Synchronization of container to tape resource and
  removal of original container from Central SRB
  Server
• Ssyncont d a command used, allowing for a
  family of containers

4
6
SRB BaBar architecture.
2 Zones (SLAC Lyon)
SRB
CC-IN2P3 (Lyon)
SLAC (Stanford, CA)
7
Motivation for iRods (cont)

• Implementing all these features becomes
  unmanageable
• Sput -fprabvsmMkKV -c container -D
  dataType -n replNum -N numThreads -S
  resourceName -P pathName -R retry_count
  localFileNamelocalDirectory ... TargetName
• Need a more flexible way to configure the system
• More power and flexibility for users
• User defined workflow to be executed on the
  server
• SRB code requires major refactoring
• Rewrite make it open source

8
iRods features

• Most SRB data grid features
• Global logical name space, global user name space
• Fine grain access control
• Federated resources heterogeneous
• Zone federation across organizations and admin
  domains
• Data replication and synchronization
• Parallel I/O
• User defined metadata

9
iRods Features (cont)

• Improvements
• Total rewrite from scratch
• New, more flexible and efficient protocol
• Client/server, server/server
• 2 modes
• native (binary) more efficient
• XML easier for developer of other languages
  php and java
• Reduce number msg exchange
• Put/get/replicate/copy of small files
• SRB 3 msg, create, write, close
• iRods one msg (data included in the request)
• Reduce number of tables in the Metadata catalog
• Reduce the number of joints
• SRB over 100 tables
• iRods a few large tables
• Small files upload/download a factor of 3-4
  improvement
• Restart capability restart file

10
iRods Rules and Workflow System Target
apllications

• Target applications include
• Data grids for sharing data
• Distributed workflow.
• Persistent archival, data preservation
• Real-time sensor data collections
• Large scale data analysis

11
iRods rule and workflow system

• Two basic levels
• System Level used by Sys Admin
• Automatic execution of data management policies
• Data Integrity
• Validation of checksums
• Replication and synchronization of replicas
• Data distribution and archival
• Automatic caching (staging)
• Replication of data to remote sites
• Migration to archival Resource
• Purging Replica (cached copies)

12
iRods rule and workflow system (cont)

• System Level
• Other data management policies
• Data ingestion - pre-processing, post-processing
• Resource selection for upload
• Copy selection for download.
• Data retention and deletion policy
• Access controls foreign zone user, public user
• Generation of Archival Packages
• metadata,
• data bundle zip, tar
• Other Administrative management policies
• Data transport tuning - parallel I/O, number of
  streams.
• Audit trails

13
iRods rule and workflow system (cont)

• User Level Workflow System
• Execution of User designed workflow.
• Request server to perform a series of
  micro-services with a single call
• micro-services are predefined functions which can
  be called by the workflow scripting language
• Most iRods APIs have been converted to
  micro-services
• Depends on the user community for contribution to
  the micro-service library.

14
iRODS - integrated Rule-Oriented Data System
Client Interface
Admin Interface
Rule Invoker
Resources
Metadata Modifier Module
Config Modifier Module
Rule Modifier Module
Service Manager
Resource-based Services
Rule
Consistency Check Module
Consistency Check Module
Consistency Check Module
Engine
Micro Service Modules
Current State
Confs
Metadata-based Services
Rule Base
Metadata Persistent Repository
Micro Service Modules
15
Rules and WorkFlow implementation

• Two interfaces to the Rule engines
• Logic programming interface
• Cryptic
• Used mostly for system level rules
• Scripting language interface
• Programming language like
• Support condition (if/else) and loops (while)
• Internally translated to logic programming rules.

16
Rule - Logic programming interface

• Rule composed of four parts
• Name condition micro-service set recovery
  set
• Postprocessing rule example Files replication
  acPostProcForPut objPath like
  /tempZone/home/rods/nvo/ msiSysReplDataObj(nvoR
  eplResc,null) nop
• Preprocessing rule example Files staging
• acPreprocForDataObjOpen objPath like
  /tempZone/home/rods/birn/
• msiStageDataObj(demoResc8)nopnop

17
Rule Scripting Language interface

• Easier to use. Mostly for user level workflow
• Work in progress
• Example 1
• replFileSet(condition,resourceName)
• acGetIcatResults("replicate", condition,
  result) / queries iCAT for dataNames the met
  the condition /
• foreach (result) / for each tuple in the
  result /
• acGetDataName(result,dataName) /
  get the dataName from the result uple /
• msiDataObjRepl(dataName,
  resourceName, stat1)
• writeLine(stdout,"Replication
  failed for dataName with stat1")
• / denotes recovery
  operation. In this case, an error message is
  written /
• writeLine(stdout,"Replicated dataName
  to resource resourceName with status stat2")
• writeLine(stdout,"Replication Finished
  Successfully for condition")
• Condition COLL_NAME '/tempZone/home/rods
• or
• Condition DATA_TYPE 'DICOM'

18
Rule Scripting Language interfaceExample
2apiTestWorkflow (InFile, OutFile1,
OutFule2) msiDataObjOpen(InFile,S_FD)
msiDataObjCreate(OutFile1,"null",D_FD)
msiDataObjLseek(S_FD,10,SEEK_SET,Stat1)
msiDataObjRead(S_FD,10000,R_BUF)
msiDataObjWrite(D_FD,R_BUF,W_LEN)
msiDataObjClose(S_FD,Stat2)
msiDataObjClose(D_FD,Stat3)
msiDataObjCopy(OutFile1,OutFile2,null,Stat4)
delay ("ltPLUSETgt1mlt/PLUSETgt")
msiDataObjRepl(OutFile2,demoResc8,Stat5)
msiDataObjUnlink(OutFile1,Stat6)
writeParams(stdout,"R_BUF,W_LEN")
19
Rules and micro-services implemented

• Over 20 System level rules
• Administrative
• Storage Resource selection
• Data pre-processing
• Data post-processing
• Data deletion
• Parallel I/O
• Over 20 User level micro-services
• Operations on data checksum, replicate, open,
  read, write
• Metadata extraction

20
Rule and Workflow system

• rule exec daemon
• Execute rules, workflows and micro-services in
  the background
• The delay function
• causes the rule execution env to be checkpointed
  and saved
• Job submission through making an entry in the Job
  table in DB
• Rule exec daemon checks Job table for job to
  execute
• Time of execution
• Delayed by certain time
• At certain time
• Frequency
• iqstat command check status
• iqdel command delete a job from queue
• Job scheduling and remote execution future
  work.

21
iRods Status

• Version 0.5 released Dec 21, 2006
• Version 0.9 released May 30, 2007
• Contains sufficient features to be deployed as a
  Data Grid
• 90,000 lines of C code.
• Server, client C lib and iCommands
• Version 1.0 scheduled for fall, 2007
• Web interface php/java script
• Java classes Jargon
• Oracle iCat
• Zone federation
• Open source - BSD license

22
More Information

• Michael Wan
• mwan_at_sdsc.edu
