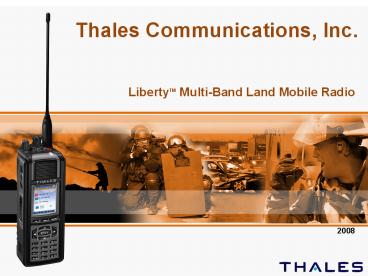

Thales Communications, Inc'

1
Thales Communications, Inc.

• LibertyTM Multi-Band Land Mobile Radio

2008
2
Interoperability Issues Still Exist

• Seven years after 9-11 Interoperability Issues
  Still Exist
• Katrina Finding Lack of communications and
  situational awareness paralyzed command and
  control

Why Cant We Talk??
3
Many Users.Different Frequency Bands

• The Root Cause for Interoperability Remains the
  Same.Multiple Users in Different Frequency
  Bands using Different Waveforms

402 - 420 MHz
Frequency
136 - 174 MHz
380 - 400 MHz
450 - 512 MHz
700 MHz
800 MHz

Bands
25

Waveforms



Federal


Agencies

State and Local

Government


DoD LMR






3
4
Thales LibertyTM Radio Specifications

• Specifications
• Full coverage in all Public Safety bands
• 136-174 MHz, 380-520 MHz, 763-869 MHz
• Project 25 Class A Specs Across all bands
• Programmable power up to 5 Watts
• Certifications
• FCC/Industry Canada Type Acceptance
• NTIA Redbook
• NIST FIPs 140-2 Encryption (AES)
• Intrinsic Safe
• Programming
• Front panel Keypad with SW password control
• Radio to Radio Clone
• PC programmer

User Needs Answered
4
5
Thales Communications Inc.
6
Made in USA
Complete Product Development and Support

• Engineering
• All engineering done in-house
• On-site model shop for quick prototyping
• CMMI Level 3
• Manufacturing
• Complete robotics-type factory
• Two manufacturing facilities
• ISO 90012000
• Customer Support
• Technical support free to all product users
• Full warranty and repair facility, in-house
  and in-theatre
• Product updates and info maintained on website

7
Producers of rugged, reliable products with over
150,000 software defined multiband radios now
deployed throughout the U.S. and around the world
8
Technical Leadership Hand Held SDR
Software Defined Radios

• 1995 MSHR
• 136-174 MHz
• Type 1 3 Voice Data
• 16 oz. with Battery
• FBI USASOC

• 1989 AN/PRC-139
• Three Bands
• Type 1 Voice
• USAF Security Police

• 1997 AN/PRC-148 (MBITR)
• 30-512 MHz, AM/FM
• Type 1 Voice Data
• SINCGARS SIP
• HAVEQUICK II
• ANDVT
• 32 oz. w/ Battery Ant
• Version for Harris

• 1998 Thales 25
• 136-174 MHz
• APCO Project 25
• Narrowband Digital
• DES/AES Voice Data

• 1996 Pintail
• Three Bands
• Type 1 Voice Data
• 5 Watt RF Option
• Australian Army

• 2004 AN/PRC-148 (JEM)
• 30-512 MHz, AM/FM
• MBITR Waveforms
• Project 25
• HTW, SATCOM IW
• Type 1 Voice Data
• JTRS SCA 2.2
• 32 oz. w/ Battery Ant

• 1997TASS
• RF Network Sensor Sys
• Dual Band (VHF/UHF)
• USAF Security Police

More SDR tactical hand held radios than anyone
8
9
Thales New Product Roadmap

• Existing or Already Funded

• JTRS Enhanced
• MBITR (JEM)
• JTRS SCA V2.2-
• compliant
• Waveform upgradeable
• 30MHz-512MHz
• Reprogrammable
• Encryption Type 1
• P25 waveform
• External GPS

• MBITR
• AN/PRC-148
• 30-512 MHz
• AM-FM
• Voice Data

• JTRS Cluster 5
• 2MHz-2.8GHz
• Wideband data
• Cellular

• Thales 25
• 136-174 MHz
• P25-compliant

• Thales 25
• Upgrades
• OTAR

Thales

• Thales Liberty Portable
• 136-870MHz
• Waveform upgradeable
• Reprogrammable
• Encryption, AES, OFB
• DES, OTAR
• P25 trunking/conventional
• External GPS

• Software
• Upgrades

• Homeland Security

10
Challenges for a Public Safety Multi-Band
Portable

• SWAP Size, Weight, And Power
• Radio Basics
• Range, Audio clarity, battery life
• Ability to scan multiple bands
• Fast Synthesizer lock and radio operating at spec
  quickly during scan, channel change.
• Fast radio boot up.
• Radio specification performance across all bands
• Single antenna covering multiple bands
• Price similar to single band PS radios

11
LibertyTM Demo Live
12
Public Safety Software Management

• CMMI Level 3 requires full traceability from
  requirements to their implementation,
  verification validation testing and subsequent
  results.
• CMMI requires use case scenarios tied directly
  to systems software functionality.
• WEB based delivery of software upgrades
• Ability to upgrade feature sets easily
• Ability to upgrade radio firmware easily.
• Forward and backward compatibility of software
  revision levels
• Forward and backward compatibility of SW
  interface between Radio and PC programmer SW

13
Security and Control

• SW password control for radio operation
• SW password control for keypad channel
  programming
• Channel by Channel lock for keypad re-programming
• Zone by zone password protection for PC
  overwrites.
• System Key authentication requirements control
  trunking system programming access
• P25 OTAR encrypted key delivery
• All SW builds are authenticated with the radio
  operating system to prevent unauthorized SW loads
• New multi-band Public Safety radios embody the
  same level of security and control as a current
  single band radios

14
Benefits of Multi-Band Public Safety Radios
15
Perfect Cache Radio

• The perfect Cache radiofor natural disasters,
  terrorist events
• Preprogrammed for mutual aid channels inall
  bands with NPSTC common channel nomenclature
• Program on the scene from front panel or PC
• Clone radio to radio
• Deploy quickly and hand out radios

• Operate with or without infrastructure

15
16
Best Band for Propagation

• Take full advantage of mutual aid channels in all
  bands 136-869 MHz
• Choose the band with best propagation
  characteristics for your application UHF for
  urban settings,container inspectionsVHF for
  superior performancein rural, forests,
  andparks

16
17
Perfect Bridge for P25 and Legacy

• Perfect bridge radio between established regional
  P25 trunked systems and adjacent conventional
  radio users in other bands
• Good communication link between Statewide P25
  networks and small, rural agencies and
  municipalities

17
18
Direct Connection Security

• Direct connection to existing systems for secure
  authentication and AES encryption
• Most secure interoperablity links, no patch or
  reduction to baseband audio required

18
19
Pilot for Multi-Band Radio

• The Plan will include four separate test
  scenarios
• Multi-agency everyday use in a shared environment
  using multiple frequency bands
• Multi-agency mutual aid for a specific incident
  using multiple frequency bands
• Pre-planned deployment to a regional incident
  scenario or exercise using multiple frequency
  bands
• Multi-Band radio use in a radio cache deployed
  for an incident or natural disaster.

20
Pilot for Multi-Band Radio

• Concerns and Issues
• Limiting access of unwanted users on radio
  systems
• Protecting sensitive voice/data transmissions not
  meant for interoperability
• Rapid deployment and programming of multiband
  equipment to be fully interoperable with existing
  P25/FM radio systems
• User familiarity with radios for catastrophic
  events where end-users may have little or no
  radio experience
• Interoperability impact of non-access to
  proprietary systems

21
Pilot for Multi-Band Radio

• Field Test Survey will be completed by the
  participants in the field test.
• How well and in what ways would this radio
  support everyday communications?
• Was interoperability across all bands achieved?
  If not, describe.
• What issues were faced when trying to get onto
  another agencys radio system?
• How was private data and voice (not meant for
  interoperability) protected?
• Open-ended questions for general discussions on
  information learned.

22
Pilot for Multi-Band Radio

• Comprehensive final report
• An Operational Requirements Document for the use
  and deployment of multiband portable radios
• Guidelines for the use of the radios features in
  the four operational scenarios investigated
• A comparison of multiband radio usage with other
  current methods of achieving interoperability,
  including measurements of the effort required to
  set up and operate the equipment

23
Future Proof
Data Messaging
Project 25 Phase II
Cognitive Radio
Networks
23
24
Questions ?

• What Interoperability issues could a
  Multi-band Land Mobile radio solve for your
  Agency?

24
