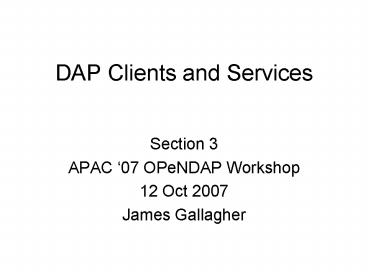

DAP Clients and Services

1
DAP Clients and Services

• Section 3
• APAC 07 OPeNDAP Workshop
• 12 Oct 2007
• James Gallagher

2
Outline

• Browsing a Server - jump right in
• DAP Requests and Responses - background on using
  DAP
• Finding Data
• Types of Clients
• Graphical
• Command line
• Custom

3
Browsing a Server

• Type the Servers URL into the browser
• Hyrax (and most other DAP servers) provide a way
  to browse data
• Choose a data set using THREDDS catalogs and/or
  common directory traversal
• Choose one or more variables within a data set
  using the HTML form interface

4
Open a server
Type the servers URL the URL could be an Entry
in a catalog or HTML page.
Contents at the top-level
These links become active when a dataset Is
listed. For a directory, these dont apply
5
Browse its directory structure
Follow the Pathfinder links down to
6
and traverse all the way down to a file
this point. Now we see a listing of datasets
Descend into a dataset
7
Open a file
Note that the URL is duplicated here.
8
Supply a constraint Get ASCII data
Use the form elements to build a Constraint
Note that the constraint is visible here,
appended to the URL
9
The ASCII data view
Note the constraint and the .asc suffix
appended before the constraint.
10
Spreadsheets can often read URLs and they Can
parse the CSV output of Hyrax (and most Other DAP
servers)
Paste a DAP URL with the .ascii extension
into the Location box
11
Data read into the spreadsheet. Sometimes you
have to tell the spreadsheet how to import the
data
12
Browsing summary

• Directory hierarchy browsing
• Data files open to a HTML form which enables
  choosing variables
• The form supports interactive construction of
  constraint expressions and ASCII data returns
• The form interface has many limitations but it
  can be used in many different situations

13
DAP background information

• Data are referenced by a URL
• DAP responses with metadata or data are requested
  using tokens appended to the URL
• With a data granule, elements are accessed using
  a Constraint Expression

14
URLs Reference Data

• As weve seen, URLs reference data granules
  (usually files).
• DAP, version 2 defines three responses
• DDS - syntactic metadata - information about the
  structure of the data
• DAS - semantic metadata - background information
  about the data
• DODS - data - actual data values, bundled with
  syntactic metadata to form a self-contained
  response.

15
DAP Data Model

• A Dataset is a collection of variables (tuples of
  type-name-value)
• Each variable has attributes which are also
  type-name-value tuples
• The Dataset may also have global attributes

16
Data Model Types

• Types of variables
• Scalars Byte, Integer, Float, String, URL
• Array N-dimensional
• Structure Simple aggregate type
• Sequence hierarchical table data
• Grid Array with map vectors (establishes a
  mapping between array indeces and independent
  variable values)

17
Attributes

• Scalars
• Vectors
• Structures
• No Grids or Sequences.

18
Accessing those responses

• For each of the responses, add the extension
  .dds, .das or .dods at the end of the URL file
  name.

19
or use the form interface
20
Other response types

• DAP4 will use XML to encode metadata and replace
  the two objects with a single response accessed
  using .ddx
• Virtually all servers support
• Info (.info) A HTML page built using all the
  metadata
• HTML (.html) The HTML for interface weve seen
• ASCII (.asc, .ascii) The ASCII data dump, also
  already seen

21
Aggregation

• There are several different servers which can
  perform aggregation
• TDS Array data
• GDS, Hyrax/JGOFS Sequences (table data)
• BES (but not when used in Hyrax) Any collection
  of data types aggregated to a Structure
• Aggregation maps searching and selecting from an
  Inventory onto using a constraint expression
• Aggregation can eliminate the dichotomy between
  inventory searching/access and data access

22
An example Aggregation

• http//satdat1.gso.uri.edu/thredds/dodsC/NWAtlanti
  cDec_1km.html

23
THREDDS responses

• Use THREDDS to define a logical hierarchy thats
  distinct from the set of directories that
  actually hold the data.
• We can request THREDDS catalog XML files using
  catalog.xml or HTML pages using catalog.html
  after a directory name.
• While the directory browser works for any
  directory, THREDDS catalogs are valid only for
  the logical hierarchy they define
• Files/Directories not included in that hierarchy
  have no catalogs

24
THREDDS examples

• Switch Hyrax to the THREDDS HTML view

Choose the HTML view
25
The THREDDS HTML view

• The top-level THREDDS catalog on our test server
  defines a single data root directory (SVN Test
  Data Archive)
• This illustrates how THREDDS can be used to
  control the view of data presented by the server
• Use catalog.xml in place of catalog.html to
  get the catalog data in an XML document.

26
Traverse the links to find data
27
THREDDS data set page

• THREDDS catalogs can list more than one access
  mechanism - here we see on the DAP, but WCS, WMS,
  et c., are other possibilities

28
Choosing DAP access leads to the HTML form
29
DAP Summary

• DAP requests are made using a token appended to
  the filename part of URL
• Responses defined by the DAP2 and (in progress)
  DAP4 are DDS, DAS, DODS and DDX. These return
  metadata and data
• Other responses are used to access ASCII data
  values, HTML metadata pages and data access
  interfaces
• Constraint expressions are used to limit (subset,
  projection, selection) data returned

30
DAP Summary, cont.

• THREDDS is
• a distinct protocol
• compliments DAP
• as Hyrax implements it supports both HTML and XML
  views of the catalogs
• Defines a logical hierarchy that is distinct from
  the way the data are actually stored

31
Finding Data

• Ways to find data
• The OPeNDAP Data Set List
• GCMD
• TPAC
• Google
• THREDDS
• We maintain a page with links to dataset
  searching sites
• http//www.opendap.org/data/index.html

32
Common Features

• All of these data location features except Google
  depend on active community involvement in
  building catalogs of data
• The solutions can be described as static
  documents or crawlers
• Google and TPAC are crawlers
• Crawlers can discover datasets without human
  intervention
• They can make mistakes that seem silly
• The The Dataset List, GCMD and THREDDS are static
  documents or collections of static documents
• Static lists can be tailored by hand
• They can go out of date quickly

33
Differentiating Features

• Google TPAC
• Google is just crawling HTML. If a server is not
  linked to a HTML page, it wont be found.
• TPAC is preset with server locations and picks up
  changes at those sites

34
Differentiating Features, cont.

• The Static Lists
• The Dataset List has a very low metadata
  requirement
• Not maintained as actively as either GCMD or
  THREDDS catalogs
• GCMD
• The GCMD has a fairly high entry level threshold
• Professional staff maintain the GCMD as their
  sole job
• THREDDS
• THREDDS catalogs are, or can be, located at the
  data - locality distributes maintenance
• Quality varies from site to site

35
Finding Data Summary

• Locating data seems like it would be the place to
  start building a system, but its far more varied
  than the one-size-fits-all approach most tried in
  the 1990s
• Crawlers and hierarchical lists show the most
  promise but maintained centralized lists are also
  useful

36
Accessing Data with DAP

• Web Browser
• Already discussed
• Graphical clients
• ncBrowse, ODC, Ferret, GrADS
• Command-line clients
• getdap (UNIX, win32), loaddap (Matlab, IDL), nco
  (UNIX, win32)
• Custom clients
• C, C, Java, Python
• netCDF

37
Using a Graphical Client

• Example The OPeNDAP Data Connector
• Combines data location with retrieval and display
• Shows the built URL, including constraint
  expression
• Can be transferred to another application

38
Start the ODC
39
The ODC opens to the search pane
Five different panes
Choices within a pane
40
Use the dataset list to find the TPAC
climatologies
Choose the Antarctic Cooperative Research Centre
TPAC/CISRO Climatologies
then hit To Retrieve to move the selection to
the next pane
41
The Retrieve pane
Double click levitus_annual_97.nc To see the
contents of the file in The area on the right
42
The ODC shows the URL as it builds it.
Click the checkbox for SALT and O2. For both, set
the range of z_index to 0 to 0. Make sure to
hit tab/return in The boxes.
then hit Output to to move to the View pane
43
(No Transcript)
44
There are a number of ways to view The data. Here
the plotter has been Chosen (the default).
Hit Plot to to generate a plot using
the Default settings.
45
When the plot is made, the interface Switches to
the Preview tab
Switch back to the Variables tab to Plot O2
46
Choose O2 from the menu, then hit Plot to.
47
Now that the data have been read and Cached, you
can switch back and Forth between variables
quickly without Any additional data transfers
When ready, go back to the Retrieve Pane.
48
Choose TEMP
Set the constraint
then plot
49
(No Transcript)
50
ODC Summary

• The ODC provides a way to search for, access and
  plot data
• Acts as a URL builder the URLs can be pasted
  into other applications
• We didnt need to know anything about DAP, its
  Request or Response objects or how a URL is used
  to request data
• The data set list often contains stale entries
• Also supports using the GCMD for data location -
  more on this when we cover searching

51
Using a Command-line Client

• Matlab - demonstration
• NCO - a powerful tool developed and maintained by
  another group

52
Matlab

• Demonstration of custom-built Graphical
  interfaces for Matlab
• Matlab scripting is used to build the interfaces
  and provide some dataset-specific processing
• A Matlab command extension is used to read the
  data (written in C/C).
• Two things are required in addition to Matlab
  The DAP command extension (loaddap) and the
  graphical interface software.

53
Running the Matlab Demonstration

• Start Matlab
• Download the command extension
• Download the interface software
• In Matlab change directory to the
  ml-ocean-testbed directory.
• Type OCEAN_TOOLBOX
• The interface will start

54
The Ocean Toolbox
55
Open a dataset
I choose the Pathfinder dataset
56
Fill in the information
SST Quality fields
Load data into the Matlab workspace
57
Get the data
Load data into the Matlab workspace
58
Plot/Display the data
59
Using the loaddap command extension directly

• Start Matlab
• Add the directory with the extension to the
  Matlab command path
• Verify the command extension is working
• Feed it a URL
• Plot the data

60
Pass a URL, constrain the response To the u and
v vectors only
Plot those vectors See Figure 1
61
Matlab Summary

• Command line client is the tool used to move the
  data
• Easily used in Matlab scripts to hide the details
  and make custom interfaces
• To the the command extension directory, user must
  know
• Data location (URL)
• Internal structure of the data set (syntactic
  metadata - DDS/DDX)
• How to write a constraint expression

62
NetCDF Operators (NCO)

• Unix command line client
• Unlike the previous two clients, NCO uses the
  netCDF client library to read from a DAP server
• A client library is a collection of functions
  which hide the mechanics of (most of) the
  interaction with a server so the client can go
  about its business
• The NCO client is, in fact, just the NCO package
  linked to our (OPeNDAPs) version of the netCDF
  library (aka. the netCDF client library)

63
Build the NCO Software

• Change directory to /root/src/nco-3.9.2
• root_at_slax cd /root/src/nco-3.9.2
• Run configure to build the Makefile, then build
  and install the software
• root_at_slax ./configure
• root_at_slax make
• root_at_slax make install

64
Use NCO to Convert the FNOC1 vectors into a speed

• NCAP NCO Arithmetic Processor
• ncap -O -s windspeedsqrt(u2,v2)
  http//localhost8080/opendap/data/nc/fnoc1.nc
  wndspd.nc
• The URL is the input file and wndspd.nc is the
  output
• Use ncdump to look at the result file
• ncdump -h wndspd.nc
• ncdump -v windspeed wndspd.nc

65
View the Result ncBrowse

• We can use ncBrowse to look at the local neetCDFZ
  we just built
• ncBrowse can also look at the DAP server directly
• Built using the DAP-enabled Java netCDF library
  (a client library where access to DAP servers
  hides behind the netCDF API)

66
Start ncBrowse
Double click on speed - the new data we made
with the previous NCO example
67
Fix up the latitude and longitude axes, the
Graph Variable.
68
We have to be somewhat savvy about the units -
check back and look at the attributes
69
Custom clients

• What options exist to build clients
• C using libdap
• C using Ocapi
• C,Fortran using the netcdf client library
• Python using PyDAP
• Java using Java-OPeNDAP
• Matlab IDL using the respective versions of
  loaddap

70
Clients Summary

• Custom clients offer an opportunity to develop
  for a specific audience or a particular
  problem/project.
• Example ComMIT Tsunami inundation model client
  developed by NOAA/PMEL and BOM
• General purpose clients like loaddap can read any
  kind of data while clients built using the netCDF
  client library are limited to the semantics of
  netCDF
• Example Record access is slow because each
  access is separate network request

71
Clients Summary, cont.

• ODC A client built specifically to provide a
  browse capability for any data source
• Uses Java-OPeNDAP
• Loaddap a client built to read any data into an
  analysis application
• Can be used as a building block for more
  sophisticated applications
• Use libdap (C, Matlab) or Ocapi (C, IDL)
• netCDF client library A client-building tool
• convert legacy code
• provide a simple way to write new applications
• C, C, Fortran
