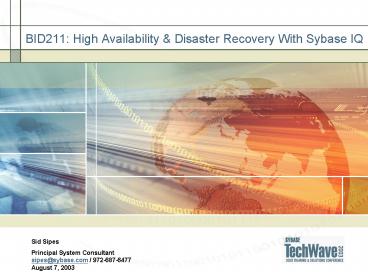

BID211 High Availability Disaster Recovery
With Sybase IQ
Sid Sipes Principal System Consultantsipes_at_sybase
.com / 972-687-6477August 7, 2003
2
For This Presentation

• Lets Keep It Interactive
• I will entertain questions on a subject
• Would be happy to speak to you offline, if
  desired
• No Question is too Basic
• Chances are others may have the same question
• Open Question Forum at the end
• Time Permitting

3
Target Audience

• Data Warehouse Management
• Database Administrators
• All Levels
• System Administrators
• All Levels

4
Disaster Recovery

• Agenda
• We will be discussing
• Why Do I Need to Backup A Data Warehouse?
• How do you Backup Terabytes of data?
• Are there any 3rd party tools?
• Alternative Backup/Restore Techniques
• We will also be discussing Disaster Recovery
  Planning and Implementation

5
Disaster Recovery

• Why do I need to Backup My Database?
• Why do I need a Disaster Recovery Plan?
• There seems to be an attitude that Data
  Warehouses do not need the same type of
  safeguards that OLTP systems require!!!!

6
Disaster Recovery

• Why Bother with Backups?
• A Data Warehouse is Not Mission Critical
• Who cares if it goes down for a while?
• Only a few analysts will miss it!!!
• Very few on-line users
• I can always rebuild it
• A Data Warehouse only contains historical data.
• The source data is around, somewhere in the OLTP
  systems

7
Disaster Recovery

• Heres Why
• A Data Warehouse is Not Mission Critical
• Not True Anymore!!!!
• Many Data Warehouse systems are 24x7
• Decisions made on very recent data
• Many users are demanding historical data combined
  with Near-RealTime data.
• Potential for many thousands of on-line users via
  web interface

8
Disaster Recovery

• I can always rebuild it !
• How?
• Where is the Data?
• Do you have access to source systems?
• What impact will massive extracts have on source
  systems?
• How efficient is your ETL process?
• Do you have the network bandwidth to move that
  much data?

9
Disaster Recovery

• I can always rebuild it !
• Chances are great that you can not rebuild your
  Data Warehouse.
• Not Enough Time
• Data doesnt exist anymore (purged from OLTP
  systems)
• Many, Many, Many, Many More reasons why!!!
• Things only get worse with users breathing down
  your neck.

10
Disaster Recovery

• It will Happen to YOU!!!!!!!
• Backup / Recovery and Disaster Planning are
  Critical Components of any Data Warehouse
  Operational Plan.
• Sooner or later, you will loose your database
• Hardware Problem
• Data Corruption
• Gremlins
• Plan for It

11
Disaster Recovery

• Ok, How do I backup Terabytes of Data?
• Just How Do I perform Backups Given
• Huge Amounts of Data!!
• Slow Backup Devices!!
• Not Enough Time
• What are the Alternatives?

12
Disaster Recovery

• Ok, How do I backup Terabytes of Data?
• How Much Time Does a Backup Take?
• How Do I handle Terabytes of Data?
• Question Recently Asked on IQUG!
• Case Size Disk/ File
  Time Time Rate

• (MB) Tape Size
  (Secs) (HHMM) (MB/Sec)


13
Disaster Recovery

• Backup Rates
• Best Rate Reported
• 55.6 MByte/Sec
• 5 Hours / TeraByte!!!
• Slowest Rate Reported
• 3.7 MByte/Sec
• 75 Hours / TeraByte!!!!

14
Disaster Recovery

• Another Interesting Case
• Sybase ASIQ Client Recently Ran Tests on VLDB
• Anticipating 10TB IQ Database
• Tested Backup to Conventional Tape Arrays
• 27 Tape Array (20/30 Gig Tapes)
• Requires 400 Tapes to Backup Database
• High Probability of Tape Failure
• Requires 27 Hours to Backup Database

15
Disaster Recovery

• Too Slow!!!!
• What are the Backup Alternatives?
• Sybase ASIQ Built-In Backup
• ASIQ Backup Alternatives
• Fast Extract
• System Level Backup
• Third Party Backup Utilities
• Instant Disk Level Imaging

16
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Backup Utility Built Into Server
• Adaptive Server IQ provides three types of
  backups
• FULL
• INCREMENTAL
• INCREMENTAL SINCE FULL

17
Disaster Recovery

• Sybase ASIQ Built-in Backup
• FULL Backup
• Causes a full backup of both the Catalog Store
  and the IQ Store.
• FULL is the default action.

18
Disaster Recovery

• Sybase ASIQ Built-in Backup
• INCREMENTAL Backup
• Makes a full backup of the Catalog Store,
• Then backs up all changes to the IQ Store since
  the last IQ backup of any type.

19
Disaster Recovery

• Sybase ASIQ Built-in Backup
• INCREMENTAL SINCE FULL
• Makes a full backup of the Catalog Store,
• Then backs up all changes to the IQ store since
  the last full IQ backup.

20
Disaster Recovery

• Sybase ASIQ Built-in Backup
• All three backup types fully back up the Catalog
  Store.
• In most cases, the Catalog Store is much smaller
  than the IQ Store.
• Should be very fast
• Temporary Store data is not backed up.
• However, the meta data and any other information
  needed to recreate the Temporary Store structure
  is backed up.

21
Disaster Recovery

• Sybase ASIQ Built-in Backup
• BACKUP backs up committed data only.
• Adaptive Server IQ backs up only those database
  blocks actually in use at the time of backup.
• Free blocks are not backed up
• It does not back up the transaction log file.
• It does not use the transaction log to restore
  the database.

22
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Backups begin with an automatic checkpoint.
• At this point, the backup program determines what
  data will be backed up.
• It backs up the current snapshot version of your
  database as of the time of this checkpoint.
• Any data that is not yet committed when this
  checkpoint occurs is not included in the backup

23
Disaster Recovery

• Sybase ASIQ Built-in Backup
• BACKUP always makes a full backup of the Catalog
  Store on the first archive device, and then backs
  up the data from the IQ Store in parallel across
  all of the devices you specify.
• Blocks are not distributed evenly across archive
  media.
• You may have more on one device than others,
  depending on the processing speed of individual
  threads

24
Disaster Recovery

• Sybase ASIQ Built-in Backup
• You can back up any IQ database onto either disk
  or magnetic tape.
• AS IQ supports backup and restore using multiple
  tape drives at near device speeds, or to multiple
  disks.

25
Disaster Recovery

• Sybase ASIQ Built-in Backup
• When Backing Up / Restoring from Multiple
  Devices
• Beware of Exceeding I/O Bandwidth to SAN/Disks
  with Too Many Tape Drives
• Each Drive operates at about 20MB / Sec
• Typical I/O Bandwidth is 1 GigaBit (200 MB/Sec)
• 27 Drives 20 MB/Sec 540 MB/Sec I/O Requests
• Youve just blown your bandwidth for a single
  Fiber Channel

26
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Adaptive Server IQ allows Stacker drives with
  multiple tapes
• Adaptive Server IQ BACKUP does not support
• jukeboxes
• robotic loaders.
• Quarter Inch Cartridge (QIC) drives.

27
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Is ASIQ Backup Fast Enough?
• Probably not for Terabytes of Data
• Should Consider Other methods
• Tuning for Faster ASIQ Backups is Possible
• May provide enough performance
• Well explore other options in a few slides

28
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Increasing Performance
• Increasing the number of archive devices
• BACKUP and RESTORE write your IQ data in parallel
  to or from all of the archive devices you
  specify.
• The Catalog Store is written serially to the
  first device.
• Faster backups and restores result from greater
  parallelism.
• To achieve greater performance when backing up or
  restoring a large database, specify more archive
  devices.

29
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Increasing Performance
• Eliminating data verification
• You can also improve the speed of backup and
  restore operations by setting
• CRC OFF in the BACKUP command. This setting
  deactivates cyclical redundancy checking.
• Default is CRC ON
• WARNING Introduces some Risk

30
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Increasing Performance
• Spooling backup data
• You may find that it is faster and more efficient
  to create backups on disk, and then spool them
  onto tape for archival storage.
• If you choose this approach, you need to unspool
  the data onto disk before restoring it.

31
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Increasing Performance
• Increasing memory used during backup
• The amount of memory used for buffers during
  backup directly affects backup speed, primarily
  for tape backups.
• The BLOCK FACTOR parameter of the BACKUP command
  controls the amount of memory used.
• If your backups are slow, you may want to
  increase the value of BLOCK FACTOR for faster
  backups.

32
Disaster Recovery

• Sybase ASIQ Built-in Backup
• Increasing Performance
• Balancing system load
• Adaptive Server IQ allows you to perform backups
  concurrently with all other read/write
  operations, except those that affect the
  structure of the database.
• It is still a good idea to schedule backups
  during times of low system use, however, to make
  the best possible use of system resourcesdisk,
  memory, and CPU cycles.

33
Disaster Recovery

• Sybase ASIQ Built-in Backup
• OK, ASIQ Backup/Restore May Not Be Fast Enough.
• What do I do?
• Alternatives
• Fast Extract
• System Level Backups
• Array Vendor Instant Backup
• Shadow-Image / BCV
• True-Copy
• SRDF

34
Disaster Recovery

• ASIQ Fast Extract.
• Use ASIQ Built-In Fast-Extract option
• SQL Query specifies what to Backup
• Data extracted to ASCII or BINARY files
• Single or Multiple Tables
• Useful for Backing Up/Restoring Huge Tables
• Data Restored using IQ SQL Load Syntax
• Very Fast Operation

35
Disaster Recovery

• ASIQ Fast Extract.
• Downside Does not save/restore any metadata or
  system information.
• Little or no error checking

36
Disaster Recovery

• System Level (OS) Backups
• You can use system-level backups for an IQ
  database.
• For Example, DD raw devices.
• Must be done carefully, and with certain
  safe-guards in place
• If you attempt to restore your IQ database files
  from a system-level backup without these
  safeguards in place,
• You will cause data loss or corruption, either
  from activity in the database while the
  system-level backup occurred, or from missing
  files.

37
Disaster Recovery

• System Level (OS) Backups
• Shutting down the database (non-multiplex)
• Your IQ database MUST NOT be running during a
  system-level backup.
• You must shut down your IQ database before
  starting the system-level backup.
• You must also ensure that no one starts the IQ
  database until the system-level backup is complete

38
Disaster Recovery

• System Level (OS) Backups
• Shutting down the database (multiplex)
• Your multiplex WRITE SERVER MUST NOT be running
  during a system-level backup.
• You must shut down your write server before
  starting the system-level backup.
• You must also ensure that no one starts the write
  server until the system-level backup is complete.


39
Disaster Recovery

• System Level (OS) Backups
• You must Backup the following Files
• SYSTEM dbspace file,
• typically named dbname.db
• The transaction log file, which is required for
  system recovery,
• typically named dbname.log
• The IQ_SYSTEM_MAIN dbspace file,
• typically named dbname.iq
• Or the corresponding raw device(s).
• Files for any additional dbspaces that have been
  added to IQ_SYSTEM_MAIN

40
Disaster Recovery

• System Level (OS) Backups
• You only need to save the lengths of the
  following files
• The IQ_SYSTEM_TEMP dbspace file,
• typically named dbname.iqtmp
• Or, the corresponding raw device(s) size.
• Files / Devices for any additional dbspaces that
  have been added to IQ_SYSTEM_TEMP

41
Disaster Recovery

• System Level (OS) Backups
• System Level Backup
• It is not required that you back up the temporary
  dbspaces.
• IQ can reconstruct any temporary dbspace provided
  that it sees a file of the correct length at the
  time the database starts.
• Therefore, you may simply keep records of the
  sizes of the files or raw devices used to hold
  the temporary dbspaces.

42
Disaster Recovery

• System Level (OS) Backups
• Optional Files
• The ASCII message files such as dbname.iqmsg
• The ASLOGDIR/.svrlog
• The ASLOGDIR/.stderr files.
• Not Required, but contain useful information
• ASIQ Engineering may need these files, should
  something go catastrophically wrong during the
  restore.

43
Disaster Recovery

• Third Party Backup Utilities
• Veritas Net Backup
• Now GA
• Certified (by Veritas and Sybase) for Sybase ASIQ
• Requires ASIQ 12.4.3 EBF 4 (or Newer)
• Similar in Implementation to Net Backup Agent for
  Sybase ASE
• Will Fit within Existing Veritas Installations

44
Disaster Recovery

• Third Party Backup Utilities
• Veritas Net Backup
• Fits within Veritas Enterprise Architecture
• Works with
• Veritas Master Node (Scheduler)
• Veritas Media Server
• Veritas Client (Net Backup Agent

45
Disaster Recovery

• Third Party Backup Utilities
• Veritas Net Backup
• Currently Single-Threaded.
• Can only write to a single archive device at a
  time.
• Sybase and Veritas working to add parallelism

46
Disaster Recovery

• Third Party Backup Utilities
• Sun Solaris HA Suite
• Provides ability to take Snap-Shot of Disk
  Devices
• Full Snap-Shot
• Incremental Snap-Shots
• Might be able to provide Point-In-Time recovery.
• MUST OBSERVE Same SAFEGARDS as OS/System Level
  Backups
• Simplex Server must be shutdown
• Multiplex Write Server must be shutdown

47
Disaster Recovery

• What About Disk Array Replication?
• Array Vendors (EMC, Hitachi, Sun) offer the
  ability to remotely replicate all of your IQ data
  base devices
• EMC SRDF
• Hitachi True Copy?
• Replication is Transparent to IQ
• Entire Database is Replicated
• Catalog
• IQ Store
• Transaction Log

48
Disaster Recovery

• Disk Array Replication
• ASIQ Is Certified with the Vendors
• EMCC
• Hitachi
• Hitachi

49
Disaster Recovery

• Disk Array Replication
• Instant Recoverability
• Little Down Time
• Both Local and Remote copies of data
• True Disaster Prevention
• Some of you are already backing up to disk
• This will automate the process
• You can still perform tape backups on remote copy
  of database

50
Disaster Recovery

• Disk Array Replication
• How Does it Work?
• As changes are made to disk blocks, the disk
  array controller
• captures the changes
• Replicates in near-real-time the changed block to
  a mirroring set of disks.
• Similar to Disk Mirroring
• Can replicate to other Array Frames across LAN
• Can replicate to remote frames, across WAN.

51
Disaster Recovery

• Disk Array Replication
• How Does it Work?
• Capture and replication of changed data blocks
  are transparent to IQ.
• Everything happens at the Array level.
• Maintains a complete (near-real-time) copy of
  your entire database
• Catalog Store
• IQ devices (temp and main)
• Any other File Systems or Raw Devices that are
  Critical to You.

52
Disaster Recovery

• Disk Array Replication
• How Does it Work?
• At some point in time (Weekly?) you can
• Verify the Integrity of your Database
• Shut down IQ
• Simplex Shutdown entire Server
• Multiplex Shutdown Write Server
• Break the Synchronization to the Replicated Copy
• You now have a valid/verified Backup of IQ

53
Disaster Recovery

• Disk Array Replication
• How Does it Work?
• If Primary IQ System Fails, You can start another
  Server on Replicated Copy of Database.
• While Synchronization is Broken, you can copy
  replicated database to tapes.
• After backup is complete, you can turn
  Replication back on.
• Replicate Copy will be re-synched with Master

54
Disaster Recovery

• Disk Array Replication
• Case Study by ASIQ Client
• One Primary IQ Database
• Two Replicated Copies.
• First Copy is Synchronized with the Master Daily.
• Synch is broken before new loads
• If loads fail/corrupt database, Client can switch
  to first Replicated Copy.

55
Disaster Recovery

• Disk Array Replication
• Case Study by ASIQ Client
• Two Replicated Copies.
• Second Copy is Synchronized with the Daily Copy
  at end of Each Week.
• This copy will be 1-7 Days out of currency
• This copy will be backed up to tapes
• In Worst Case, Primary has Failed, and Daily Copy
  is corrupt.
• Client can switch to weekly copy
• If Weekly Copy fails,
• The Client has a tape library to restore from

56
Disaster Recovery

• Disk Array Replication
• Advantages
• Quickly and easily replicate/copy huge IQ
  Databases
• Can provide more than one Disk Based Copy
• Can Provide Remote copy over WAN
• Almost Instant Recoverability after
  Database/Device Failure.

57
Disaster Recovery

• Disk Array Replication
• Disadvantages
• Expensive
• You need 2-3 times disk space
• Not an Issue because of IQ Compression
• Right????????
• Some of you are already backing up to disk
• Have to purchase replication software from array
  vendors

58
Disaster Recovery

• Disk Array Replication
• However
• Even though it may be more expensive. Array
  replication may be the only way to backup huge,
  multi-terabyte databases.
• Cost of disk is coming down all the time

59
Disaster RecoveryDisk Array Replication, Final
Thoughts

• Volume Manager
• Not a necessary or recommended component for IQ-M
• Additional overhead and software that has no
  value add to an IQ-M installation
• Acceptable for an IQ-M single node operation
  where hardware does not have the ability to apply
  RAID to the disk devices
• RAID Level
• Recommend using RAID 5 as a blend between
  performance, protection, and cost
• Recommend using raw devices (a must for
  multi-node IQ-M)
• For details on drive array specifications and
  configurations see the Sun Reference Architecture
  Whitepapers and EMC Whitepapers on array
  configurations with IQ-M

60
Disaster Recovery

• Method Summarization
• Thats It, In Summary
• Several Backup Alternatives
• ASIQ Backup
• Fast Extract
• System Level Backups
• OS Level HA Features
• Automated Remote Database Device Replication

61
Disaster Recovery

• Wait, Havent We forgotten Something?
• What about a Plan?
• You Will eventually have a situation from which
  you need to recover!!!
• Hardware Problem?
• ASIQ Corruption? (Surely Not!!!)
• OS Level Corruption?
• Entry-Level /Newbee DBAs and SAs

62
Disaster Recovery

• Disaster Recovery Plan
• Start at the Lowest Level First (Hardware).
• You need to have some form of RAID, even if you
  have a small system.
• Without Raid 1 or Raid 5, the loss of a single
  disk platter will corrupt your IQ Database.
• With Raid 1 or Raid 5, the loss of a platter will
  go un-noticed by ASIQ and the Users.
• Your SAs will have opportunity and time to
  replace platter(s)

63
Disaster Recovery

• Disaster Recovery Plan
• Move Up a Little ( Still Looking at Hardware).
• You should have multiple I/O paths to Disk/Array
  Devices.
• Loss of a Single Path wont bring IQ down.

64
Disaster Recovery

• Disaster Recovery Plan
• Move Up a Little More
• Think about completely documenting the Hardware
  and Operating System configuration
• What Disk Devices you have
• Device Sizes
• Paths / Logical Paths to Devices
• OS Kernal Parameters
• User Accounts / Privileges
• Any Scripts / SQL you use to perform you work.

65
Disaster Recovery

• Disaster Recovery Plan
• Move Up a Little More
• Document your ASIQ Configuration
• Device Usage and Sizes
• System Option Settings
• Users / Groups / Privileges
• Extract Schema
• Any Scripts / SQL you use to perform your daily
  work.

66
Disaster Recovery

• Disaster Recovery Plan
• Now, How are you going to backup your database?
• Smaller Databases ( lt 1TB) IQ Backup is a good
  alternative
• Larger Databases Look at
• OS Level Backup
• Disk Array Replication.

67
Disaster Recovery

• Disaster Recovery Plan
• If you choose an OS Level Backup
• Do you have enough Down-Time for IQ
• Remember, Simplex must be completely down.
• Multiplex Write Server must be completely down.
• Where are you going to backup data too?
• Disks?
• Tapes?

68
Disaster Recovery

• Disaster Recovery Plan
• If you choose an Array Replication Method
• Do you have the budget for 2-3 times the disk
  space?
• Do you have the budget for the replication
  software.
• Do you have a Storage / SAN expert on Staff?

69
Disaster Recovery

• Disaster Recovery Plan
• Finally, Document a Plan
• What methodologies you have chosen.
• Whom is responsible for each component of the
  plan.
• There should be a checklist
• Step-by-Step Actions
• Responsible person for each action
• Backup person for each action.

70
Disaster Recovery

• Disaster Recovery Plan
• Is That It?
• NOT QUITE You need to rehearse a recovery!!!!
• You wont know if your recovery methodology will
  work, unless you test it.
• This will also provide a base time-line for a
  recovery process
• Any surprises can be uncovered during the
  rehearsal.
• You will be setting realistic expectations for
  everybody.

71
Disaster Recovery

• Now We are Really Done!!
• Hopefully, you now understand the need for
  Disaster Recovery Planning, and understand the
  basics of
• How ASIQ Backup / Restore Works
• Alternatives to ASIQ Backup / Restore
• Understanding of Instant Remote Backup

72
Disaster Recovery

• Remember
• You will suffer a catastrophe at some point
• You need to plan for this event
• You need to rehearse for this event.
• When It happens, and you successfully, and
  smoothly recover,
• You will be the HERO!!!

73
Disaster Recovery

• Thats it
• Go Forth and Safely Compute
• See Ya Next Year
• Sid

74
Disaster Recovery

• Questions?

75
BID211 High Availability Disaster Recovery
With Sybase IQ
Sid Sipes Principal System Consultantsipes_at_sybase
.com / 972-687-6477August 7, 2003
