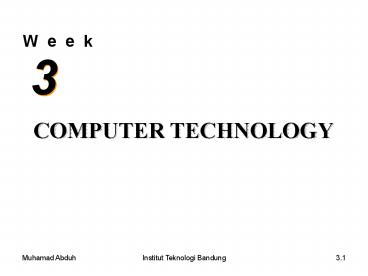

COMPUTER TECHNOLOGY
2
COMPUTER COMPONENTS
BUSES
3
HOW COMPUTERS REPRESENT DATA

• BIT Binary Digit. On/Off, 0/1, Magnetic/Not
• BYTE Group of bits for one character
• EBCDIC- Extended Binary Coded Decimal Interchange
  Code (8 or 9 bits per byte)
• ASCII- American Standard Code for Information
  Exchange (7 or 8 bits per byte)
• PARITY BIT extra bit added to each byte to help
  detect errors

4
EXAMPLES OF BYTES
EBCDIC ASCII (assume
even-parity system)

• C 1100 0011 0 100 0011 1
• A 1100 0001 1 100 0001 0
• T 1110 0011 1 101 0100 1
• Note how sum for each byte is an EVEN
  number

5
CPU PRIMARY STORAGE
DATA BUS ADDRESS BUS CONTROL BUS
6
CENTRAL PROCESSING UNIT (CPU)
CONTROL UNIT
7
ALU CONTROL UNIT

• ARITHMETIC- LOGIC UNIT CPU component performs
  logic and arithmetic operations
• CONTROL UNIT CPU component controls, coordinates
  other parts of computer system

8
MACHINE CYCLE

• STEPS NEEDED FOR SINGLE INSTRUCTION
• PCs OLDER MACHINES Microseconds (millionth
  second)
• POWERFUL MACHINES Nanoseconds (billionth second)

9
COMPUTER TIME
PER COMPARED
NAME LENGTH
SECOND TO 1 SECOND

• Millisecond .001 second thousand
  15min 40 sec
• Microsecond .001 millisecond million
  11.6 days
• Nanosecond .001microsecond billion
  31.7 years
• Picosecond .001 nanosecond trillion
  31,700 years


10
TYPES OF MEMORY

• RAM Random Access Memory
• Dynamic Changes thru processing
• Static Remains constant (power on)
• ROM Read Only Memory (preprogrammed)
• PROM Program can be changed once
• EPROM Erasable thru ultraviolet light
• EEPROM Electrically erasable

11
ADDRESSES IN MEMORY
Each location is a REGISTER
Each location can hold data
12
MEMORY SIZE

• KILOBYTE (KT) 210 bytes... 1024 bytes
• MEGABYTE (MB) 210 KB... million bytes
• GIGABYTE (GB) 210 MB... billion bytes
• TERABYTE (TB) 210 GB... trillion bytes

13
MICROPROCESSOR

• VLSI CIRCUIT WITH CPU
• WORD LENGTH Bits processed at one time
• MEGAHERTZ One million cycles per second
• DATA BUS WIDTH Bits moved between CPU other
  devices
• REDUCED INSTRUCTION SET COMPUTING (RISC) Embeds
  most used instructions on chip to enhance speed
• MultiMedia eXtension (MMX) Enhanced Intel chip
  improves multimedia applications

14
SEQUENTIAL PARALLEL PROCESSING
SEQUENTIAL
PARALLEL
MASSIVE PARALLEL COMPUTERS CAN HAVE THOUSANDS OF
CPUs TO ATTACK LARGE COMPUTING PROBLEMS
15
SECONDARY STORAGE

• DISK
• TAPE
• OPTICAL STORAGE

16
DIRECT ACCESS STORAGE DEVICE

• HARD DISK Steel platter array for large computer
  systems
• RAID Redundant array of Inexpensive Disks
• FLOPPY DISK Removable disk for PC

17
DISK PACK STORAGE

• LARGE SYSTEMS
• RELIABLE STORAGE
• LARGE AMOUNTS OF DATA
• QUICK ACCESS RETRIEVABLE
• TYPICAL 11 2-sided disks
• CYLINDER Same track all surfaces

18
TRACKS AND SECTORS
EACH TRACK HOLDS SAME AMOUNT OF DATA
19
OPTICAL STORAGE

• CD-ROM 500-660 MEGABYTES
• LAND Flat parts of disk surface reflects light
• PITS small scratch on surface scatters light
• WRITE ONCE / READ MANY (WORM)
• CD-R Compact Disk - Recordable
• CD-RW CD - Rewritable
• DIGITAL VIDEO DISK (DVD) CD size, up to 10
  gigabytes of data

20
MAGNETIC TAPE

• STANDARD FOR SEQUENTIAL FILES
• SPOOL OF PLASTIC TAPE COVERED WITH FERROUS OXIDE
  (2400 feet per spool)
• RECORD GROUPS BLOCKING FACTOR (e.g., 10 records
  per block)
• GROUPS SEPARATED BY INTER-BLOCK GAP
• RECORDS READ BLOCK AT A TIME

HEADER IBG BLOCK 1 BLOCK 2
BLOCK 3
21
MAGNETIC CARTRIDGE

• ENCLOSED FERROUS OXIDE TAPE
• USED PERIODICALLY TO BACK UP RECORDS
• INEXPENSIVE
• STORED IN SAFE LOCATION
• CAN BE REUSED

22
STORAGE AREA NETWORK (SAN)

• HIGH-SPEED NETWORK
• CONNECTS VARIOUS STORAGE DEVICES
• TAPE LIBRARIES
• DISK ARRAYS
• STORAGE SERVICE PROVIDER
• 3rd party rents storage space

23
INPUT/OUTPUT DEVICES

• POINTING DEVICES
• SOURCE DATA AUTOMATION
• OUTPUT DEVICES

24
POINTING DEVICES

• KEYBOARD
• MOUSE
• WIRED
• INFRA-RED
• TRACKBALL
• TOUCH PAD
• JOYSTICK
• TOUCH SCREEN

25
SOURCE DATA AUTOMATION

• CAPTURES DATA IN COMPUTER FORM AT TIME PLACE OF
  TRANSACTION
• OPTICAL CHARACTER RECOGNITION (OCR) Saves
  characters, format
• BAR CODE Identifies products in stores,
  warehouses, shipments
• MAGNETIC INK CHARACTER RECOGNITION (MICR)
  Special ink identifies bank, account, amount

26
SOURCE DATA AUTOMATION

• PEN-BASED INPUT Digitizes signature
• DIGITAL SCANNER Translates images characters
  into digital form
• VOICE INPUT DEVICES Converts spoken word into
  digital form
• SENSORS Devices that collect data from
  environment for computer input (e.g.,
  thermometers, pressure gauges)

27
OUTPUT DEVICES

• CATHODE RAY TUBE (CRT)
• PRINTER
• PLOTTER
• VOICE OUTPUT DEVICE

28
DATA PROCESSING

• BATCH PROCESSING Transaction data stored until
  convenient to process as a group. Useful for less
  time-sensitive actions.
• ON-LINE PROCESSING Transaction data entered
  directly into system, constantly updating files.
  Requires direct-access devices.

29
BATCH PROCESSING
30
ON-LINE PROCESSING
31
INTERACTIVE MULTIMEDIA

• INTEGRATES TWO OR MORE MEDIA
• TEXT, GRAPHICS, SOUND, VOICE, VIDEO, ANIMATION
• STREAMING TECHNOLOGY
• MP3 Audio compression standard

32
CATEGORIES OF COMPUTERS

• MAINFRAME
• MIDRANGE MINICOMPUTER
• SERVER
• PERSONAL COMPUTER (PC)
• WORKSTATION
• SUPERCOMPUTER

33
MAINFRAME
MIPS Millions of Instructions per second

• LARGEST ENTERPRISE COMPUTER
• 5O MEGABYTES TO OVER ONE GIGABYTE RAM
• COMMERCIAL, SCIENTIFIC, MILITARY APPLICATIONS
• MASSIVE DATA
• COMPLICATED COMPUTATIONS

34
MIDRANGE/MINICOMPUTER

• MIDDLE-RANGE
• 10 MEGABYTES TO OVER ONE GIGABYTE RAM
• UNIVERSITIES, FACTORIES, LABS
• USED AS FRONT-END PROCESSOR FOR MAINFRAME

35
MICROCOMPUTER

• DESKTOP OR PORTABLE
• 64 KILOBYTES TO OVER 128 MEGABYTES RAM
• PERSONAL OR BUSINESS COMPUTERS
• AFFORDABLE
• MANY AVAILABLE COMPONENTS
• CAN BE NETWORKED

36
CLIENT / SERVER

• NETWORKED COMPUTERS
• CLIENT User (PC, workstation, laptop) requires
  data, application, communications it does not
  have
• SERVER Component (computer) having desired data,
  application, communications

37
CLIENT / SERVER
CLIENT SERVER
USER INTERFACE APPLICATION FUNCTION
DATA APPLICATION FUNCTION NETWORK RESOURCES
38
WORKSTATION

• DESKTOP COMPUTER
• POWERFUL GRAPHICS
• EXTENSIVE MATH CAPABILITIES
• MULTI-TASKING
• USUALLY CONFIGURED TO SPECIAL FUNCTION e.g.
  CAD, engineering, graphics

39
SUPERCOMPUTERTERAFLOP TRILLION
CALCULATIONS/SECOND

• HIGHLY SOPHISTICATED
• COMPLEX COMPUTATIONS
• FASTEST CPUs
• LARGE SIMULATIONS
• STATE-OF-THE-ART COMPONENTS
• EXPENSIVE

40
CENTRALIZED / DISTRIBUTED

• CENTRALIZED PROCESSING BY CENTRAL COMPUTER SITE
• ONE STANDARD
• GREATER CONTROL
• DISTRIBUTED PROCESSING BY SEVERAL COMPUTER SITES
  LINKED BY NETWORKS
• MORE FLEXIBILITY
• FASTER RESPONSE

41
DOWNSIZING

• TRANSFER APPLICATIONS FROM LARGE COMPUTERS TO
  SMALL
• REDUCES COST
• SPEEDS RESULTS TO USER
• COMPUTER ASSIGNED TASK IT DOES BEST
• COOPERATIVE PROCESSING

42
SHARING COMPUTERS

• NETWORK COMPUTER Simplified desktop computer
  stores minimum data to function (uses server)
• PEER-TO-PEER COMPUTING Networked computers share
  data, disk space, processing. Parallel processing
  on a smaller scale

43
MANAGING HARDWARE ASSETS

• UNDERSTAND TECHNOLOGY REQUIREMENTS
• DETERMINE TOTAL COST OF OWNERSHIP Hardware,
  software, installation, training, support,
  maintenance, infrastructure
• PLAN CAPACITY SCALABILITY
• IDENTIFY TRENDS

44
SOFTWARE

• DETAILED INSTRUCTIONS TO CONTROL COMPUTER
  OPERATION
• PROGRAM SET OF INSTRUCTIONS TO THE COMPUTER
• STORED PROGRAM MUST BE IN PRIMARY STORAGE
• SYSTEM SOFTWARE MANAGES COMPUTER RESOURCES
• APPLICATION SOFTWARE SPECIFIC BUSINESS
  APPLICATION

45
SOFTWARE
46
MULTIPROGRAMMING
47
MULTITASKING

• MULTIPROGRAMMING ON A SINGLE-USER SYSTEM SUCH AS
  A MICROCOMPUTER

48
MULTITHREADING

• ABILITY TO EXECUTE DIFFERENT PARTS (THREADS) OF A
  PROGRAM SIMULTANEOUSLY

49
VIRTUAL STORAGE

• METHOD OF HANDLING SEVERAL PROGRAMS IN PRIMARY
  STORAGE
• PROGRAM DIVIDED INTO
• FIXED LENGTH PORTIONS (PAGES) OR
• VARIABLE LENGTH (SEGMENTS)
• CURRENT PORTIONS RESIDE IN PRIMARY STORAGE
• PORTIONS SWAPPED OUT WHEN DONE

50
TIME SHARING

• MANY USERS SHARE LARGE CPU
• TIME IN CPU DIVIDED INTO SLICES (e.g. 2
  MICROSECONDS)
• EACH USER HAS ACCESS TO CPU DURING SLICE
• SINCE CPU IS FAST, CAN DO MUCH DURING TIME SLICE
• USERS JOB SWAPPED OUT AT END OF SLICE

51
MULTIPROCESSING

• TWO OR MORE PARALLEL PROCESSORS IN SYSTEM
• PROGRAM CAN BE DIVIDED TO BE PROCESSED BY
  MULTIPLE CPUs
• CAN PROCESS LARGE PROGRAMS MORE RAPIDLY

52
LANGUAGE TRANSLATION

• SOURCE CODE HIGH-LEVEL LANGUAGE INSTRUCTIONS
• COMPILER TRANSLATES HIGH-LEVEL CODE INTO MACHINE
  LANGUAGE
• OBJECT CODE TRANSLATED INSTRUCTIONS READY FOR
  COMPUTER

53
TRANSLATION PROCESS
54
GRAPHICAL USER INTERFACE (GUI)

• OPERATING SYSTEM USES
• GRAPHIC ICONS Icons, buttons, bars, boxes
• POINTER Mouse, pen, touch screen
• TO ISSUE COMMANDS
• MAKE SELECTIONS

55
MICROCOMPUTER OPERATING SYSTEMS
OPERATING SYSTEM
FEATURES

56
MICROCOMPUTER OPERATING SYSTEMS
OPERATING SYSTEM
FEATURES
Unix
For powerful microcomputers, workstations,
minicomputers. Multitasking, multi-user
processing, networking. Portable to various
computer platforms
Linux
Free, reliable alternative to Unix, Windows. Runs
on many Platforms. Open-source
Mac OS
For Macintosh computers. Multitasking. Powerful
graphics, multimedia
DOS
For IBM (PC-DOS) and PC (MS-DOS). Program
memory 640K
57
GENERATIONS OF PROGRAMMING LANGUAGES

• 1st. Since 1940s. MACHINE LANGUAGE binary code
• 2nd. Since early 50s. ASSEMBLY LANGUAGE
  mnemonics for numeric code
• 3rd. Since mid 50s. HIGH-LEVEL LANGUAGES
• 4th. Since late 70s. MODERN APPLICATION
  PACKAGES

58
HIGH-LEVEL LANGUAGES

• FORTRAN (FORmula TRANslator) Scientific,
  Engineering applications
• COBOL (COmmon Business Oriented Language)
  Predominant for transaction processing
• BASIC (Beginners All-purpose Symbolic Instruction
  Code) General purpose PC language

59
HIGH-LEVEL LANGUAGES

• PASCAL Used to teach structured programming
  practices. Weak in file handling, input / output
• C and C Powerful PC Language for developing
  applications. Efficient execution cross
  platform. C is object oriented

60
FOURTH GENERATION LANGUAGES (4GL)

• CAN BE EMPLOYED BY END USERS
• NONPROCEDURAL
• CAN DEVELOP APPLICATIONS QUICKLY
• NATURAL LANGUAGES
• SIX CATEGORIES

61
FOURTH GENERATION LANGUAGES (4GL)

• 1. QUERY LANGUAGES
• Rapidly retrieve data
• Interactive/ on-line
• May use NATURAL LANGUAGE
• Support special requests for data from relational
  databases

62
FOURTH GENERATION LANGUAGES (4GL)

• 2. REPORT GENERATORS
• Create customized reports
• Wide range of formats
• 3. GRAPHICS LANGUAGES
• Can manipulate drawings, graphs, photos, videos
• Presentation managers

63
FOURTH GENERATION LANGUAGES (4GL)

• 4. APPLICATION GENERATORS
• User specifies computer needs
• Generator creates logic and code for application
• Greatly reduces development time

64
FOURTH GENERATION LANGUAGES (4GL)

• 5. VERY HIGH-LEVEL PROGRAMMING LANGUAGES
• Professional programmer productivity tool
• Uses fewer instructions
• Reduces development time

65
FOURTH GENERATION LANGUAGES (4GL)

• 7. SOFTWARE PACKAGE Commercially available set
  of programs...
• WORD PROCESSING
• SPREADSHEETS
• DATA MANAGEMENT
• PRESENTATION MANAGEMENT
• INTEGRATED SOFTWARE PACKAGES NOW COMBINE THESE
  TO SIMPLIFY LEARNING AND USE

66
SOFTWARE TOOLS

• WORD PROCESSING
• SPREADSHEETS
• DATA MANAGEMENT
• PRESENTATION GRAPHICS
• INTEGRATED SOFTWARE SUITES
• E-MAIL
• WEB BROWSERS
• GROUPWARE

67
GROUPWARE CAPABILITIES

• GROUP WRITING COMMENTING
• ELECTRONIC MAIL DISTRIBUTION
• SCHEDULING MEETINGS APPOINTMENTS
• SHARED FILES DATABASES
• SHARED TIME LINES PLANS
• ELECTRONIC MEETINGS CONFERENCES

68
MIDDLEWARE

• SOFTWARE ALLOWS DIFFERENT APPLICATIONS TO
  EXCHANGE DATA

69
OBJECT-ORIENTED PROGRAMMING

• COMBINES DATA PROCEDURES INTO A SINGLE OBJECT
• PROGRAM SENDS MESSAGE TO OBJECT TO PERFORM
  EMBEDDED PROCEDURE
• OBJECTS DATA ENCAPSULATED FROM REST OF SYSTEM
• CREATES REUSABLE CODE
• REDUCES TIME AND COST OF WRITING SOFTWARE

70
OBJECT-ORIENTED PROGRAMMING

• VISUAL PROGRAMMING SELECT AND ARRANGE OBJECTS
  RATHER THAN WRITE CODE
• CLASS ALL OBJECTS OF A CLASS HAVE ALL FEATURES
  OF THAT CLASS
• INHERITANCE SPECIFIC CLASS RECEIVES FEATURES OF
  A MORE GENERAL CLASS
• OVERRIDE SUBCLASS MAY OVERRIDE INHERITED METHOD
  (e.g. Printout of an HOURLY worker pay check may
  differ from that of a WEEKLY worker

71
OBJECT-ORIENTED PROGRAMMING

• JAVA Sun Microsystems OBJECT-ORIENTED
  PROGRAMMING LANGUAGE
• APPLET TINY PROGRAM TO EXECUTE SMALL FUNCTION
• APPLETS DOWNLOADED FROM NETWORK
• RUN ON ANY COMPUTER OPERATING SYSTEM
• RESULT SAVED ON NETWORK, NOT ON PC
• ONLY NETWORK VERSION OF SOFTWARE NEEDS UPGRADE

72
OBJECT-ORIENTED PROGRAMMING

• HTML Hypertext markup language, current favorite
  for Web pages
• XML eXtensible Markup Language, further
  development of HTML describes data more fully
• XHTML Hybrid may replace HTML as standard for
  Web

73
OBJECT-ORIENTED PROGRAMMING

• ActiveX Controls for Windows software
  environment to enable OBJECTS e.g.,
• CHARTS
• TABLES
• ANIMATIONS
• to be EMBEDDED IN A WEB PAGE

74
MANAGING SOFTWARE ASSETS

• RENT OR BUILD DECISIONS
• APPLICATION SERVICE PROVIDERS
• SOFTWARE MAINTENANCE

75
SELECTING ORGANIZATIONAL SOFTWARE

• APPROPRIATENESS
• EFFICIENCY
• COMPATIBILITY
• SUPPORT

76
W e e k
3
COMPUTER TECHNOLOGY
