Title: BIODIESEL%20BLENDS


1

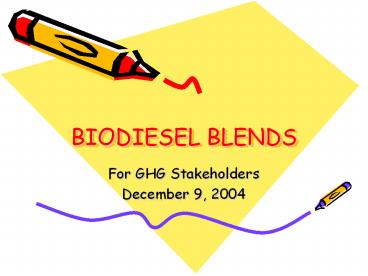

BIODIESEL BLENDS
  • For GHG Stakeholders
  • December 9, 2004

2
(No Transcript)
3
WHAT IS IT?
  • Soy beans are refined to separate the glycerin
    from the methyl esters -- both useful products.
  • The latter (biodiesel) is biodegradable,
    nontoxic, and essentially free of sulfur.

4
1. USES in TRANSPORTATION
  • Add to petroleum diesel to create a biodiesel
    blend
  • Blends known by biodiesel -- eg B-5, B-10, B-20
  • Can be used in compression-ignition (diesel)
    engines with little or no modifications

5
BIODIESEL AND GLOBAL WARMING
  • 1998 biodiesel lifecycle study by US DOE and USDA
    concluded that biodiesel reduces net CO2
    emissions by 78 compared to petroleum diesel due
    to biodiesels closed carbon cycle.
  • CO2 released into atmosphere when biodiesel is
    burned is recycled by growing plants, which are
    later processed into fuel.

6
BIODIESEL EMISSIONS
  • Using biodiesel in a diesel engine reduces
    unburned hydrocarbons, carbon monoxide, and
    particulate matter compared to emissions from
    diesel fuel
  • Also, exhaust emissions of sulfur oxides and
    sulfates (major components of acid rain) from
    biodiesel are essentially eliminated compared to
    diesel

7
BIODIESEL EMISSIONS
AVERAGE BIODIESEL EMISSIONS COMPARED TO
CONVENTIONAL DIESEL, ACCORDING TO EPA Emission
Type B100 B20 Regulated Total Unburned
Hydrocarbons -67 -20 Carbon Monoxide
-48 -12 Particulate Matter -47
-12 Nox 10 2 Non-Regulated Sulfates
-100 -20 PAH (Polycyclic Aromatic
Hydrocarbons) -80 -13 nPAH (nitrated
PAHs) -90 -50 Ozone potential of
speciated HC -50 -10 Estimated from B100
result Average reduction across all compounds
measured 2-nitroflourine results were within
test method variability
8
ENCOURAGING BIODIESEL
  • Using biodiesel for vehicle fleets
  • US EPA grant to 5 school districts to install
    pollution controls and use biodiesel
  • Warwick will retrofit 40 busses w. pollution
    control and use biodiesel for all 72 busses

9
2. USES in SPACE HEATING
  • Add to petroleum diesel to create a biofuel blend
    (bioheat)
  • Blends known by biodiesel -- eg B-5, B-10, B-20
  • Can be used in furnaces and boilers with little
    or no modifications, provided the is not too
    high (at high BBs, bioheats solvent effect can
    cause problems)

10
Warwick Public School DepartmentBio-Fuel/Heating
Oil Blending Project
  • One Year Project, 03/01 to 02/02.
  • Medium to Large Boilers.
  • Three Blends B-10, B-15 B-20
  • Monthly Testing Of
  • Boiler Efficiency Fuel Characteristics.

11
Site Locations Blends
Control
10 - B-10 Blend
20 - B-20 Blend
15 - B-15 Blend
12
Sampling Analysis Photos
13
Burner Efficiency Emissions
14
  • Thanks for Warwick slides to
  • Robert S. CerioEnergy Educator/Manager2401 West
    Shore RoadWarwick, R.I. 02889401-734-3219 x
    320 401-734-3214 fax

15
BIOHEAT FOR HOMES
  • Tested in boilers and furnaces at BNL in 2001,
    NEFI in 2003
  • Available in RI through Peoples Power Light
    program (US DOE grant through RISEO)
  • Available on conventional commercial basis from
    some MA oilheat dealers

16
ENCOURAGING BIOHEAT
  • Retail price premium of B10 over 2 distillate is
    currently almost 0.20/gallon
  • 2-year federal tax incentive 2005/6 equates to
    0.01 per percent of fuel from biodiesel (0.005
    if recycled)

17
Options To Promote Bioheat and Biodiesel in RI?
  • Options
  • Expanding demonstration programs for buildings
    and fleets.
  • State purchases of bioheat for buildings and
    biodiesel for vehicles.
  • Consumer education and publicity
  • Other?
  • How (and whom) to pursue in RIGHG process?
