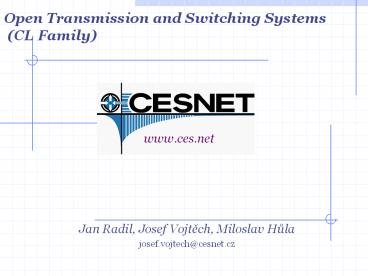

Jan Radil, Josef Vojtech, Miloslav Hula

1
Open Transmission and Switching Systems (CL
Family)
www.ces.net

• Jan Radil, Josef Vojtech, Miloslav Hula
• josef.vojtech_at_cesnet.cz

2
Open Transmission and Switching Systems (CL
Family)
Authors participate on CESNET research
program (www.ces.net), GN3 project
(www.geant.net), Phosphorus project
(www.ist-phosphorus.eu) Presented content do
not necessarily reflect an official opinion of
any institution or project.
3
Open Transmission and Switching Systems (CL
Family) Outline

• Introduction
• What was presented on the last CEF workshop in
  2007.
• Concepts Used - Open Photonic Devices
• Deployment of New Devices
• What kind of devices is needed and requested?
• Conclusions

4
Open Transmission and Switching Systems (CL
Family) Introduction

• The physical layer is important for us
• Not repeating all arguments and proscons of
  optical/photonic devices vs electronic devices
• Back in 2007 (4th CEF) we introduced
• Optical amplifiers (EDFA, Raman, TDM-pumped
  Ramans)
• Tuneable compensators of chromatic dispersion
• Optical crossconnects or switches (with or
  without multicast)
• Wavelength convertors and 2R regenerators
• New open photonic devices named CzechLight Family
• Important question which devices are requested?
• New solutions like advanced modulation formats
  for 40G and tuneable 10G and 40G transceivers
  affect possible network designs

5
Open Transmission and Switching Systems (CL
Family) Family of Open Photonics Devices I

• First Open Photonic devices deployed in CESNET2
  in 2004 (CLA EDFA)
• Now manufactured by companies/vendors under
  license of CESNET
• Building blocks of Open WDM systems
• EDFAs (terminal, inline applications, CATV, )
  Already deployed (CESNET2, EF)
• Raman amplifiers (amplification in long NIL)
• CW pumped
• TDM pumped
• Tunable CD compensators (long NIL, 40G) Already
  deployed (CESNET2, EF)
• TFBG, GTE, VIPA based
• Used extensively with 40G Advanced Modulation
  Formats for GN2 JRA4
• Reconfigurable Optical Add/Drop Multiplexers
  (ROADMs)
• Variable Mux/Demuxes (VMUX)
• Wavelength selective switches (WSS)
• Optical channel monitors (OCM)

in experimental regime, working samples
6
Open Transmission and Switching Systems (CL
Family) Family of Open Photonics Devices II

• Advanced devices
• Photonic fibre switches Already deployed
  (CESNET2, EF)
• 8x8, 16x16 (4x4 possible but too small)
• mechanical (MEMS, broadband O, C, L bands and
  sometimes visible light) or non mechanical (PLC
  typical C band)
• with or without power monitoring
• Photonic fibre switches with multicast option
  Already deployed (CESNET2, EF, StarLight)
• 4x4, 8x8, 2x16, 16x16
• mechanical (MEMS, broadband) or non mechanical
  (PLC)
• with or without power monitoring
• All optical wavelength converters
• SOA MZI based
• HNLF based

in experimental regime, working samples
7
Open Transmission and Switching Systems (CL
Family) Concepts used for networks

• Concepts used for building of networks
• Operational National Research and Educational
  Network (NREN) - CESNET2
• Experimental Facility (EF) CzechLight, part of
  Global Lambda Integrated Facility (GLIF), see
  http//www.glif.is
• Dark Fibre (DF) Customer Empowered Fibre (CEF)
  Networks
• Nothing in Line Approach (NIL)
• Cross Border Fibres (CBF)
• Family of Open Photonic Devices CzechLight
  Family

8
Open Transmission and Switching Systems (CL
Family) Advantages of these concepts

• Family of open photonic devices (CL family)
  enabling early adoption of advanced and new
  photonic technologies.
• Research and experimentation on dark fibre level,
  fast testing and prototyping, support of
  experimental applications requested by users or
  field experiments on dark fibre lines.
• Proved to be useful for CESNET2, CESNET EF, CBF
  lighting, GLIF applications development, remote
  monitoring and control, low latency and
  deterministic multicast.
• Freedom of design, ability to meet user needs,
  easy to modify if change necessary, lower cost,
  saving energy and space.
• Openness can solve interoperability issues of
  the physical layer, decrease expenses and reduce
  delivery time.
• One example - equalizing power levels between two
  DWDM systems during GLIF 2007 demos.

9
Open Transmission and Switching Systems (CL
Family)
PNWGP
7609
CAVEwave (2155)
EVL e600
CESNET (trunk 440,441)
CzechLight
6/2
Praha E300
CW 6506
6/6
6/10
6/14
(441)
(445)
(2155)
CW 6506
TX only
RX only
RX only
C-Wave (2155)
RX only
GLIF Mog HD RX
(2155)
O1
I1
O2
CESNET CLM
Brno C6506
O3
IP 10.200.200.200 MAC 101010101010
C-Wave (2155)
O4
(440)
(441)
HD RX
HD TX
StarLight
IP 10.200.200.200 MAC 101010101010
UCSD Calit2

• Combination of
• 10G international lambdas, DWDM
• Open and big vendor transmission systems

CW 6506
6509
e1200
GLIF 2008 CLM Demonstration in Cinegrid demos
HD RX
IP 10.200.200.200 MAC 101010101010
10
Open Transmission and Switching Systems (CL
Family) CLS in the protection application

• Last mile protection during underground building
  works
• Two geographically disjointed last miles in
  Praha
• PoP Praha CLS 16x16 (IL 2 dB, MEMS)
• Last miles meeting point two Y splitters 50/50

11
Open Transmission and Switching Systems (CL
Family) Conclusions I

• We can observe not all open photonic devices have
  been deployed
• Perhaps cost savings on energy consumption,
  housing space etc. is not so critical (yet)?
• Bandwidth hungry applications are not so
  widespread (yet)?
• But some of such devices can offer very useful
  features
• Photonic multicast for video transmission (HD,
  4k, 8k or even superior?)
• For high speeds (10G, 40G or even 100G)
• CLM used in StarLight, Chicago, without problems
• Open photonic systems
• Can enable early adoption of the new photonic
  technology in the production
• Enable and support experimental applications
  requested by users or field experiments on dark
  fibres
• Cooperation with FTTx vendors and operators

12
Open Transmission and Switching Systems (CL
Family) Conclusions II

• So what equipment have been deployed?
• CLA (EDFA)
• CLM
• CLS
• CLC (especially for 40G GN2 JRA4 tests but tested
  in CESNET2 and EF)
• CLx can be managed remotely, SW upgrades done
  remotely too.
• CLM and CLS devices include web-based GUI and SW
  time scheduler.
• CLx are manufactured and can be purchased - the
  vendor is a global company.
• Not black boxes manufactured in a garage.
• Support, guarantee.

13
Open Transmission and Switching Systems (CL
Family) Conclusions III

• CESNET is ready to support pilot deployments of
  open photonic devices from CL Family.
• Designs and concepts.
• Theory or paper works.
• CESNET can provide details of already deployed
  projects.
• Practical aspects and hands-on experience.
• The vendor for other works.
• Installation, maintenance.

14
Open Transmission and Switching Systems (CL
Family) References

• 1 Vojtech, J. CzechLight and CzechLight
  Amplifiers , In 17th TF-NGN Zurich, 2005.
• 2 Petr Holub, Josef Vojtech, Jan Radil, et.
  al., Pure Optical (Photonic) Multicast, GLIF
  2007 Demo, Praha, 2007.
• 3 Jan Radil, Stanislav íma, Customized
  Approaches to Fibre-based E2E Services, TERENA
  1st E2E Workshop, Amsterdam, 2008.
• 4 Stanislav íma, et. al., LTTx Lightpaths
  to the application, From GOLEs to dispersed end
  users , GLIF 2008 Workshop, Seattle, 2008.
• 5 Josef Vojtech, Jan Radil, Transparent all
  optical switching devices in CESNET, 25th APAN
  meeting, Honolulu, 2008.
• 6 Josef Vojtech, Stanislav íma, Jan Radil,
  Lada Altmannová, Dark Fibre Facilities for
  Research and Experimentation, 5th TRIDENTCOM,
  Washington, 2009.

15
Open Transmission and Switching Systems (CL
Family) Acknowledgement

• Lada Altmanová, Jan Gruntorád, Miroslav Karásek,
  Michal Krsek, Martin Míchal, Jan Nejman, Václav
  Novák, Stanislav íma

16
Open Transmission and Switching Systems (CL
Family) INTEROP 2009 demonstration with CLM
CzechLight Multicast Switch
I1 I2 I3 I4
O1 O2 O3 O4
Camera RX side
Management Time scheduling
17
Open Transmission and Switching Systems (CL
Family)
Thank you for your attention.
