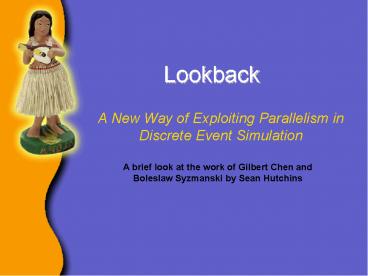

Lookback

1
Lookback

• A New Way of Exploiting Parallelism in Discrete
  Event Simulation

A brief look at the work of Gilbert Chen and
Boleslaw Syzmanski by Sean Hutchins
2
Outline

• Brief Introduction
• What is Lookback?
• -Lookback Constraint
• -Lookback Procedure
• Local Rollback
• Impact Time
• - Message Strength
• Lookback versus Lookahead
• - a possible improvement?
• Conclusion

3
Introduction
The PDES field has been dominated by study of
conservative and optimistic protocols. Sadly both
have large cons

• Some Conservative Cons
• Efficiency limited by the amount of lookahead
• lookahead is hard or impossible to tell in real
  world
• null messages often incur significant overhead

• Some Optimistic Cons
• state saving requires storing/accessing large
  amounts of memory
• handling of anti-messages may incur slow downs
  and larger memory latencies

4
WHAT CAN WE DO????
What if there was some way of reducing the number
of rollbacks in optimistic simulations?
What if there was some way of lowering execution
times of Conservative protocols and maybe even
distinguishing their reliance upon lookahead??
There is a way! Its called Lookback!
5
What Is Lookback?

• Informally, Lookback is the ability of a logical
  process to execute out-of-timestamp order events,
  stragglers, without impacting states of other
  logical processes.

• Formally, if at simulation time T, a LP can
  process stragglers with timestamp down to T-L,
  without sending anti-messages, this LP is said to
  contain a lookback of L. The window T-L, T is
  called the lookback window, and the lower end of
  this window, T-L is referred to as the virtual
  lookback time (VLT). The procedure used to
  process events falling into this window is called
  the lookback procedure.

• Stragglers with timestamp larger than the VLT can
  be processed by the lookback procedure, thus
  rollback and recovery procedures can be less
  frequently invoked.

6
FCFS Server Example

• A logical process that simulates a server with a
  FCFS queue receiving tasks for processing and
  sending processed tasks to other processes in
  timestamp order.

7
Lookback Constraint

• Any newly arriving task with a arrival time less
  than 7 would need to be processed before the
  departing task, changing its departure time.
  Since the departing task carries its departure
  time to some other logical process, the change
  required in such a case is no longer local!

• To avoid any such causality errors or rollbacks
  at other LPs, each LP must obey the lookback
  constraint!

• Lookback Constraint after processing each event,
  the VLT must be smaller or equal to the minimum
  timestamp value of all unprocessed events of this
  logical process (including those that will arrive
  at the logical process later) the LBTS usually
  found using a derived variant LB-GVT.

8
Constraint Adherence

• In order to adhere to the lookback constraint,
  LPs, before processing an event, must determine
  if the execution of the event would violate the
  lookback constraint. It must pre-compute the VLT
  without executing the event.

• Heres the main algorithm of the lookback-based
  protocols like the previous. Because no straggler
  with a TS larger than the lookback will ever be
  received it can be deemed rollback free

While (the termination condition is not met)
find the earliest local event e
pre-compute VLT based on e if VLT gt LBTS
process e else
update LBTS end if End while
9
Lookback Procedure

• Steps in processing stragglers that fall into the
  lookback window.
• If the LP has determined that the straggler may
  be safely processed according to the notion of
  lookback, it will first try to repair the damage
  caused by the wrong order of event execution.
• It will then process the straggler based on the
  state that has been repaired

• This approach will reduce the number of rollbacks
  significantly and sometimes as in the simple
  example, completely eliminate them.

10
Local Rollback

• The previous FCFS algorithm attempted to process
  stragglers directly and easily did so, but this
  may not always be the case and may prove vary
  difficult to implement due to the possibility of
  exponential event arrival combinations

• Whenever this direct lookback procedure is too
  complicated to implement, and all other attempts
  at a suitable procedure have failed, a universal
  lookback procedure may be used.

• Upon arrival of a straggler, the universal
  lookback procedure rolls back all processed
  events with a timestamp larger than the timestamp
  of the straggler, in decreasing timestamp order
  (no anti-messages are necessary during this
  step). Then, it processes the straggler, and
  finally re-executes the rolled back events, in
  increasing time stamp order.

11
Local Rollback

• The universal lookback procedure can be
  classified as a local rollback protocol because
  it avoids anti-messages but allows aggressive
  processing of events.

• Two other local rollback protocols, SRADS and
  Breathing Time Window require logical processes
  to work collaboratively, by exchanging event info
  to avoid sending any erroneous messages. In the
  lookback-based protocol, however, each logical
  process alone can determine whether a message can
  be sent out (by allowing or disallowing execution
  of the corresponding message)

Isnt that cool???
12
Impact Time

• OK, so lookback is cool and all but how do we
  know if it exists, and if it does exist, how
  large is it???

• Impact time of a message the lower bound on the
  TS of any stragglers that can change or cancel
  the message.

• When a straggler arrives with a TS smaller than
  the messages IT, the straggler will be thrown out
  because its processing would cause anti-messages
  to be sent.

• The maximum amount of lookback is equal to the
  maximum impact time of all the messages that it
  creates. When a straggler arrives, only a simple
  timestamp comparison is required for anti-message
  avoidance.

13
Message Strength

• What if the impact time of a message is to its
  timestamp?

• Use the strength of the message!

• Message strength the number of stragglers needed
  to affect this message. (only stragglers with TS
  less than message are counted)

• When a straggler arrives, the strength of a
  message is checked. If it is not already zero, it
  is decremented. When it reaches zero an
  anti-message must sadly be sent out ? to cancel
  this message.

14
Lookback Versus Lookahead

• How often can lookback be found? How useful is
  it? Seeing that Lookahead has been proven useful
  a connection between the two should suffice the
  usefulness.
• Even though one deals with the future the other
  the past, if the simulation clock is aggressively
  advanced, future suddenly becomes the past and it
  can be easily seen that there is a connection
  between the two.

• When at time T there is a lookahead of L, we can
  aggressively advance the simulation clock to TL,
  and process any stragglers. The property of
  lookahead guarantees that no message with a
  timestamp no smaller than TL can be affected by
  stragglers earlier than T, making the lookback of
  at least L.

15
Lookback Versus Lookahead

• Lookahead gives two guarantees
• 1) ensure the validity of the message
• 2) Promises a lower bound on the timestamp of
  messages that will be delivered later.

• Lookback only guarantees the first, making it
  clear to see that lookback is always more common
  than lookahead, and that lookback is exactly
  equal to lookahead when messages are delivered in
  timestamp order.

16
Improvement to Lookahead?

• Jefferson and Reiher characterized conservative
  protocols as mechanisms that never use any form
  of event undoing, abortion, or rollback

• Direct lookback based protocols, in which every
  processed event is committed can be thought of as
  conservative.

• Previous correct conservative simulation
  mechanisms used elementary scheduling and did not
  take into consideration any mechanisms that
  ensured correct execution of stragglers that
  could give way to major efficiency gains.

17
Conclusion

• Lookback-based protocols introduce a new
  technique to exploit intra-logical process
  parallelism in simulation models.
• Lookback is closely related to lookahead, but
  lookback is more common
• Lookback-based protocols offer no real solution
  to PDES problems. It does not exist in all
  models, and even if it does the lookback
  procedure may be to complicated or non-efficient.
• The utilization of lookback complicates the
  simulation modeling, because out-of-timestamp
  execution has to be taken into consideration.
• More research needs to be done, and this is meant
  only as an eye opener to what may lie ahead in
  PDES design.

18
Mahalo!
