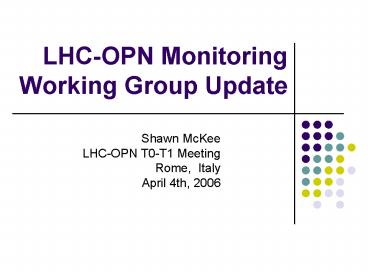

LHC-OPN MonitoringWorking Group Update

• Shawn McKee
• LHC-OPN T0-T1 Meeting
• Rome, Italy
• April 4th, 2006

2
LHC-OPN Monitoring Overview

• The LHC-OPN exists to share LHC data with, and
  between, the T1 centers
• Being able to monitor this network is vital to
  its success and is required for operations.
• Monitoring is important for
• Fault notification
• Performance tracking
• Problem diagnosis
• Scheduling and prediction
• Security
• See previous (Amsterdam) talk for an overview and
  details on all this

3
The LHC-OPN Network
4
LHC-OPN Monitoring View
The diagram to the right is a logical
representation of the LHC-OPN showing monitoring
hosts The LHC-OPN extends to just inside the T1
edge Read/query access should be guaranteed on
LHC-OPN owned equipment. We also request RO
access to devices along the path to enable quick
fault isolation
5
Status Update

• During the Amsterdam meeting (Jan 2006)
• we decided to focus on two areas
• Important/required metrics
• Prototyping LHC-OPN monitoring
• There is an updated LHC-OPN Monitoring document
  on the LHC-OPN web page emphasizing this new
  focus.
• This Meeting
• What metrics should be required for LHC-OPN?
• We need to move forward on prototyping LHC-OPN
  monitoring services volunteer sites?

6
Monitoring Possibilities by Layer

• For each layer we could monitor a number of
• metrics of the LHC-OPN
• Layer-1
• Optical power levels
• Layer-2
• Packet statistics (e.g., RMON)
• Layer-3/4
• Netflow
• All Layers
• Utilization (bandwidth in use,Mbits/sec)
• Availability (track accessibility of device over
  time)
• Error Rates
• Capacity
• Topology

7
LHC-OPN Paths Multiple Layers

• Each T0-T1 path has many views
• Each OSI Layer (1-3) may have different devices
  involved.

• This diagram is likely simpler than most cases in
  the LHC-OPN

8
Metrics for the LHC-OPN(EGEE Network Performance
Metrics V2)

• For edge-to-edge monitoring this list of
  relevant metrics include
• Availability (of T0-T1 path, each hop, T1-T1?)
• Capacity (T0-T1, each hop)
• Utilization (T0-T1, each hop)
• Delays (T0-T1 paths, One-way, RTT, jitter)
• Error Rates (T0-T1, each hop)
• Topology (L3 traceroute, L1?, L2)
• MTU (each path and hop)
• What about Scheduled Downtime, Trouble Tickets?

9
Availability

• Availability (or uptime) measures the amount of
  time the network is up and running.
• Can be by hop or a complete path
• Methodology
• Layer 1 Measure power levels/bit rate?
• Layer 2 Utilize SNMP to check interface
• Layer 3 ping
• Units Expressed as a percentage

10
Capacity

• Capacity is the maximum amount of data per unit
  time a hop or path can transport.
• Can be listed by hop or path
• Methodology
• Layer 1 Surveyed (operator entry)
• Layer 2 SNMP query on interface
• Layer 3 Minimum of component hops
• Units Bit rate (BitsK,M,G per second)

11
Utilization

• Utilization is the amount of capacity being
  consumed on a hop or path.
• Can be listed by hop or path
• Methodology
• Layer 2 Use of SNMP to query interface stats
• Layer 3 List of utilization along path
• Units Bits per second

12
Delay

• Delay metrics are at Layer 3 (IP) and are defined
  by RFC 2679 and 2681 and IPPM.
• Delay related info are three types one-way delay
  (OWD), one-way delay variation (jitter) and
  round-trip time (RTT)
• One way delay between two observation points is
  the time between occurrence of the first bit of
  the packet on the first point and the last bit of
  the packet at the second point.
• Methodology application (OWAMP) generating
  defined size packet with time-stamp to target
  end-host application.
• Units Time (seconds)
• Jitter is the one way delay difference along a
  given unidirectional path (RFC 3393)
• Methodology statistical analysis of OWD
  application
• Units Time (positive or negative)
• Round-trip time (RFC 2681) well defined
• Methodology ping
• Units Time (min/max/average) or a histogram of
  time

13
Error Rates

• Error rates track the bit or packet error rate
  (depending upon layer).
• Can be listed by hop or path
• Methodology
• Layer 1 Read (TL1) equipment error rate
• Layer 2 SNMP access to interface error counter
• Layer 3 Checksum errors on packets
• Units Fraction (erroneous/total for bits or
  packets)

14
Topology

• Topology refers to the connectivity between nodes
  in the network (varies by OSI layer)
• Methodology
• Layer 1 Surveyed (input)
• Layer 2 Surveyed (input)possible L2 discovery?
• Layer 3 Traceroute or equivalent
• Units Representation should record a vector of
  node-link pairs representing the described path
• May vary with time (that is what is interesting)
  but that is probably only trackable at L3.

15
MTU

• The Maximum Transmission Unit is defined as the
  maximum size of a packet which an interface can
  transmit without having to fragment it.
• Can be listed by hop or path
• Methodology Use Path MTU Discovery (RFC 1191)
• Units Bytes

16
LHC-OPN Which Metrics Are REQUIRED (if any)?

• We should converge on a minimal set of metrics
  that the LHC-OPN Monitoring needs to provide
• Example for each T0-T1 path
• Availability (is path up?)
• Capacity (path bottleneck bandwidth)
• Utilization (current usage along path)
• Error rates? (bit errors along path)
• Delay?
• Topology?
• MTU?
• Do we need/require hop level metrics at various
  layers?
• How to represent/monitor downtime and trouble
  tickets? (Is this in scope?)

17
REMINDER T0 Site Requests

• A robust machine meeting the following specs must
  be made available
• Dual cpu Xeon 3 GHz processors or dual opteron
  2.2 GHz or better
• 4 Gigabytes of memory to support monitoring apps
  and large TCP buffers
• 1 or 10 Gigabit network interface on the LHC-OPN.

• 200 GB of disk space to allow for the LHCOPN apps
  data repository.
• A separate disk (200 GB) to back-up the LHCOPN
  data repository.
• OPTIONAL An out-of-band link for
  maintenance/problem diagnosis.
• Suitably privileged account(s) for software
  installation/access.
• This machine should NOT be used for other
  services.
• SNMP RO access for the above machine is required
  for all L2 and L3 devices or proxies (in case of
  security/performance concerns)
• Access to Netflow (or equiv.) LHC-OPN data from
  the edge device
• Appropriate RO access (via proxy?) to the optical
  components (for optical power monitoring) must
  allowed from this same host.
• Access (testing/maint.) must be allowed from all
  LHC-OPN nets.
• The Tier-0 needs a point-of-contact (POC) for
  LHC-OPN monitoring.

18
REMINDER T1 Site Requests

• A dedicated LHC-OPN monitoring host must be
  provided
• A gigabyte of memory
• 2 GHz Xeon or better CPU.
• 1 Gigabit network interface on the LHC-OPN.
• At least 20 GB of disk space allocated for
  LHC-OPN monitoring apps.
• An suitably privileged account for software
  installation.
• OPTIONAL An out-of-band network link for
  maintenance/problem diagnosis
• OPTIONAL This host should only be used for
  LHC-OPN monitoring
• OPTIONAL each Tier-1 site should provide a
  machine similar to the Tier-0.
• SNMP RO access for the above machine is required
  for all T1 LHC-OPN L2 and L3 devices or proxies
  (for security/performance concerns)
• Access to Netflow (or equiv.) LHC-OPN data from
  the edge device
• Appropriate RO access, possibly via proxy, to the
  T1 LHC-OPN optical components (for optical power
  monitoring) must allowed from this host.
• Access (testing/maint.) should be allowed from
  all LHC-OPN networks.
• The Tier-1 needs to provide a point-of-contact
  (POC) for LHC-OPN monitoring

19
REMINDER NREN Desired Access

• We expect that we will be unable to require
  anything for all possible NRENs in the LHC-OPN.
  However the following list represents what we
  would like to have for the LHC-OPN
• SNMP (readonly) access to LHC-OPN related L2/L3
  devices from either a closely associated Tier-1
  site or the Tier-0 site. We require associated
  details about the device(s) involved with the
  LHC-OPN for this NREN
• Suitable (readonly) access to the optical
  components along the LHC-OPN path which are part
  of this NREN. We require associated details
  about the devices involved.
• Topology information on how the LHC-OPN maps onto
  the NREN
• Information about planned service outages and
  interruptions. For example URLs containing this
  information, mailing lists, applications which
  manage them, etc.
• Responsibility for each acquiring NREN
  information should be distributed to the various
  Tier-1 POCs.

20
Prototype Deployments

• We like to begin prototype distribution
  deployments to at least two Tier-1s and the
  Tier-0
• The goal is to prototype various software which
  might be used for LHC-OPN monitoring
• Active measurements (and scheduling?)
• Various applications which can provide LHC-OPN
  metrics (perhaps in different ways)
• GUI interfaces to LHC-OPN data
• Metric data management/searching for LHC-OPN
• Alerts and automated problem handling
  applications
• Interactions between all the preceding
• This process should lead to a final LHC-OPN
  monitoring system matched to our needs.

21
Prototype Deployment Needs

• For sites volunteering to support the LHC-OPN
  monitoring prototypes we need
• Suitable host (see requirements)
• Account details (username/password). Can provide
  SSH public key as alternative for passwd.
• Any constraints or limitations about host usage.
• Out-of-band access info (if any)
• Each site should also provide a monitoring
  point-of-contact.
• VOLUNTEERS? (email smckee_at_umich.edu)

22
Monitoring Site Requirements

• Eventually each LHC-OPN site should provide the
  following for monitoring
• Appropriate host(s) (see previous slides)
• Point-of-contact for monitoring
• L1/L2/L3 Map to Tier-0 listing relevant nodes
  and links
• Responsible for contacting intervening NRENs
• Map is used for topology and capacity information
• Should include node(device) address, description
  and access information
• Readonly access for LHC-OPN components
• Suitable account(s) on monitoring host
• Sooner rather than laterdictated by interest

23
Future Directions / Related Activities

• There are a number of existing efforts we
  anticipate actively
• prototyping for LHC-OPN monitoring
  (alphabetically)
• EGEE JRA4/ EGEE-II SA1 Network Performance
  Monitoring - This project has been working on an
  architecture and a series of prototype services
  intended to provide Grid operators and middleware
  with both end-to-end and edge-to-edge performance
  data. See http//egee-jra4.web.cern.ch/EGEE-JRA4
  / and a demo at https//egee.epcc.ed.ac.uk28443/n
  pm-dt/
• IEPM -- Internet End-to-end Performance
  Monitoring. The IEPM effort has its origins in
  the 1995 WAN monitoring group at SLAC. IEPM-BW
  was developed to provide an infrastructure more
  focused on a making active end-to-end performance
  measurements for a few high-performance paths.
• MonALISA Monitoring Agents using a Large-scale
  Integrated Services Architecture. This framework
  has been designed and implemented as a set of
  autonomous agent-based dynamic services that
  collect and analyze real-time information from a
  wide variety of sources (grid nodes, network
  routers and switches, optical switches, running
  jobs, etc.)
• NMWG Schema - The NMWG (Network Measurement
  Working Group) focuses on characteristics of
  interest to grid applications and works in
  collaboration with, other standards groups such
  as the IETF IPPM WG and the Internet2 End-to-End
  Performance Initiative. The NMWG will determine
  which of the network characteristics are relevant
  to Grid applications, and pursue standardization
  of the attributes required to describe these
  characteristics.
• PerfSonar This project plans to deploy a
  monitoring infrastructure across Abilene
  (Internet2), ESnet, and GEANT. A standard set of
  measurement applications will regularly measure
  these backbones and store their results in the
  Global Grid Forum Network Measurement Working
  Group schema (see below).

24
Summary and Conclusion

• The LHC-OPN monitoring document is updated to
  reflect the new emphasis on
• Determining the appropriate metrics
• Prototyping possible applications/systems
• All sites should identify an LHC-OPN
  point-of-contact to help expedite the monitoring
  effort.
• We have a number of possibilities regarding
  metrics. Defining which (if any) are required
  will help direct the prototyping efforts.
• Prototyping is ready to proceed -- we need to
  identify sites which will host this effort.
