block structure

1

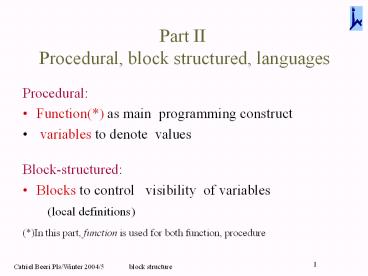

Part II Procedural, block structured, languages

• Procedural
• Function() as main programming construct
• variables to denote values
• Block-structured
• Blocks to control visibility of variables
• (local definitions)
• ()In this part, function is used for both
  function, procedure

2

• Main requirements
• Precisely defined, conceptually simple
  static structure for programs
• addressed by universally accepted scope rules
• Static structure should provide good
  understanding of dynamic behavior
• addressed by correct use of scope in semantics
  implementation

Program structure should enable programmer
to predict its behavior
3

• Contents
• Semi-formal description of static structure
• The substitution model operational semantics
  for a simple functional language
• Introduction to type systems
• Definitions, comparison of dynamic/static typing
• A simple monomorphic type system
• specification, type-checking,
  correctness
• Extensions of the language with additional
  constructs recursion, cells
  with assignment, data structures,
• including both semantics and types
• The environment model an alternative
  operational semantics

4
Block structure

• Literals, identifiers, variables
• Variable declarations, definitions, uses
• Blocks, regions, scope
• Common kinds of blocks

5
Literals, identifiers variables

• literals numbers, booleans, strings,
• identifiers --- used by programmers to name
  entities
• Two categories distinguished by syntax
  conventions
• Identifier name spaces
• Variables denote values
• (numbers, booleans, cells, functions,
  lists, )
• Type names (simply types)
• Constructors (in ML)
• . . . . .

6

• An identifier collision
• when same identifier used for different
  purposes in a program
• Collisions between different name spaces often
  resolved by position
• type bing Bing of int
• let bing Bing(5) ( a value of type bing )
• But, within a space, rules must be used.
• We deal with variable space

7
Variable declarations, definitions, uses

• Variable occurrence a variable in a specific
  position
• Occurrences divided into
• declaration -- introduces a variable
• often carries additional information
  type, lifetime,
• use an occurrence that is not a declaration
• definition occurrence in expression whose
  elaboration at run-time associates the
  variable with a value
• may be a use, or a declaration (most
  often the latter)

8

• Programming languages offer a variety of
• declaration constructs
• definition constructs
• These often group several declarations/definitions
  together

9
Examples in C int x a declaration
(implicit) definition (why?)
real foo(real x), int
z return xyz declares defines foo,
declares x, declares defines z, uses x, y,
z int goo(int x) (a function prototype)
declares goo, x int goo(int x)return x1
given the declaration, a definition a use of
goo
10

• Scheme, OCAML
• (define foo (lambda (x) ( x y)))
• declares defines foo, declares x, uses x, y
• 2. (let ((x 3) (y ( z 1))) ( x z)) (a
  definition construct)
• declares defines x, y uses x, z
• let x 5
• declares defines x
• 4. let foo function x ? x1
• declares defines foo, declares x
• 5. let x 4 and y z1 in xz
• declares defines x, y uses x, z

11
Block, region , scope

• Block any program construct that restricts
  visibility of variables declared in it
• variable declared at most once in a
  block
• Functions/procedures are abstractions ? restrict
  visibility of formal parameters ? are blocks
• Other common blocks let, let rec, let
  (scheme), program, function body, compound
  statement (in some pls)

12

• A program may contain several declarations of
  variables with same name (in different blocks)
  these are different variables
• Blocks may be nested
• Q To which variable (declaration) does a give
  use refer (is statically bound to)?

13
Examples int x
real y 0.0 real foo(real x)int
z return xyz (define foo (lambda (x) ( x
y))) The use of x is statically bound, that
of y is free
14

• Q Why is it important to associate uses with
  declarations?
• A This defines their meaning, their run-time
  values
• At run-time, declared variables are dynamically
  bound to values
• Each binding is associated with a
  declaration
• Many bindings for a given identifier may exist
• Static binding of a use to a declaration allows
  to select for it only the dynamic binding(s)
  associated with that declaration

Static structure determines dynamic behavior
15

• Example
• int n 43
• int x 3
• int zoo(int n)if n 0 then return 1 else
  xzoo(n-1)

16

• Terminology
• d(x) a declaration of x, u(x) a use
  of x
• decl(u(x)) the declaration to which u(x) is
  statically bound
• The rules that determine decl(u(x))
• Block specific rules
• A universal rule

17

• Block specific
• Each variable declared in a block has an
  associated
• region (of visibility) in
  the block
• ( a component of the block)
• Each block-kind has specific rules that
  determine the region for each variable
  declared in it

18

• Examples
• 1. let x E1 in E2
• the region of d(x) here is E2
• 2. let rec f E1 in E2
• the region of d(f) here is both E1, E2
• 3. int x 5
• int y x5
• the region of a declared variable in a C block
  from after the declaration to end of block

19

• Blocks and regions may be nested
• Partial overlap not allowed ? hierarchies
• The important one the region hierarchy
• The universal rule
• The scope of a declaration of x
• its region, excluding all nested regions of
  other declarations of x

20

• Region --- associated with block kinds
• Scope --- determines actual visibility in given
  program, based on actual nesting
• Region ????? ,
  scope ????
• The discipline is called
• static/lexical) scoping ????? ????
• Static--- determined by program structure

21

• Example
• int n 43
• int x 3
• int zoo(int n)if n 0 then return 1 else
  xzoo(n-1)
• The region of 1st declaration of n
• down to end of program
• Its scope the function expression for zoo is
  excluded

22

• A bit more terminology
• A declaration d(x) binds each u(x) in its
  scope
• use bound to decl. --- a binary, functional
  relation
• A use u(x) is bound/free in a program phrase E
  decl(u(x)) is/is not defined in E
  (two unary predicates)
• ( local, global have similar meanings)
• Variable x is free/bound in E, if it has a
  free/bound use in E (can have both)
• For all add statically-

23
Common kinds of blocks

• Function
• Non-recursive, (possibly) parallel (collateral)
• Regions do not contain defining expressions
• independent definitions
• Sequential definitions elaborated one by one,
• each may use previously defined variables
• regions do not contain defining expressions
• Recursive the regions do contain the defining
  expressions
• Comment
• In all kinds except function, each declaration
  may be viewed as a definition (possibly to null)

24

• Graphic illustration
• P
• Non-recursive, parallel block
• let x 3, y x 5 in x y
• Sequential block
• let x 3, y x 5 in x y (Scheme
  let)

(pseudo-code)
(pseudo-code)
25

• A recursive block
• let rec factorial function n if n0 then
  1
•
  else nfactorial (n-1)
• in factorial 3
• Another recursive block (mutual recursion)
• let rec even function n ? if n 0 then true
•
  else odd (n-1)
• and odd function n ? if n0 then false
•
  else even (n-1)
• in even 3

26

• Comment on recursion in C
• Recursion of a single function by default (in
  C)
• a recursive block
• For mutual recursion use a sequential block,
  separate declaration from definition
• int foo(int x) // function declaration
• int goo(int y)foo(y-1)
• int foo(int x).goo(x1) // function
  definition

27

• Every block is (up syntactic variation) one of
  the four kinds
• Example
• for (int i 1, i, i
• This loop construct is a block
• Could separate the definition from the uses
• int t (implicit definition)
• for (i1
• It is convenient to make blocks of various
  constructs (here a loop)
• But, they typically fall into one of the kinds
  above

28

• A sequential block may interleave defintions and
  expressions
• A sequential block can be converted to nested
  parallel blocks
• (let ((x 3) (y ( x 4))
• ( x y))
• ? (let ((x 3))
• (let ((Y ( x 4))
• ( x y)))
• ? It can be ignored in general semantic
  discussion

29

• Conclusions
• Languages are very similar in terms of their
  block structure
• It suffices to define semantics for a toy
  language with the three main kinds of blocks
