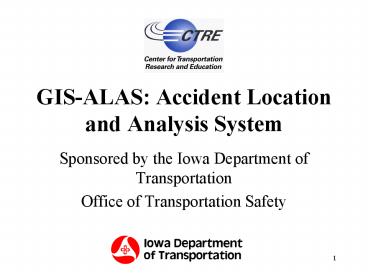

GIS-ALAS Accident Location and Analysis System

• Sponsored by the Iowa Department of
  Transportation
• Office of Transportation Safety

2
Why Crash Analysis Systems?

• gt100 persons killed/day (gt37,000 in 1996)
• 8.8 million crashes per year in USA
• 2.3 million injuries
• vast amount of uncoordinated data
• powerful/low cost computing
• potentially huge B/C
•
  source NHTSA 1997

3
Past/present ALAS (PC-ALAS)

• PC-based system
• User-friendly interface, easy to learn
• About 700,000 crashes over 10 years
• Provides easy access to data
• Several Uses
• obtain accident statistics by time and location
• query database by accident/driver characteristics
• generate reports on-screen, to a file, to the
  printer

4
Current Difficulties

• Node numbers must be identified from tables or
  paper maps
• Difficult to analyze patterns
• Does not readily support integration of
  additional data
• Hard to identify crash hot spots and to analyze
  causes and countermeasures

5
CAD Node Maps
6
Past/present ALAS
7
(No Transcript)
8
(No Transcript)
9
(No Transcript)
10
(No Transcript)
11
(No Transcript)
12
GIS-ALAS Project Goals

• Develop geographic/map-based ALAS
• Use Power of GIS
• Portable, accessible, windows based
• Free users from node maps
• statewide coverage
• supports highway safety analysis
• facilitate integration with other data

13
Software Selection

• GIS World list
• distribution
• development language
• vendor stability
• short list (pre-Geomedia)
• ESRI (ArcView, Arcview Publisher, ArcExplorer,
  MapObjects)
• Mapinfo
• Caliper (Maptitude)

14
Software Selection (cont.)

• ESRI chosen
• ISU site license (low cost development)
• dynamic segmentation
• network analysis
• tech. Support (ISU GIS Facility)
• FHWA platform
• web application (MapObjects, Internet Mapper)
• ArcExplorer, ArcPublisher
• May migrate later

15
Crash Locations
CAD node file
Text - node ID, x, y
Paper crash records
MGE (unit conversion)
DB2 - ID - from node - to node - distance - crash
information
Text - node ID, lat, long
y
MapInfo Node Locations
x
MIF
text
MapBasic interpolation program
MapInfo Crash Locations
ArcView Crash Locations
16
(No Transcript)
17
Crash Information
MapBasic defines 3 tables A, B and C
MIF
MapInfo
Paper crash records
ArcView Crash Information (for ArcView-ALAS)
text
DB2 - ID - location information - A (crash)
records - B (driver 1) record - B (driver 2)
record - - C (1st 3 injuries) record - C (2nd 3
injuries) record - ...
text
fortran
ABBBC
ArcView Crash Information (for Explorer-ALAS)
18
Background Data
IDMS Base Records (DOT) - ADT - pavement type -
lane width - ...
CAD Roads (DOT) - State - County - Local
CAD Hydrology (DOT)
Rail (BTS)
DXF
Text file - vertices - information
BTS preprocessor
MapInfo/MapBasic aggregate to county level
MIF
ArcView
19
(No Transcript)
20
Avenue Scripts
21
PC ALAS
GIS ALAS
GIS ALAS
PC ALAS
PC ALAS
GIS ALAS
22
Logical Query
23
Spatial Query
24
Error Checking
Possible error
25
(No Transcript)
26
(No Transcript)
27
(No Transcript)
28
Usability Study

• Evaluate capabilities
• Assess documentation
• Identify bugs and problems in data
• Identify differences between users' and
  designers' perceptions
• Report user difficulties
• Report on success of revision

29
Phase II

• refine gis-alas and explorer alas
• currently building explorer ABBBC database (99!)
• working with past UNI work. future?
• intersection analysis capabilities (work with
  UI?)
• link-node lat/long conversion process
• assess avenue of saints as case study
• tech transfer, TRAINING!!! (how to use, why it's
  useful!)
• Jan - Oct 98

30
(No Transcript)
31
Applications Collision Diagram Software Interface
32
Emergency Response Applications

• Emergency response areas
• Nearest facility/shortest path to crash
• Impact of Avenue of the Saints on emergency
  response
• CODES - linking crash and hospital records

33
(No Transcript)
34
Aerial photo integration
File
Request
Search
Report
Analysis
Defaults
Help F1
View Details, Sorted by
35
