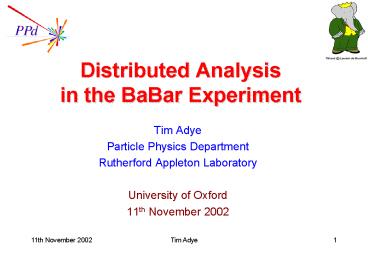

Distributed Analysis in the BaBar Experiment

1
Distributed Analysisin the BaBar Experiment

• Tim Adye
• Particle Physics Department
• Rutherford Appleton Laboratory
• University of Oxford
• 11th November 2002

2
Talk Plan

• Physics motivation
• The BaBar Experiment
• Distributed analysis and the Grid

3
Where did all the Antimatter Go?

• Nature treats matter and antimatter almost
  identically
• but the Universe is made up of just matter
• How did this asymmetry arise?
• The Standard Model of Particle Physics allows
  for a small matter-antimatter asymmetry in the
  laws of physics
• Seen in some K0-meson decays
• Eg. 0.3 asymmetry
• This CP Violation in the Standard Model is not
  large enough to explain the cosmological
  matter-antimatter asymmetry on its own
• Until recently, CP Violation had only been
  observed in K-decays
• To understand more, we need examples from other
  systems

4
What BaBar is looking for

• The Standard Model also predicts that we should
  be able to see the effect in B-meson decays
• B-mesons can decay in 100s of different modes
• In the decays
• B0 ? J/Ã K0 and
• B0 ? J/Ã K0
• we look for differences in the time-dependent
  decay rate betweenB0 and anti-B0 (B0).

Asymmetry
s
s
5
First ResultsSummary of the summary

• First results from BaBar (and rival experiment,
  Belle) confirm the Standard Model of Particle
  Physics
• The observed CP Violation is too small to explain
  the cosmological matter-antimatter asymmetry
• but there are many many more decay modes to
  examine
• We are making more than 80 measurements with
  differentB-meson, charm, and -lepton
  decays.

6
Experimental Challenge

• Individual decays of interest are only 1 in 104
  to 106B-meson decays
• We are looking for a subtle effect in rare (and
  often difficult to identify) decays, so need to
  record the results of a large number of events.

7
The BaBar Collaboration
9 Countries 74 Institutions 566
Physicists
8
PEP-II ee- Ring at SLAC
Low Energy Ring (e, 3.1 GeV)
Linear Accelerator
High Energy Ring (e-, 9.0 GeV)
BaBar
PEP-II ring C2.2 km
9
The BaBar Detector
108 B0B0 decays recorded
26th May 1999 first events recorded by BaBar
10

• To effectively analyse this enormous dataset, we
  need large computing facilities more than can
  be provided at SLAC alone
• Distributing the analysis to other sites raises
  many additional research questions
• Computing facilities
• Efficient data selection and processing
• Data distribution
• Running analysis jobs at many sites
• Most of this development either has, or will,
  benefit from Grid technologies

11
Distributed computing infrastructure
1. Facilities

• Distributed model originally partly motivated by
  slow networks
• Now use fast networks to make full use of
  hardware (especially CPU and disk) at many sites
• Currently specialisation at different sites
  concentrates expertise
• eg. RAL is primary repository of analysis data in
  the ROOT format

Tier A
Lyon
Padua
RAL
Tier C 20 Universities,
9 in UK
12
1. Facilities
RAL Tier ADisk and CPU
13
RAL Tier A
1. Facilities

• RAL has now relieved SLAC of most analysis
• BaBar analysis environment tries to mimic SLAC so
  external users feel at home
• Grid job submission should greatly simplify this
  requirement
• Impressive takeup from UK and non-UK users

14
BaBar RAL Batch Users(running at least one
non-trivial job each week)
1. Facilities
A total of 153 new BaBar users registered since
December
15
BaBar RAL Batch CPU Use
1. Facilities
16
Data Processing
2. Data Processing

• Full data sample (real and simulated data) in all
  formats is currently 700 TB.
• Fortunately processed analysis data is only 20
  TB.
• Still too much too store at most smaller sites
• Many separate analyses looking at different
  particle decay modes
• Most analyses only require access to a sub-sample
  of the data
• Typically 1-10 of the total
• Cannot afford for all the people to access all
  the data all the time
• Overload the CPU or disk servers
• Currently specify 104 standard selections
  (skims) with more efficient access

17
Strategies for Accessing Skims
2. Data Processing

• Store an Event tag with each event to allow fast
  selection based on standard criteria
• Still have to read past events that arent
  selected
• Cannot distribute selected sub-samples to Tier C
  sites
• Index files provide direct access to selected
  events in the full dataset
• File, disk, and network buffering still leaves
  significant overhead
• Data distribution possible, but complicated
• therefore only just starting to use this
• Copy some selected events into separate files
• Fastest access and easy distribution, but uses
  more disk space a critical trade-off
• Currently this gives us a factor 4 overhead in
  disk space
• We will reduce this when index files are deployed

18
Physics Data Selection(metadata)
2. Data Processing

• Currently have about a million ROOT files in a
  deep directory tree
• Need a catalogue to facilitate data distribution
  and allow analysis datasets to be defined.
• SQL database
• Locates ROOT files associated with each dataset
• File selection based on decay mode, beam energy,
  etc.
• Each site has its own database
• Includes a copy of SLAC database with local
  information (eg. files on local disk, files to
  import, local tape backups)

19
Data Distribution
3. Data Distribution

• Tier A analysis sites currently take all the data
• Requires large disks, fast networks, and
  specialised transfer tools
• FTP does not make good use of fast wide-area
  networks
• Data imports fully automated
• Tier C sites only take some decay modes
• We have developed a sophisticated scheme to
  import data to Tier A and C sites based on SQL
  database selections
• Can involve skimming data files to extract events
  from a single decay mode. This is done
  automatically as an integral part of the import
  procedure

20
Remote Job SubmissionWhy?
4. Job Submission

• The traditional model of distributed computing
  relies on people logging into each computing
  centre, building, and submitting jobs from there.
• Each user has to have an account at each site and
  write or copy their analysis code to that
  facility
• Fine for one site, maybe two. Any more is a
  nightmare for site managers (user registration
  and support) and users (set everything up from
  scratch)

21
Remote Job Submission
4. Job Submission

• A better model would be to allow everyone to
  submit jobs to different Tier A sites directly
  from their home university, or even laptop
• Simplifies local analysis code development and
  debugging, while providing access to full dataset
  and large CPU farms
• This is a classic Grid application
• This requires significant infrastructure
• Authentication and authorisation
• Standardise job submission environment
• Grid software versions, batch submission
  interfaces
• The program and configuration for each job has to
  be sent to the executing site and results
  returned at the end.
• We are just now starting to use this for real
  analysis jobs

22
The Wider Grid

• We are already using many of the systems being
  developed for the European and US DataGrids.
• Globus, EDG job submission, CA, VO, RB,
  high-throughput FTP, SRB
• Investigating the use of many more
• RLS, Spitfire, R-GMA, VOMS,
• We are collaborating with other experiments
• BaBar is a member of EDG WP8 and PPDG (European
  and US particle physics Grid applications groups)
• We are providing some of the first Grid
  technology use-cases

23
Summary

• BaBar is using B decays to measure
  matter-antimatter asymmetries and perhaps explain
  why the universe is matter dominated.
• Without distributing the data and computing, we
  could not meet the computing requirements of this
  high-luminosity machine.
• Our initial ad-hoc architecture is evolving
  towards a more automated system borrowing
  ideas, technologies, and resources from, and
  providing ideas and experience for, the Grid.
